What Pickups Upgrade Acoustic Bass Sound?

Acoustic bass guitars often suffer from thin, quacky, or feedback-prone sound when plugged in, frustrating advanced players chasing that warm, woody upright vibe through amps. Stock piezos exacerbate this, clipping highs and muddying lows under stage lights. This guide breaks down superior pickup upgrades, explaining tech, tone profiles, and installs to transform your ABG.

You'll learn pickup types from piezo to magnetic hybrids, how they capture string and body vibration differently, and which excel for slap, fingerstyle, or jazz. By the end, you'll select, install, and dial in upgrades like a luthier—expect 20-30 minutes to absorb and apply concepts.

No soldering required for most plug-and-play options; advanced knowledge of EQ, impedance, and signal chains assumed for optimal results.

▸What You'll Need

• •Acoustic or acoustic-electric bass guitar
• •Amplifier or PA system for testing
• •Instrument cables (balanced XLR/TRS preferred)
• •Screwdriver set for endpin jack access
• •Prerequisite: Understanding of bass frequencies (40-250Hz fundamental), piezo vs. magnetic transduction, and preamp buffering

Estimated Time: 20-30 minutes to read; 1-2 hours for initial testing Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Grasp Acoustic Bass Pickup Fundamentals

Acoustic bass pickups convert string and body vibrations to electrical signals. Piezo pickups (ceramic crystals under saddle) sense mechanical stress, excelling at attack but prone to harsh highs and feedback. Magnetic pickups (coils around poles) detect string magnetic flux changes, warmer like electric basses but missing body resonance.

Why it matters: Upgrades blend these for 'upright' tone—deep lows, articulate mids, airy highs. Expect wider dynamic range post-upgrade.

Image: Diagram showing piezo crystal deformation vs. magnetic coil string oscillation.

💡 Tips:

• •Visualize signal chain: Pickup > Preamp > Amp for impedance matching.

⚠️ Warnings:

• •Ignore impedance mismatch; it causes tone suck.

Step 2: Diagnose Stock Pickup Weaknesses

Plug into a clean amp; play root notes (E1=41Hz). Stock piezos often sound quacky (over-emphasized 1-2kHz), thin lows, ice-pick highs. Test with EQ flat—note feedback nodes around 200-400Hz.

Advanced metric: Scope output waveform; clipping on peaks signals poor headroom. This baseline guides upgrades.

Image: Oscilloscope traces comparing stock piezo vs. upgraded hybrid.

💡 Tips:

• •Use spectrum analyzer app (e.g., AudioTool) for freq response.

Step 3: Explore Piezo Upgrades for Clarity

Superior piezos like thin-film ceramics reduce quack via uniform pressure sensing. Fishman Matrix Infinity slices saddle precisely for even response, capturing hammer-ons naturally.

Pros: High output, no string mods. Cons: Still needs EQ. Expect 20-30% clearer attack.

Image: Cross-section of Matrix Infinity film under saddle.

⚠️ Warnings:

• •Avoid thick piezos; they unevenly load saddle, detuning intonation.

Step 4: Adopt Magnetic Pickups for Warmth

Soundhole or bridge magnets (e.g., humbuckers) prioritize string fundamentals, yielding electric-like punch with acoustic air. Rare Earth models add mic-blend for body thump.

Ideal for rock/slap; pairs with piezo for full spectrum. Dynamic range rivals uprights.

Image: Rare Earth humbucker installed in soundhole.

💡 Tips:

• •Angle toward bridge for brighter tone.

Step 5: Master Hybrid Blender Systems

Blenders mix piezo + magnetic (e.g., 70/30 ratios) via onboard preamp. LR Baggs systems use active buffering to prevent loading, delivering phase-coherent tone—no comb filtering.

Why elite: Mimics mic'd upright. Tweak blend live for venue acoustics.

Image: Blender control panel with piezo/mic/mix knobs.

⚠️ Warnings:

• •Phase reverse if lows cancel.

Step 6: Integrate Preamps and EQ Shaping

Upgrades shine with parametric EQ/preamps. Notch filters kill feedback; low-cut rolls rumble. Fishman Platinum adds tuner/DI.

Advanced: Boost 80Hz shelf, cut 250Hz Q=2 for upright growl.

Image: Preamp EQ curve graph.

Step 7: Evaluate Installation Methods

DIY: Remove strings, swap endpin jack/preamp (30-60min). Pro: $100-200 for routing/soundhole cuts.

Passive magnets easiest; active systems need 9V battery. Test impedance post-install (>1MOhm input).

Image: Step-by-step endpin jack removal.

💡 Tips:

• •Use foam under battery clip to prevent rattles.

Step 8: Test and Fine-Tune Upgraded Tone

A/B vs. stock through FRFR speaker. Record clips; analyze with DAW spectrum. Dial blend for balance—aim for even 40-5kHz response.

Pro result: Feedback-free at 110dB SPL, natural decay.

⚠️ Warnings:

• •Over-EQ flattens dynamics.

▸Pro Tips

• •Match pickup impedance to preamp (high-Z >500kOhm) for sparkle.
• •Blend 60% piezo/40% magnetic for versatile ABG tone.
• •Use DI box with ground lift for stage hum elimination.
• •Calibrate with reference tracks (e.g., upright bass on 'Freddie Freeloader').
• •Silicone saddles with piezos reduce squeak.
• •Battery test monthly; low voltage muddies tone.
• •Position external mics 12in off-axis for hybrid validation.

▸Common Mistakes to Avoid

• •Installing without impedance-matched preamp, causing high-end loss—use active buffer.
• •Ignoring phase alignment in blends, creating thin mids—flip piezo phase.
• •Overlooking saddle fit; loose piezos buzz—shim precisely.
• •Skipping venue testing; studio tone fails live—simulate with FRFR.
• •Choosing electric bass pickups; too mid-heavy for acoustic body.

▸Troubleshooting

Problem: Excessive feedback

Solution: Notch filter at ringing freq (use app); reposition pickup; add low-cut.

Problem: Weak output/lows

Solution: Check battery; verify high-Z input; blend more magnetic.

Problem: Quacky highs

Solution: Tilt magnetic pickup; EQ cut 2-4kHz; upgrade to thin-film piezo.

Problem: Intermittent signal

Solution: Reseat jack wires; clean pots with Deoxit; inspect battery clip.

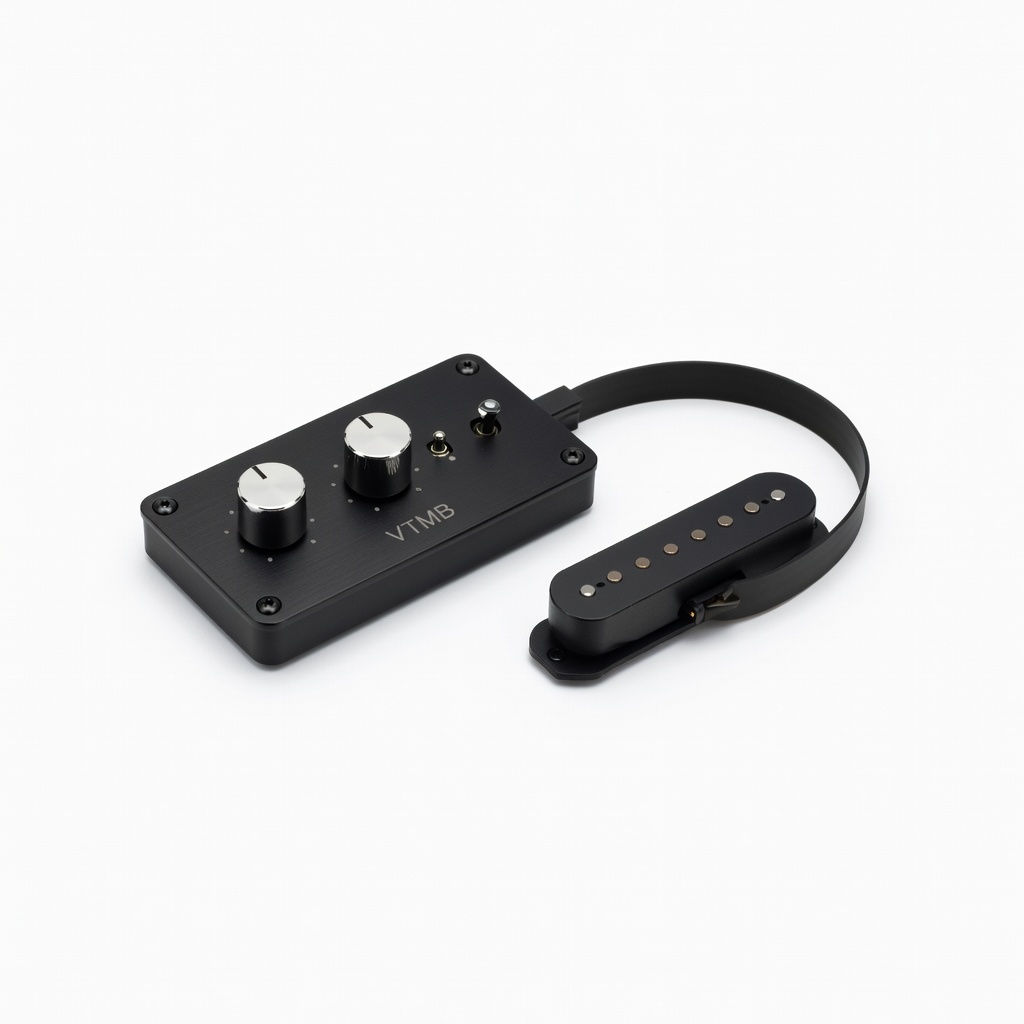

Fishman Matrix Infinity VTMB

Precision thin-film piezo with active buffer for ultra-clear, quack-free response and easy drop-in install.

Best for: Primary upgrade for fingerstyle/jazz ABGs needing attack without harshness.

Price Range: $169-$189

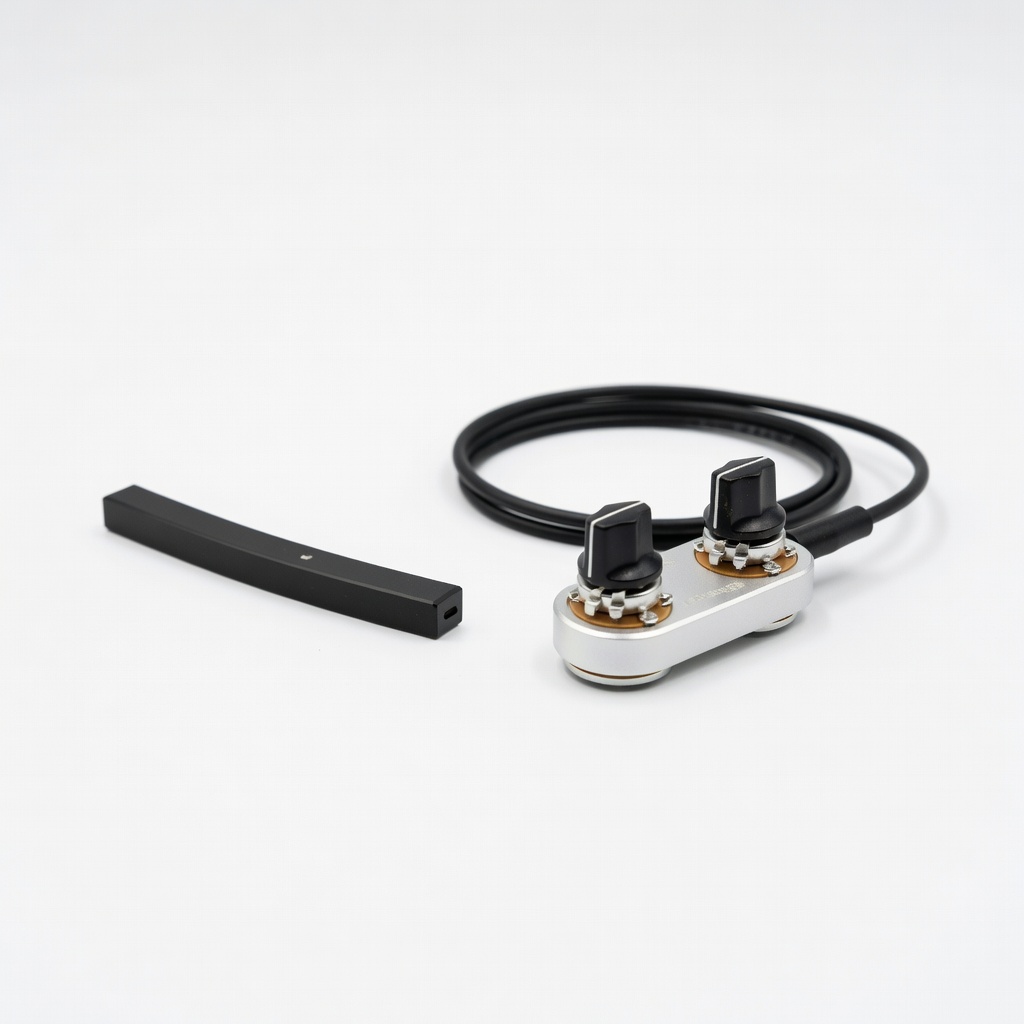

LR Baggs Element VTC Bass System

Under-saddle piezo with volume/tone controls and TRU•MIC hybrid emulation for natural upright warmth.

Best for: Studio/live players wanting simple preamp integration and feedback resistance.

Price Range: $199-$229

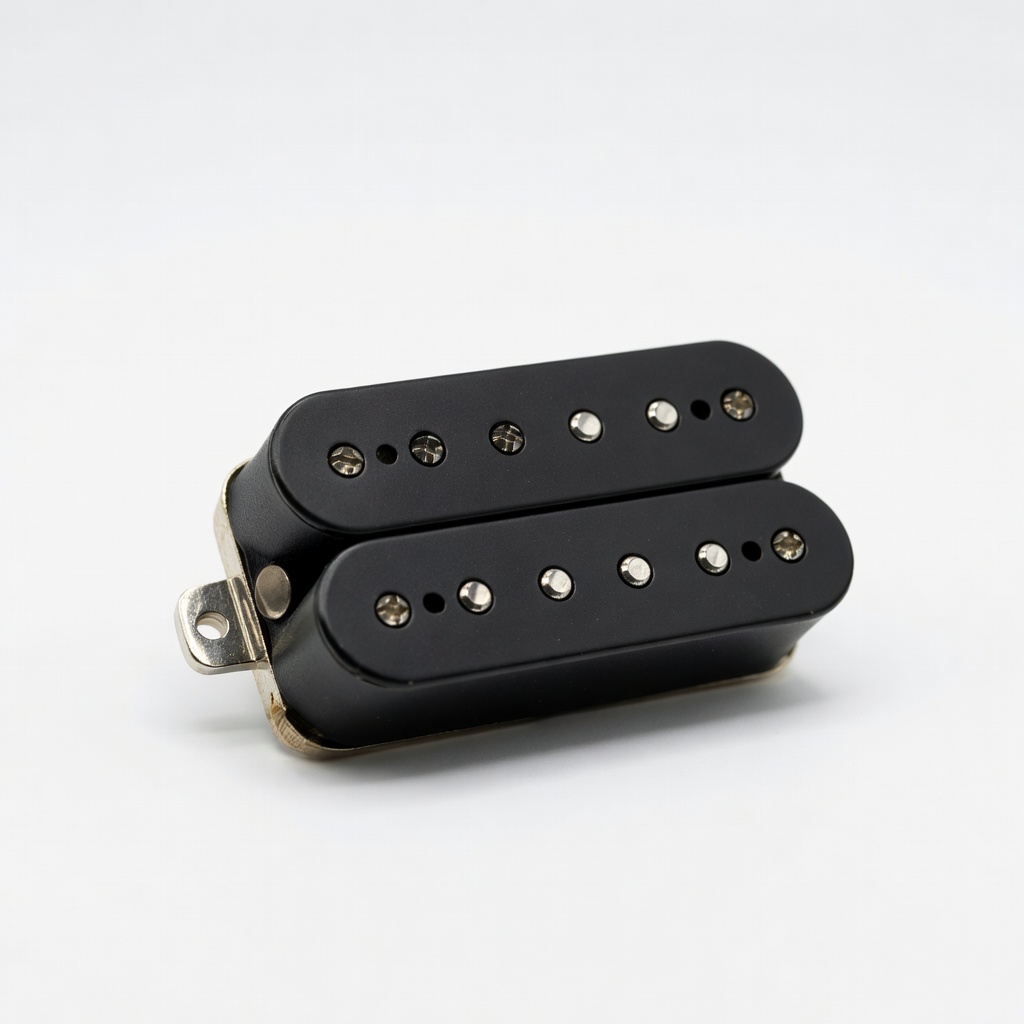

Fishman Rare Earth Humbucker Bass Pickup

Soundhole magnetic with passive install, delivering punchy lows and string definition.

Best for: Budget magnetic blend for slap/pop styles on fretted ABGs.

Price Range: $140-$160

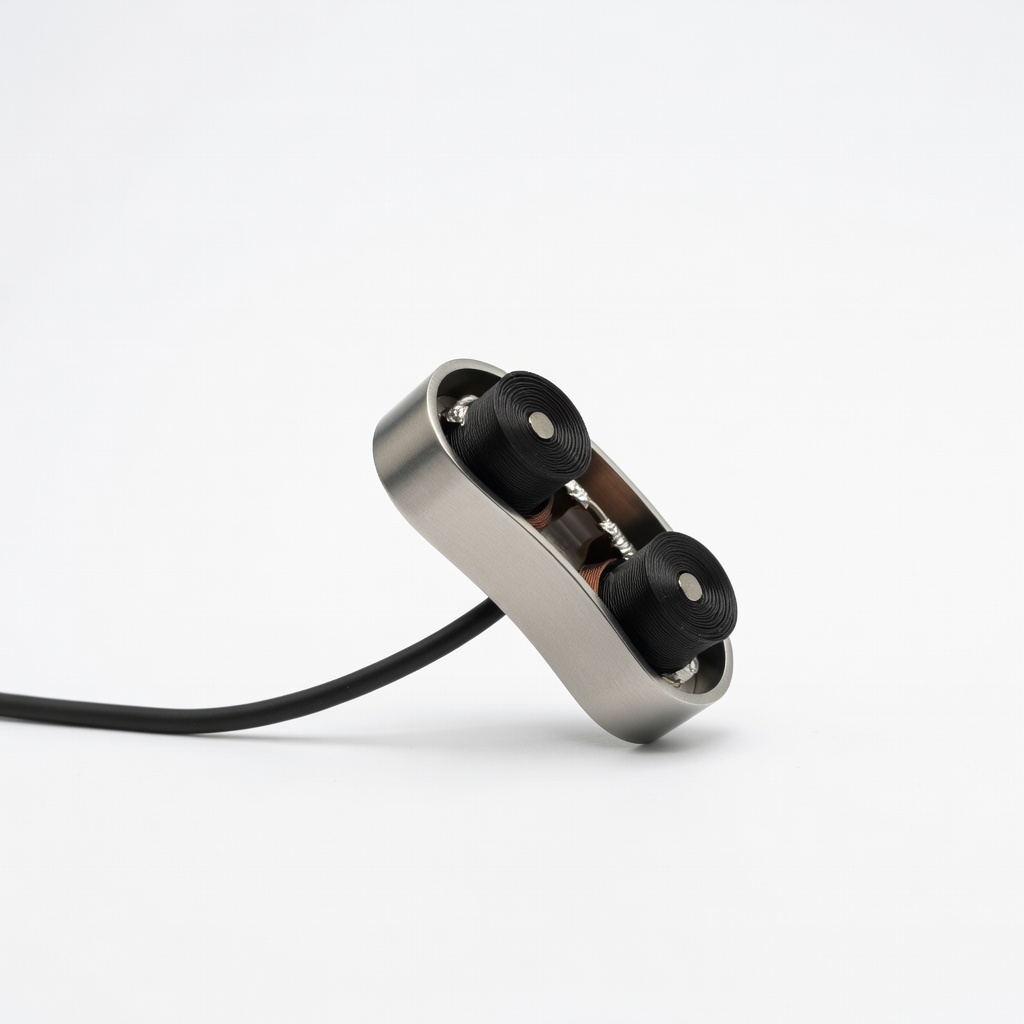

K&K Pure Mini Bass Pickup

Dual passive transducers for balanced, mic-like body capture without preamp needs.

Best for: Portable, no-battery setup for acoustic purists.

Price Range: $79-$99

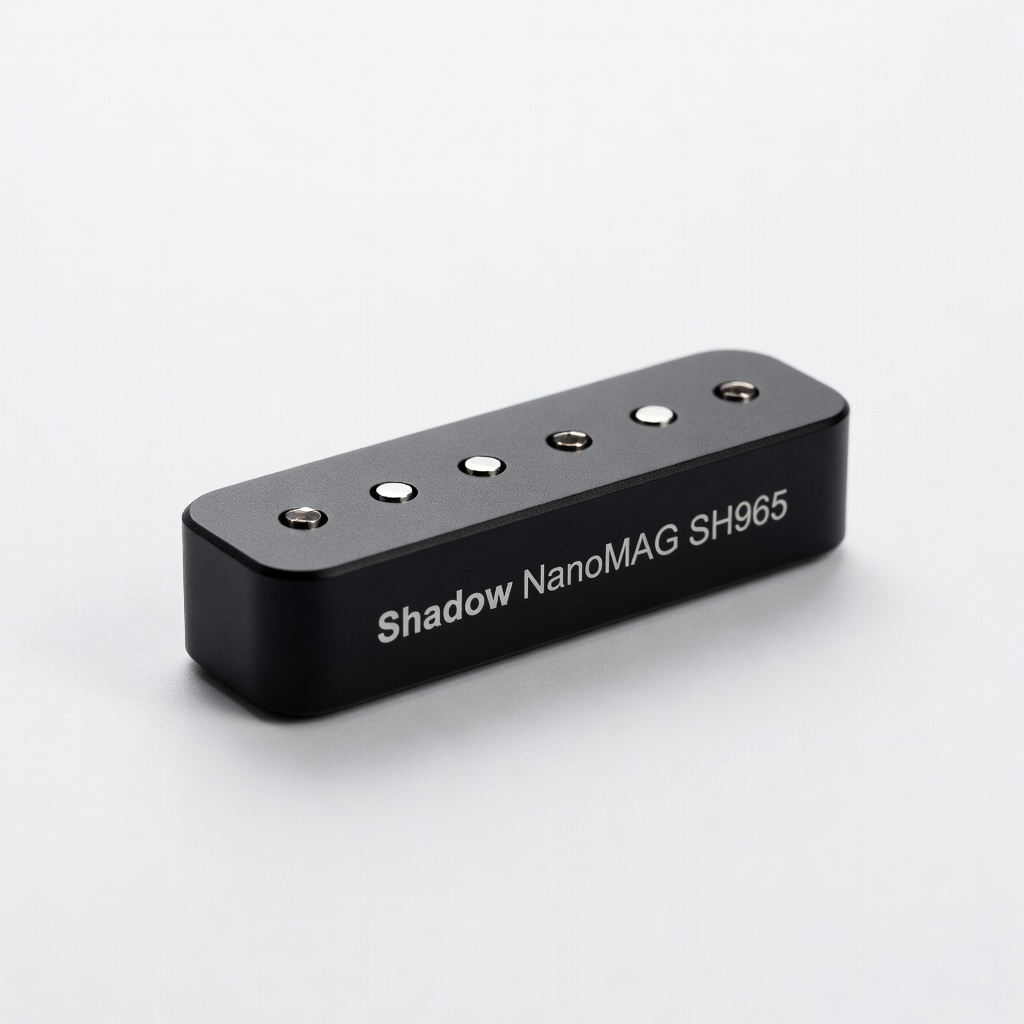

Shadow NanoMAG SH965 Bass Pickup

NanoFlex + NanoMAG hybrid for versatile tone shaping in tight spaces.

Best for: Advanced tinkerers customizing slap to arco emulation.

Price Range: $99-$129
