What Accessories Enhance 3DO Modding?

The 3DO Interactive Multiplayer (1993) is a retro gem with untapped potential, but stock AV output, slow CD loading, and region locks hold it back. Advanced modders overcome these with hardware hacks like HDMI upgrades, SSD swaps, and region-free chips—yet success hinges on the right accessories to avoid damaging rare boards.

This guide breaks down top accessories that elevate 3DO modding, from soldering precision to upscale video. You'll learn what each does, why it matters, and real-world use cases. Expect 20-30 minutes to absorb and plan your setup; advanced skills like soldering assumed.

By the end, you'll know how to assemble a modding arsenal that minimizes risks and maximizes results, breathing new life into your FZ-1 or Goldstar unit.

▸What You'll Need

• •Soldering experience (through-hole and SMD)
• •Basic electronics knowledge (resistors, capacitors, ICs)
• •Torx and Phillips screwdriver set (T8-T10 for 3DO cases)
• •Isopropyl alcohol (99%) and microfiber cloths for cleaning
• •Anti-static wrist strap (required to prevent ESD damage)

Estimated Time: 20-30 minutes to read and plan; 4-8 hours for initial modding sessions Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Precision Soldering Stations

Start with a temperature-controlled soldering station for reliable joints on 3DO's fragile PCBs. 3DO boards use fine-pitch ICs (e.g., for video DACs in HDMI mods), so fixed-wattage irons cause cold joints or lifted pads.

Why it enhances: Precise temp (300-400°C) prevents overheating RDRAM or ASICs. Expect cleaner desoldering of EPROMs for region mods. Pair with quality solder (0.5-0.8mm, 60/40 rosin core).

Image description: Close-up of Hakko station soldering a tiny SMD resistor on a 3DO motherboard.

💡 Tips:

• •Set to 350°C for most 3DO work; use drag soldering for ground planes.

⚠️ Warnings:

• •Avoid cheap irons—poor temp stability warps traces.

Step 2: Flux and Desoldering Aids

Flux pens or paste ensure solder flows smoothly during mod installs like the Goldstar region-free jumper. 3DO mods often require removing CD-ROM controller solder bridges.

Enhancement: Reduces oxidation on aged boards, preventing shorts. Use no-clean flux for easy cleanup. Solder wick and pumps handle excess lead-free solder blobs common in Panasonic FZ-10 repairs.

Expect mirror-like joints post-cleanup with IPA.

💡 Tips:

• •Apply flux sparingly; wick in short passes to avoid board heat soak.

⚠️ Warnings:

• •Excess flux traps residue—always clean to prevent corrosion.

Step 3: Digital Multimeters (DMMs)

A quality DMM tests continuity, voltage (5V/12V rails), and resistance pre/post-mod. Critical for verifying HDMI mod power draw or SSD interface signals.

Why vital: 3DO's PSUs fail under mod loads; DMM spots shorts early. Auto-ranging models speed diode checks on video amps.

Image description: DMM probes on 3DO power pins with LCD reading 5.1V.

💡 Tips:

• •Use continuity mode for trace breaks from case screws.

Step 4: Hot Air Rework Stations

For SMD IC lifts (e.g., swapping video encoders), hot air removes/reflows chips without damage. Essential for advanced FPGA HDMI boards on Goldstar models.

Enhances precision: Even heat (300°C air) lifts 44-pin QFPs cleanly. Profile nozzles for targeted work.

Expect 5-10 min per IC with good flux.

⚠️ Warnings:

• •Preheat board to 100°C; skip for beginners to avoid delamination.

Step 5: Video Scalers and HDMI Kits

OSSC or RetroTink upscalers pair with internal HDMI mods for lag-free 240p to 1080p. Kits like 3DO HDMI daughterboards bypass composite.

Boosts playability: Zero-lag scanlines revive Road Rash. External scalers test mods safely.

Image description: OSSC connected to 3DO AV ports outputting to modern TV.

💡 Tips:

• •Firmware flash OSSC for 3DO timings (256px hsync).

Step 6: Storage and Cooling Add-ons

IDE-to-SD adapters speed load times 10x; Noctua fans cool SSD mods. 3DO CDs warp lasers—mods future-proof.

Enhancement: Silent operation, no seek noise. Heatsinks on RDRAM prevent crashes.

Expect 30s loads vs. 45s.

⚠️ Warnings:

• •Match voltage; 3DO IDE is 5V only.

▸Pro Tips

• •Document board photos pre-mod for trace reference.
• •Use Kapton tape to mask nearby components during hot air.
• •Batch-test mods on a donor board first.
• •Flux + IPA bath cleans 20-year grime instantly.
• •Pair OSSC with 5x mode for authentic CRT look.
• •Anti-static mat + ground plug saves rare units.
• •EEPROM programmer verifies region chip dumps.

▸Common Mistakes to Avoid

• •Overheating boards (>5s dwell)—lifts pads; use timers.
• •Skipping ESD protection—zaps CMOS chips instantly.
• •Wrong flux (water-soluble)—corrodes traces long-term.
• •Ignoring PSU mods—brownouts crash video during HDMI.
• •Blind soldering without DMM—hides power shorts.

▸Troubleshooting

Problem: No video post-HDMI mod

Solution: Check 3.3V rail with DMM; reflow DAC ICs with hot air.

Problem: Overheating during play

Solution: Add 40mm Noctua fan to PSU exhaust; monitor <60°C.

Problem: Solder bridges shorting

Solution: Flood with no-clean flux wick; inspect under 10x loupe.

Problem: Region mod fails

Solution: Re-flash EPROM with TL866II programmer; verify checksum.

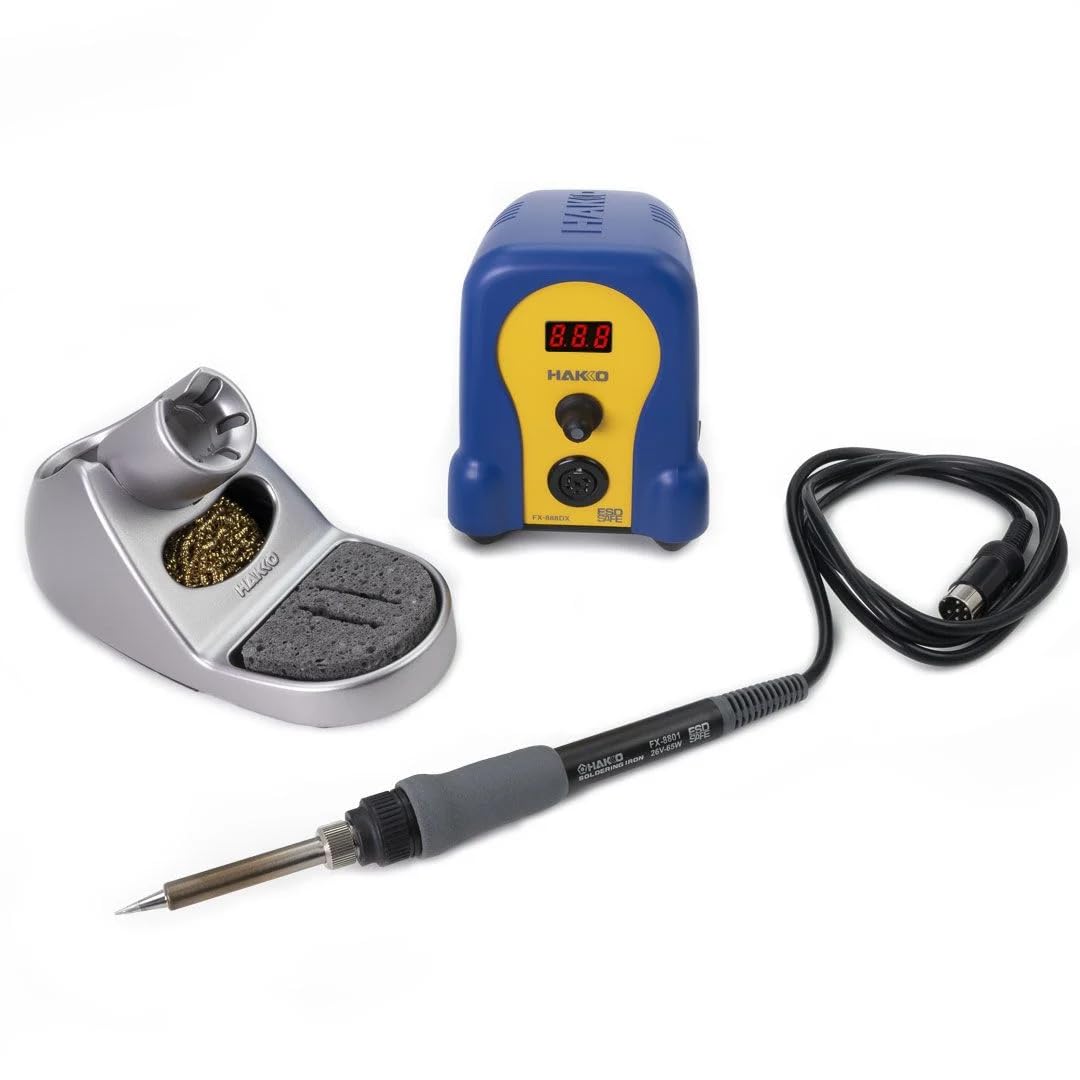

Hakko FX-888DX Digital Soldering Station

Industry gold standard for temp stability on delicate 3DO SMD work.

Best for: All soldering: HDMI kits, region chips, trace repairs.

Price Range: $100-$130

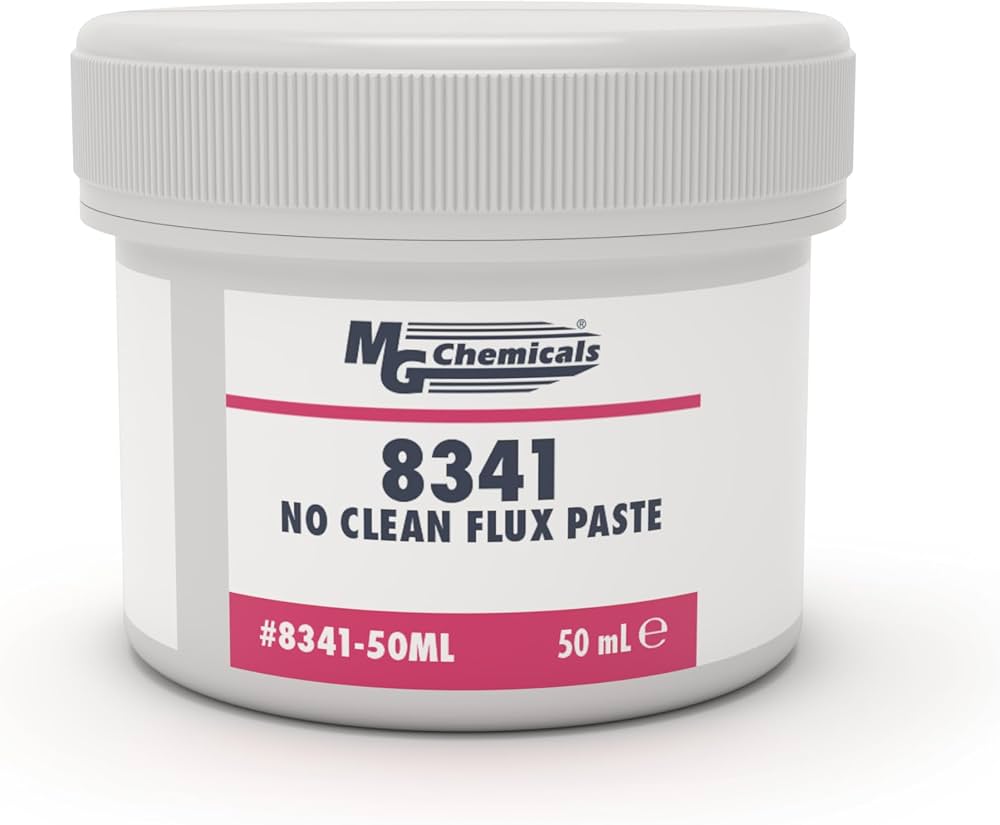

MG Chemicals 8341 Flux Paste

Superior wetting for aged leads; no residue post-clean.

Best for: Desoldering bridges, reflowing ICs in video mods.

Price Range: $12-$18

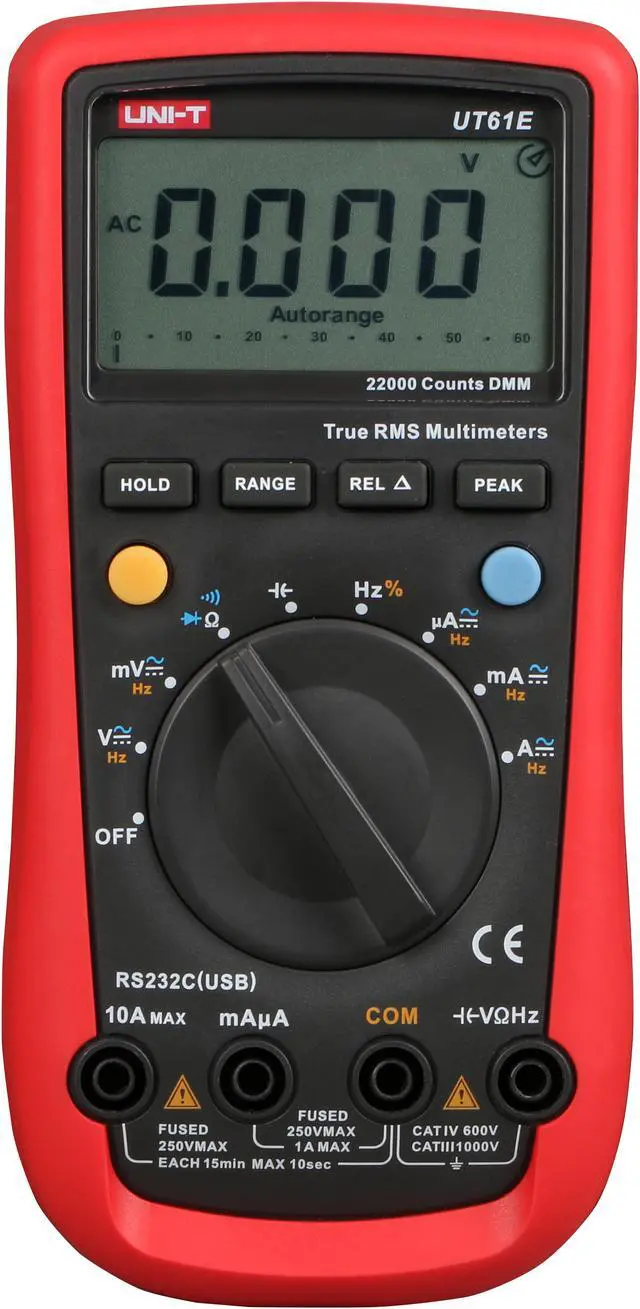

UNI-T UT61E Multimeter

Accurate for low-voltage 3DO rails; data hold for probing.

Best for: Power verification, continuity in storage mods.

Price Range: $45-$60

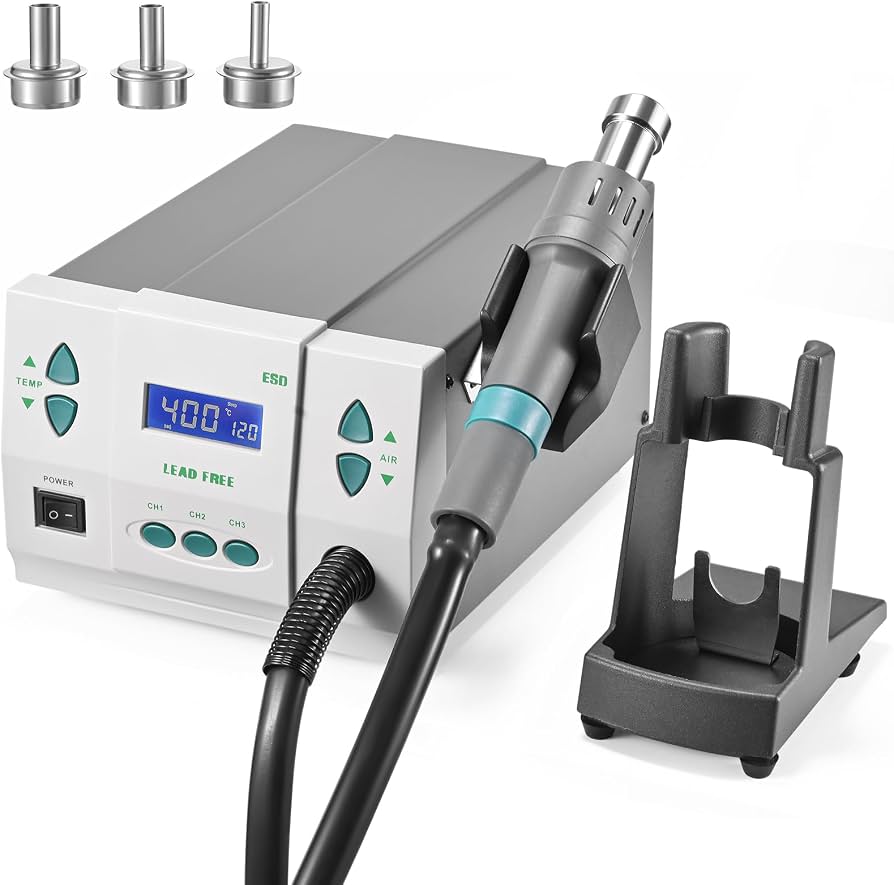

Quick 861DW Hot Air Rework Station

Variable airflow for precise SMD removal without warping.

Best for: Advanced IC swaps in FPGA HDMI boards.

Price Range: $180-$220

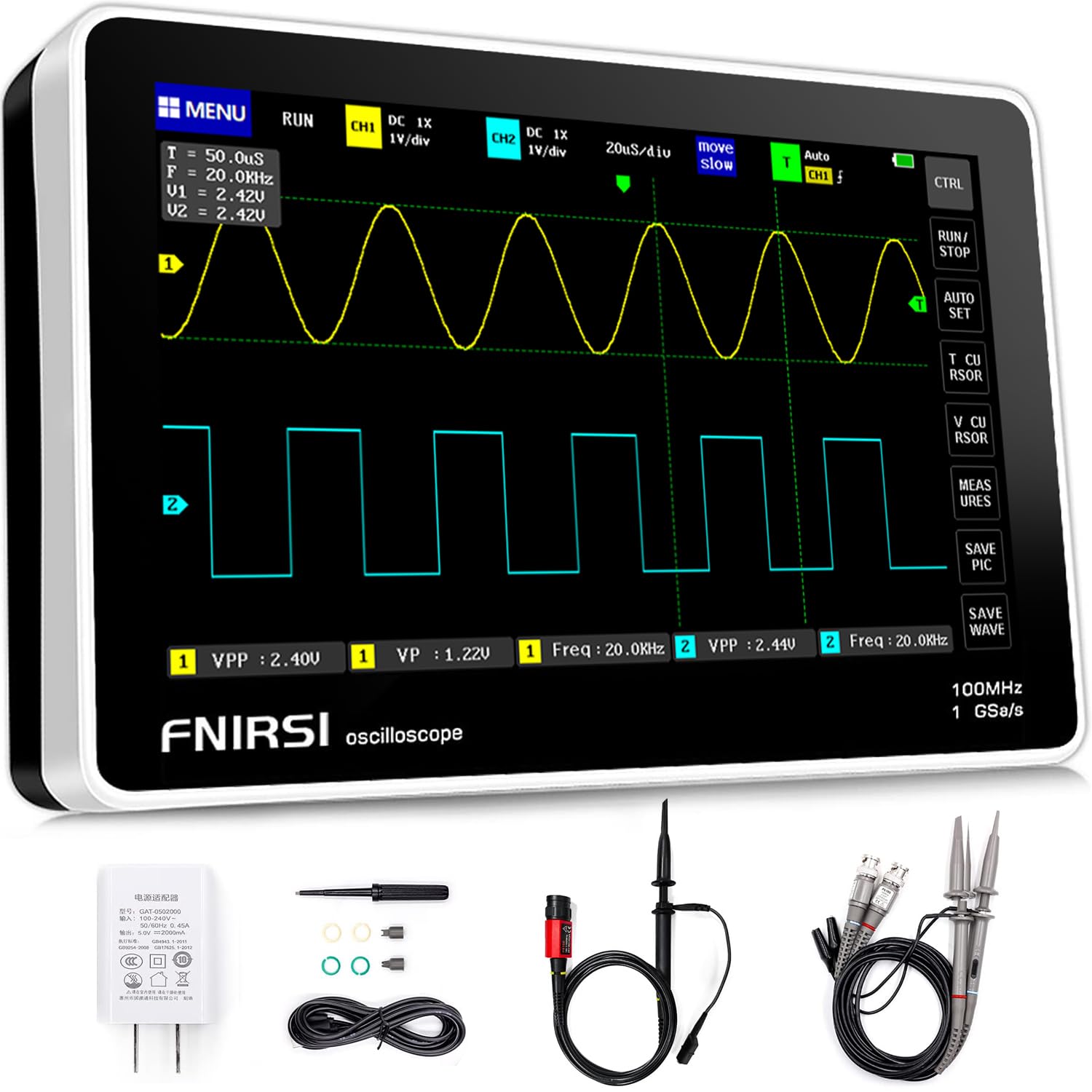

FNIRSI 1013D Oscilloscope

Portable 100MSa/s for signal debugging (HSYNC, I2C).

Best for: Troubleshoot video timing in scaler mods.

Price Range: $120-$150
