What Abrasive Wheels Work on Hardened Steel?

Struggling with wheel glazing, excessive wear, or burning on hardened steel? Hardened steel, typically heat-treated to Rockwell C 50-65, resists standard abrasives, leading to frustration and inefficiency for welders, fabricators, and machinists.

In this advanced guide, you'll master the abrasives that cut through tough tool steels, dies, and blades without compromise. We'll break down material science, wheel anatomy, and selection criteria—from zirconia to CBN—so you can choose precisely and boost productivity by 2-3x.

Expect 15 minutes to read, with real-world specs and no fluff. Perfect for pros ready to upgrade their arsenal.

▸What You'll Need

• •Knowledge of steel hardness (Rockwell C scale)
• •Experience operating angle grinders or die grinders
• •Safety gear: ANSI Z87.1 goggles, gloves, respirator, hearing protection
• •Access to variable-speed grinder (5,000-12,000 RPM)
• •Sample hardened steel workpiece (e.g., HRC 55+ tool steel)

Estimated Time: 15-20 minutes Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Grasp Hardened Steel Properties

Hardened steel achieves extreme toughness via quenching and tempering, reaching HRC 50-65. This creates carbide-rich microstructures that dull softer abrasives quickly.

Why it matters: Mismatch causes glazing (polished grains lose cut) or wheel disintegration. Expect surface hardness to dictate wheel friability needs—higher HRC demands tougher grains.

Test yours with a file: If a standard file slides off, it's hardened.

💡 Tips:

• •Use a Rockwell tester for precision; HRC 58+ needs superabrasives.

⚠️ Warnings:

• •Avoid assuming all 'hard steel' is equal—spring steel vs. D2 tool steel differ.

Step 2: Master Abrasive Wheel Anatomy

Wheels have three parts: grains (cut the material), bond (holds grains), grade (bond hardness).

Grains: Friable for heat-sensitive steel. Bonds: Resinoid for high-speed cutting, vitrified for precision grinding. Grades: Soft (fast cut, wears quick) to hard (long life, slower cut).

Analogy: Grains are teeth; bond is gums. Too hard bond = packed teeth; too soft = loose teeth.

💡 Tips:

• •Match RPM rating to your tool—overspeed shatters wheels.

Step 3: Evaluate Aluminum Oxide (AO) Wheels

AO is baseline for mild steel but marginal on hardened (HRC 50+). Friable pink AO (white fused) works better, self-sharpening under heat.

Limits: Glazes fast above HRC 55. Use for light stock removal. Expect 20-30% efficiency loss vs. advanced grains.

⚠️ Warnings:

• •Brown AO fails quickest—reserve for mild steel.

Step 4: Upgrade to Zirconia Alumina (ZA)

ZA blends zirconia for toughness + AO for sharpness. Excels on HRC 50-58 stainless/hardened steel, cooler cut reduces burn.

Why superior: Zirconia crystals fracture to expose new edges. Ideal for cut-off and rough grinding. Cuts 2x faster than AO.

💡 Tips:

• •Blue/purple discoloration signals optimal zirconia activation.

Step 5: Leverage Ceramic (SG/SE) Abrasives

Sol-gel ceramic microcrystals mimic CBN action at lower cost. Norton NorZon or 3M Cubitron II shatter into sharp points continuously.

Best for HRC 55-62: 3-5x life vs. ZA, minimal heat. Precision grinding/finishing shines.

💡 Tips:

• •Run at 30-40% higher speed for max fracturing.

⚠️ Warnings:

• •Don't dress—self-sharpening only.

Step 6: Deploy Superabrasives: CBN & Diamond

Cubic Boron Nitride (CBN): King for ferrous hardened steel (HRC 60+), 5x harder than AO. Vitrified/electroplated bonds for tool grinding.

Diamond: For non-ferrous or extreme HRC 65+, but graphite bonds prevent ferrous reaction. Expect surgical precision, 10x life.

💡 Tips:

• •CBN > diamond for steel—diamond graphitizes iron.

Step 7: Select Grain Size, Bond & Specs

Grain: 24-36 coarse cut-off/stock removal; 60-120 fine grinding; 180+ finishing.

Bond: Resin for portability, vitrified for benches. Match thickness (1.0-1.6mm cut-off), arbor size (7/8"), max RPM.

💡 Tips:

• •ANSI markings: e.g., A60TBF for 60-grit AO resin thin.

Step 8: Match to Application & Test

Cutting: Thin ZA/ceramic discs. Grinding: Depressed-center ceramics. Finishing: Flap discs (ceramic 40-80 grit).

Test: Run 1-min trial—monitor heat (<300°F), burrs, finish. Adjust pressure/speed.

⚠️ Warnings:

• •Excess pressure dulls wheels 50% faster.

▸Pro Tips

• •Use flood coolant with vitrified wheels to extend life 2x on hardened steel.
• •Variable-speed grinders (dial to 8,000 RPM) optimize zirconia fracturing.
• •Dress wheels lightly with diamond dresser before superabrasives.
• •Store in dry cabinets—humidity weakens resin bonds.
• •Layer wheels: ZA rough, ceramic finish for mirror polish.
• •Monitor wheel wear angle—replace at 50% diameter loss.
• •Pair with extractors: Hardened steel sparks ignite flammables.

▸Common Mistakes to Avoid

• •Using standard AO on HRC 55+: Causes glazing and wheel failure—switch to ceramic.
• •Ignoring RPM ratings: Overspeed explodes wheels—always check label.
• •High pressure/no coolant: Burns temper, warps steel—use light touch.
• •Wrong grain for finish: Coarse leaves scratches—progress grit sizes.
• •Skipping safety inspection: Cracked wheels shatter—visual/tap test daily.

▸Troubleshooting

Problem: Wheel glazing or loading

Solution: Switch to friable ceramic/CBN; reduce speed 20%; add coolant.

Problem: Excessive heat/discoloration

Solution: Lighten pressure, use zirconia+; check grinder alignment.

Problem: Vibration/chatter

Solution: Balance wheel, true surface; replace if bond cracked.

Problem: Poor cut rate

Solution: Finer bond grade; match grain to material hardness.

3M Cubitron II 967A 4-1/2" Cut-Off Wheel

Ceramic precision-shaped grains for 3x faster cut on HRC 55+ steel without heat buildup.

Best for: High-volume cutting of hardened tools/dies.

Price Range: $40-$50 per pack of 10

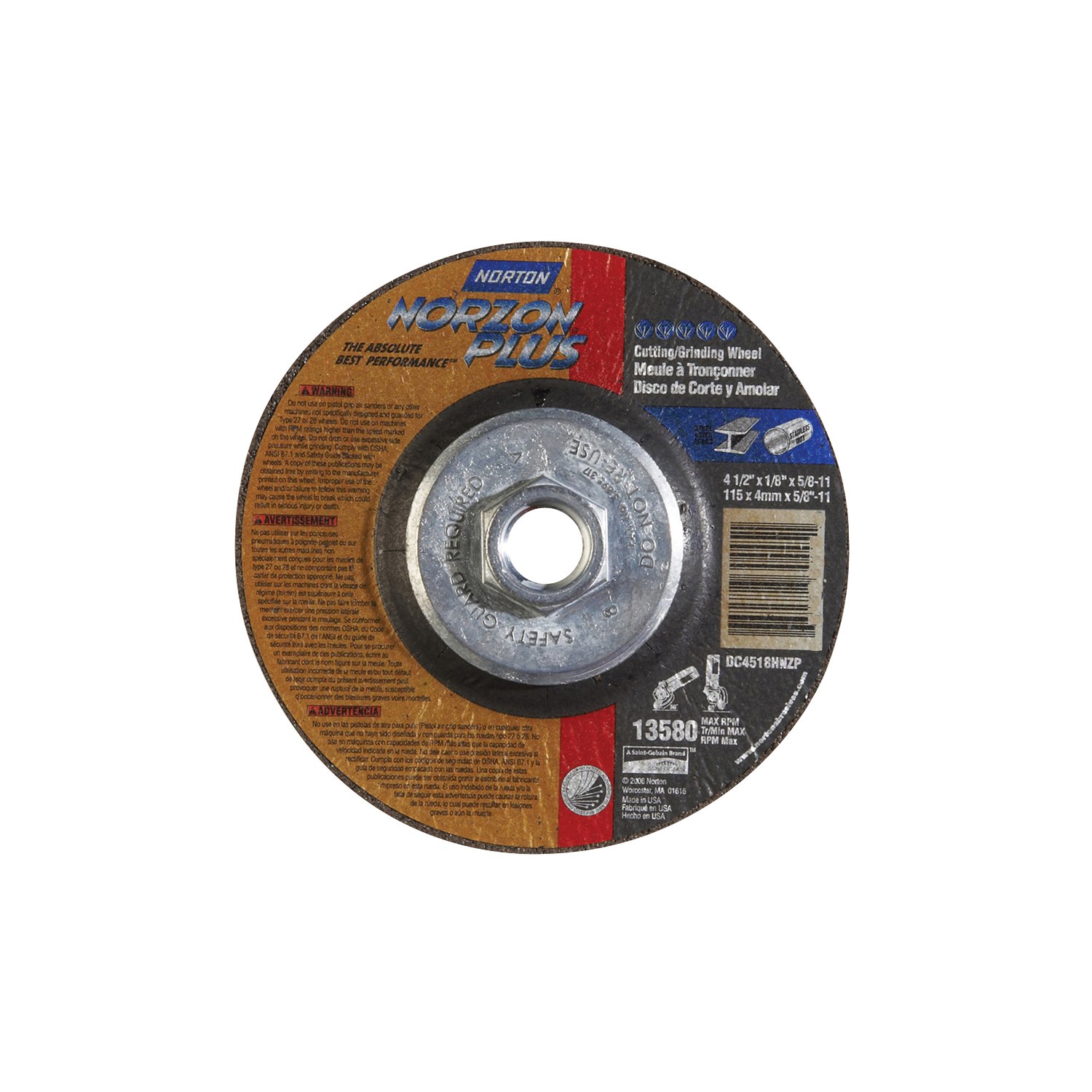

Norton Gemini Zirconia Type 27 Depressed Center Wheel, 36 Grit

Tough zirconia for aggressive stock removal on HRC 50-60 ferrous metals, long life.

Best for: Rough grinding welds on hardened frames.

Price Range: $20-$30 each

Weiler Tiger Ceramic 4-1/2" Grinding Wheel

Self-sharpening ceramic for cool, fast cuts on tough steels—pro favorite.

Best for: Deburring and blending on HRC 58+ blades.

Price Range: $15-$25 each

Bosch DB741C 4-1/2" Diamond Cup Wheel

For extreme HRC 62+ or coated hardened steel, unmatched durability.

Best for: Surface grinding large hardened plates.

Price Range: $35-$45

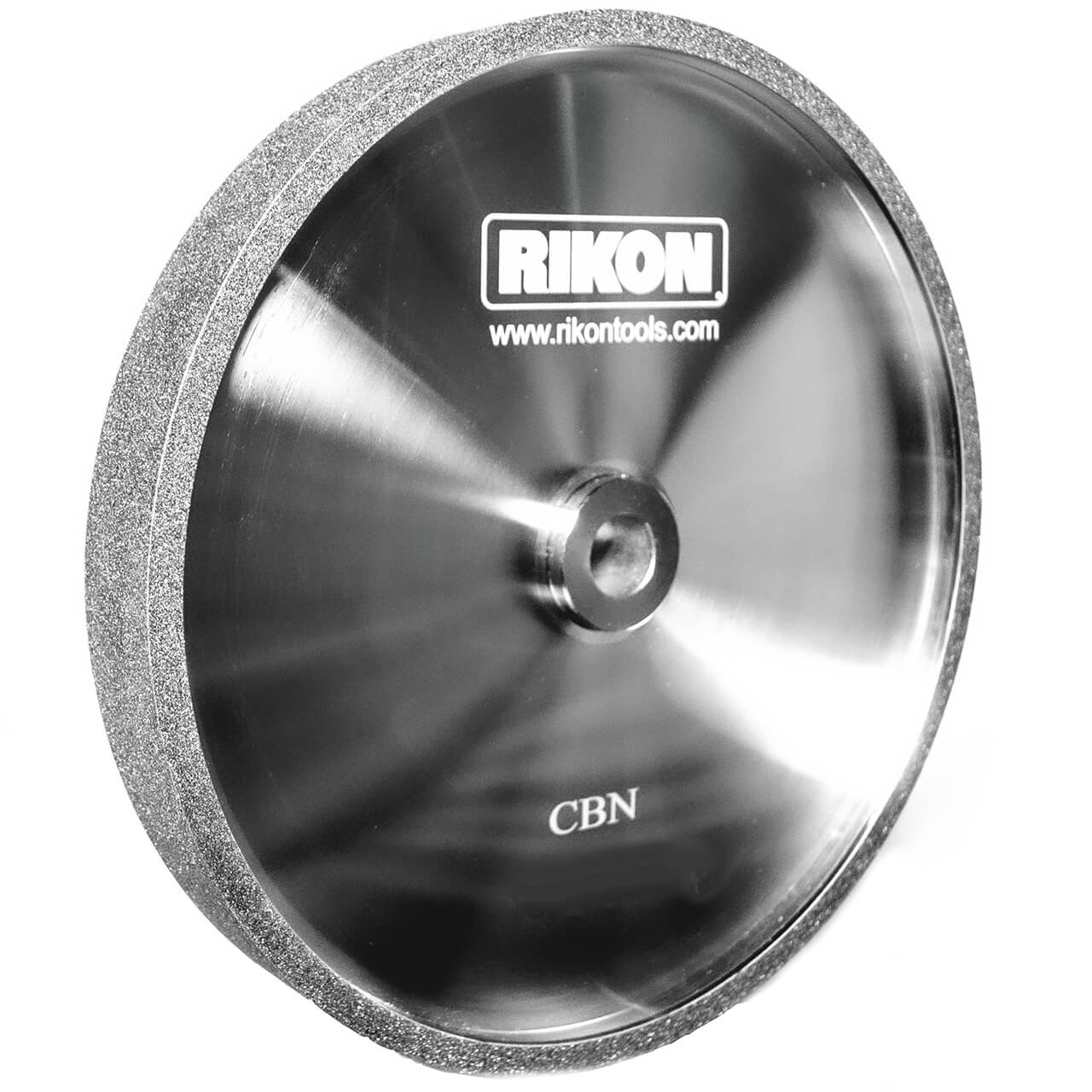

Rikon 8" CBN Sharpening Wheel

Superabrasive CBN for precision tool grinding on high-speed steel.

Best for: Sharpening HRC 60+ knives/drills.

Price Range: $140-$160
