What 5V Power Supplies Suit LED Strips?

Choosing the wrong power supply for your 5V LED strips—like WS2812B or APA102—can lead to flickering lights, burnt-out strips, or even fire hazards. Many hobbyists and DIYers waste time and money replacing strips due to underpowered or incompatible PSUs. This guide breaks it down so you can power your projects confidently.

You'll learn how to calculate power requirements, key specs to check, types of 5V PSUs, and safety tips. By the end, you'll know exactly which supply matches your setup, whether for a small accent light or a full room installation. Expect to spend 10-15 minutes reading and calculating for your project.

No advanced soldering required—just basic math and spec-reading skills for intermediate users.

▸What You'll Need

• •LED strip datasheet or specs (voltage, LEDs/meter, power draw)
• •Tape measure or known strip length
• •Calculator or phone app for power calculations
• •Optional: Multimeter for verifying voltage/current
• •Optional: Wire strippers and connectors for installation

Estimated Time: 10-15 minutes to read and calculate Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Review Your LED Strip Specifications

Start by checking your LED strip's datasheet or product page for key specs: voltage (must be exactly 5V), power consumption per meter (e.g., 14.4W/m for non-addressable, up to 60W/m for dense RGBW), and current draw (e.g., 60mA per LED at full white).

Why it matters: Mismatched voltage causes immediate failure—overvoltage fries LEDs, undervoltage dims or flickers. Expect strips like WS2812B to list '5V DC' prominently.

Pro tip: Note max current per segment if using long runs (>5m), as voltage drop occurs without injection.

💡 Tips:

• •Download datasheets from manufacturer sites like Adafruit or WorldSemi.
• •For addressable strips, calculate at full brightness (all LEDs white).

⚠️ Warnings:

• •Never assume—always verify rated voltage isn't 12V or 24V.

Step 2: Calculate Total Power Consumption

Measure your total strip length in meters. Multiply by power per meter: e.g., 5m x 14.4W/m = 72W total.

Add 20% buffer for safety and peaks: 72W x 1.2 = 86.4W. Why? LEDs draw max at full brightness; buffer prevents overload.

Use formula: Power (W) = Length (m) × Watts/m × 1.2.

💡 Tips:

• •Online calculators like LED Calculator from Waveform Lighting speed this up.

⚠️ Warnings:

• •Undersizing causes heat buildup and failure over time.

Step 3: Determine Required Amperage

Convert power to amps: Amps (A) = Watts / 5V. From above, 86.4W / 5 = 17.28A—round up to 20A PSU.

Why critical: PSUs are rated by current output; too low trips protection or dims lights. Expect quality PSUs to handle continuous 80-90% load.

💡 Tips:

• •For multiple strips, sum amps and parallel them properly.

Step 4: Identify Suitable PSU Types

Common 5V types: Switching PSUs (compact, efficient for LEDs), wall adapters (USB/Barrel for small setups), bench supplies (adjustable for testing).

Switching PSUs best for high-amp LED use—e.g., DIN-rail or enclosed metal cases dissipate heat.

Avoid cheap phone chargers; they lack sustained high current.

💡 Tips:

• •Waterproof IP67 for outdoors.

⚠️ Warnings:

• •Steer clear of unbranded no-name adapters—they overheat.
• •imageDescription: "Comparison table of PSU types: switching vs. linear vs. USB"

Step 5: Match Connectors and Features

Check output connector: Barrel (5.5x2.1mm common), screw terminals, or DC jack. Add adapters if needed.

Look for short-circuit protection, overvoltage safeguard, and fan for >10A units. Why? Protects your investment.

💡 Tips:

• •Screw terminals easiest for custom wiring.

Step 6: Consider Size, Heat, and Environment

Match physical size to your project—compact for enclosures, larger for heat sink. High-amp (>20A) need ventilation.

For humid/outdoor: IP65+ rating. Expect 40-60°C operation temp.

💡 Tips:

• •Mount away from plastics to avoid melting.

⚠️ Warnings:

• •Overheating shortens life—monitor first run.

Step 7: Verify Safety Certifications

Seek UL, CE, FCC listed PSUs. Mean Well excels here.

Why? Ensures no fire risk from poor components.

💡 Tips:

• •Check labels, not just claims.

Step 8: Test and Install

Connect with multimeter: Verify 4.9-5.2V no load, stable under load. Power gradually.

Secure wiring, use fuses.

⚠️ Warnings:

• •Polarity matters—reverse fries strips.

▸Pro Tips

• •Inject power every 5m on long runs to combat voltage drop.
• •Use thicker wire (18AWG+) for high current to minimize loss.
• •Parallel multiple PSUs for very long setups instead of one monster.
• •Test full brightness before permanent install.
• •Add capacitor (1000uF) at strip input for stable data signal on addressables.
• •Opt for adjustable PSUs (4.5-5.5V) for fine-tuning.
• •Buy 30% overcapacity for future expansions.

▸Common Mistakes to Avoid

• •Undersizing amps: Lights dim or flicker—always add 20-30% buffer.
• •Ignoring voltage drop: Ends of long strips go dark—use power injection.
• •Using USB chargers: Can't sustain >2A reliably, causes resets on addressables.
• •Poor ventilation: PSU overheats, shuts down—mount openly.
• •Wrong polarity: Instant LED death—double-check +/ -.

▸Troubleshooting

Problem: Lights flicker or partial brightness

Solution: Increase amps or add power injection points midway.

Problem: PSU hot/shuts off

Solution: Improve airflow, reduce load, or upgrade to higher capacity.

Problem: No power at all

Solution: Check polarity, connections, fuse; test voltage with multimeter.

Problem: Voltage sags under load

Solution: Use thicker/shorter wires; verify PSU rating.

Problem: Addressable LEDs reset/glitch

Solution: Add 1000uF capacitor across power rails; ensure stable 5V.

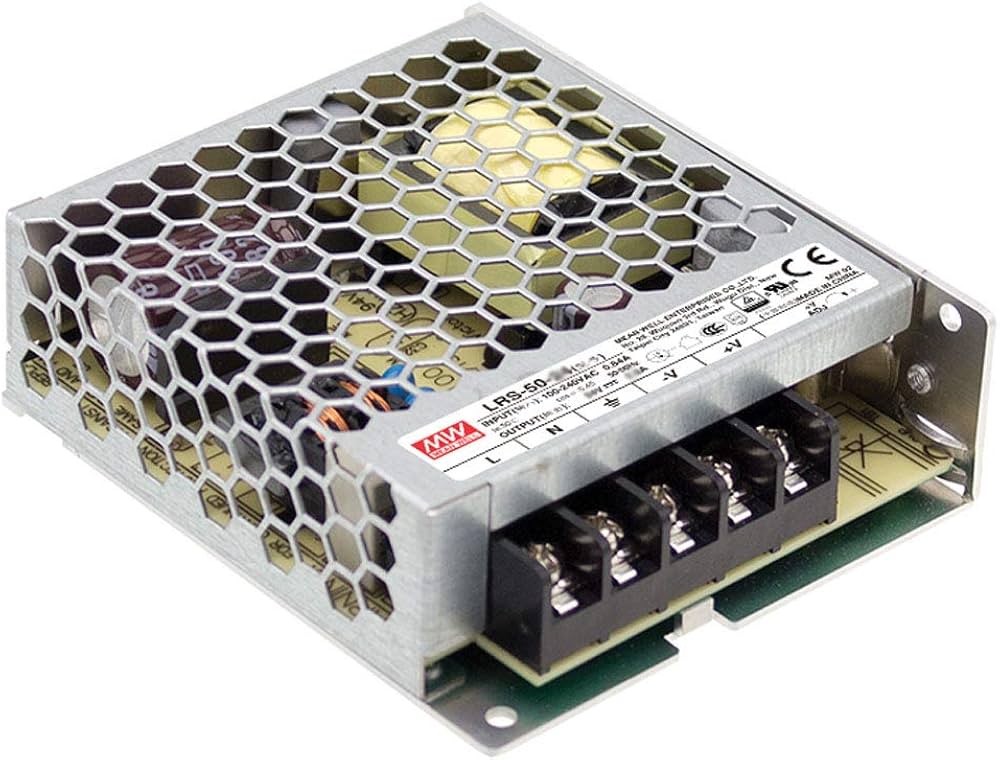

Mean Well LRS-50-5 5V 10A Power Supply

Reliable industrial-grade with UL certification, excellent heat dissipation, screw terminals for easy LED connection.

Best for: Indoor projects up to 40-50W like shelves or signs.

Price Range: $19.99-$25

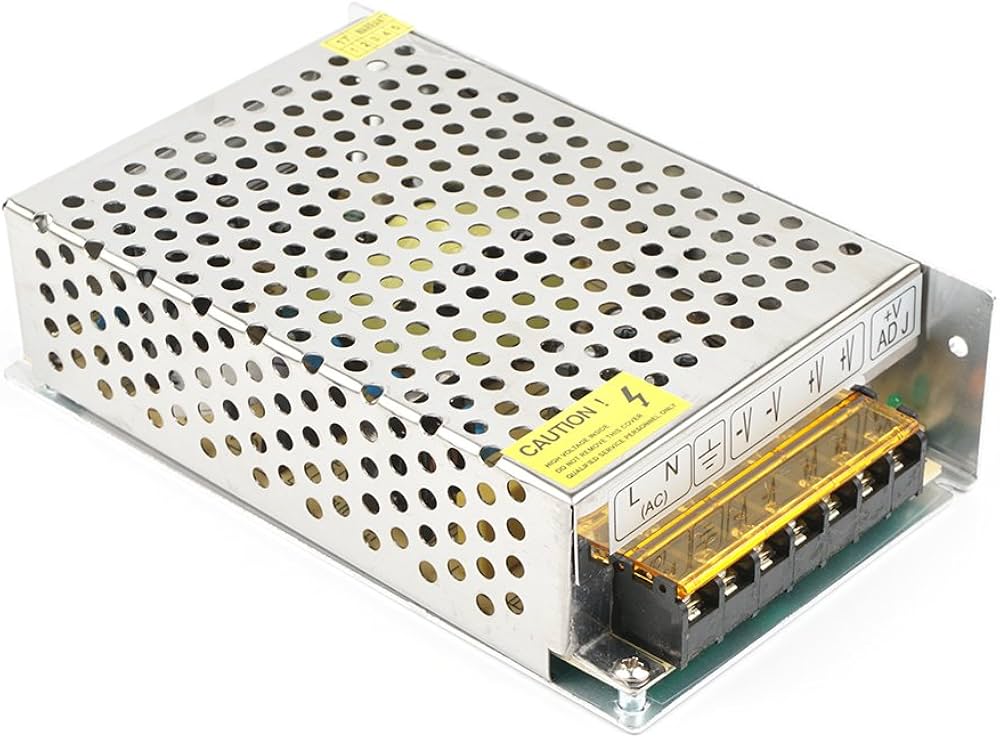

Yinleader 5V 20A 100W Switching Power Supply

Affordable high-current option with overcurrent protection, compact for cabinets.

Best for: Medium setups 5-10m strips, full RGB brightness.

Price Range: $25-$30

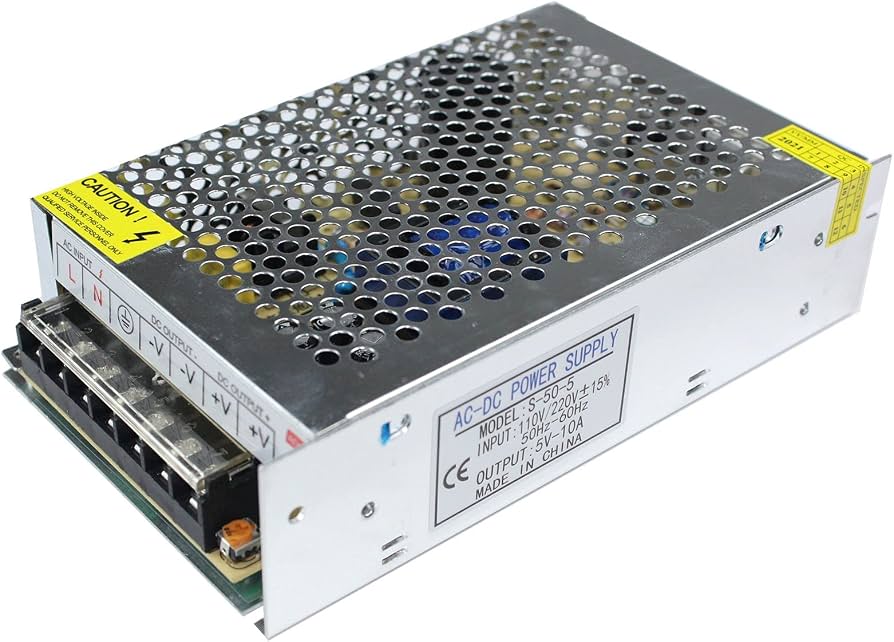

CHUYUE 5V 10A IP67 Waterproof Power Supply

Sealed for moisture, robust for outdoor/perimeter lighting.

Best for: Patios, vehicles, or humid environments up to 5m.

Price Range: $22-$28

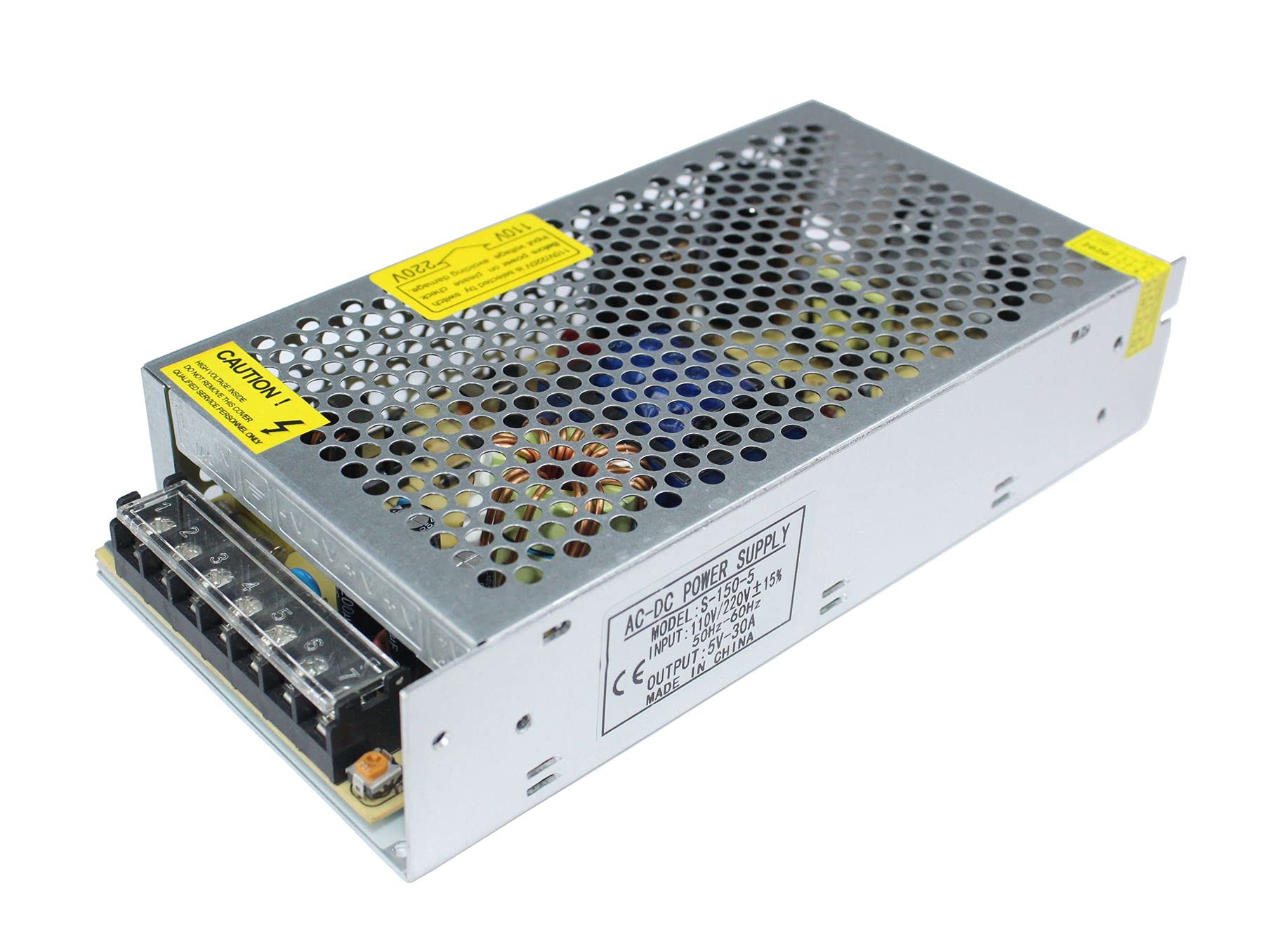

MakerHawk 5V 30A 150W Power Supply

High capacity for long/dense strips, short-circuit protection.

Best for: Large installations 10m+ or high-power LEDs.

Price Range: $35-$45

Official Raspberry Pi 27W USB-C PSU (5.1V 5.1A)

Convenient USB output for small addressable projects.

Best for: Prototyping or short strips (<2m) with controllers.

Price Range: $12-$15
