How to Wire 12V LED Lights to a Battery?

Living off-grid or powering lights in an RV, boat, or shed means relying on reliable 12V DC systems. Many struggle with flickering lights, blown fuses, or unsafe wiring that leads to fires or battery drain. This guide solves that by teaching you how to wire 12V LED lights directly to a battery securely and efficiently.

You'll learn the complete step-by-step process, from planning your circuit to testing, ensuring bright, stable lighting without grid power. Perfect for intermediate DIYers familiar with basic tools. Expect 30-60 minutes total, depending on your setup size.

The process emphasizes safety with fuses, proper wire sizing, and polarity checks to prevent costly mistakes. By the end, your lights will shine steadily off-grid.

▸What You'll Need

• •12V deep cycle battery (lead-acid or LiFePO4, e.g., 50-100Ah)
• •12V LED light strips or bulbs (waterproof for outdoor/off-grid use)
• •16-18 AWG tinned marine-grade wire (red for positive, black for negative; at least 10-20 ft)
• •Inline fuse holder with 10-15A fuse (matches your LED total wattage)
• •Single-pole single-throw (SPST) switch (12V rated, 10-20A)
• •Wire strippers/cutters
• •Crimping tool for insulated connectors
• •Butt connectors, ring terminals, and quick-disconnect spade terminals
• •Multimeter
• •Electrical tape or heat-shrink tubing
• •Screwdriver and wire loom (optional for tidy routing)

Estimated Time: 30-60 minutes Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace and Safety Gear

Start by disconnecting the battery terminals to avoid shocks or shorts. Work in a well-lit, dry area away from flammable materials. Gather all tools and wear safety glasses.

This step prevents accidents—12V DC can still spark or cause burns. Label your wires early: red for positive (+), black for negative (-).

Success looks like: Battery isolated, components laid out, no power risks.

💡 Tips:

• •Use a battery disconnect switch for future ease.

⚠️ Warnings:

• •Never work on live circuits—risk of fire or injury.

Step 2: Calculate Load and Select Wire Gauge

Measure your LED total wattage (e.g., 5m strip at 10W). Divide by 12V for amps (e.g., 0.83A). Choose wire: 18AWG for <5A up to 10ft, 16AWG for longer/higher loads.

Why? Undersized wire overheats; oversized wastes money. Use an online voltage drop calculator if run >20ft.

Success: Wire gauge noted, fuse rating set (1.25x amps, e.g., 10A fuse).

💡 Tips:

• •App like 'Wire Gauge Calculator' for quick math.

⚠️ Warnings:

• •Ignore this, risk dim lights or meltdown.

Step 3: Cut and Strip Wires

Measure distances: battery to fuse (6"), fuse to switch (12"), switch to LED (+), battery to LED (-). Cut wires, strip 1/2" insulation from ends.

Twist strands to prevent fraying. This ensures solid connections.

Success: Clean-stripped wire ends, lengths match layout.

💡 Tips:

• •Pre-cut extras for mistakes.

Step 4: Install Fuse on Positive Line

Crimp ring terminal to one end of short red wire, connect to battery positive post. Crimp butt connector to other end, insert fuse, crimp to next wire.

Fuse protects against shorts—closest to battery. Use heat-shrink over connections.

Success: Fuse inline on + line, secure crimps.

💡 Tips:

• •Blade fuse holders are compact for tight spaces.

⚠️ Warnings:

• •No fuse? Instant fire hazard on short.

Step 5: Wire the Switch

Crimp spade terminals to switch leads. Connect incoming + from fuse to switch input, outgoing to LED + input.

Switch controls power without disconnecting battery. Mount securely.

Success: Switch toggles continuity (test with multimeter).

💡 Tips:

• •Waterproof switch for off-grid durability.

Step 6: Connect Wires to LED Lights

Strip LED ends, crimp butt connectors: + to switch out, - direct to battery -. Solder if needed for permanence, insulate all.

Polarity matters—reverse fries LEDs. Route wires neatly with zip ties.

Success: Secure, insulated LED connections.

⚠️ Warnings:

• •Reverse polarity = dead LEDs.

Step 7: Connect to Battery Negative

Crimp ring terminal to black wire end, attach to battery -. Tighten securely.

Ground completes circuit.

Success: All wired, double-check polarity.

💡 Tips:

• •Clean terminals first for low resistance.

Step 8: Test the Circuit

Reconnect battery +, turn switch on. Multimeter voltage at LED (~12V), check for heat after 5min.

Bright, steady light? Success! Adjust if dim.

Success: Lights work, no sparks/heat.

💡 Tips:

• •Test segments first.

⚠️ Warnings:

• •Overheating? Disconnect immediately, check fuse/wire.

▸Pro Tips

• •Use tinned wire for corrosion resistance in humid off-grid environments.
• •Add a battery monitor to track voltage and prevent deep discharge.
• •Heat-shrink all connections for waterproofing.
• •Label wires for easy troubleshooting.
• •Dimmer switch upgrade for adjustable brightness.
• •Loom wires to prevent chafing on rough surfaces.
• •Parallel multiple LEDs? Fuse each branch.

▸Common Mistakes to Avoid

• •Wrong wire gauge: Causes voltage drop/dimming—calculate amps first.
• •Skipping fuse: Leads to battery damage or fire—always inline on +.
• •Polarity reversal: Burns out LEDs—use multimeter to verify.
• •Loose crimps: Intermittent lights—invest in quality crimper.
• •No insulation: Shorts from exposed wire—cover everything.

▸Troubleshooting

Problem: Lights don't turn on

Solution: Check fuse, polarity, connections. Multimeter battery voltage (>11.5V).

Problem: Flickering or dim

Solution: Undersized wire or low battery—upgrade gauge or charge battery.

Problem: Overheating wires

Solution: Disconnect! Check amp draw vs. fuse/wire rating.

Problem: Lights work but drain battery fast

Solution: Add switch or timer. Check for parasitic draw with multimeter.

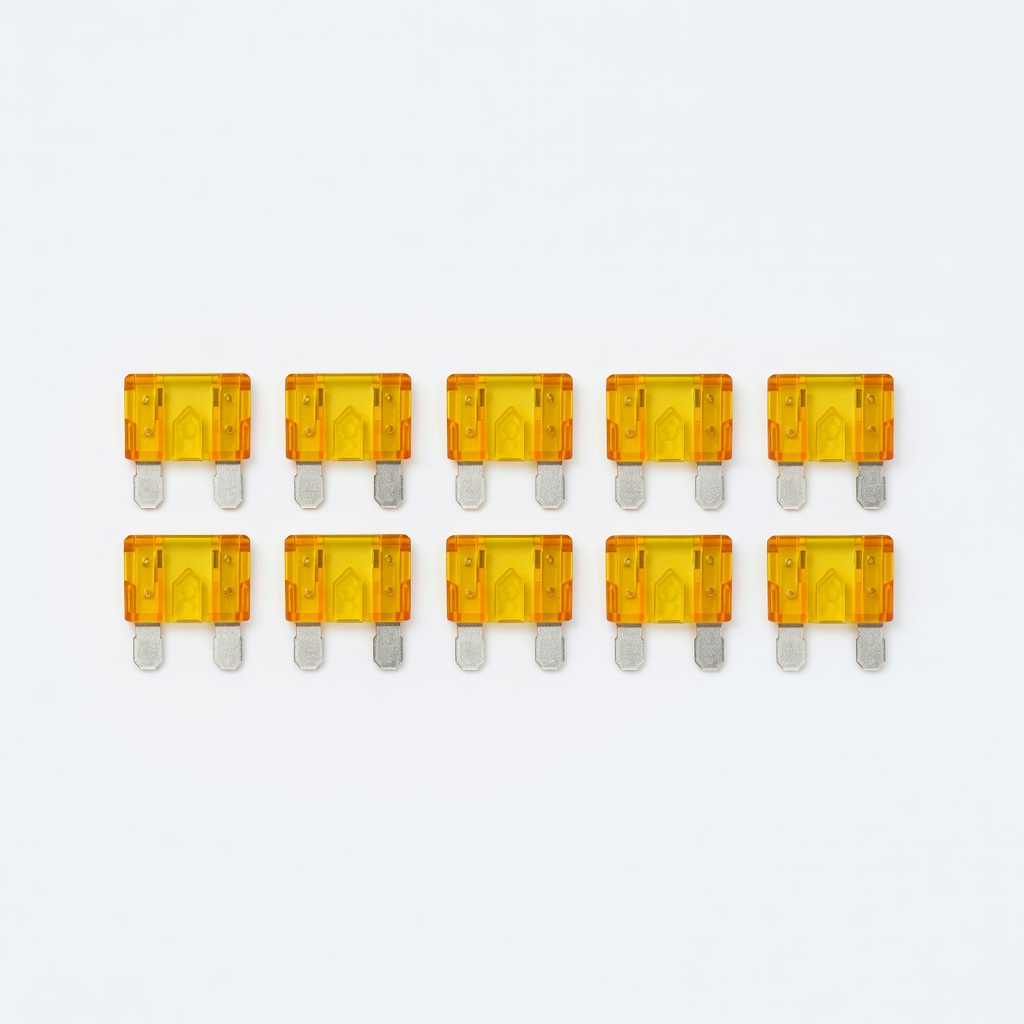

Nilight 10PCS Standard ATO/ATC 12V DC Fuse Kit

Reliable blade fuses and holder for safe circuit protection.

Best for: Inline protection right after battery for any 12V LED setup.

Price Range: $9.99

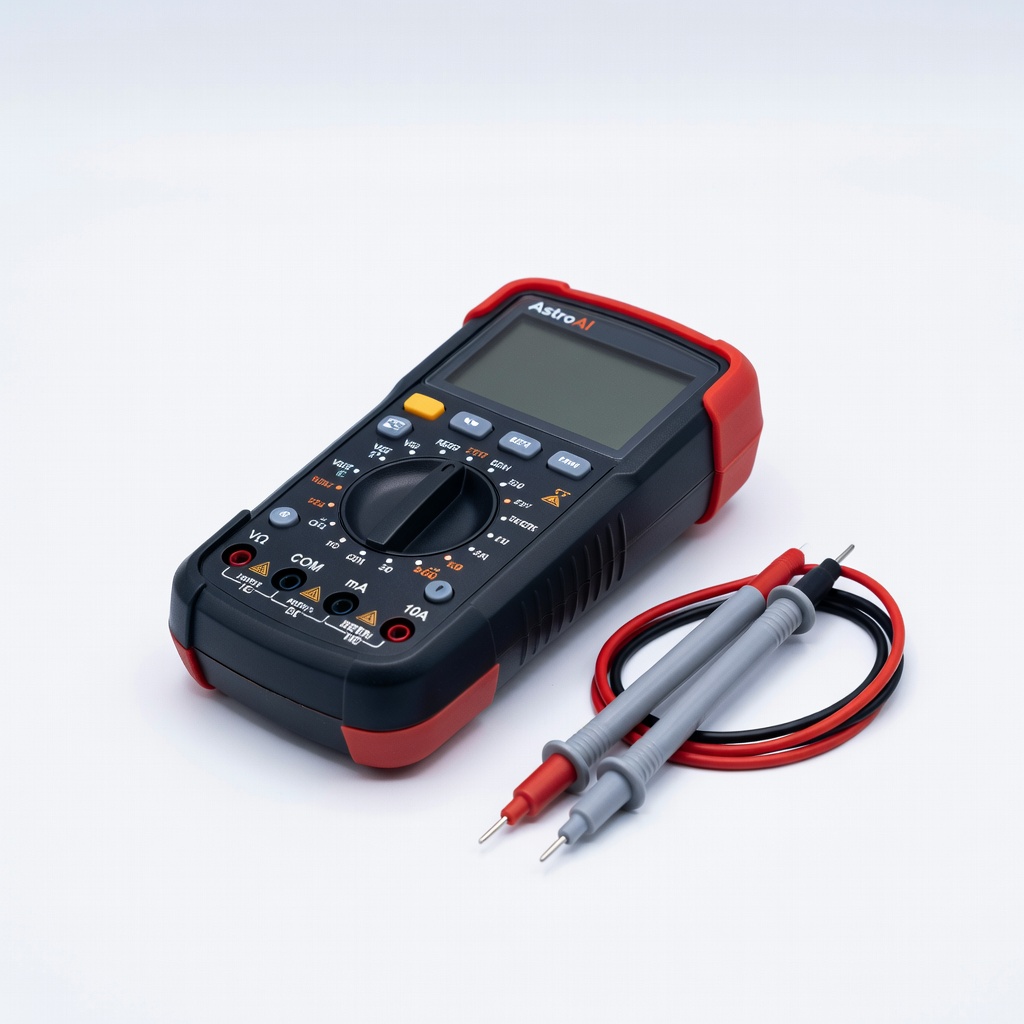

AstroAI Digital Multimeter TRMS 6000 Counts

Accurate voltage/continuity testing essential for safe wiring.

Best for: Verify polarity, voltage drops, and troubleshoot off-grid circuits.

Price Range: $23.99

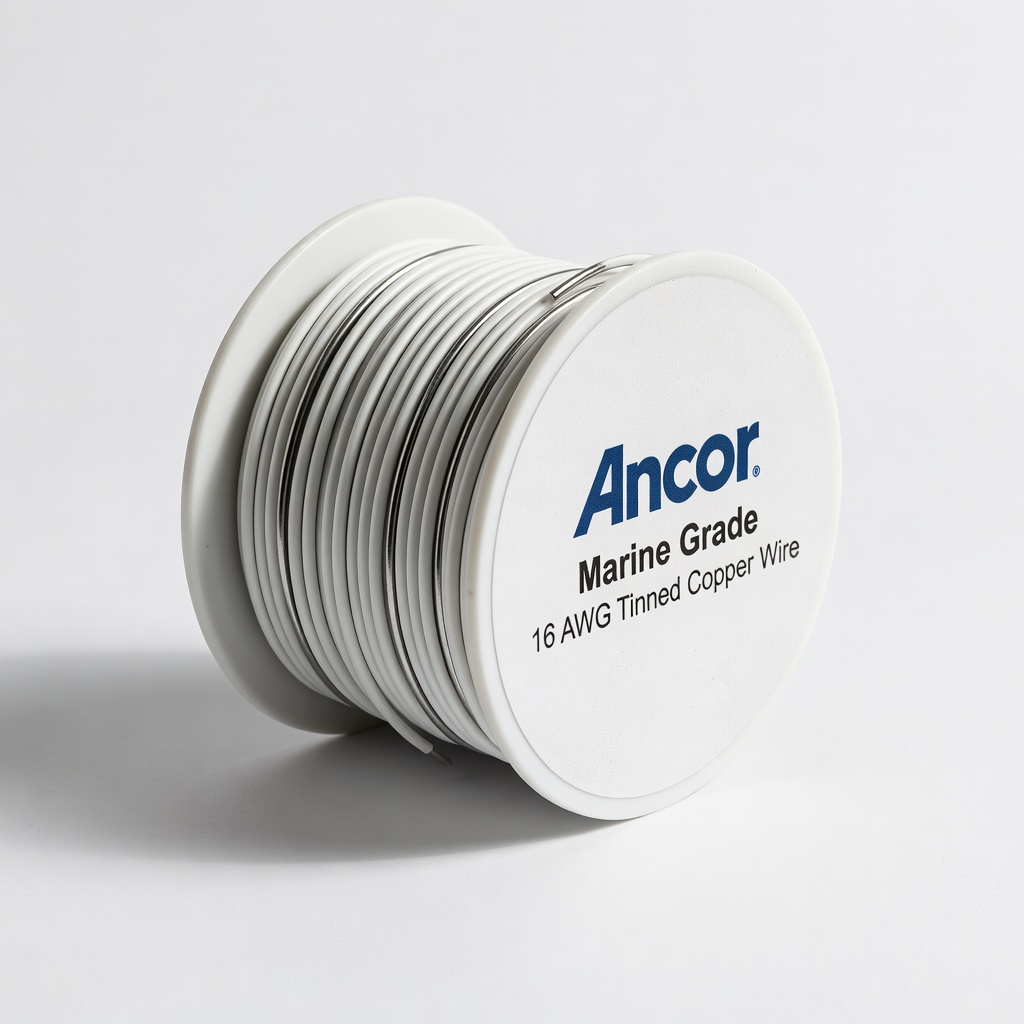

Ancor Marine Grade 16 AWG Tinned Copper Wire

Corrosion-resistant for off-grid/moisture-prone installs.

Best for: Primary wiring for LEDs up to 10A over 20ft runs.

Price Range: $25-35 for 18ft

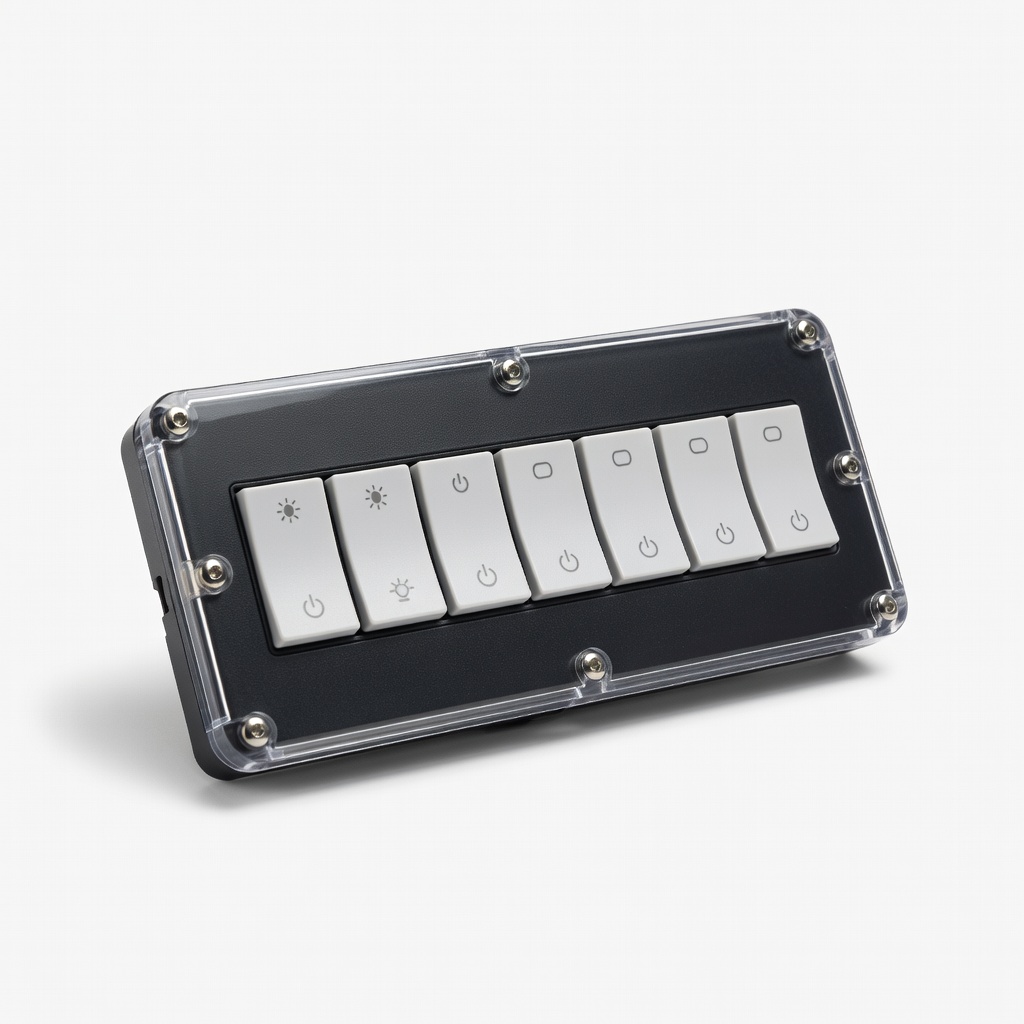

Nilight 12V Rocker Switch Panel Waterproof

Durable SPST switch with LED indicator for easy on/off.

Best for: Control lights in RVs/boats without constant battery drain.

Price Range: $12.99

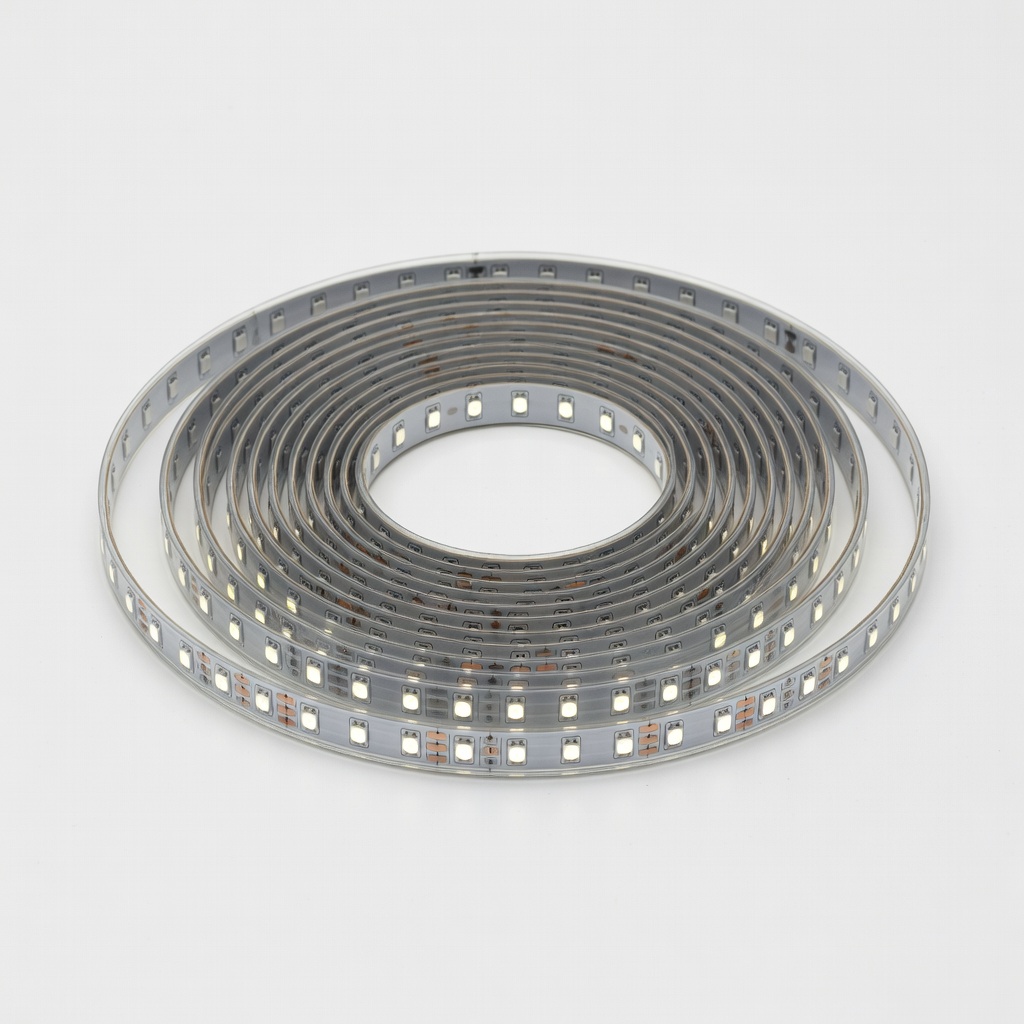

HitLights 12V LED Strip Lights 16.4ft Waterproof
