How to Wire 12V Accent Lights on Jeeps?

Want your Jeep to stand out on the trail at night? 12V accent lighting, like rock lights or wheel well LEDs, adds a rugged glow without draining your battery. Many Jeep owners struggle with flickering lights or poor wiring that fails off-road, but proper installation fixes that.

In this guide, you'll learn to wire 12V accent lights safely to your Jeep's electrical system. We'll cover planning routes, secure connections, and testing—everything for a pro finish. Expect 1-2 hours of work, assuming intermediate skills like basic wiring and tool use.

No advanced electrical knowledge needed, but we'll explain key concepts. By the end, your lights will shine bright and reliable.

▸What You'll Need

• •12V accent lights (e.g., 8-pack LED rock lights)
• •12-16 gauge wiring harness (red for power, black for ground, 20-30 ft)
• •Inline fuse holder with 10-15A fuse
• •Rocker switch panel or toggle switch (optional for control)
• •Wire strippers/crimpers
• •Heat shrink tubing and electrical tape
• •Soldering iron (optional, for permanent connections)
• •Multimeter
• •Zip ties, loom tubing, and adhesive mounts
• •Drill with bits (for mounting holes)
• •Wrenches/sockets for battery access
• •Optional: Relay kit for high-draw lights

Estimated Time: 1-2 hours Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare Workspace and Disconnect Battery

Park your Jeep on a flat surface, engage parking brake, and turn off all accessories. Disconnect the negative (-) battery terminal first using a 10mm wrench to prevent shorts.

This safety step is crucial—working on live 12V systems risks shocks, fires, or blown fuses. Expect a dark Jeep interior; use a flashlight.

Lay out tools and inspect lights/wires for damage.

💡 Tips:

• •Label wires before disconnecting for easy reassembly.
• •Work in good lighting to spot issues early.

⚠️ Warnings:

• •Never skip battery disconnect—12V can arc and cause injury.

Step 2: Plan Wiring Route and Mount Lights

Decide light positions: rock lights under chassis, LEDs in wheel wells. Sketch routes avoiding heat/exhaust/moving parts. Use factory grommets or drill small holes for wires.

Mount lights with provided brackets/screws. Torque to 5-10 Nm; test-fit wires.

Why plan? Prevents chafing and water ingress off-road. Success: Lights secure, wires routed cleanly.

💡 Tips:

• •Route along frame rails for protection.
• •Use dielectric grease on mounts for corrosion resistance.

⚠️ Warnings:

• •Avoid sharp edges—use loom tubing.

Step 3: Run Power Wires from Battery

Feed red 12-16 gauge wire from battery positive (+) through firewall grommet to lights. Install inline fuse 12" from battery.

Use fish tape or coat hanger to pull wires. Secure every 12" with zip ties.

This carries 12V power; fuse protects against shorts. Expect 20-30 ft needed for full Jeep.

💡 Tips:

• •Go passenger side for easier firewall access on JK/JL models.

⚠️ Warnings:

• •Fuse too small? Overheats. Match amp draw (e.g., 10A for 4 lights).

Step 4: Install Switch (Optional but Recommended)

Mount rocker switch in dash pod or panel. Connect switch input to power wire, output to lights.

Drill hole if needed; use waterproof switch. Why? Prevents constant battery drain.

Success: Switch clicks smoothly, no rattles.

💡 Tips:

• •Pre-wire switch for plug-and-play.
• •Add LED indicator for cool factor.

Step 5: Run Ground Wires to Chassis

Connect black wires from lights to clean chassis ground points (sand paint/rust). Use ring terminals.

Grounds complete circuit; poor grounds cause dim/flickering lights.

Test continuity with multimeter (under 1 ohm).

💡 Tips:

• •Multiple grounds for long runs prevent voltage drop.

⚠️ Warnings:

• •Painted grounds fail—scuff to bare metal.

Step 6: Make Secure Connections

Strip 1/2" insulation, crimp butt connectors or solder + heat shrink. Insulate all joints.

Crimp firmly (pull test); solder for vibration resistance off-road.

Inspect: No exposed copper, tight seals.

💡 Tips:

• •Heat shrink first, then crimp for pro waterproofing.

Step 7: Test Before Final Secure

Reconnect battery temporarily. Turn on switch—lights should glow steady bright.

Use multimeter: 12-14V at lights, no shorts.

Fix issues now; success is uniform brightness.

💡 Tips:

• •Test in dark to check coverage.

⚠️ Warnings:

• •Sparks? Disconnect immediately, check fuses.

Step 8: Secure Wires and Reconnect Battery

Zip-tie and loom all wires. Reconnect negative terminal, torque to spec.

Road test: No rattles, lights stable.

Done—enjoy your lit-up Jeep!

💡 Tips:

• •Add extra ties near suspension for off-road durability.

▸Pro Tips

• •Use marine-grade wire for water resistance.
• •Add a relay for lights over 5A to protect switches.
• •Voltage drop? Upgrade to 14 gauge for runs >20ft.
• •Silicone sealant on wire entries prevents moisture.
• •Color-code wires: Red power, black ground, blue dimmer.
• •Install daytime running light sync for factory feel.
• •Test waterproofing with hose before trails.

▸Common Mistakes to Avoid

• •Skipping fuse: Causes fires from shorts—always inline near battery.
• •Poor grounds: Flickering lights—scuff to metal and check ohms.
• •Exposed wires: Chafing off-road—loom and zip-tie religiously.
• •Wrong wire gauge: Overheating/melting—use 12-16ga for 12V LEDs.
• •No switch: Drains battery—add control.

▸Troubleshooting

Problem: Lights flicker or dim

Solution: Check grounds/voltage drop; upgrade wire gauge or add relay.

Problem: No lights at all

Solution: Verify fuse, battery voltage, connections; test continuity.

Problem: One light out

Solution: Inspect that wire run for damage/pinch; swap positions to test.

Problem: Lights on constantly

Solution: Check switch wiring; add diode if feedback.

Problem: Overheating wires

Solution: Wrong gauge or short—replace with proper size, inspect insulation.

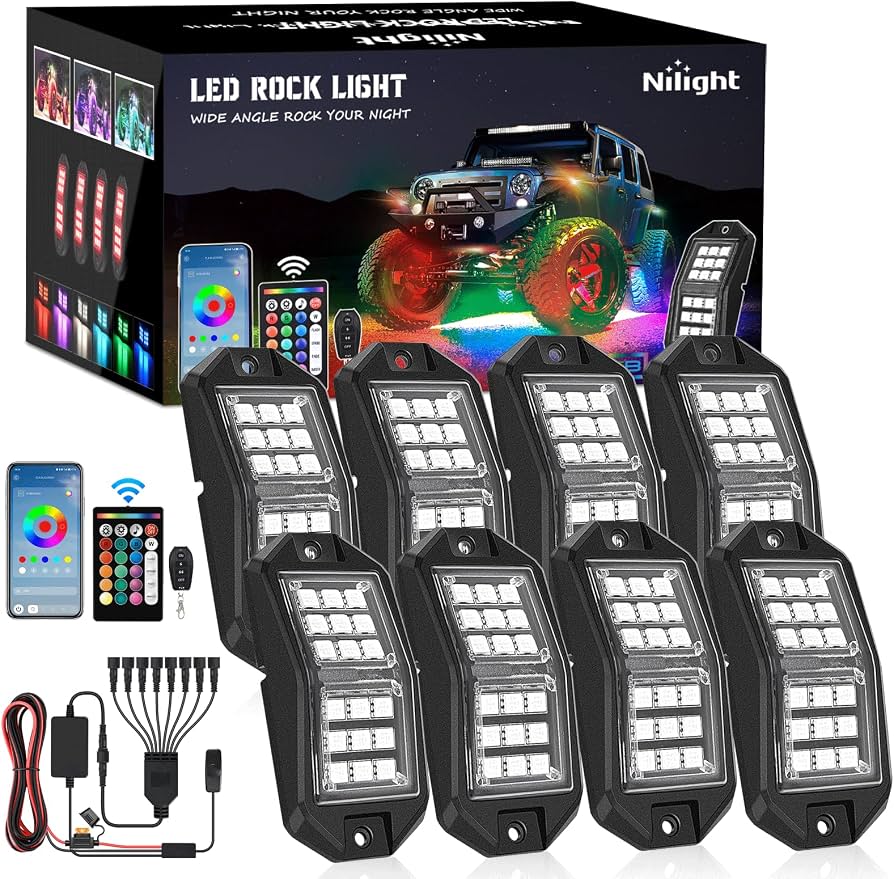

Nilight 8PCS Rock Lights Kit

Durable aluminum housing, IP68 waterproof, perfect for Jeep underbody accents with easy plug-and-play wiring.

Best for: Mount 4-8 lights on rock sliders/wheel wells for trail visibility.

Price Range: $39.99

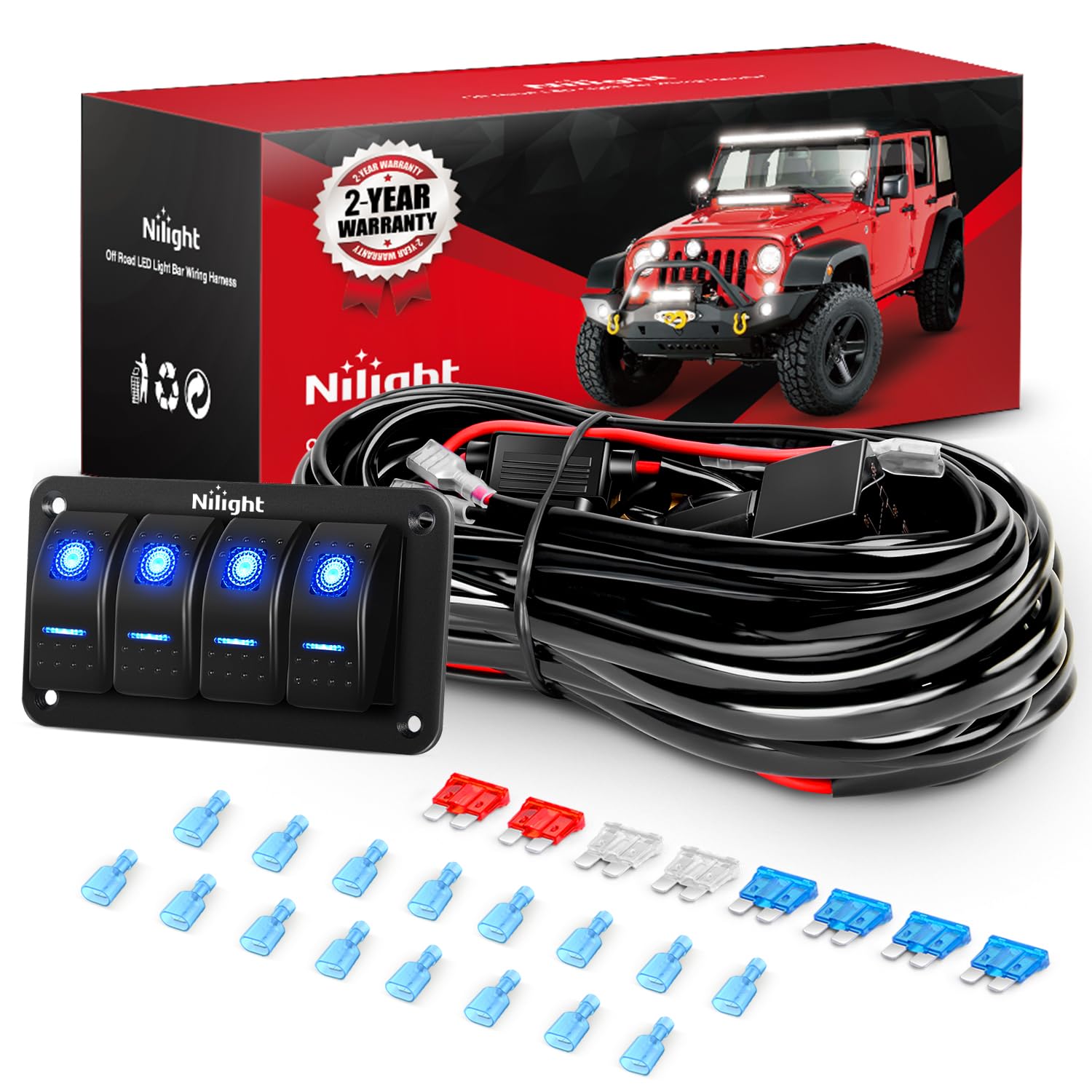

Nilight 4PCS 12V Wiring Harness

Pre-terminated with connectors, fuses included—saves time on custom wiring.

Best for: Power multiple accent light zones from battery.

Price Range: $15.99

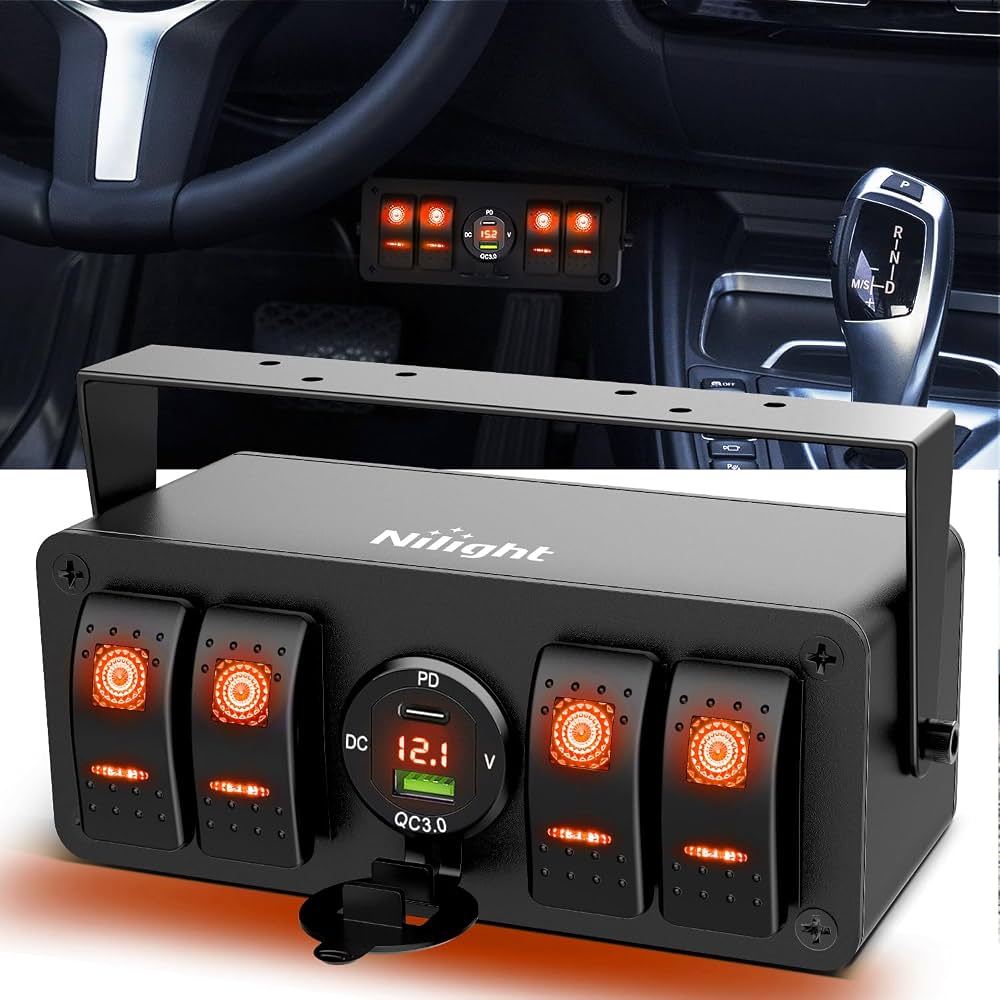

Nilight Rocker Switch Panel

Weatherproof, backlit switches with wiring harness for easy dash install.

Best for: Control lights independently without battery drain.

Price Range: $24.99

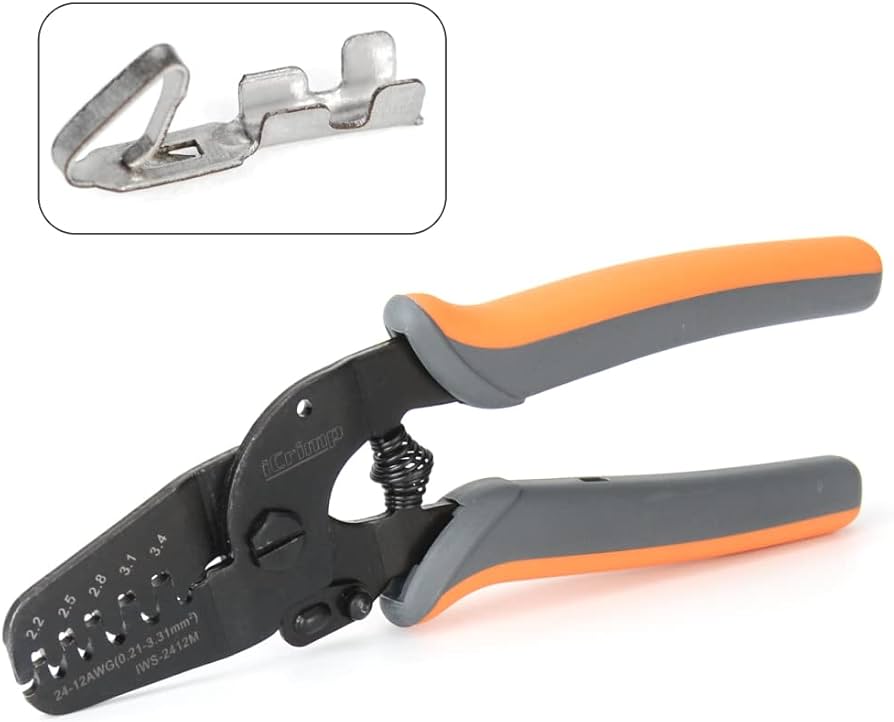

IWISS Wire Crimping Tool

Ratchet-style for secure crimps on 10-22ga wire, prevents loose connections.

Best for: All crimping steps for reliable off-road performance.

Price Range: $29.99

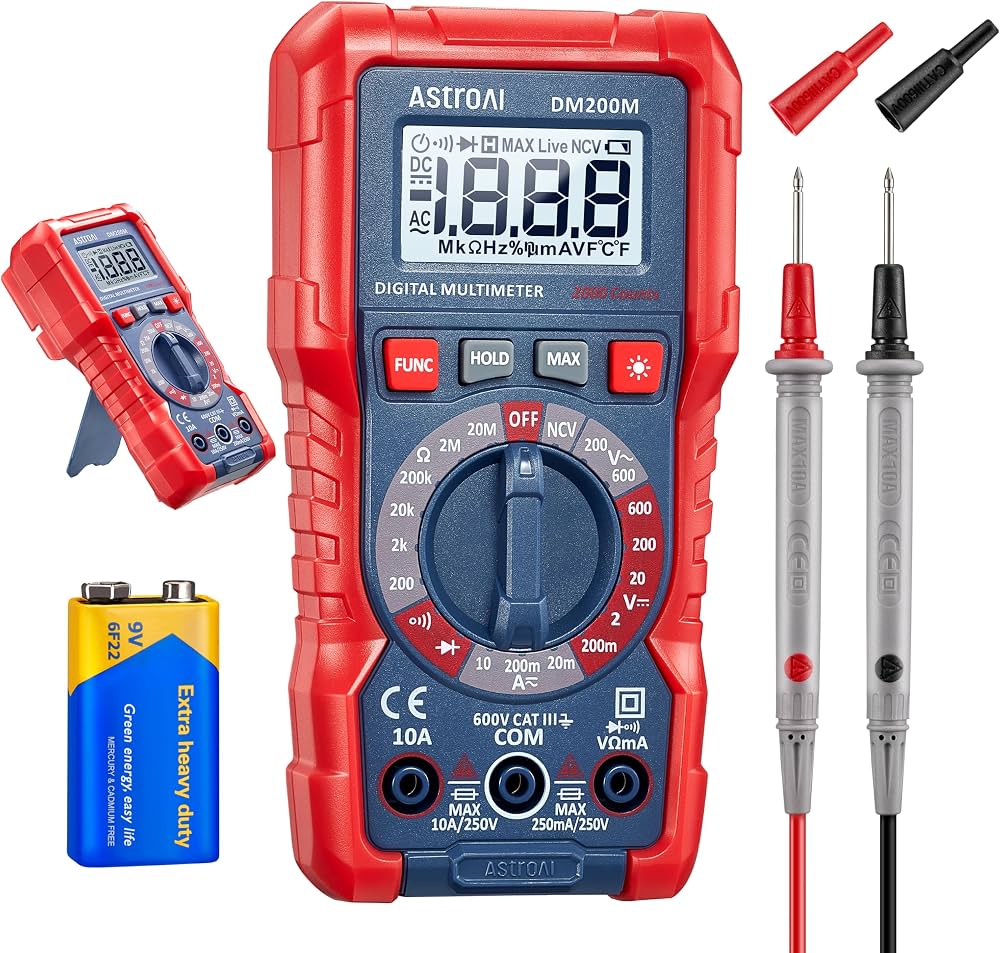

AstroAI Digital Multimeter
