How to Waterproof AAA Batteries for Outdoor Use?

Nothing ruins an outdoor adventure faster than dead batteries from rain or humidity. Whether you're camping, hiking, or using remote controls in wet conditions, standard AAA batteries fail quickly when exposed to moisture. This guide teaches you how to waterproof them using a safe, effective conformal coating method, extending their life in damp environments.

You'll learn a step-by-step process that's intermediate-level, requiring basic DIY skills like surface prep and spray application. The result: batteries that resist water ingress for weeks in outdoor use, without compromising performance. Expect 30-45 minutes of active work plus 24-hour curing time.

This isn't a full submersion-proof solution (batteries still need venting), but it seals against splashes, fog, and humidity—perfect for flashlights, GPS devices, and trail cams.

▸What You'll Need

• •AAA batteries (alkaline or lithium; test before coating)
• •Silicone conformal coating spray (e.g., aerosol can for even application)
• •Liquid electrical tape or rubber coating (for brush-on details)
• •Isopropyl alcohol (90%+ for cleaning)
• •Painter's tape or masking tape
• •Nitrite gloves
• •Paper towels or lint-free cloths
• •Well-ventilated workspace or outdoors
• •Optional: Multimeter for voltage testing

Estimated Time: 30-45 minutes active + 24 hours curing Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace

Set up in a well-ventilated area outdoors or use a respirator mask indoors to avoid fumes from coatings. Lay down newspaper or a drop cloth to catch overspray. Why? Coatings release VOCs that can irritate lungs, and drips make a mess.

Wear gloves to protect skin. Gather all materials nearby. Success looks like a clean, organized station ready for no-fuss work.

💡 Tips:

• •Work on a sunny day for faster drying.
• •Have a fan ready to speed air circulation.

⚠️ Warnings:

• •Never work near open flames—coatings are flammable.

Step 2: Clean the Batteries Thoroughly

Wipe each AAA battery with isopropyl alcohol-soaked paper towel to remove oils, dirt, and residue. Let them air dry for 5 minutes. Rotate to clean ends, sides, and labels fully.

Why it matters: Clean surfaces ensure coating adhesion; contaminants cause peeling and leaks. Expect batteries to feel dry and slightly tacky—no streaks or residue.

💡 Tips:

• •Use a cotton swab for tight spots like terminals.

⚠️ Warnings:

• •Don't submerge batteries in alcohol—they're not fully sealed.

Step 3: Mask Sensitive Areas

Apply small pieces of painter's tape over the positive (+) terminal nipple and any venting holes (usually tiny dimples on the side). Press firmly but don't cover the entire end.

This protects electrical contacts from thick buildup while allowing gas escape. Why? Full sealing traps pressure, risking rupture. Success: Tape secure, battery ends partially exposed.

💡 Tips:

• •Use fine-tip tape for precision on small AAAs.

Step 4: Apply First Coat of Conformal Coating

Shake spray can 1-2 minutes, hold 8-10 inches away, and apply thin, even mist over the battery body (sides and negative end). Rotate slowly for full coverage. Avoid heavy drips.

Thin coats prevent bubbling. Why silicone? It flexes with battery swelling and repels water. Expect a shiny, uniform film; dry to touch in 10-15 minutes.

💡 Tips:

• •Practice on scrap first for spray control.

⚠️ Warnings:

• •Thin layers only—thick coats crack over time.

Step 5: Let First Coat Dry and Inspect

Place batteries on their sides on wax paper to dry 15-30 minutes. Check for even coverage; reapply lightly to thin spots.

Inspection ensures no pinholes. Success: Smooth, non-tacky surface ready for next coat.

Step 6: Apply Second Coat and Brush Details

Repeat spray for second thin coat. For ends, dab liquid electrical tape with a toothpick over exposed metal, feathering edges.

Double layers boost protection without bulk. Why brush? Precision for contacts. Expect fuller shine; total dry time 1 hour.

💡 Tips:

• •Build 2-3 coats max for AAA size.

Step 7: Remove Tape and Full Cure

Gently peel tape after 1 hour. Let cure 24 hours in dry area. Don't use yet.

Curing hardens the seal. Success: Flexible, waterproof-feeling coating; test by rinsing under tap (dry immediately).

⚠️ Warnings:

• •Full cure prevents sticking in devices.

Step 8: Test Functionality

Insert into device or multimeter-check voltage. Run under water briefly, dry, retest.

Confirms no shorts/leaks. Success: Powers device normally post-water test.

💡 Tips:

• •Store extras in ziplock for longevity.

▸Pro Tips

• •Use lithium AAA batteries—they're naturally more humidity-resistant.
• •Apply in 70-80°F temps for best adhesion.
• •Coat battery holders too for double protection.
• •Thin multiple coats > one thick for flexibility.
• •Label coated batteries with date to track shelf life.
• •Combine with dielectric grease on device contacts.
• •For bulk: Use a rotating jig from cardboard.

▸Common Mistakes to Avoid

• •Skipping cleaning: Leads to peeling coating and water entry—always degrease first.
• •Over-coating terminals: Causes poor contact or shorts—mask precisely.
• •Using too soon: Soft coating rubs off in devices—wait full 24 hours.
• •Ignoring ventilation: Trapped gases swell batteries—never fully seal vents.
• •Heavy sprays: Bubbles and cracks form—mist lightly.

▸Troubleshooting

Problem: Coating bubbles or peels

Solution: Sand lightly, clean, reapply thinner coats. Ensure dry between layers.

Problem: Battery won't power device after coating

Solution: Check/clean contacts with alcohol; test uncoated for comparison.

Problem: Water still enters after test

Solution: Add third coat or switch to enclosure method. Replace if swollen.

Problem: Fumes irritating

Solution: Move outdoors or use mask; ventilate well.

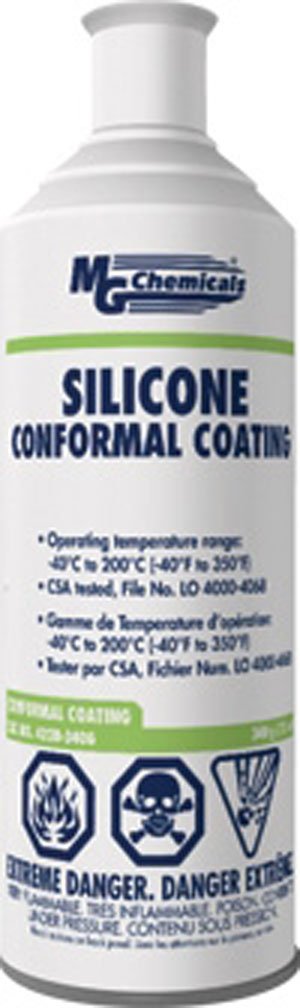

MG Chemicals 422B Silicone Conformal Coating Aerosol

Flexible, waterproof spray ideal for electronics; cures clear and durable for outdoor batteries.

Best for: Primary coating for even mist application on multiple batteries.

Price Range: $25-$35

Performix 11203 Plasti Dip Liquid Tape

Brush-on rubber seals ends perfectly without bulk; peels off if needed.

Best for: Detailing terminals and repairs on small AAA batteries.

Price Range: $7-$10

Energizer Ultimate Lithium AAA Batteries (8-pack)

Inherently weather-resistant base for coating; longer life in cold/wet.

Best for: Best batteries to waterproof for extreme outdoor gear.

Price Range: $15-$20

Waterproof AAA Battery Holder (4-slot)

Encases coated batteries for total IP67 protection.

Best for: Ultimate setup for devices like flashlights in heavy rain.

Price Range: $8-$12

CRC Dielectric Grease

Extra contact protection pairs with coating to prevent corrosion.

Best for: Apply to device terminals before inserting batteries.

Price Range: $5-$8
