How to Hang Heavy Curtains on Concrete Walls

Hanging heavy curtains on concrete walls can be frustrating for beginners. Without the right anchors, rods sag, curtains crash down, or you risk cracking the wall. But with proper masonry anchors, you can achieve a rock-solid hold that supports 50+ lbs per bracket safely and easily.

In this guide, you'll learn how to choose anchors, drill into concrete, and install curtain brackets that last. The process uses simple tools and takes just 30-45 minutes per window for two brackets. Perfect for DIYers—no pro skills needed.

Expect clean holes, flush anchors, and curtains that glide smoothly. We'll cover tools, steps, tips, and fixes for common issues.

▸What You'll Need

• •Masonry drill bit (1/4-inch, matching your anchors)
• •Hammer drill or corded drill with hammer function (required for concrete)
• •Concrete anchors (sleeve anchors or Tapcon screws rated for 50+ lbs shear strength)
• •Curtain rod brackets (heavy-duty, load-rated)
• •Screwdriver or power drill with bits
• •Level (torpedo or 24-inch)
• •Pencil or marker
• •Shop vac or brush for dust
• •Safety glasses and dust mask (required)
• •Tape measure
• •Optional: Hammer for tapping anchors

Estimated Time: 30-45 minutes per curtain rod (two brackets) Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Measure and Plan Bracket Positions

Start by holding your curtain rod up to the window at the desired height—typically 4-6 inches above the frame for light diffusion. Measure the rod length and mark bracket positions: place them 4-6 inches inside each end, plus a center bracket if over 6 feet.

Use a tape measure for precision, marking pencil dots on the concrete wall. Success looks like even spacing matching your rod.

Why it matters: Accurate marks prevent crooked installations.

💡 Tips:

• •Add 1/2-inch extra space for rod sag under weight.

⚠️ Warnings:

• •Double-check measurements—concrete drilling is permanent.

Step 2: Level and Finalize Marks

Place a level on the rod or across marks. Adjust until the bubble is centered. Mark screw holes on brackets over your positions (usually two holes per bracket).

Confirm all marks align horizontally. Wipe the wall clean.

Success: Level bubble dead center, marks symmetric.

💡 Tips:

• •Use painter's tape under level for better grip on dusty concrete.

⚠️ Warnings:

• •Uneven brackets cause sagging curtains over time.

Step 3: Select and Prep Anchors

Choose anchors rated for concrete and heavy loads (e.g., 1/4-inch sleeve anchors for 75+ lbs). Match drill bit to anchor size (check packaging).

Test-fit one anchor if possible. Gather screws that match bracket holes.

Why: Wrong size leads to loose holds.

💡 Tips:

• •For very heavy curtains, use two anchors per bracket.

Step 4: Drill Pilot Holes

Wear safety gear. Insert masonry bit into hammer drill (hammer mode on). Drill straight into marks at low speed, going 1/4-inch deeper than anchor length (e.g., 2 inches deep).

Apply steady pressure—let the drill do the work. Dust will fly.

Success: Clean, straight holes with no cracking around edges.

💡 Tips:

• •Chill bit in ice water between holes to stay sharp.

⚠️ Warnings:

• •Don't force—overheating dulls bits. Use hammer function or it won't penetrate.

Step 5: Clean Out Dust

Vacuum or brush debris from holes thoroughly. Blow out with compressed air if available.

Why it matters: Dust weakens anchor grip by 50%.

Success: Holes look empty and dry.

💡 Tips:

• •Use a straw to blow dust if no vac.

Step 6: Insert Anchors

For sleeve anchors: Tap in with hammer until flush. For Tapcons: Drive screws directly into holes with a power driver.

Tighten until secure but don't over-torque.

Success: Anchors snug, no wobble when tugged.

⚠️ Warnings:

• •Over-hammering cracks concrete.

Step 7: Attach Brackets and Hang Curtains

Screw brackets into anchors firmly. Check level again. Slide rod onto brackets, add curtains.

Test by tugging—should hold firm.

Final success: Curtains level, smooth operation, no movement.

💡 Tips:

• •Finishing washers add stability.

▸Pro Tips

• •Practice drilling on scrap concrete first.
• •Mark bit depth with tape to avoid over-drilling.
• •Use LED work light for precise marks in dim rooms.
• •For multiple windows, drill all holes before inserting anchors to save time.
• •Apply silicone caulk around anchors for a finished look and dust seal.
• •Buy extra anchors—concrete eats bits!
• •Heavy velvet curtains? Double brackets for 100+ lb support.

▸Common Mistakes to Avoid

• •Using drywall anchors on concrete—they pull out instantly.
• •Skipping hammer drill mode—results in shallow, useless holes.
• •Not cleaning dust—anchors spin loose after a week.
• •Over-tightening screws—strips threads or cracks wall.
• •Ignoring load ratings—light anchors fail under heavy panels.

▸Troubleshooting

Problem: Hole too big or anchor loose

Solution: Use larger anchor or epoxy filler. Redrill nearby.

Problem: Drill bit smoking or not cutting

Solution: Switch to hammer mode, use new bit, lower speed.

Problem: Bracket wobbles after install

Solution: Check level; add shims or second anchor.

Problem: Wall cracks around hole

Solution: Stop drilling; use smaller bit or chemical anchors. Call pro for structural issues.

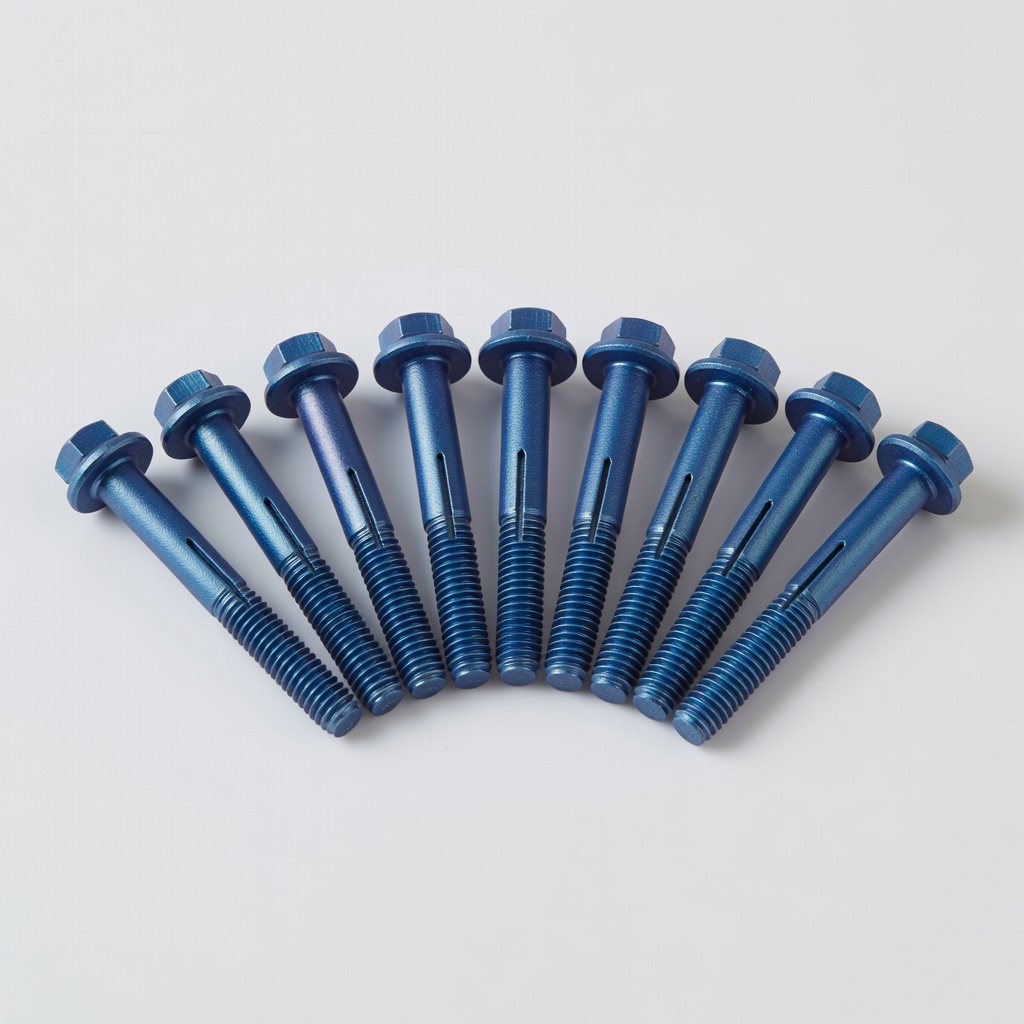

ITW Buildex Tapcon 1/4" x 1-3/4" Hex Washer Head Concrete Anchors (10-pack)

Self-tapping screws designed for solid concrete; no separate nut needed, holds 500+ lbs shear.

Best for: Ideal for heavy curtain brackets; drill and screw directly.

Price Range: $15-$20

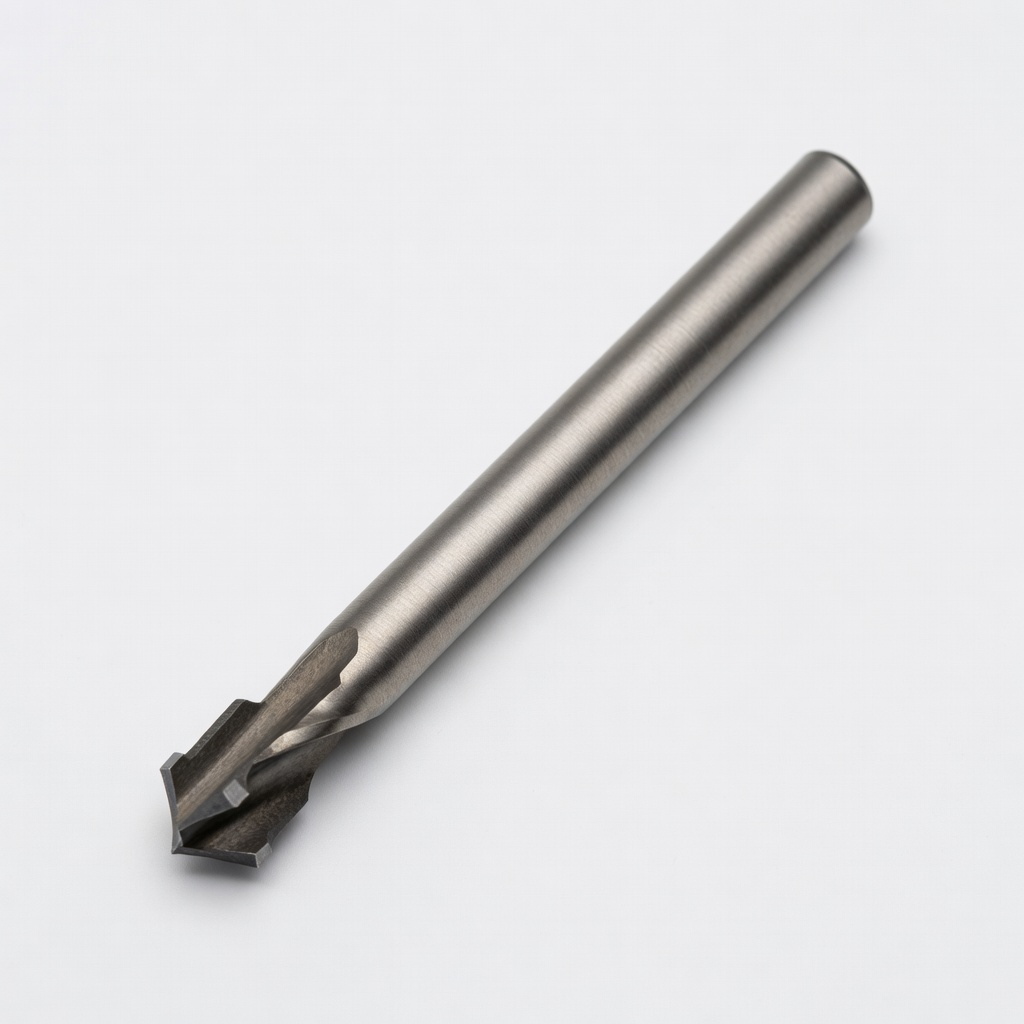

Bosch 1/4-Inch Carbide Tipped Masonry Drill Bit

Stays sharp 5x longer in concrete; perfect match for 1/4" anchors.

Best for: Drilling clean pilot holes without wandering.

Price Range: $5-$8

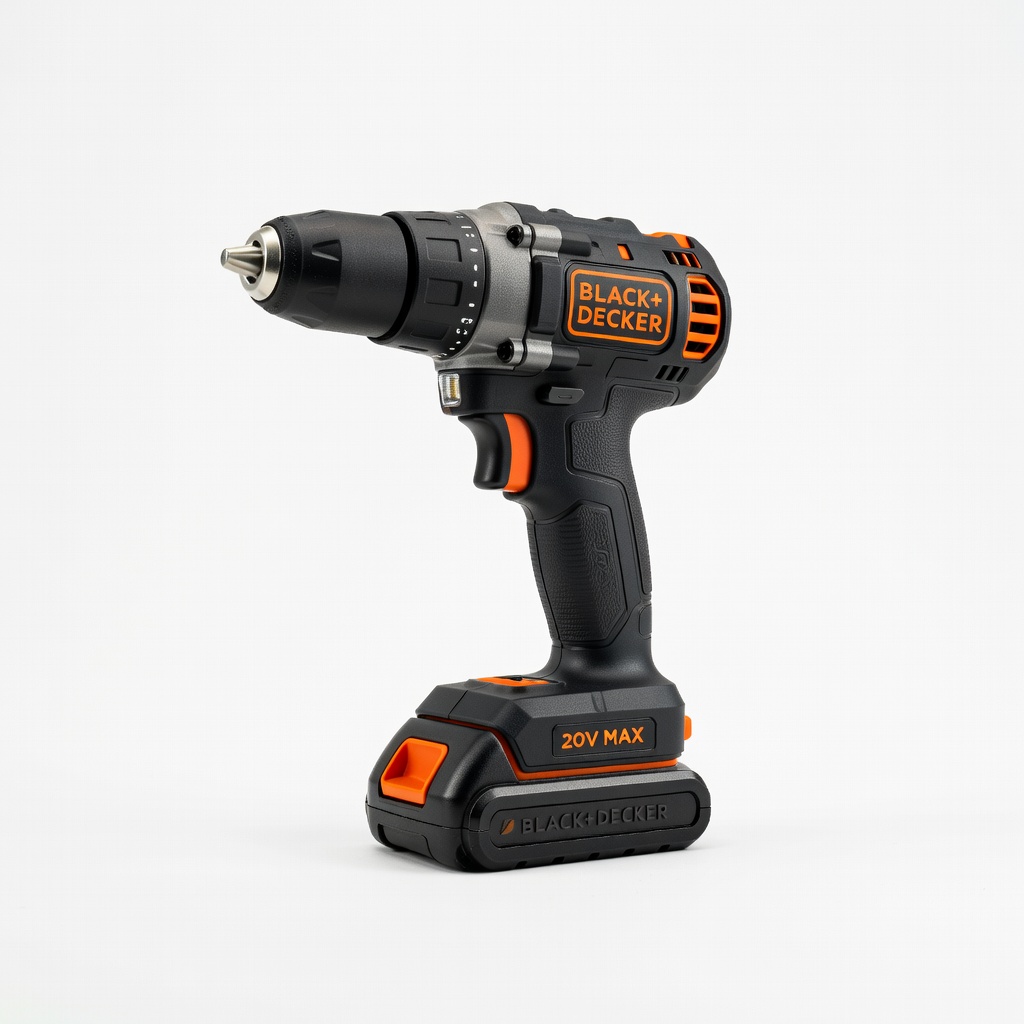

BLACK+DECKER 20V MAX LDX120C 3/8" Hammer Drill

Compact hammer function punches through concrete easily; cordless for flexibility.

Best for: Beginner-friendly for small jobs like curtain installs.

Price Range: $40-$50

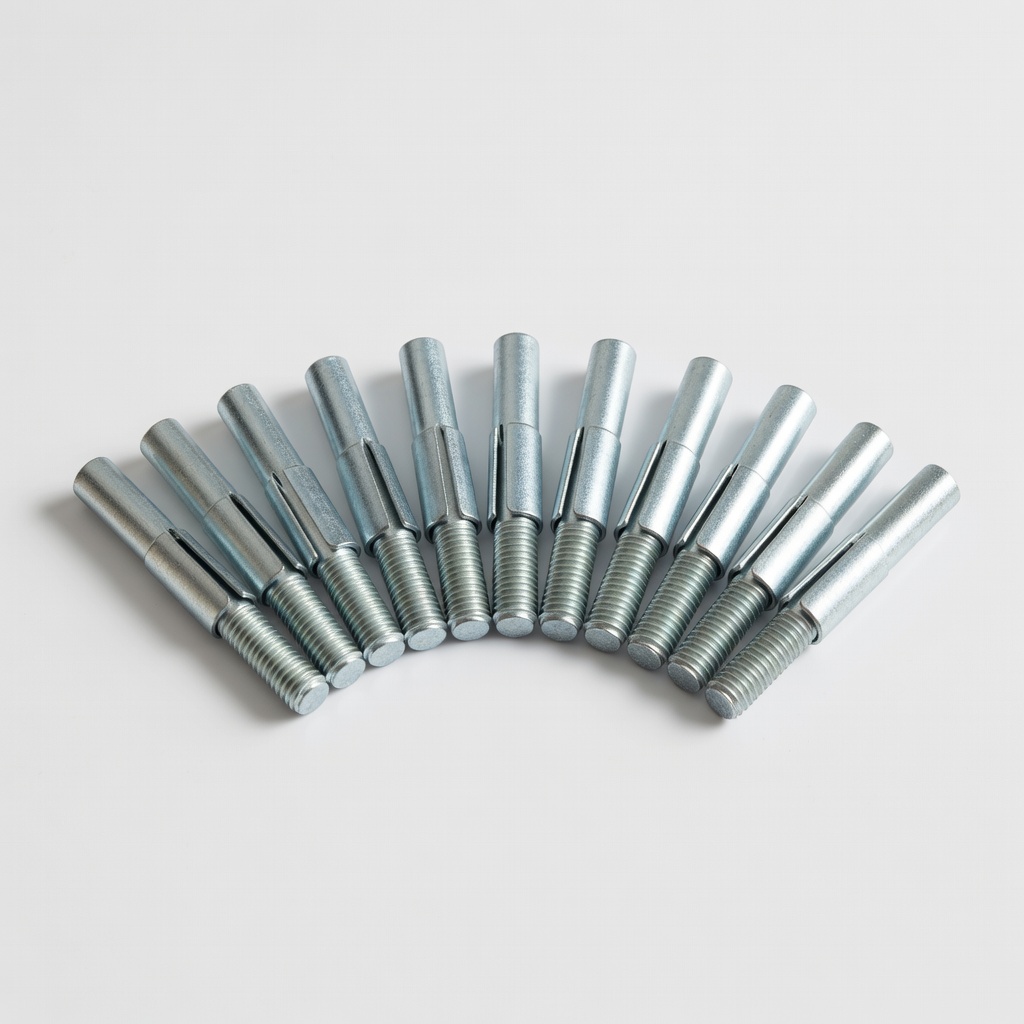

The Hillman Group 48251 1/4" x 1-3/4" Zinc Sleeve Anchor (10-pack)

Expansion anchor grips tight in concrete; budget option for heavy loads.

Best for: When Tapcons unavailable; hammer-set for security.

Price Range: $10-$15

Stanley 42-465 9-Inch Torpedo Level

Magnetic edge sticks to metal brackets; accurate for walls.

Best for: Ensuring perfectly level curtain rods.

Price Range: $10-$12
