How to Use AC Adapters for LED Strips?

Ever bought LED strips only to find them flickering dimly or burning out quickly? The culprit is often a mismatched AC adapter. Without the right power supply, your lights won't shine at full potential or could fail entirely. This guide solves that by teaching you how to select, connect, and use AC adapters perfectly for LED strips.

You'll learn to calculate power needs, make secure connections, and test everything safely. The process is straightforward: match voltage and amps, connect wires properly, and plug in. Expect reliable, vibrant lighting for under 20 minutes of work.

Perfect for DIY home decor, under-cabinet lighting, or accent projects. Beginner-friendly with no soldering required if using connectors.

▸What You'll Need

• •Compatible AC-DC adapter (12V DC output, correct amperage)
• •LED strip (12V common for beginners)
• •Wire strippers or cutters
• •Electrical tape or heat shrink tubing
• •DC barrel connector or LED strip adapter (if not included)
• •Multimeter (optional, for testing voltage)
• •Screwdriver (for mounting if needed)

Estimated Time: 15-20 minutes Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Calculate Your LED Strip's Power Needs

Start by checking your LED strip's specs. Look for voltage (usually 12V DC) and total wattage (watts per meter x length in meters). For example, a 5m strip at 14.4W/m needs 72W.

Divide total watts by voltage to find required amps: 72W / 12V = 6A. Your AC adapter must match or exceed this (e.g., 12V 10A). Why? Underpowered adapters cause dimming or flickering; overpowered ones are safe if voltage matches.

Success looks like: A note with exact voltage (12V) and minimum amps needed.

💡 Tips:

• •Add 20% extra amps for safety and future expansion.

⚠️ Warnings:

• •Never exceed strip's voltage—e.g., no 24V adapter on 12V strip.

Step 2: Select the Right AC Adapter

Choose a 12V DC adapter with at least your calculated amps. Ensure it's UL-listed for safety. Barrel jack size must match your strip's connector (common: 5.5mm x 2.1mm).

Adapters convert AC wall power to DC for LEDs. Plug-and-play ones are best for beginners.

Success looks like: Adapter labeled 'Output: 12V 5A+' matching your needs.

💡 Tips:

• •Opt for waterproof adapters for outdoor use.

Step 3: Prepare Your Workspace and Materials

Clear a flat surface. Unroll the LED strip and locate the power input end (marked + and -). Cut if needed only at marked lines.

Gather tools. Test adapter output with multimeter if available (should read 12V DC).

Success looks like: Organized tools and strip ready, polarity marked.

⚠️ Warnings:

• •Work in well-lit area; unplug everything first.

Step 4: Connect the DC Plug to LED Strip

If your strip has a barrel jack, plug in directly (match + center polarity). Otherwise, use a DC connector: strip 1/4 inch insulation from adapter wires (red +, black -).

Twist or crimp to strip's wires (+ to +, - to -). Secure with tape or connector.

Success looks like: Firm, insulated connection with no exposed wire.

💡 Tips:

• •Use pre-made adapters to skip stripping.

⚠️ Warnings:

• •Reverse polarity fries LEDs instantly—double-check + and -.

Step 5: Test the Connection Safely

Plug adapter into wall outlet (ensure grounded). LEDs should light evenly and brightly. Check for heat after 1 minute—should be cool.

Unplug immediately if flickering or hot.

Success looks like: Full, steady brightness across strip.

Step 6: Secure and Install the Setup

Mount strip with adhesive or clips. Route wires neatly, zip-tie if needed. Hide adapter or use enclosure.

Success looks like: Installed lights working flawlessly in place.

💡 Tips:

• •Leave slack in wires for adjustments.

Step 7: Final Safety Check

Run for 30 minutes. Monitor heat, stability. Unplug when not in use.

Success looks like: Reliable operation with no issues.

⚠️ Warnings:

• •Avoid daisy-chaining multiple strips on one adapter without amp check.

▸Pro Tips

• •Always match polarity: Red to +, black to -.
• •Use adapters with short-circuit protection for safety.
• •For long runs (>5m), use multiple adapters or amp up.
• •Dimmer switches? Ensure adapter handles load.
• •Label connections for future maintenance.
• •Test in short segments first.
• •Waterproof everything for bathrooms/kitchens.

▸Common Mistakes to Avoid

• •Using wrong voltage (e.g., 5V on 12V strip)—causes no light or damage; always verify specs.
• •Insufficient amps—leads to dimming; calculate with 20% buffer.
• •Ignoring polarity—burns out LEDs; use multimeter to confirm.
• •Exposed wires—shock/fire risk; always insulate fully.
• •Overloading extension cords—use direct wall outlet.

▸Troubleshooting

Problem: LEDs flicker or dim

Solution: Check amp rating—increase if underpowered. Ensure solid connections.

Problem: No lights at all

Solution: Verify polarity and voltage. Test adapter alone with multimeter.

Problem: Adapter gets hot

Solution: Unplug immediately—overloaded. Use higher amp adapter.

Problem: Partial lighting

Solution: Loose connection or voltage drop on long strip—add booster or shorten.

Problem: Burnt smell

Solution: Disconnect fully. Replace damaged parts—seek electrician if wiring issue.

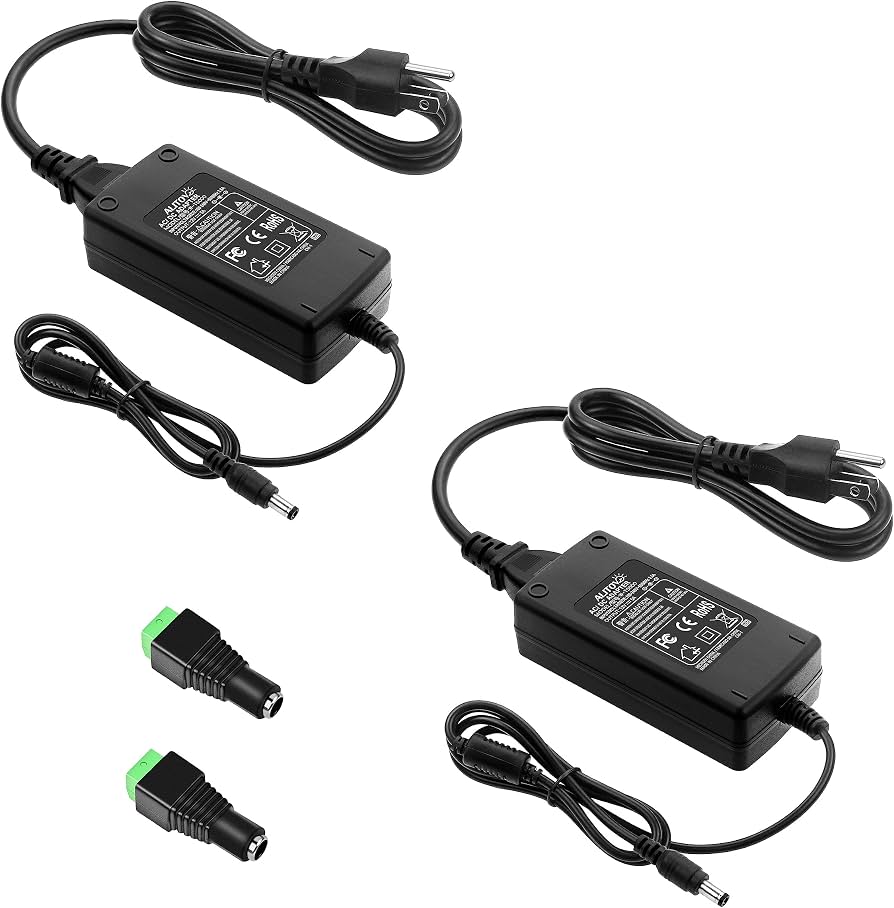

ALITOVE 12V 5A Power Supply Adapter

Reliable for most 5m LED strips, UL certified, overload protection.

Best for: Standard indoor projects like shelves or TVs.

Price Range: $15.99

MEICOLY 12V 10A Power Supply

High amps for longer strips or multiples, waterproof option available.

Best for: Outdoor or heavy-duty installs up to 10m.

Price Range: $22.99

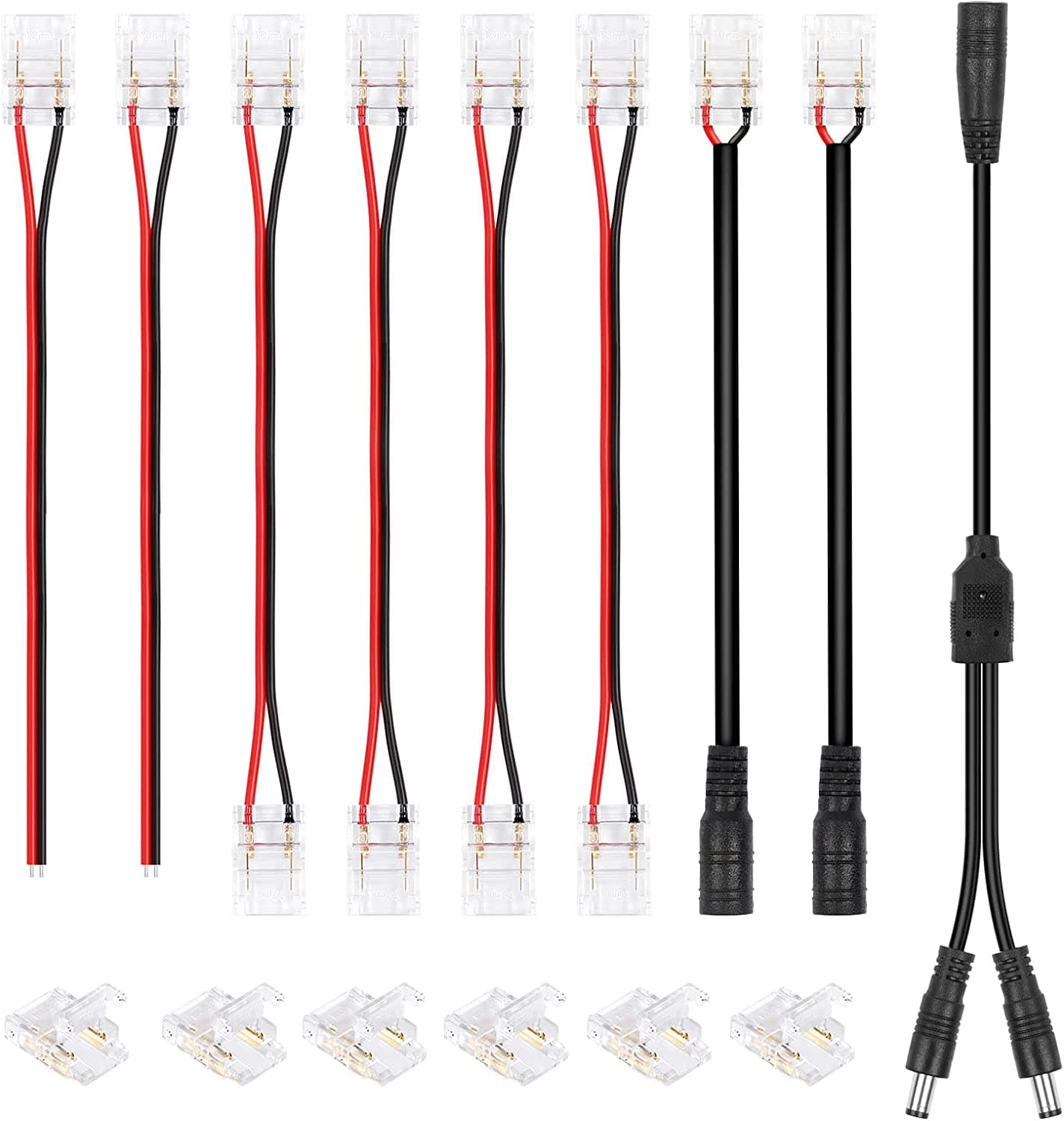

HitLights DC Barrel Connector Kit

Easy plug-and-play for bare wire strips, matches common jacks.

Best for: Custom connections without soldering.

Price Range: $9.99

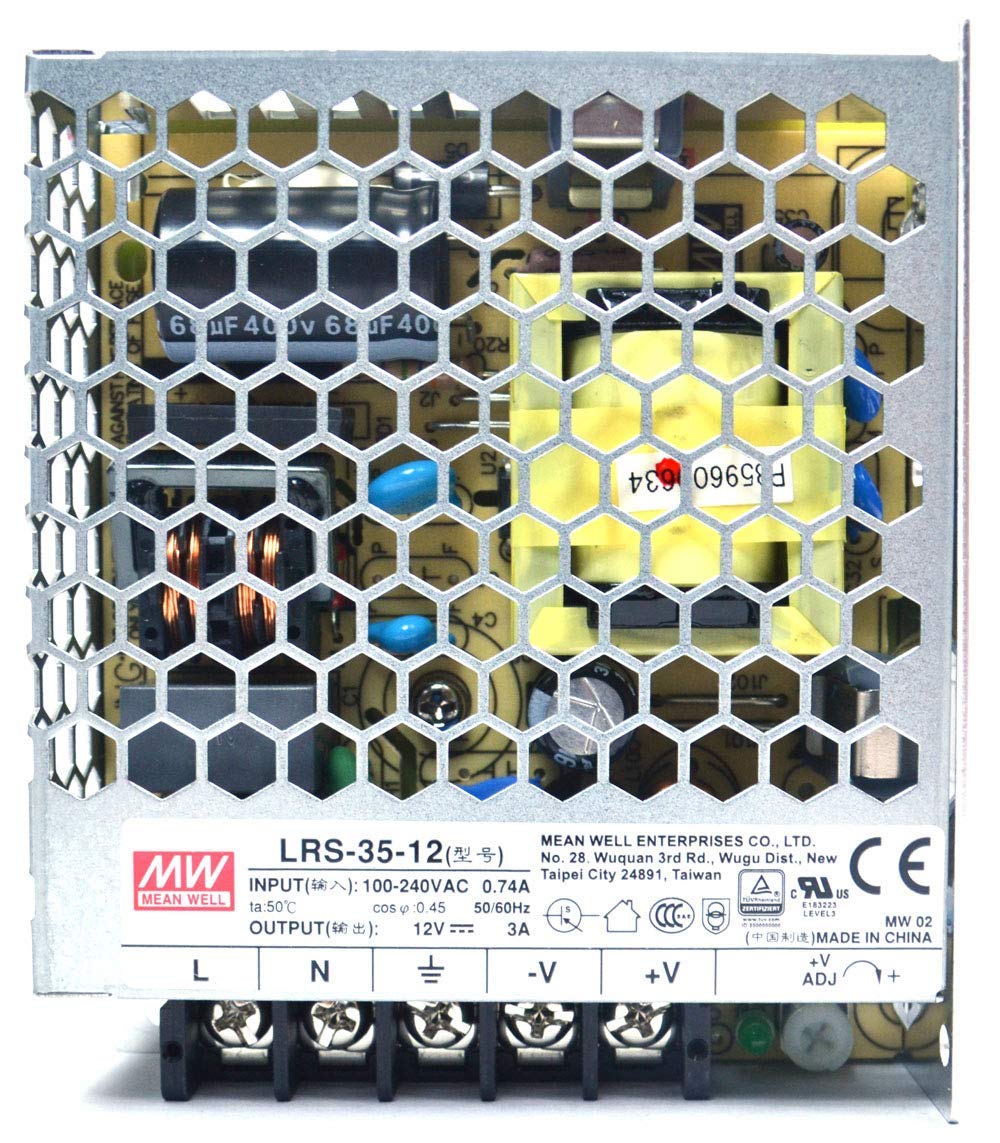

Mean Well LRS-35-12 12V 3A Power Supply
