How to Use Abrasive Mounted Points on a Dremel?

Struggling with rough edges or imprecise shaping on your DIY projects? Abrasive mounted points on a Dremel deliver professional-level grinding power in a compact tool, perfect for intermediate users tackling metalwork, glass etching, or stone carving. Without proper technique, you risk tool damage, uneven results, or injury.

In this guide, you'll master selecting, installing, and using abrasive mounted points step-by-step. Expect smooth, controlled material removal with minimal vibration. The process takes 15-30 minutes for a typical project and assumes basic Dremel familiarity.

By the end, you'll achieve clean, professional finishes on workpieces like tools, jewelry, or hardware—safely and efficiently.

▸What You'll Need

• •Dremel rotary tool (e.g., Dremel 4000 or 4300 series)
• •Abrasive mounted points (aluminum oxide or silicon carbide, various shapes and grits)
• •Safety glasses (ANSI Z87.1 rated)
• •Dust mask or respirator (N95 or better)
• •Work gloves (cut-resistant)
• •Vise or clamp to secure workpiece
• •Optional: Cutting oil or lubricant for metal grinding
• •Optional: Dremel collet set (1/8-inch shank compatible)

Estimated Time: 15-30 minutes per project Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace and Gear

Clear a stable, well-lit workspace free of flammable materials. Don safety glasses, dust mask, and gloves—these protect against flying debris, dust, and heat. Clamp your workpiece securely in a vise to prevent movement, which ensures precision and safety.

Why it matters: Unsecured pieces can spin violently, causing injury or poor results. Expect a vibration-free setup ready for action.

💡 Tips:

• •Work in a ventilated area to avoid inhaling fine particles.
• •Keep a fire extinguisher nearby for metal sparking.

⚠️ Warnings:

• •Never skip safety gear—abrasive dust can damage lungs and eyes.

Step 2: Select the Right Abrasive Mounted Point

Choose based on material: aluminum oxide (AO) for steel/metal (durable, fast cut), silicon carbide (SC) for stone/glass/hard materials (faster on non-ferrous). Match grit (coarse 36-60 for heavy removal, fine 120+ for polishing) and shape (cylindrical for flats, ball for curves).

Inspect for damage; shank must be 1/8-inch for Dremel collets. Success: Point matches your project's needs, like a 60-grit AO cone for deburring metal.

💡 Tips:

• •Start coarser, finish finer for smooth results.

⚠️ Warnings:

• •Wrong grit/material slows work or clogs the point.

Step 3: Install the Mounted Point

Power off Dremel. Loosen collet nut with wrench, insert 1/8-inch shank fully (flush but not bottomed), then tighten nut securely. Avoid over-tightening to prevent stripping.

Why: Proper fit reduces wobble and breakage. Test by spinning briefly—expect smooth rotation without vibration.

💡 Tips:

• •Use the Dremel collet key for easy changes.

⚠️ Warnings:

• •Loose installation causes points to fly off at high speed.

Step 4: Secure and Position Workpiece

Clamp material firmly, leaving grinding area accessible at a 15-45° angle. For freehand, hold steady but firm. Apply lubricant if grinding metal to reduce heat.

This prevents slips and overheating. Success: Workpiece immovable, tool angled for control.

💡 Tips:

• •Use soft jaws in vise to avoid marring workpiece.

⚠️ Warnings:

• •Hand-holding heavy pieces risks burns or loss of control.

Step 5: Set Optimal Speed

Dial Dremel to 15,000-25,000 RPM (medium-high): lower for fine work/stone, higher for metal. Consult point packaging for specs.

Why: Too slow clogs, too fast wears prematurely. Expect consistent hum without bogging.

💡 Tips:

• •Variable speed models like Dremel 4000 allow precise control.

⚠️ Warnings:

• •Max speed on delicate points causes disintegration.

Step 6: Test and Start Grinding

Power on away from workpiece, let reach speed. Lightly contact at shallow angle, using minimal pressure—let abrasives do the work. Move steadily in sweeps.

Feel for smooth cut; sparks normal on metal. Success: Even material removal without gouging.

💡 Tips:

• •Short bursts prevent overheating; dip in water if needed.

⚠️ Warnings:

• •Heavy pressure dulls points fast and generates excess heat.

Step 7: Shape, Refine, and Inspect

Work contours gradually, changing points for stages (rough to finish). Pause to check progress with calipers or visually. Clean dust frequently.

Monitor heat—cool if >150°F. End with: Polished, dimensionally accurate piece.

💡 Tips:

• •Feather edges for seamless blends.

⚠️ Warnings:

• •Over-grinding weakens material.

Step 8: Clean Up and Store

Power off, remove point, brush off residue. Store points dry, organized by grit. Wipe Dremel.

Prevents contamination. Success: Tools ready for next use.

💡 Tips:

• •Use compressed air for collets.

⚠️ Warnings:

• •Damp storage rusts shanks.

▸Pro Tips

• •Apply light pressure—90% of cutting power is RPM, not force.
• •Use a flex shaft for precision in tight spots.
• •Mark progress lines on workpiece for even removal.
• •Cool points in water between uses for longer life.
• •Practice on scrap first to dial in technique.
• •Layer grits progressively: 36 > 60 > 120 for mirror finishes.
• •Wear ear protection—Dremel whine adds up over time.

▸Common Mistakes to Avoid

• •Using excessive pressure, leading to overheating and point glazing—avoid by letting RPM cut.
• •Wrong speed settings, causing vibration or stalling—match to material per manual.
• •Skipping workpiece clamping, resulting in slips/injury—always secure first.
• •Ignoring heat buildup, warping metal—pause and cool regularly.
• •Poor point selection, slowing work—match grit/shape to task.

▸Troubleshooting

Problem: Excessive vibration or wobble

Solution: Check shank seating and collet tightness; replace bent point or worn collet.

Problem: Point glazing or clogging

Solution: Reduce pressure, increase speed, or dress point with a steel brush.

Problem: Overheating workpiece

Solution: Apply lubricant, use lighter passes, or switch to finer grit.

Problem: Uneven grinding

Solution: Maintain consistent angle/speed; practice steady hand movement.

Problem: Sparks or burning smell

Solution: Lower RPM, ensure ventilation; stop if persistent and inspect tool.

Dremel 850-03 26-Piece Abrasive Point Set

Versatile set with multiple shapes/grits for all project stages, aluminum oxide for durability.

Best for: Ideal for metal/stone grinding; covers rough to fine work.

Price Range: $14.99

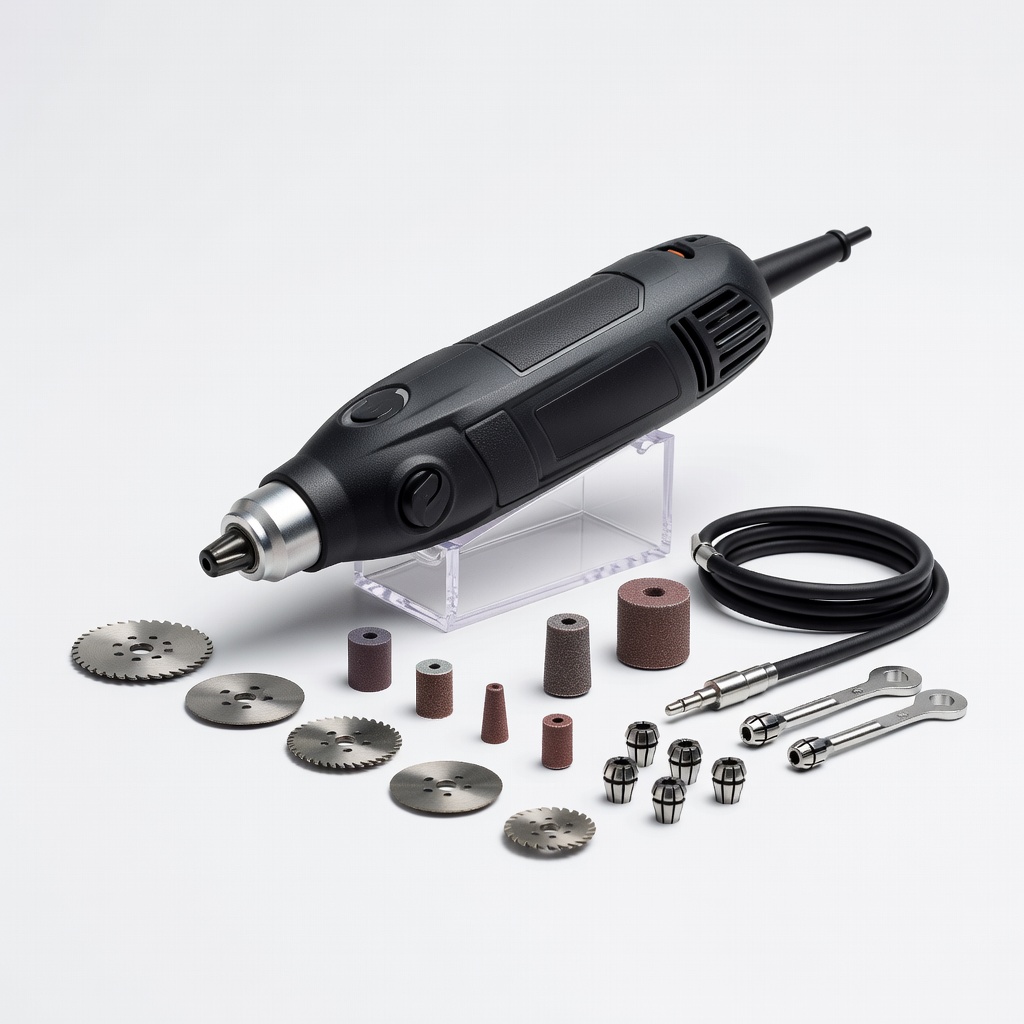

Dremel 4000 Rotary Tool Kit

Variable speed (5,000-35,000 RPM) and ergonomic for precise control with mounted points.

Best for: Everyday Dremel use for intermediate projects requiring speed adjustment.

Price Range: $99-$129

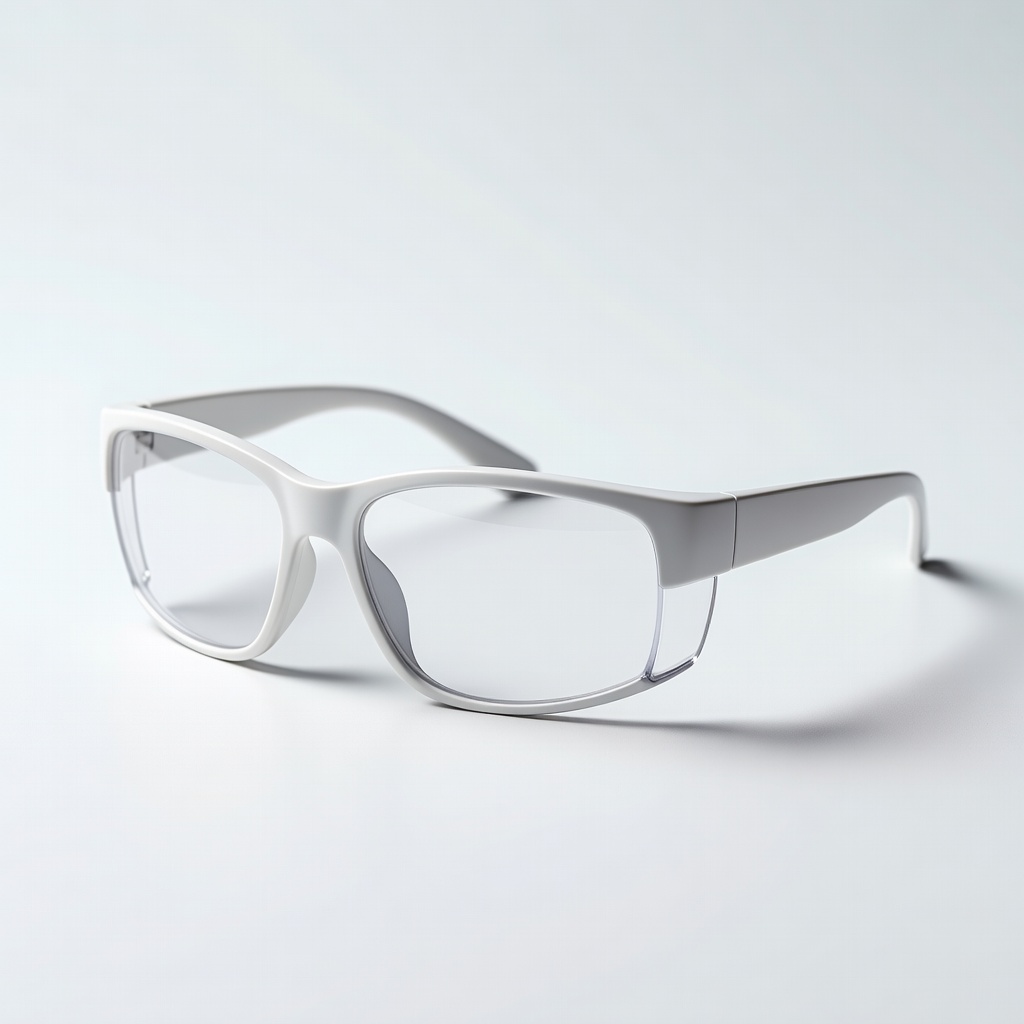

NoCry Safety Glasses

Clear, anti-fog ANSI Z87.1 protection against abrasive debris.

Best for: Essential for eye safety during high-speed grinding.

Price Range: $12.99

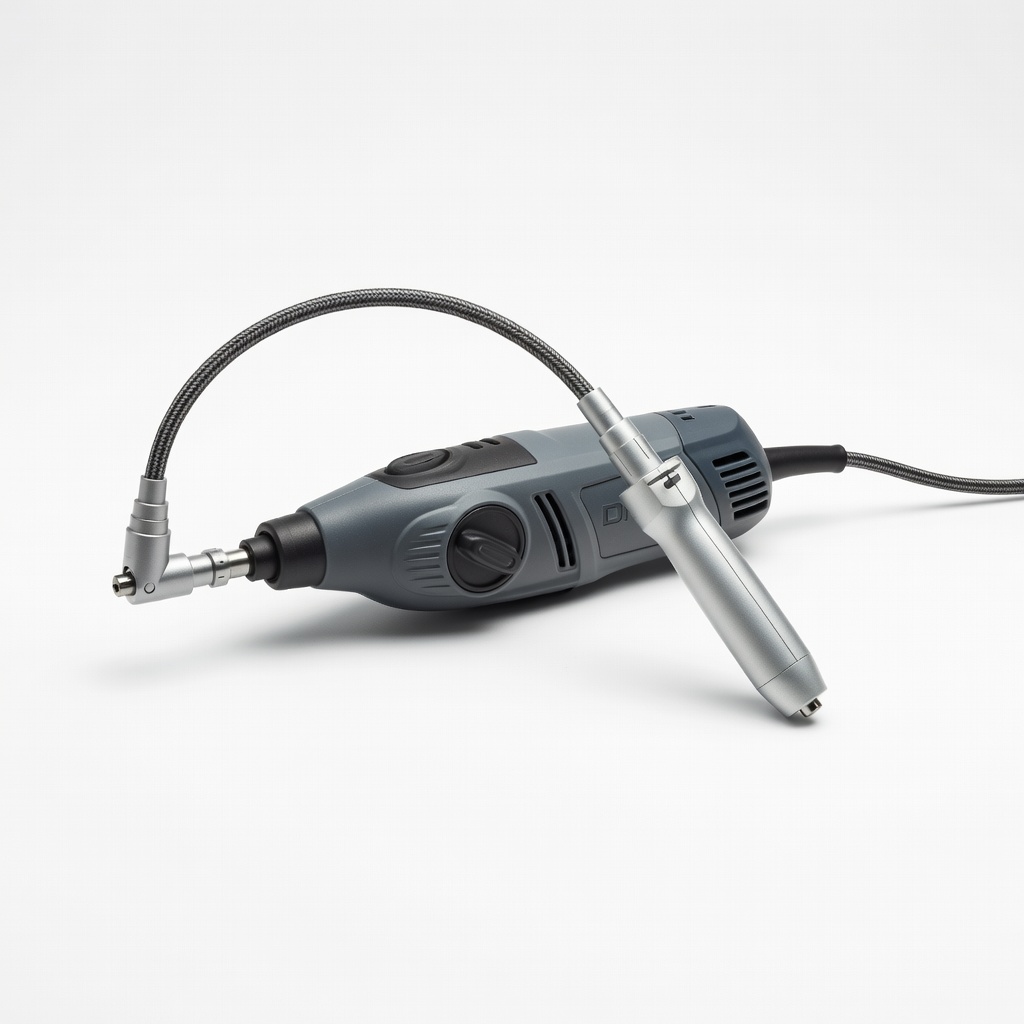

Dremel 4300 Rotary Tool with Universal Flex Shaft
