How to Use Abrasives for Auto Paint Prep

Why Proper Abrasive Prep is Crucial

In auto painting, 80% of a flawless finish comes from surface preparation. Poor prep leads to adhesion failures, fisheyes, or orange peel. Advanced users know that abrasive finishing products—fine grits and discs—create the ideal profile for paint bonding without holograms or scratches.

This guide teaches you to select, apply, and inspect abrasives for perfect paint prep. You'll learn a progressive sanding sequence using DA sanders and foam pads, from scuffing to ultra-fine finishing. Expect 2-4 hours per panel for pros; advanced skills in masking and inspection required.

By the end, your surface will be smooth, decontaminated, and ready for primer or basecoat—no sanding marks visible under bright lights.

▸What You'll Need

• •Dual-action (DA) orbital sander (e.g., 5-6 inch pad)
• •Random orbital air sander (optional for speed)
• •Wet sanding setup: Spray bottle with soapy water, sanding block
• •Progressive grit discs/pads: P800, P1500, P3000, P5000 (3M Hookit or foam)
• •Vacuum with soft brush attachment
• •Tack cloths or microfiber towels
• •Isopropyl alcohol (IPA) 70-99% for wipe-down
• •Masking tape and paper
• •Inspection lights (LED flood or cross-light setup)
• •PPE: Respirator, gloves, safety glasses (required)
• •Lubricant: Soapy water or sanding aid (optional)

Estimated Time: 2-4 hours per full hood/panel Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Assess and Prep the Surface

Inspect the panel under bright, angled lights for defects like runs, orange peel, or contaminants. Mark imperfections with painter's tape. Clean with IPA wipe-down to remove oils, wax, or silicone.

Mask adjacent areas meticulously—doors, trim, glass—with 2-inch tape and paper. Why? Overspray ruins paint; poor masking contaminates abrasives.

Success looks like: Bare, dry surface free of gloss, ready for sanding. Expect 10-15 minutes.

💡 Tips:

• •Use a moisture meter if available to check for trapped water in old paint.

⚠️ Warnings:

• •Avoid sanding contaminated surfaces—causes embedded particles.

Step 2: Select Abrasive Sequence

Choose grits based on surface: P320-P800 for heavy defect removal, P1500 medium, P3000-P5000 for finish sanding. Use hook-and-loop discs for DA sanders; foam pads for final scuff.

Match backing (Hookit for 3M). Progressive grits feather edges and create 1-2 mil scratch pattern for adhesion.

Success: Grits planned: coarse → fine, no skips.

💡 Tips:

• •P3000+ foam for paint-ready scuff; paper for cutting.

Step 3: Initial Coarse Sanding (P320-P800)

Attach coarse disc to DA sander at 4,000-6,000 OPM. Sand in overlapping straight lines or circles, light pressure. Keep moving to avoid digs.

Wet sand if dusty; dry for speed. Goal: Level high spots, feather edges.

Success: Uniform matte surface, defects flattened. Check with finger—feel scratches.

⚠️ Warnings:

• •Heavy pressure creates low spots; let tool do work.

Step 4: Medium Sanding (P1200-P2000)

Switch to medium grit. Sand perpendicular to previous direction for even removal. Vacuum frequently to clear debris.

This evens the scratch pattern, removes coarse lines.

Success: Smoother matte, no visible coarse scratches under light.

💡 Tips:

• •Light mist of water reduces clogging on resinous paints.

Step 5: Fine Finishing Sanding (P3000)

Use P3000 discs or foam pads on low speed (3,000-4,000 OPM). Focus on entire surface for uniform micro-scratches.

Lubricate with soapy water for wet sanding—prevents heat buildup.

Success: Silky smooth, tight scratch pattern visible only under 45° light.

⚠️ Warnings:

• •Dry sanding foam can burn paint; always wet.

Step 6: Ultra-Fine Scuff (P4000-P5000)

Final pass with P5000 or maroon/purple foam pads. Ultra-light pressure, hover technique.

Preps for paint adhesion without deep scratches.

Success: Near-glossy but hazy surface, no holograms.

💡 Tips:

• •Flex pads conform to curves.

Step 7: Thorough Cleaning

Vacuum all dust. Wipe with tack cloth, then IPA-damp microfiber (multiple passes).

Final compressed air blow-out.

Success: No residue—finger slides without drag.

⚠️ Warnings:

• •Skip this = paint defects!

Step 8: Inspect and Verify

Use cross-lighting: shine two lights at 45° angles. Walk around vehicle.

Feel with palm; check adhesion tape test.

Success: Even haze, no shiny spots or digs—paint-ready!

💡 Tips:

• •Blacklight reveals contaminants.

▸Pro Tips

• •Always sand perpendicular between grits for best leveling.
• •Use speed control on sander—low for finishing.
• •Soapy water (dish soap) beats commercial lubes for wet sanding.
• •Vacuum sander ports prevent re-contamination.
• •Practice on scrap panels to dial in pressure.
• •Store discs in airtight container to prevent hardening.
• •Air-powered tools faster for large areas but noisier.

▸Common Mistakes to Avoid

• •Skipping grit progression: Leaves deep scratches in paint.
• •Sanding too aggressively: Creates uneven low spots hard to fill.
• •Inadequate cleaning: Dust causes pinholes in primer.
• •Ignoring direction: Swirl marks from random patterns.
• •Dry sanding fines: Generates static/clogging.

▸Troubleshooting

Problem: Holograms or swirls after fine sanding

Solution: Switch to foam pads, wet sand, lower speed. Polish lightly if needed before paint.

Problem: Uneven surface or digs

Solution: Fill low spots with glaze, re-sand progressively. Use sanding block for flats.

Problem: Dust contamination post-clean

Solution: IPA wipe again, use blower. Work in clean garage.

Problem: Paint burning/smoking

Solution: Wet sand immediately, reduce speed/pressure. Seek pro if damage deep.

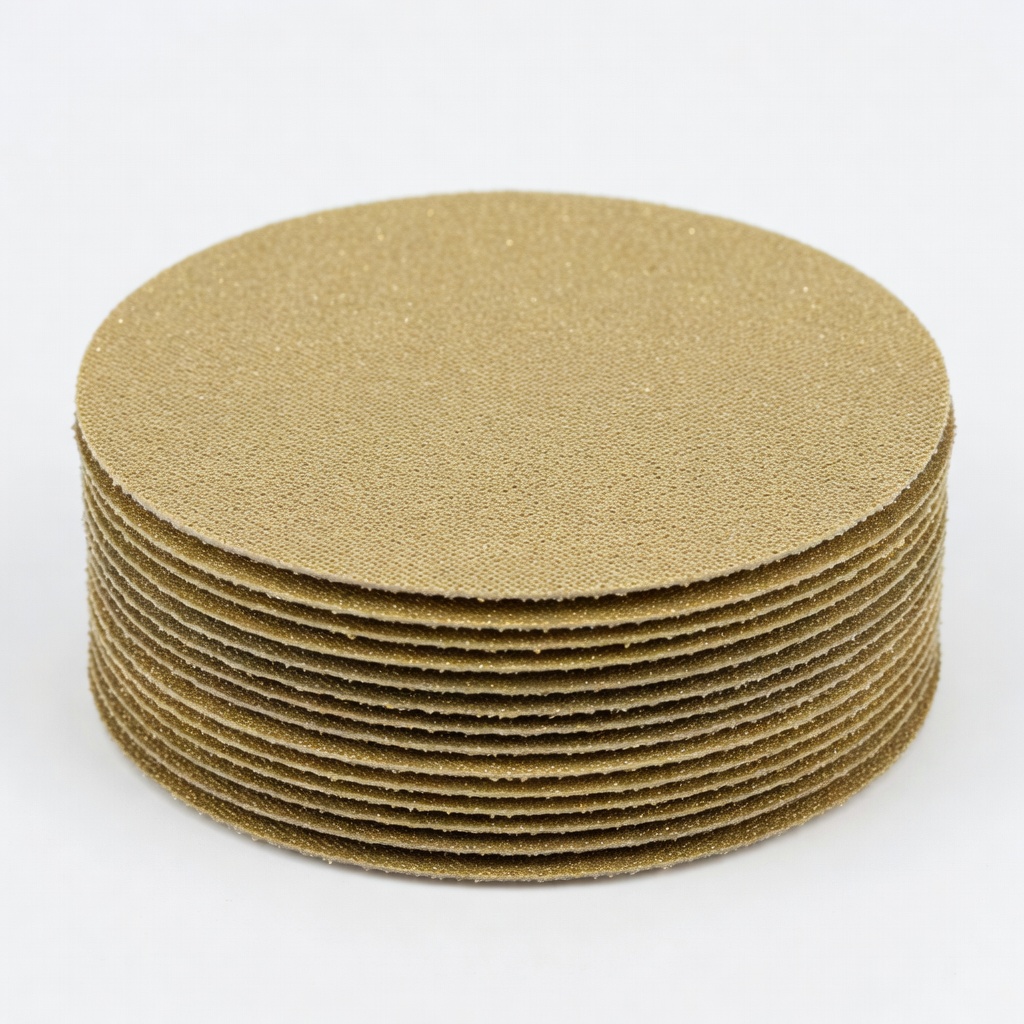

3M Hookit Gold P3000 6-Inch Sanding Discs (10-Pack)

Premium PSA discs cut fast, finish smooth without loading; ideal for progressive sanding.

Best for: Medium-to-fine sanding on DA for auto panels.

Price Range: $20-25

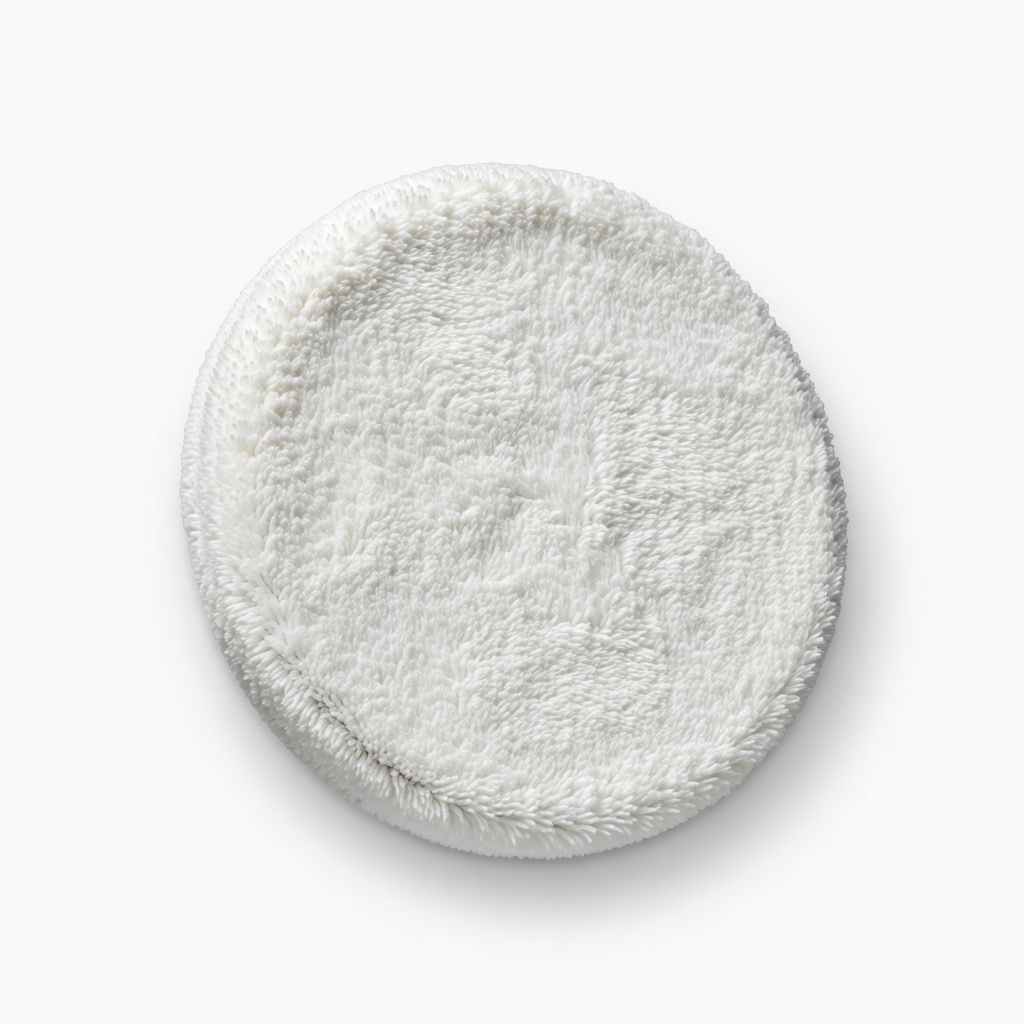

Meguiar's DA Microfiber Cutting Disc (DAF)

Soft microfiber abrasive for swirl-free scuffing; advanced foam alternative.

Best for: Final P3000-equivalent prep without paper scratches.

Price Range: $15-20

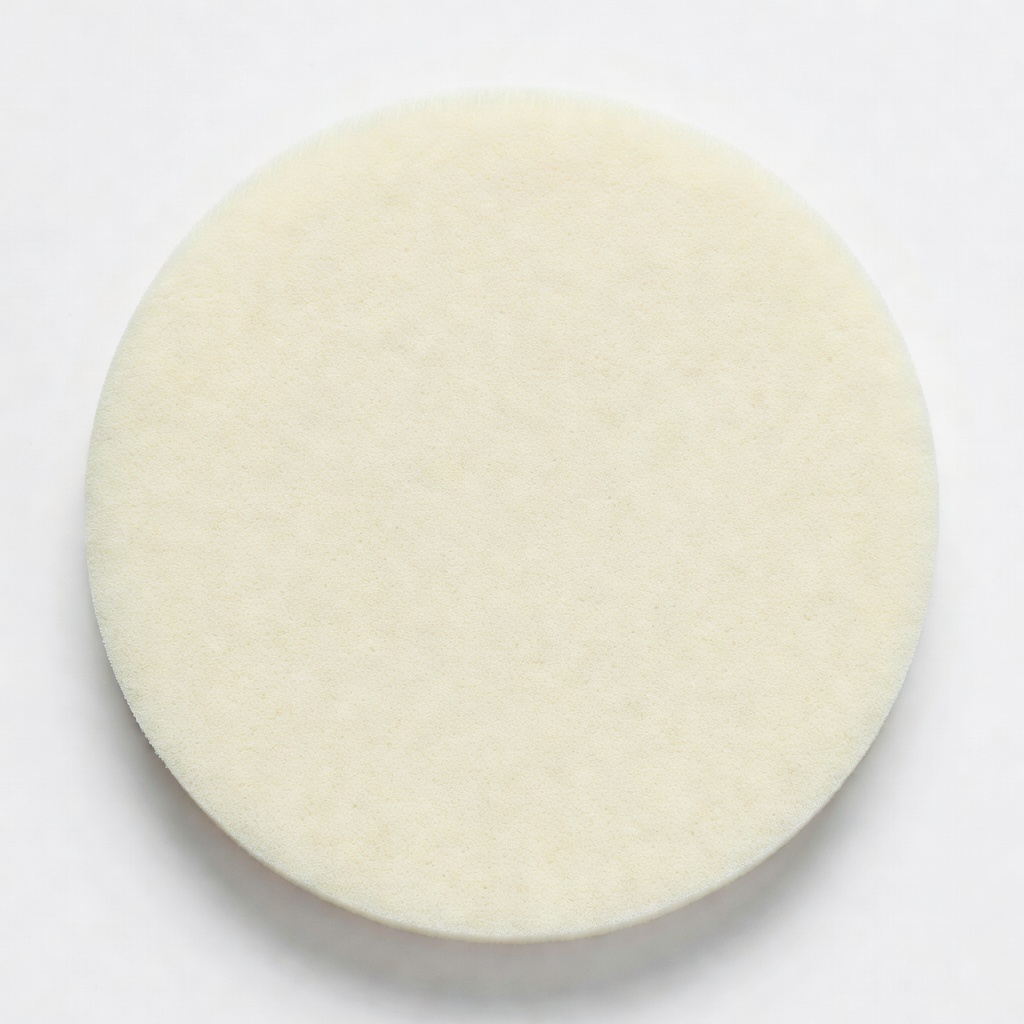

3M Perfect-It Ultra5 P5000 Foam Disc 5-Inch

Ultra-fine for paint-ready haze; hookit backing for quick changes.

Best for: Last-step finishing on curved surfaces.

Price Range: $25-30

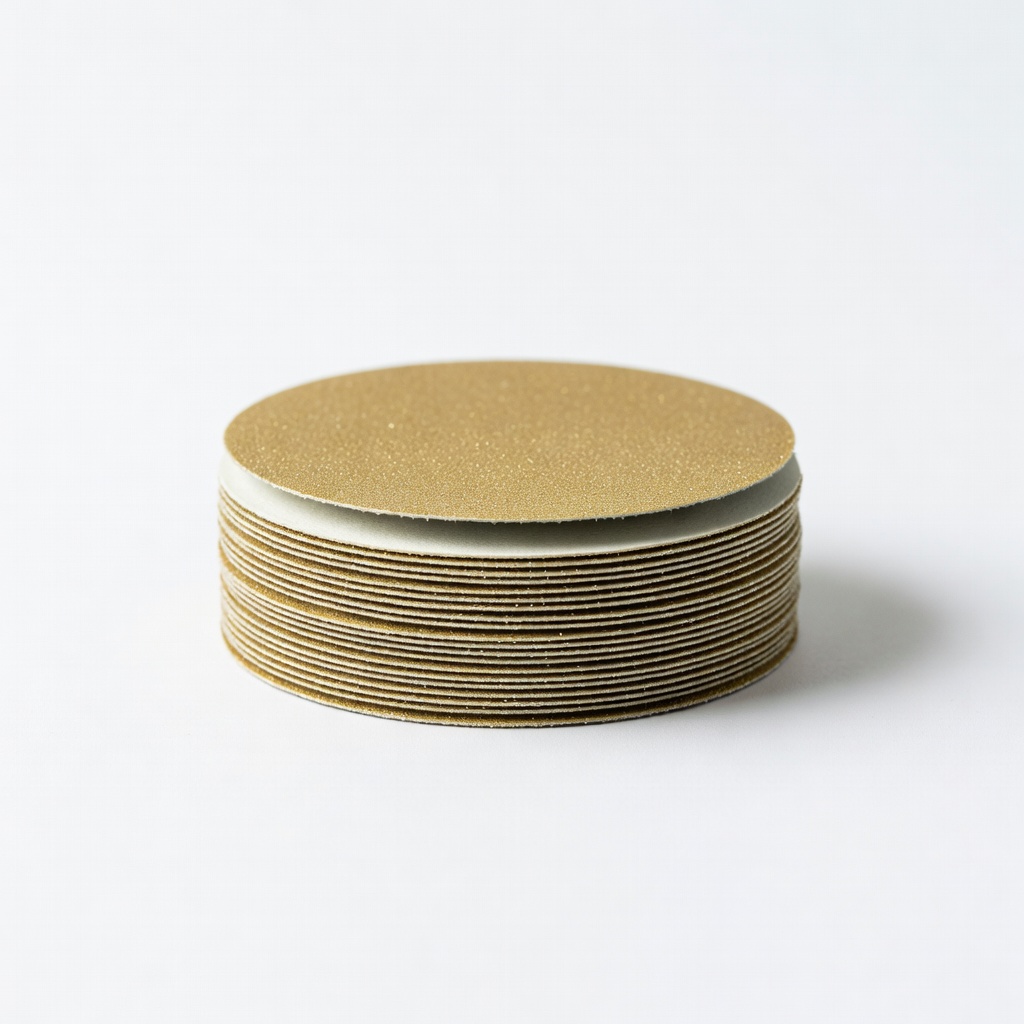

Eastwood 6" 3M Stikit Gold P800 Discs

Aggressive cut for initial leveling; budget pro quality.

Best for: Heavy defect removal on budget.

Price Range: $15-20

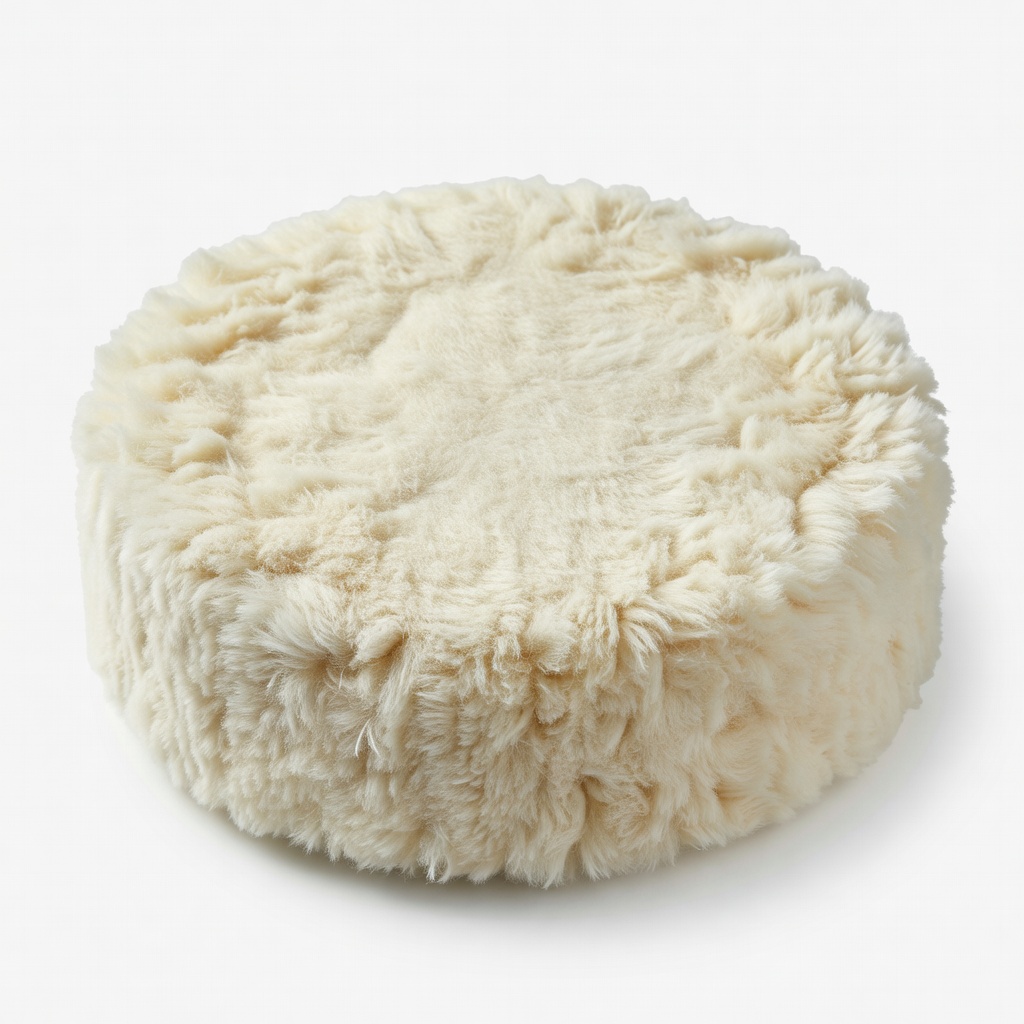

Rupes BigFoot Coarse Foamed Wool Pad

Heavy cutting for DA polishers; durable for pros.

Best for: Alternative to discs for compound sanding.

Price Range: $40-50
