How to Upgrade Acoustic Guitar Parts for Better Tone

If you're an advanced player frustrated by your acoustic guitar's muddy tone, lack of sustain, or uneven intonation, upgrading key parts is the pro-level fix you've been missing. Stock components like plastic nuts and saddles often dampen overtones and kill projection—swapping them for premium materials like bone, Tusq, or titanium unlocks richer harmonics and louder volume.

In this guide, you'll learn to diagnose tone issues, select and install high-quality upgrades, and perform a full setup for optimal playability. We'll cover the most impactful mods: nut, saddle, bridge pins, and tuners. Expect professional results rivaling a luthier.

This advanced tutorial takes 4-6 hours total (spread over sessions), requires precision tools and steady hands. No prior mod experience needed beyond basic setup knowledge, but mistakes can damage your guitar—proceed carefully.

▸What You'll Need

• •Precision nut files or nut slotting file set (required for nut work)
• •Saddle sanding block or T-bar (required)
• •Bridge pin puller (required)
• •Tuner installation kit with drill bits (required for tuners)
• •Bone, Tusq, or graphite nut blank (required)
• •Compensated bone or Tusq saddle (required)
• •High-quality bridge pins (e.g., unbleached bone or delrin with dots)
• •Locking tuners (e.g., Grover or Schaller)
• •Guitar setup tools: feeler gauges, 6" ruler, string winder, clip-on tuner
• •Lubricant (e.g., nut sauce or graphite powder)
• •Sandpaper (400-2000 grit), superglue or epoxy for nut
• •Optional: Fret rocker, string action gauge, hyde glue for pro installs

Estimated Time: 4-6 hours (1-2 hours per major upgrade, plus setup) Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Assess Your Guitar's Current Tone and Setup

Play your guitar unplugged and note issues: Does it lack brightness (check nut/saddle)? Poor sustain (bridge pins)? Tuning instability (tuners)? Use a spectrum analyzer app or record clips for before/after comparison.

Measure action (string height): low E at 12th fret should be 2-3mm at bass, 1.5-2mm treble for acoustics. Check neck relief (0.010-0.015" at 8th fret) and intonation (±10 cents).

Success looks like: A diagnostic checklist identifying 2-3 target upgrades. This prevents unnecessary work.

💡 Tips:

• •Use free apps like Guitar Tuna for intonation checks.
• •Photograph everything for reference.

⚠️ Warnings:

• •Don't force strings if truss rod is maxed—seek luthier.

Step 2: Remove Old Nut

Loosen strings, clip tuner tuner. Apply heat (hairdryer 30sec) or dental floss under nut to loosen glue. Gently tap with plastic mallet and wooden block to lift—never use metal tools.

Clean slot with compressed air and alcohol. Measure old nut: width (1.68-1.75"), height, string slots.

Success: Nut out intact, slot clean, dimensions noted.

💡 Tips:

• •Steamed walnut works for stubborn nuts.
• •Save old nut as backup.

⚠️ Warnings:

• •Excess force cracks neck—patience is key.

Step 3: Shape and Install New Nut

Select bone/Tusq blank matching dimensions. File ends to fit headstock (double-action nut files). Mark string slots at nut break angle, file progressively: .010" bass to .004" treble, 60° angle.

Test-fit strings, apply nut sauce, glue (superglue dots), clamp 20min. String up to tension.

Success: Slots grip strings without binding, open strings ring clear.

💡 Tips:

• •Practice on scrap wood.
• •Use Tuflite for temporary nuts.

⚠️ Warnings:

• •Over-file slots = buzz; under-file = high action.

Step 4: Replace Saddle and Contour It

Remove strings, pull saddle straight up. Sand new saddle (bone/Tusq) to match bridge slot height for 2.5-3mm action. Radius top to match fretboard (7.25-16"), 14° break angle.

Drop in, string up, check action/intonation. Sand iteratively .002" at a time.

Success: Balanced action, no dead spots, improved sustain.

💡 Tips:

• •Use T-bar for flat sanding.
• •Compensated saddles fix intonation.

⚠️ Warnings:

• •Too low = buzz; drop-end prevents slipping.

Step 5: Upgrade Bridge Pins

Pull old pins with puller. Insert new pins (bone/Tusq), tap gently. Ensure endpin fits snugly.

Retune, check for rattles. Pins improve vibration transfer for better bass response.

Success: Snug fit, brighter tone, no popping.

💡 Tips:

• •Lube pins with graphite.
• •Color dots for aesthetics.

⚠️ Warnings:

• •Loose pins kill tone—size match critical.

Step 6: Install Locking Tuners

Remove old tuners (drill if riveted). Drill new holes per template (usually 10mm). Mount bushings, screw post, install buttons.

String up, lock mechanism for stability. Better gears reduce backlash.

Success: Rock-solid tuning, smoother operation.

💡 Tips:

• •Drop-in replacements easiest.
• •Lube gears.

⚠️ Warnings:

• •Wrong drill bit enlarges holes irreparably.

Step 7: Final Setup and Intonation

Adjust truss rod for relief, set action, check nut height (.020" low E). Intonate by ear/tuner at 12th fret.

Play full range, tweak saddle slots if needed.

Success: Perfect intonation, vibrant tone upgrade evident.

💡 Tips:

• •Fresh premium strings amplify changes.
• •Record A/B tests.

⚠️ Warnings:

• •Over-tight truss rod bows neck.

▸Pro Tips

• •Pre-soak bone parts in oil overnight for stability.
• •Use a luthier mirror for hidden slot inspection.
• •Upgrade strings to Elixir Phosphor Bronze post-mod for max tone.
• •Work in 70-80°F humidity to avoid wood cracks.
• •Invest in digital calipers for precise measurements.
• •Test each upgrade individually before full setup.
• •Hyde glue for reversible pro installs.

▸Common Mistakes to Avoid

• •Filing nut slots too deep, causing fretting out—use progressive gauges and test frequently.
• •Ignoring neck relief, leading to high action—always check before/after.
• •Mismatched pin sizes, causing rattles and poor sustain—measure bridge holes first.
• •Over-sanding saddle, ruining intonation—remove .001" increments only.
• •Skipping lubrication, binding strings and deadening tone—apply nut sauce every swap.

▸Troubleshooting

Problem: Buzzing after nut install

Solution: Raise slots with baking soda/superglue fill, or check action/relief. Retest.

Problem: Saddle slips out

Solution: Add drop-end or beeswax taper. Ensure proper break angle.

Problem: Tuning unstable post-tuners

Solution: Check string tree pressure, lube posts, verify string winding.

Problem: Muddy tone persists

Solution: Verify all parts seated; consider bracing inspection by pro.

Problem: High action after upgrades

Solution: Sand saddle evenly; if neck issue, truss rod half-turn clockwise.

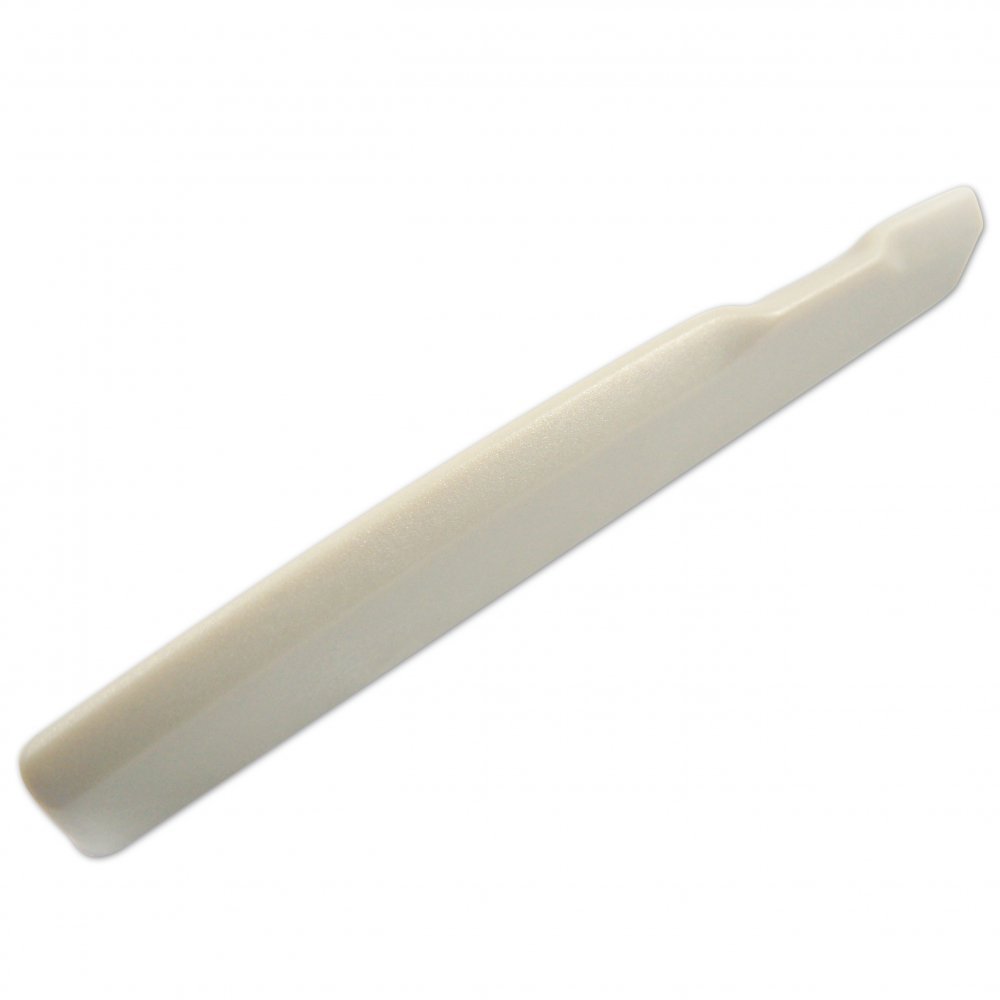

Graph Tech XL Tusq Acoustic Saddle

Self-lubricating polymer outperforms plastic for clarity and sustain without bone's variability.

Best for: Drop-in upgrade for Martin/Taylor; ideal for bright tone boost.

Price Range: $12-15

Unbleached Bone Nut Blank (1 11/16")

Natural bone delivers authentic warmth and overtones superior to synthetics.

Best for: Custom shaping for dreadnoughts; file your own for perfect fit.

Price Range: $8-12

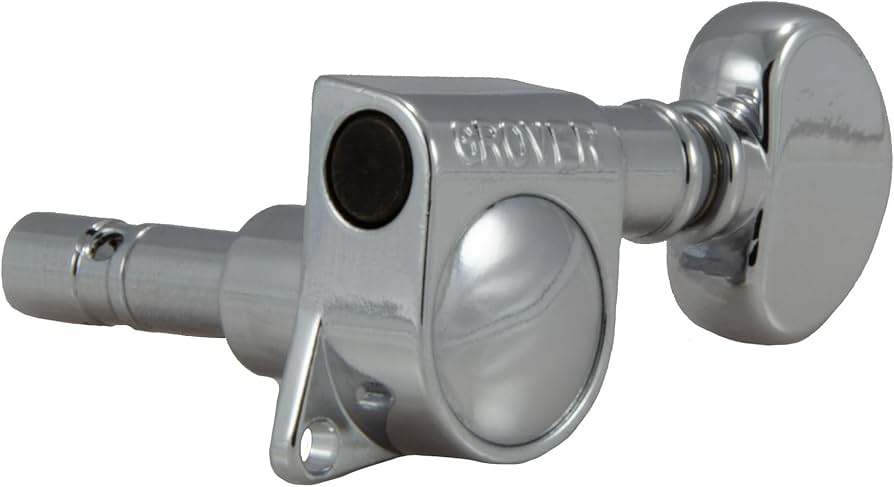

Grover 406C Mini Locking Rotomatics Tuners

18:1 ratio and lock ensures stability, reducing slip for better intonation hold.

Best for: Headstock swap on mid-size acoustics for pro tuning.

Price Range: $70-90

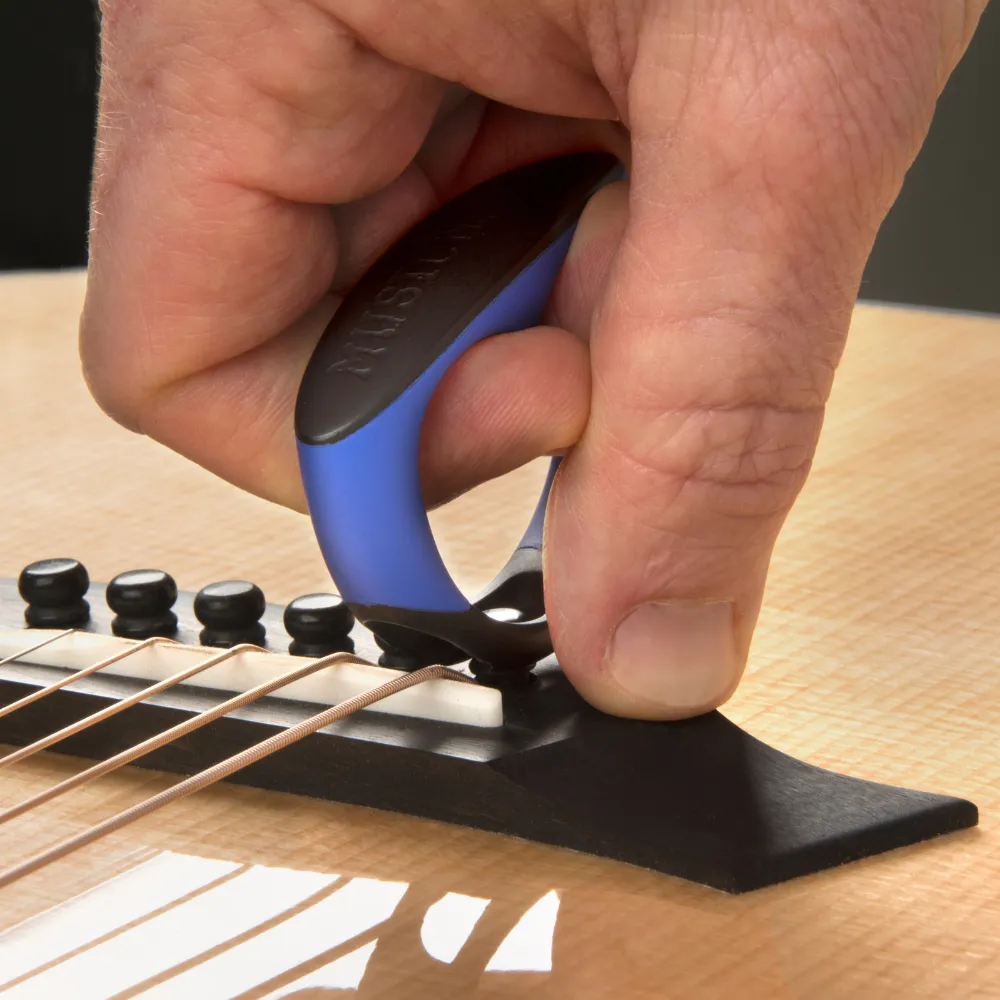

MusicNomad Bridge Pin Puller

Ergonomic design prevents bridge damage during pin removal.

Best for: Safe extraction for all pin upgrades.

Price Range: $15-20

Tusq Bridge Pin Set with Black Dots

Improves string-to-bridge energy transfer for fuller bass and projection.

Best for: Quick swap for immediate tone enhancement.

Price Range: $25-35
