How to Fix 3DO Not Powering On?

Owning a 3DO Interactive Multiplayer console is a retro gaming treasure, but after 30+ years, power-on failures are common due to degraded capacitors, faulty power supplies, or dust buildup. These issues sideline classics like Road Rash or The Need for Speed, frustrating collectors and enthusiasts.

This guide equips advanced users with a systematic approach to troubleshoot and repair 3DO consoles (FZ-1, FZ-10, Goldstar, Sanyo). You'll learn to test power sources, inspect internals, and perform basic electronics repairs. Expect 1-3 hours depending on the issue, requiring soldering skills and safety awareness.

By the end, your console will power on reliably, or you'll know exactly what part to replace. Always work in a static-free environment.

▸What You'll Need

• •Phillips #0 and #1 screwdrivers (required)
• •Digital multimeter (required for voltage/fuse tests)
• •Isopropyl alcohol (99%) and cotton swabs (required for cleaning)
• •Canned compressed air (required)
• •Anti-static wrist strap (recommended)
• •Soldering iron and desoldering wick (required for capacitor replacement)
• •Known-good 3DO-compatible power supply (16V DC, 3.75A; optional but highly recommended for testing)
• •Replacement electrolytic capacitors (e.g., 1000uF 16V; optional)

Estimated Time: 1-3 hours Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace and Safety Gear

Set up a clean, well-lit, ESD-safe workspace with good ventilation. Wear an anti-static wrist strap connected to ground. Unplug the console and discharge capacitors by holding the power button for 30 seconds.

Why it matters: 3DO boards are sensitive to static; vintage components like tantalum caps can fail catastrophically if mishandled. Expect a static-free setup preventing further damage.

Power off and document the console's serial number for part sourcing.

💡 Tips:

• •Use a magnifying lamp for better visibility on tiny SMD components.

⚠️ Warnings:

• •Never work on powered circuits; risk of shock or shorts.

Step 2: Verify External Power Source

Test the wall outlet with a lamp or tester. Plug in the original AC adapter and measure its DC output with multimeter set to DC volts (20V range): probe center (positive) and outer barrel (negative). Should read ~16V DC under no load.

Why it matters: 80% of no-power issues stem from failed adapters (common on 3DO's 16V 3.75A unit). Success: Steady 15-17V confirms adapter; <12V means replace it.

If no voltage, test adapter fuse continuity.

💡 Tips:

• •Borrow a compatible Atari Jaguar or Sega CD PSU for quick test (same specs).

⚠️ Warnings:

• •Polarity matters: reverse damages internals.

Step 3: Test with Known-Good Power Supply

Swap in a verified 16V DC 3.75A+ adapter. Power on: Listen for fan spin, check power LED.

Why it matters: Isolates if issue is external PSU vs. internal. Success: LED lights/fan spins = internal problem; no response = proceed to disassembly.

Note any smells (burnt components) or heat.

💡 Tips:

• •Universal PSUs like Mean Well work; ensure center-positive.

Step 4: Disassemble the Console

Remove screws (6-8 Phillips on bottom/sides). Gently pry open RF shield and top cover. For FZ-1, lift disc drive carefully; Goldstar has clips.

Why it matters: Accesses power board. Success: Board exposed without bent pins.

Take photos for reassembly.

💡 Tips:

• •Label screws by location.

⚠️ Warnings:

• •Avoid flexing ribbon cables to CD-ROM.

Step 5: Visual Inspection for Damage

Look for bulging/leaking capacitors on power board (near PSU input), burnt traces, corrosion. Check power switch for debris.

Why it matters: Leaky caps (common in 90s consoles) block power. Success: Identify suspects; clean corrosion with IPA.

Probe fuses with multimeter (continuity beep).

💡 Tips:

• •Caps with dome tops or crust = dead.

⚠️ Warnings:

• •Don't touch pins with power on.

Step 6: Clean Internals Thoroughly

Blast dust with canned air (short bursts). Wipe boards with 99% IPA on swabs. Avoid excess liquid.

Why it matters: Dust causes shorts/overheating. Success: Shiny, dry boards; fan spins freely.

Dry 15 mins before testing.

💡 Tips:

• •Tilt console to let dust fall out.

Step 7: Test Key Voltages and Components

Reconnect PSU (externally). Set multimeter to DC volts. Probe power input, then 5V/12V rails on board. Check diodes (forward bias ~0.6V).

Why it matters: Confirms power delivery. Success: Stable rails = good PSU/board path; drops = bad cap/diode.

Test power button continuity.

💡 Tips:

• •Schematics online via Archive.org for pinouts.

⚠️ Warnings:

• •Probe carefully; slips short circuits.

Step 8: Replace Faulty Capacitors or Fuses

Desolder bad caps (heat pads, wick solder, pull). Match values (e.g., 470uF 16V). Solder new low-ESR caps. Bridge fuses with solder if open.

Why it matters: Fixes root cause. Success: Post-repair power-on with video output.

Reassemble loosely first for bench test.

💡 Tips:

• •Use flux for clean joints.

⚠️ Warnings:

• •Overheat damages traces; practice on scrap.

Step 9: Reassemble and Final Test

Secure all parts, plug in, power on. Run a game disc to stress test.

Why it matters: Verifies fix. Success: Boots to menu, plays audio/video.

Monitor heat for 30 mins.

💡 Tips:

• •Thermal paste CPU if opened.

▸Pro Tips

• •Download 3DO service manuals from hiddenpalace.org for model-specific diagrams.
• •Bench test power board outside case with alligator clips.
• •Stock common caps (105C rated) for multiple retro fixes.
• •Use a variac to slowly ramp voltage on suspect PSUs.
• •Record voltages before/after changes for diagnostics.
• •Freeze spray on caps tests intermittent failures.
• •Join r/3DO or consolerepair Discord for live advice.

▸Common Mistakes to Avoid

• •Assuming PSU is good without measuring output – always quantify voltage.
• •Forgetting to discharge caps – leads to shocks or false readings.
• •Using wrong polarity PSU – fries the board instantly.
• •Rushing soldering – cold joints fail quickly.
• •Ignoring dust – causes recurring shorts.

▸Troubleshooting

Problem: Powers on briefly then dies

Solution: Bad main filter cap or overheating; replace 1000uF+ caps and re-paste heat sinks.

Problem: No LED but fan spins

Solution: Power LED circuit open; check resistor/diode near button.

Problem: Clicks but no power

Solution: Stuck relay or PSU crowbar; test with dummy load.

Problem: Repair fails after reassembly

Solution: Loose screw shorting board; double-check internals.

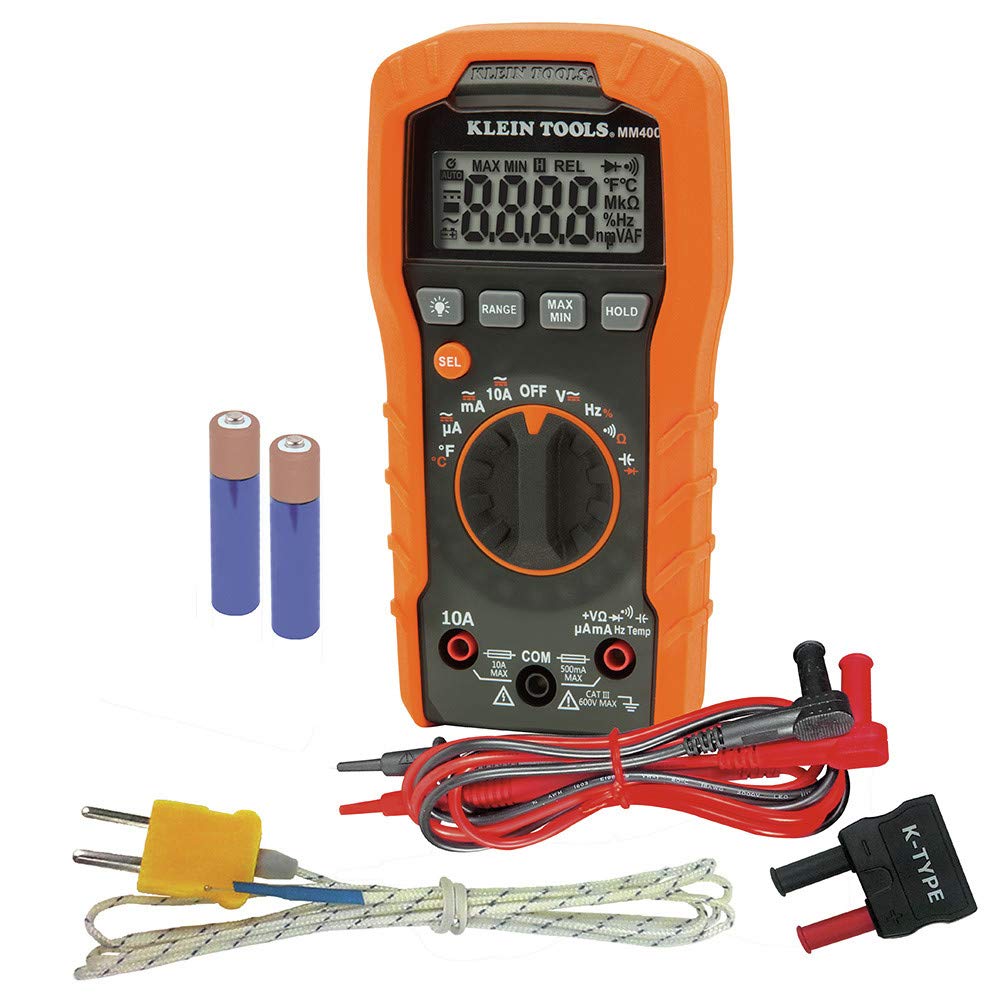

Klein Tools MM400 Digital Multimeter

Accurate auto-ranging for DC volts, continuity, and diode tests essential for 3DO power rails.

Best for: Testing PSUs, fuses, and board voltages during steps 2, 5, 7.

Price Range: $50-$60

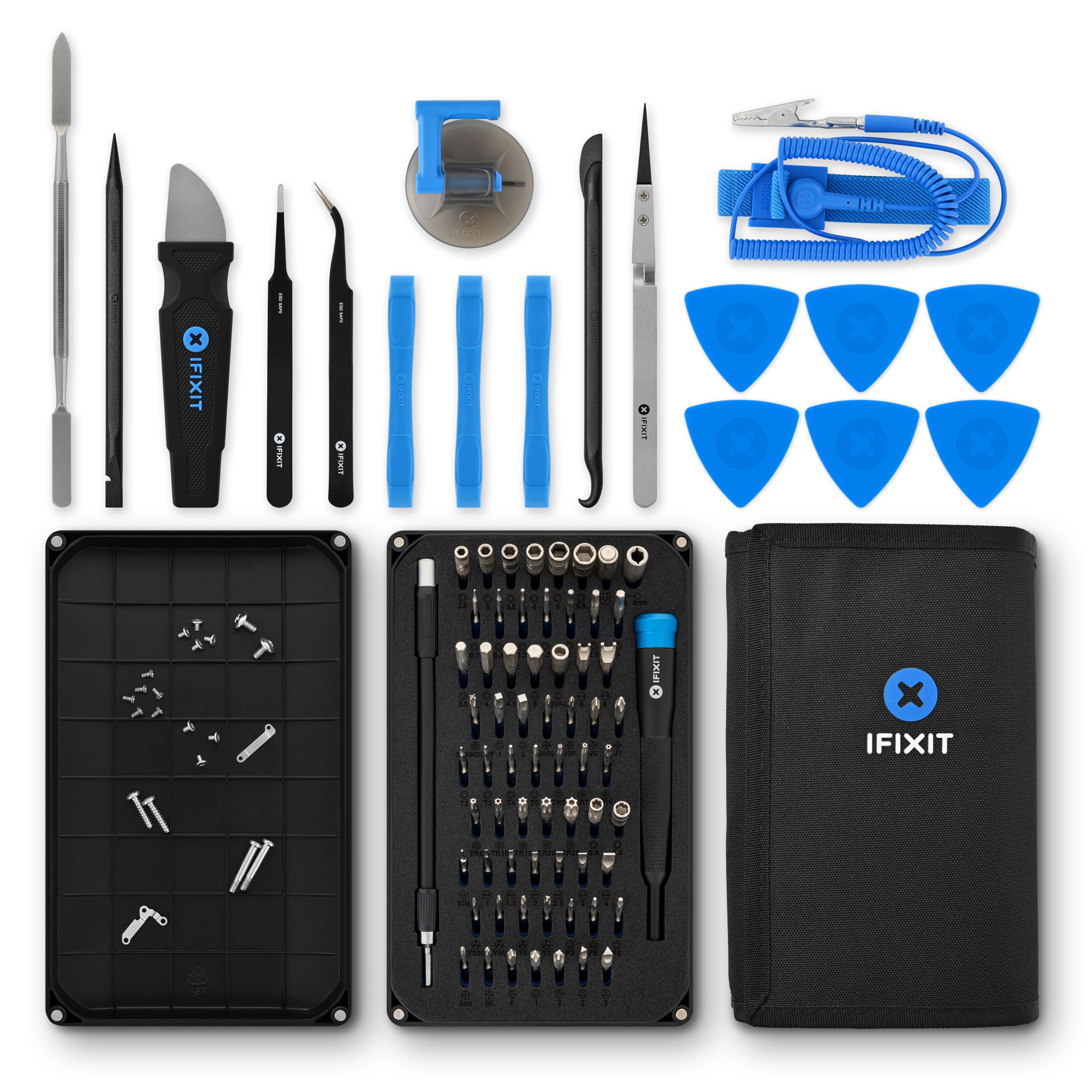

iFixit Pro Tech Toolkit

Precision drivers (#0/#1 Phillips) and spudgers perfect for 3DO disassembly without stripping screws.

Best for: Safe opening in steps 4 and 9.

Price Range: $70-$80

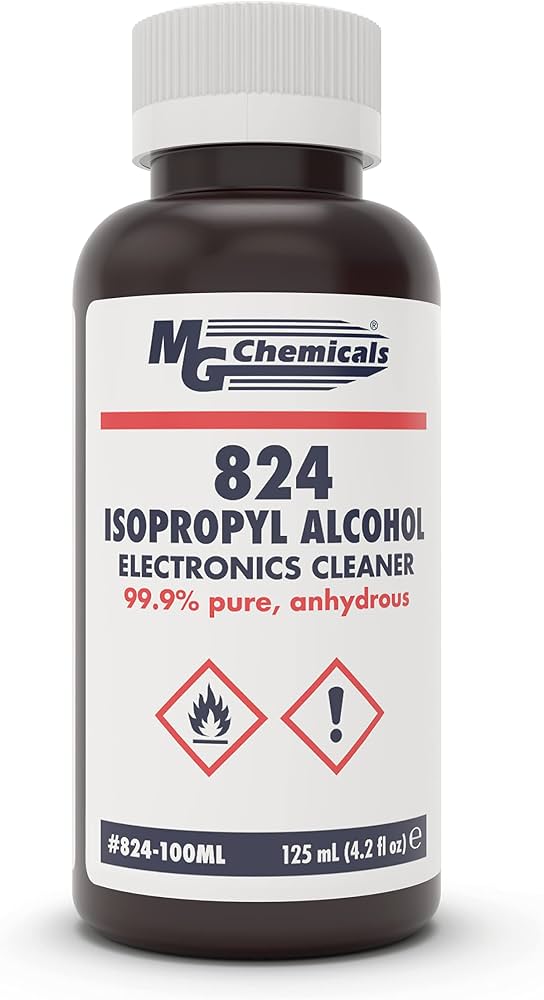

MG Chemicals 99.9% Isopropyl Alcohol

Pure solvent evaporates residue-free, ideal for cleaning corroded 3DO boards.

Best for: Corrosion removal and flux cleanup in steps 5-6.

Price Range: $15-$25

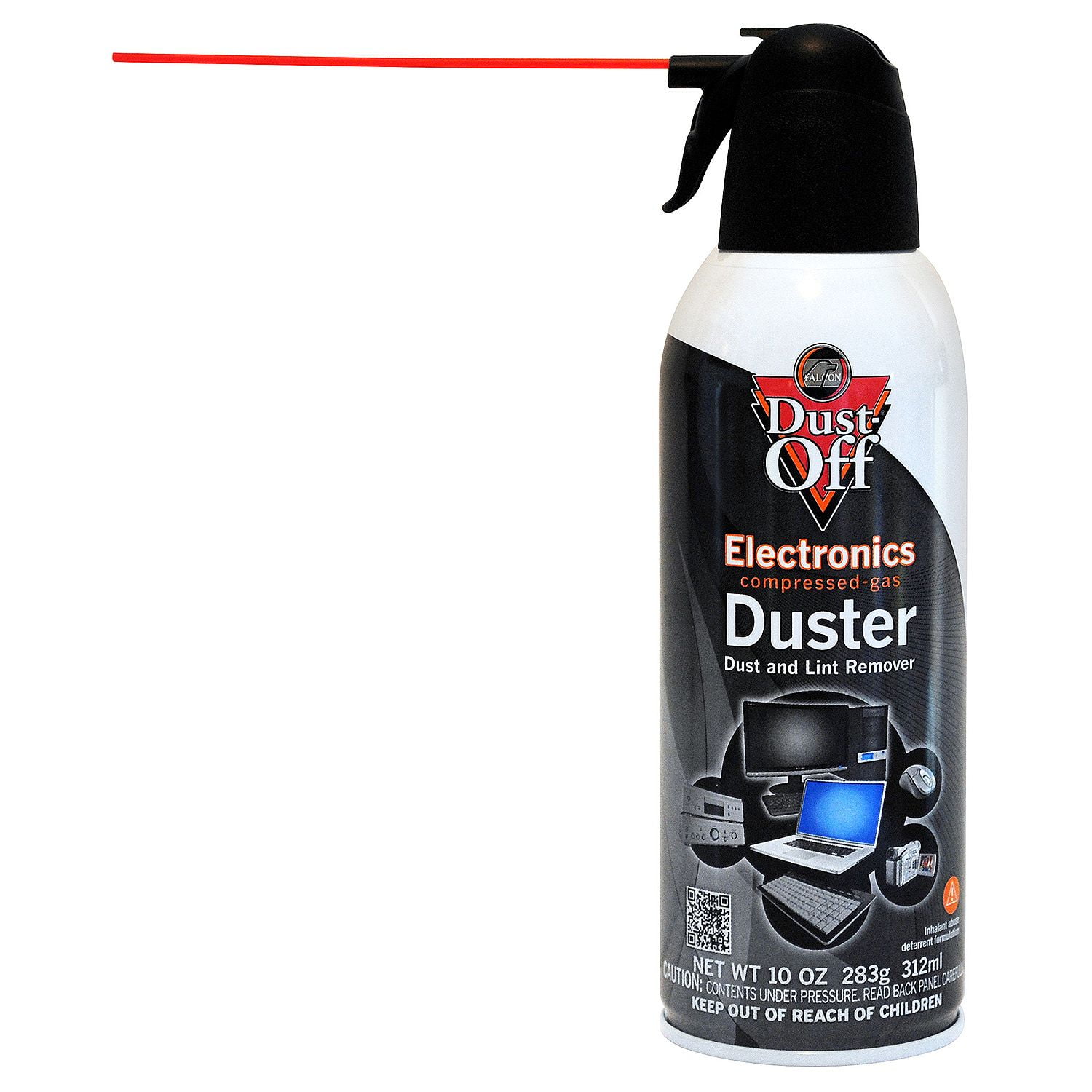

Dust-Off Falcon Compressed Air Duster

Non-flammable, high-pressure for deep cleaning vintage dust without residue.

Best for: Dust removal in step 6.

Price Range: $10-$15

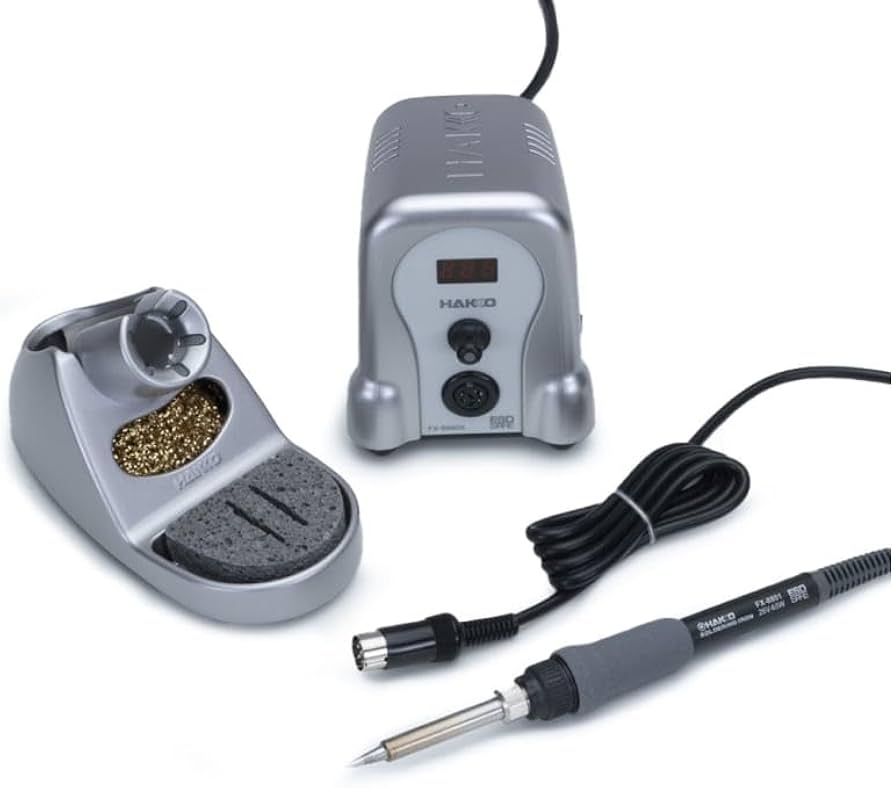

Hakko FX-888D Digital Soldering Station
