How to Troubleshoot 12V Battery Drain?

Nothing's worse than arriving at your RV, boat, or car only to find a dead 12V battery after it's sat idle for a few days. Parasitic drain—where electronics quietly sap power even when off—is a common culprit, often from faulty modules, alarms, or accessories. This guide teaches you how to systematically identify and resolve it, saving time, money, and frustration.

You'll learn safe testing procedures, how to measure current draw, isolate faulty circuits, and apply fixes. No need for a mechanic; with basic tools, you'll pinpoint issues like stuck relays or vampire draws. The process takes 1-2 hours for most cases and assumes intermediate skills like using a multimeter.

Expect clear steps, real-world tips, and when to call a pro. By the end, your battery will hold charge reliably.

▸What You'll Need

• •Digital multimeter (capable of measuring DC amps down to 10mA)
• •Fuse puller or needle-nose pliers
• •Battery terminal cleaner brush
• •Safety glasses and gloves
• •Flashlight
• •Optional: Inductive amp clamp for non-invasive testing
• •Optional: Battery charger to fully charge battery first

Estimated Time: 1-2 hours Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare and Safety Check

Start with safety: Park in a well-ventilated area, turn off all accessories, remove keys, and wait 30 minutes for systems to sleep. Disconnect negative battery cable. Inspect battery terminals for corrosion—clean with baking soda/water mix if needed.

Why? Ensures no live circuits shock you and modules reset. Success: Clean, isolated battery ready for testing.

💡 Tips:

• •Label fuses before pulling later.
• •Charge battery to 12.6V+ first for accurate baseline.

⚠️ Warnings:

• •Never work on live 12V systems—risk of shorts or sparks.

Step 2: Verify Battery Health

Set multimeter to DC volts. Reconnect negative cable briefly to measure voltage: healthy is 12.6V+ at rest. Load test by turning on headlights for 10 seconds—shouldn't drop below 10V.

Why? Rules out bad battery vs. drain. Success: Confirmed good battery (or note if replacement needed).

💡 Tips:

• •Use a battery load tester for precision if available.

⚠️ Warnings:

• •Don't leave under load long—drains battery.

Step 3: Set Up Parasitic Draw Test

Set multimeter to 10A DC current (amps) range. Disconnect negative cable again. Connect multimeter positive to battery negative terminal, negative lead to disconnected cable end. Ensure secure, insulated connections.

Why? Creates series circuit to measure total draw. Success: Multimeter powered up, reading near 0A initially.

💡 Tips:

• •Fuse the multimeter leads if testing high amps (>10A).

⚠️ Warnings:

• •Wrong polarity blows internal fuse—double-check.

Step 4: Wait and Measure Baseline Draw

Close all doors, hoods; wait 20-60 minutes for computers/ECUs to enter sleep mode. Normal draw: under 50mA (0.05A). Note reading.

Why? Many systems draw high initially then sleep. Success: Stable low reading (e.g., 20mA).

💡 Tips:

• •Time it—patience key for accurate sleep mode.

⚠️ Warnings:

• •Impatient testing gives false highs.

Step 5: Isolate the Culprit Circuit

If >50mA, pull fuses one-by-one from fuse box(es). Watch multimeter—drop to normal means that circuit is draining. Check relays too by swapping or removing.

Start with accessories, radio, alarm fuses. Success: Identified fuse/relay causing drop.

💡 Tips:

• •Work systematically: interior then underhood boxes.
• •Use fuse diagram in owner's manual.

⚠️ Warnings:

• •Reinsert fuses immediately after test to avoid forgetting.

Step 6: Inspect and Test Common Drains

For suspect circuit: Disconnect devices (e.g., glovebox light, stereo). Measure individual draws. Check for shorts with continuity mode (beep across wires).

Common: Aftermarket lights, alarms, fridges. Success: Pinpointed device or wire.

💡 Tips:

• •Wiggle wires during test for intermittent shorts.

⚠️ Warnings:

• •Don't cut wires blindly—use diagrams.

Step 7: Fix and Retest

Repair: Replace fuse, fix wire, disconnect faulty accessory. Reassemble, retest full draw after 30 min sleep.

Success: Draw now <50mA, battery holds charge overnight.

💡 Tips:

• •Install battery disconnect switch for prevention.

⚠️ Warnings:

• •Retest fully—multiple drains possible.

▸Pro Tips

• •Use an inductive amp clamp for quicker, non-invasive testing on live systems.
• •Document all readings and fuses pulled in a phone photo.
• •Test at night—easier to see light leaks causing drain.
• •For RVs/boats, check inverter/charger first—they're big drainers.
• •Keep a maintainer charger plugged in during storage.
• •Update software/ECUs if modern vehicle—fixes sleep bugs.
• •Baseline your own normal draw first time for future reference.

▸Common Mistakes to Avoid

• •Testing without sleep wait: False high readings from active modules.
• •Incorrect multimeter setup: Wrong range or polarity blows fuse.
• •Ignoring alternator diode issues: Causes back-drain when off—test separately.
• •Overlooking add-ons: Aftermarket GPS/stereo often culprits.
• •Not fully charging battery first: Masks true drain.

▸Troubleshooting

Problem: Multimeter reads OL or blows fuse

Solution: Switch to higher amp range (20A); check/replace fuse inside meter.

Problem: Draw high but no fuse drop

Solution: Check main fuses/relays, chassis grounds, or use clamp meter on cables.

Problem: Intermittent drain

Solution: Leave setup overnight; use data-logging multimeter.

Problem: Battery dies immediately after fix

Solution: Recharge fully; test alternator output (13.8-14.4V running).

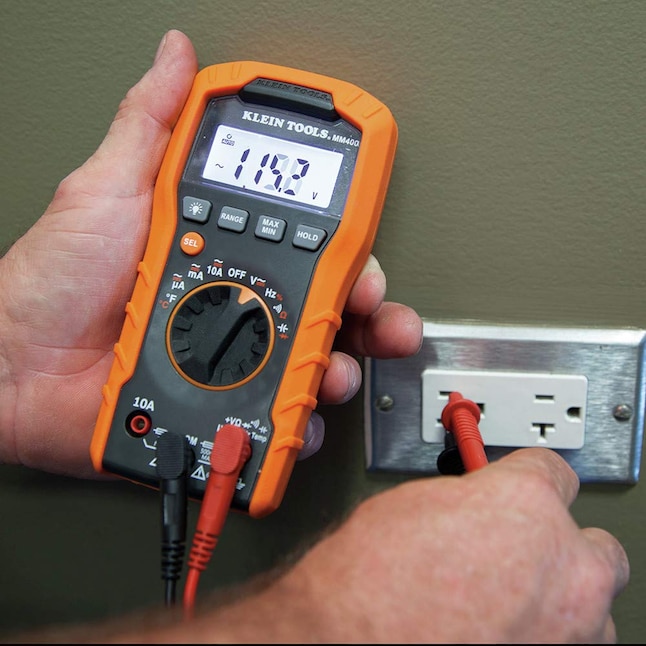

Klein Tools MM400 Digital Multimeter

Accurate DC amp/volt measurements down to mA with auto-ranging for easy parasitic testing.

Best for: Primary tool for series current draw tests.

Price Range: $50-$60

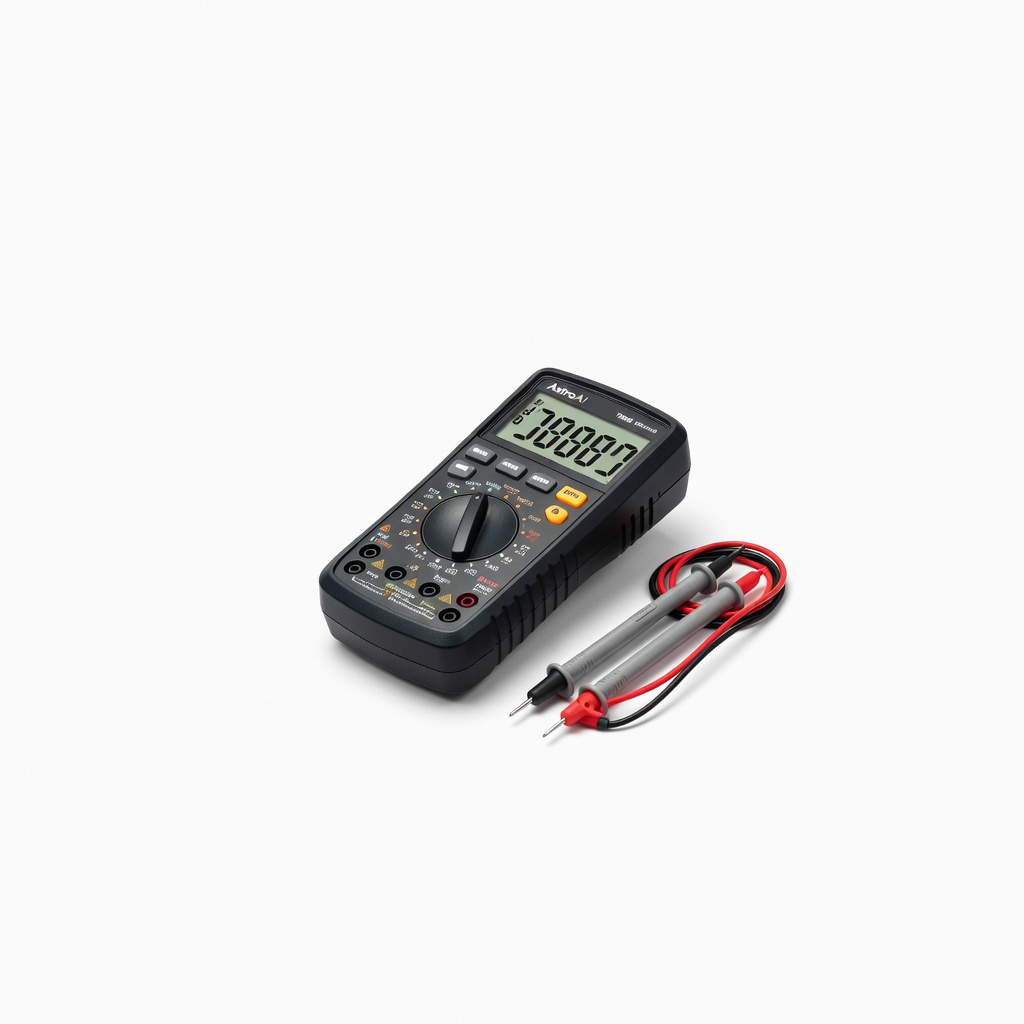

AstroAI Digital Multimeter TRMS 6000 Counts

Budget-friendly with true RMS for precise low-amp readings and overload protection.

Best for: Ideal for beginners to intermediates on tight budgets.

Price Range: $25-$30

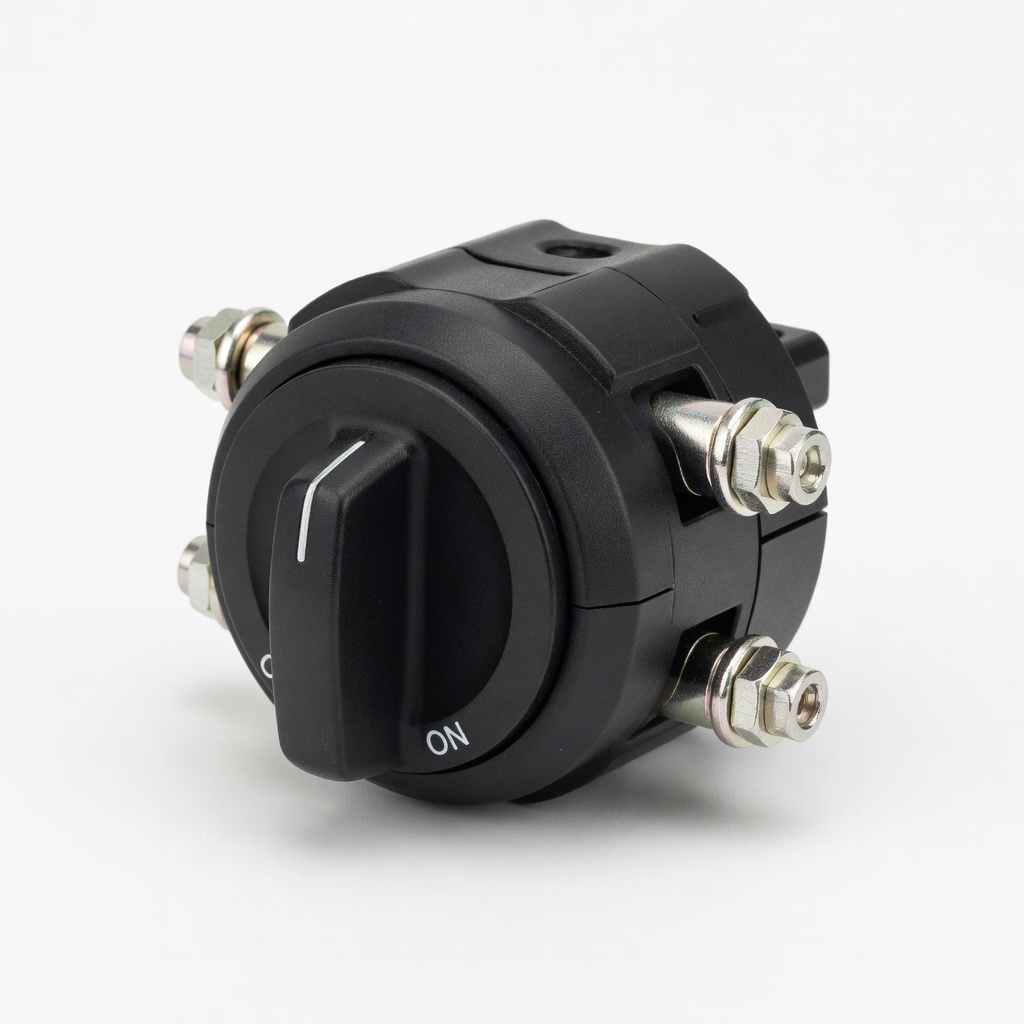

Nilight 500A Battery Disconnect Switch

Prevents drain by isolating battery; easy install as permanent fix.

Best for: After diagnosing, for RVs/boats/cars in storage.

Price Range: $15-$20

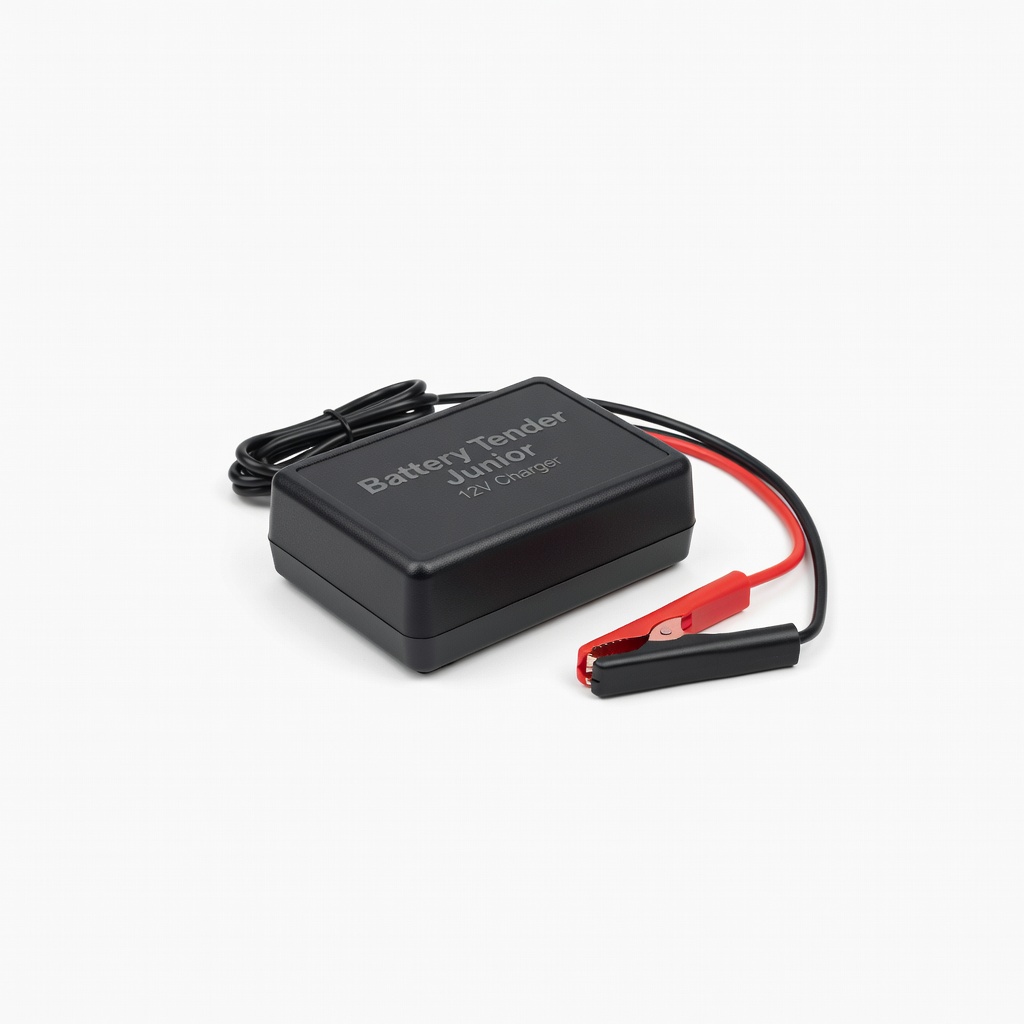

Battery Tender Junior 12V Charger

Maintains full charge during testing/storage without overcharging.

Best for: Prep battery before tests and long-term prevention.

Price Range: $25-$35

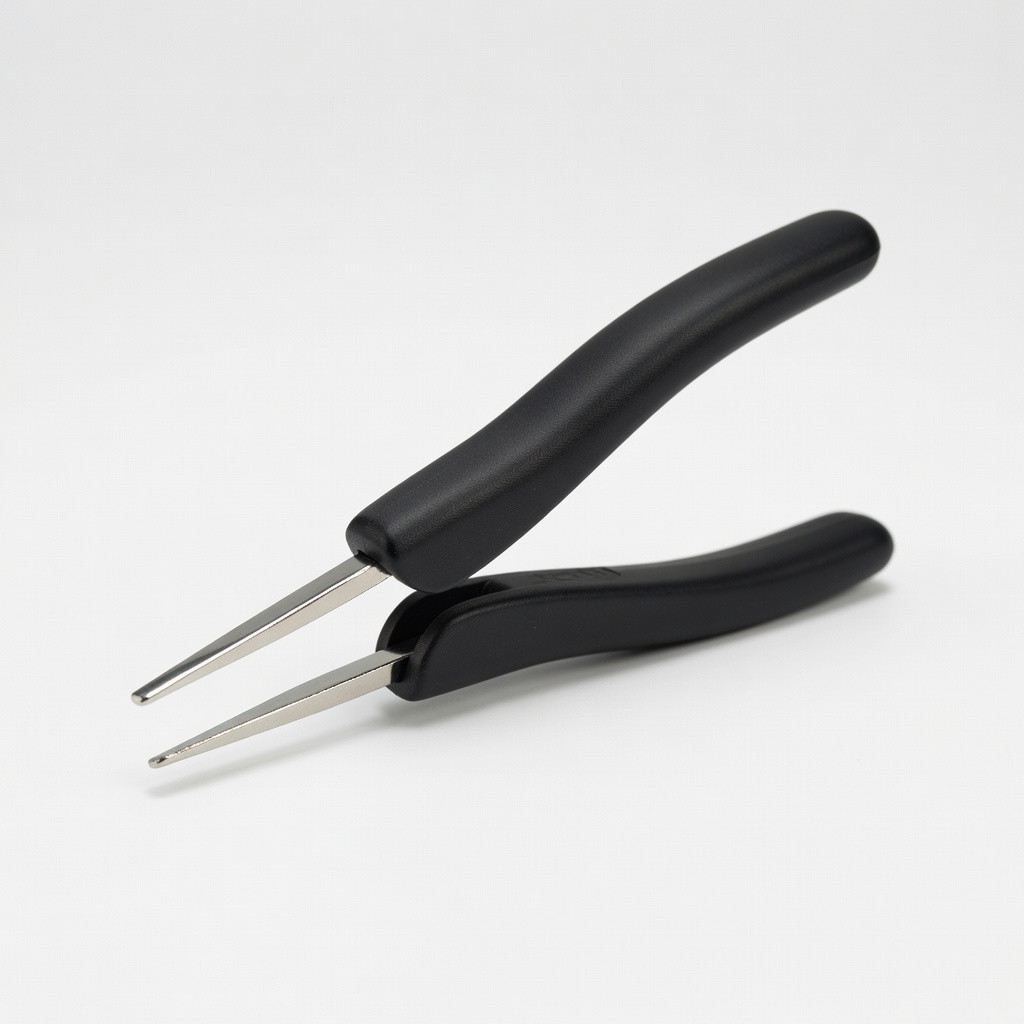

Lisle 65900 Deluxe Fuse Puller
