How to Test 3D Printer Accuracy with Calibration Cubes?

Inaccurate 3D prints can waste filament, time, and frustration—walls too thin, dimensions off by millimeters, or warped corners plague even experienced makers. Testing accuracy with calibration cubes is the gold standard for diagnosing issues like extrusion inconsistencies, bed leveling errors, or thermal expansion.

This advanced guide walks you through printing, measuring, and analyzing a calibration cube to quantify your printer's performance. You'll learn to spot deviations down to 0.01mm and apply targeted fixes. Expect precise, data-driven results that elevate your prints from good to professional-grade.

The process takes 1-2 hours total (mostly print time), assuming familiarity with slicers like Cura or PrusaSlicer. No basic setup required—just your printer and precision tools.

▸What You'll Need

• •Functional 3D printer (FDM type, e.g., Ender 3, Prusa MK4)
• •1.75mm PLA filament (high-quality, dry spool recommended)
• •Digital calipers (0.01mm resolution required)
• •Slicer software (Ultimaker Cura, PrusaSlicer, or Orca Slicer)
• •Calibration cube STL file (free from Thingiverse: search '20mm calibration cube')
• •Optional: Digital micrometer for wall thickness, feeler gauges for gaps
• •Ruler or scale for weight checks (optional)
• •Clean workspace and isopropyl alcohol for post-print cleaning

Estimated Time: 1-2 hours (30-60 min print + 30 min measuring/analysis) Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Download a Reliable Calibration Cube STL

Start by sourcing a precise 20mm calibration cube model—the most common benchmark for FDM printers. Visit Thingiverse.com and search for 'XYZ 20mm Calibration Cube' by bjb47 (over 1M downloads). Download the STL file.

This cube features marked dimensions (20mm outer, 10mm walls, tiny holes/features for testing tolerances). Why it matters: Standardized models ensure comparable results across printers. Save the file to your slicer projects folder.

Expect: A simple cube with X/Y/Z labels etched on faces for easy orientation.

💡 Tips:

• •Use the original unremixed version for accuracy.
• •Download multiple variants (e.g., with infill patterns) for deeper tests.

⚠️ Warnings:

• •Avoid scaled or modified cubes; they skew measurements.

Step 2: Prepare Your Slicer with Stock Settings

Open your slicer (e.g., Cura 5.6+). Import the STL. Set basic parameters: 0.2mm layer height, 0.4mm nozzle, 100% infill, no supports, brim optional for adhesion.

Disable advanced features like ironing or fuzzy skin to isolate core accuracy. Use default speeds (50mm/s) and temps (PLA: 200°C nozzle, 60°C bed). Why? Stock settings reveal baseline hardware performance without software tweaks.

Success looks like: Preview shows a solid 20mm cube with clean walls.

💡 Tips:

• •Match your printer profile exactly.
• •Enable 'equalize rotation' for best bed orientation.

Step 3: Slice and Export G-code

Hit 'Slice' and review layer view for issues (e.g., no gaps in walls). Export G-code to your printer's SD card/USB.

Verify estimated print time (~20-30 min) and filament use (~5g). This step confirms the model is ready without over-extrusion artifacts.

Expect: Clean G-code file ready for transfer.

💡 Tips:

• •Use OctoPrint/Moonraker for wireless slicing if available.

⚠️ Warnings:

• •Don't scale the model—keep it 20mm nominal.

Step 4: Print the Calibration Cube

Level your bed manually or auto (if equipped). Start the print on a clean PEI/PEEK sheet. Monitor first layers for adhesion and straightness.

Print in an enclosed space if possible to minimize drafts. Why it matters: Environmental factors like airflow affect dimensional accuracy.

Success: Cube completes without warping, stringing, or layer shifts.

💡 Tips:

• •Print 2-3 cubes side-by-side for statistical averaging.

⚠️ Warnings:

• •Pause if elephant's foot (squish) appears—adjust Z-offset live.

Step 5: Cool and Remove the Cube

Let the print cool fully (30+ min at room temp) to avoid thermal contraction errors. Gently flex the bed or use spatula to remove.

Clean debris with IPA. Cooling ensures measurements reflect final dimensions, as PLA shrinks ~0.3-0.5% post-print.

Expect: Rigid, unmarked cube ready for inspection.

💡 Tips:

• •Weigh the cube (should be 3-5g for 100% infill PLA).

Step 6: Measure External Dimensions (X, Y, Z Axes)

Zero your digital calipers. Measure each edge 3x (top/middle/bottom) on X, Y, Z faces (marked). Average results.

Target: 20.00mm ±0.1mm. Record deviations (e.g., X=19.95mm under-extrudes). Why? Axis-specific errors reveal steps/mm miscalibration or belt tension issues.

Success: All axes within 0.2mm total variance.

💡 Tips:

• •Measure at marked lines for consistency.
• •Use caliper's depth gauge for holes.

⚠️ Warnings:

• •Don't squeeze—light pressure only.

Step 7: Test Wall Thickness and Infill

Measure internal wall thickness (should be 0.8-1.2mm for 2 walls @0.4mm). Probe gaps between walls.

Check infill visibility through walls. Deviations indicate flow multiplier errors.

Expect: Uniform 0.4mm walls, no gaps.

💡 Tips:

• •Use micrometer for <1mm precision.

Step 8: Inspect Fine Features and Squareness

Check tiny holes/slots (0.2-1mm) for circularity. Verify 90° corners with square tool. Look for ringing/ghosting.

Test tolerances by inserting 0.4mm feeler gauge.

Success: Sharp features, square angles <0.5° off.

💡 Tips:

• •Photograph under magnification for records.

⚠️ Warnings:

• •Overtightening calipers distorts soft PLA.

Step 9: Analyze Results and Calculate Tolerances

Log data in spreadsheet: avg dimension, std dev, % error. Tolerance = max-min across axes.

Benchmark: <0.15mm tolerance = excellent; 0.15-0.25mm good; >0.25mm needs fixes.

Expect: Data revealing root causes (e.g., Z tallest = over-extrusion).

💡 Tips:

• •Use online calculators like Teaching Tech's tolerance app.

Step 10: Adjust Settings and Retest

Fix issues: Scale factor for dimensions, flow rate for walls, steps/mm for axes. Re-print one cube.

Iterate until tolerance <0.1mm.

Success: Improved metrics confirming calibration.

💡 Tips:

• •Tune XY first, then Z.

▸Pro Tips

• •Print at 25% fan speed to reduce warping without over-cooling.
• •Dry filament 4+ hours @50°C for consistent extrusion.
• •Orient cube diagonally on bed to minimize directional bias.
• •Average 5 measurements per dimension for reliability.
• •Test multiple cubes over days to check repeatability.
• •Use linear advance (K-factor) in Klipper for sharper corners.
• •Photograph measurements with scale for portfolio proof.

▸Common Mistakes to Avoid

• •Measuring hot prints: Causes 0.2-0.5mm overestimation—always cool fully.
• •Ignoring bed adhesion aids: Leads to shifts mid-print, ruining accuracy.
• •Using cheap calipers: <0.01mm resolution hides true errors—invest in quality.
• •Over-adjusting flow without steps/mm cal: Compounds dimensional errors.
• •Skipping retest: Single print doesn't prove stability.

▸Troubleshooting

Problem: Inconsistent dimensions across axes

Solution: Check belt tension (ping test: high guitar string note), re-level bed, calibrate steps/mm via Pronterface.

Problem: Thin walls or gaps

Solution: Increase flow rate 5% increments, check e-steps (extrude 100mm filament, measure), clean nozzle.

Problem: Warped corners or non-square

Solution: Improve first layer squish, add enclosure, tune PID for stable temps.

Problem: Z-axis tallest (expansion)

Solution: Lower nozzle temp 5°C, increase cooling, verify Z leadscrew tightness.

Problem: Poor feature resolution

Solution: Slow to 30mm/s, enable pressure advance, upgrade to 0.2mm nozzle.

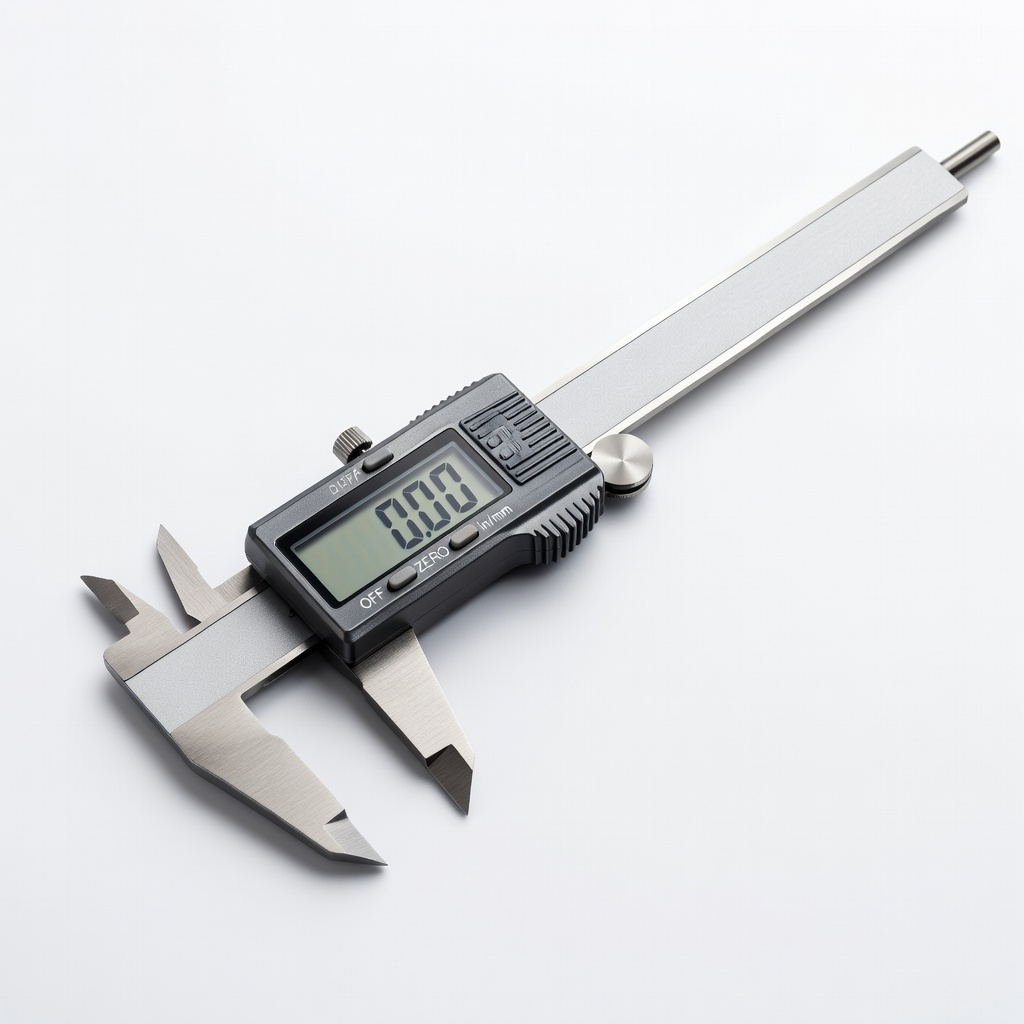

Neiko 01407A 0-6" Digital Caliper

0.01mm accuracy essential for precise edge/wall measurements beyond vernier limits.

Best for: Core tool for all dimensions and tolerances in advanced calibration.

Price Range: $25.99

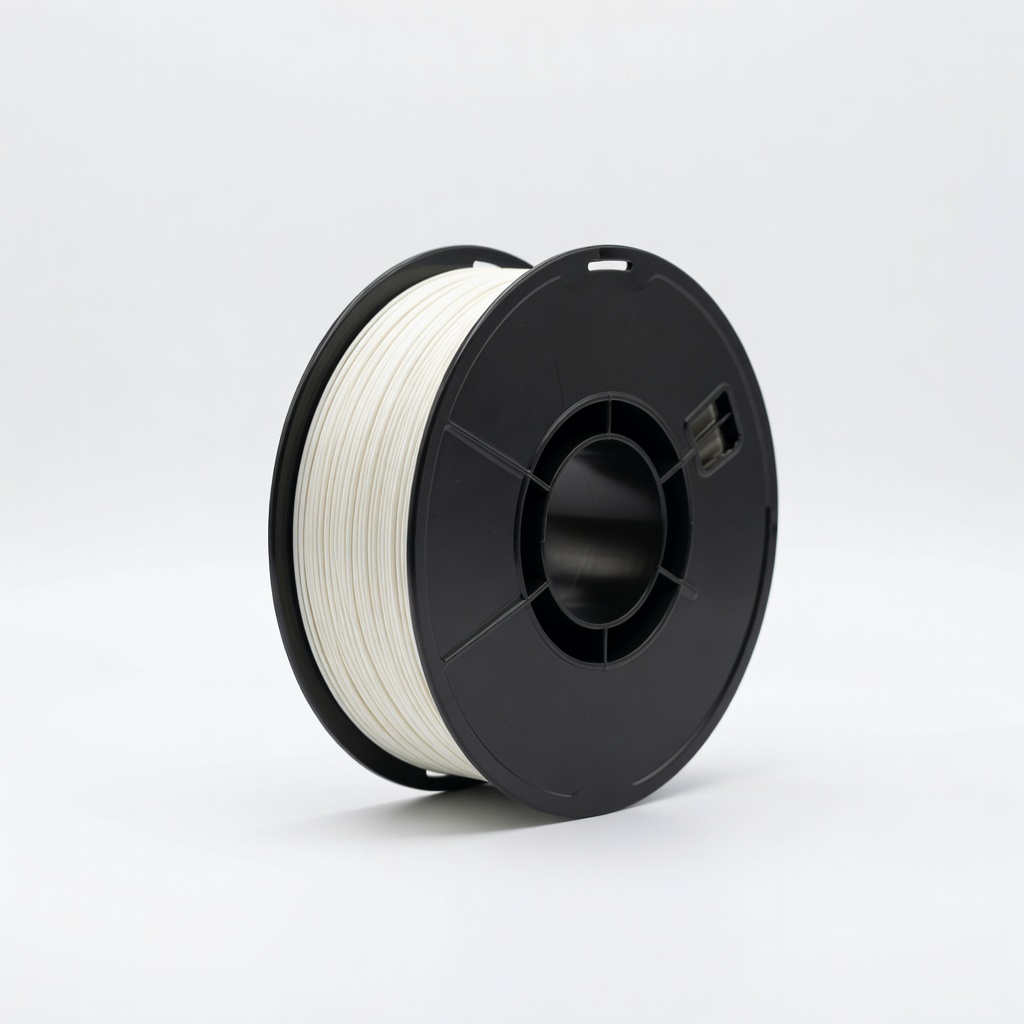

HATCHBOX PLA 1.75mm 3D Printer Filament 1KG

Consistent diameter (1.75±0.03mm) ensures reliable extrusion for accurate tests.

Best for: Baseline material for calibration—avoids cheap filament variability.

Price Range: $24.99

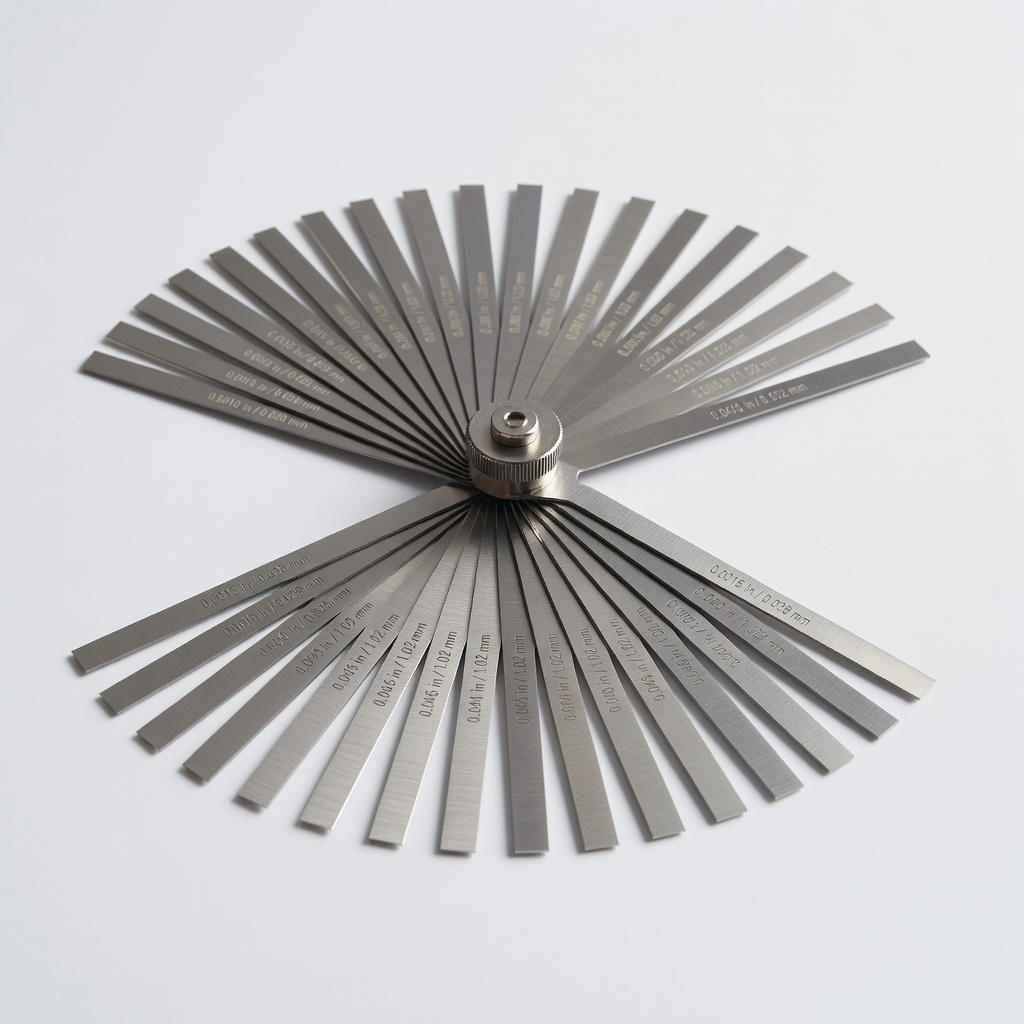

Performance Tool W80530 32-Blade Feeler Gauge Set

Measures micro-gaps in walls/features down to 0.0015"; complements calipers.

Best for: Tolerance testing on slots/holes where calipers can't probe.

Price Range: $9.99

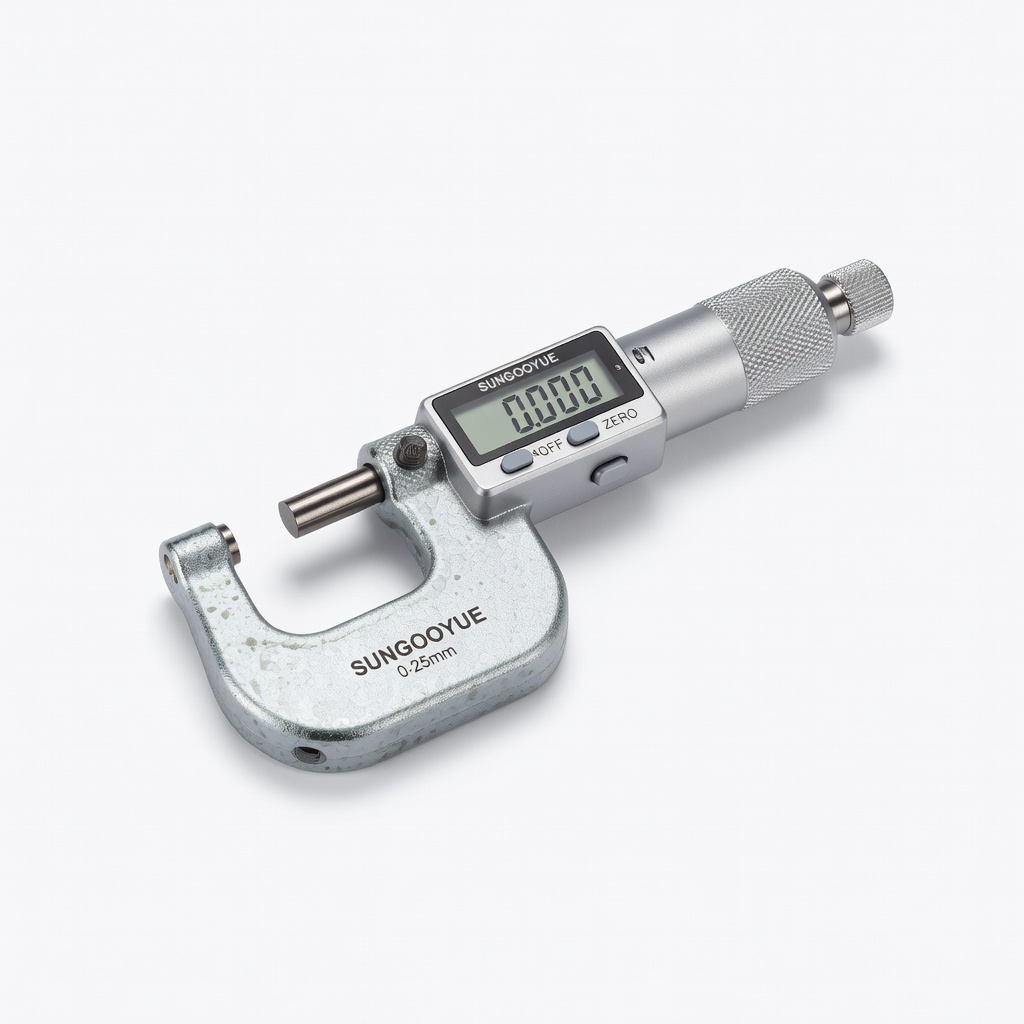

SUNGOOYUE Digital Micrometer 0-25mm

Higher precision (0.001mm) for wall thickness vs. caliper limits.

Best for: Advanced users verifying internal structures.

Price Range: $29.99

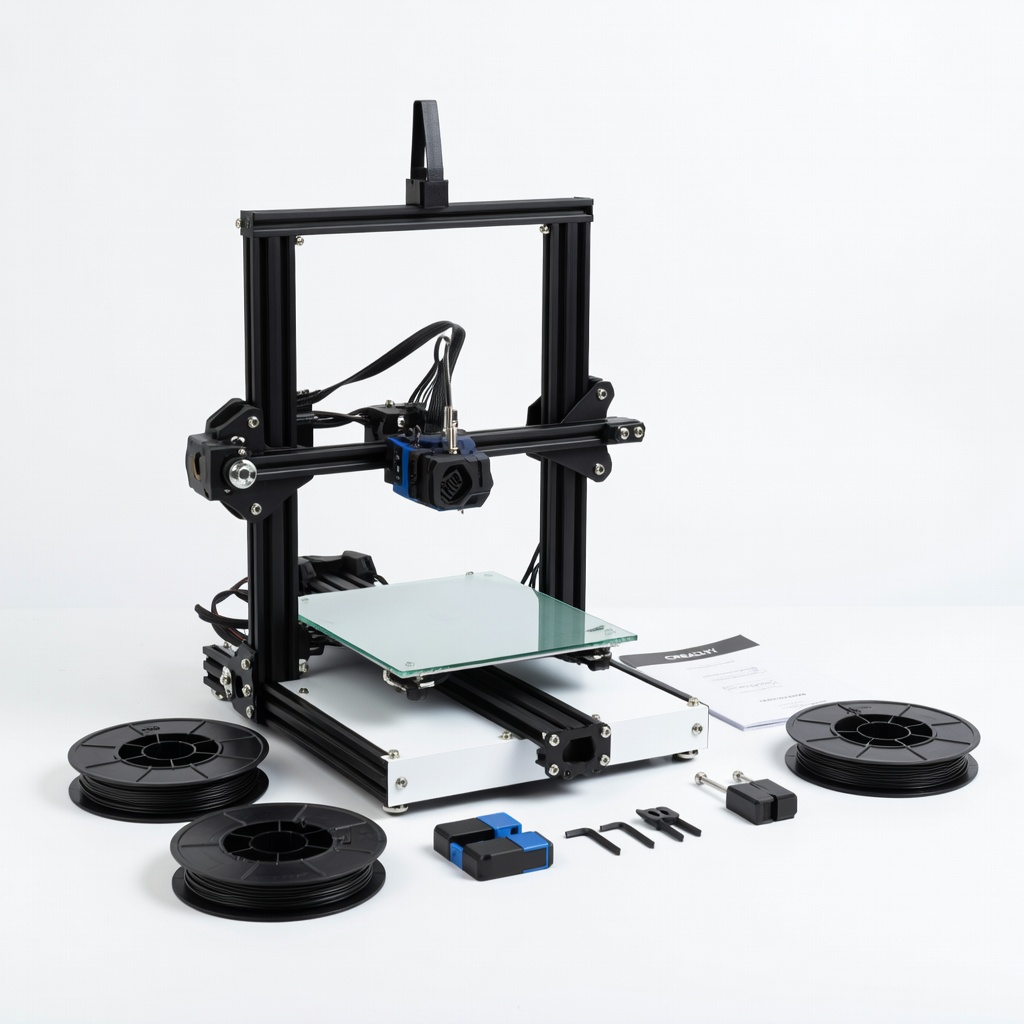

Creality Ender 3 V2 BLTouch Kit
