How to Test 12V Battery Health with a Load Tester?

A dead 12V battery can leave you stranded, whether it's in your car, boat, or RV. Regular testing with a load tester reveals hidden weaknesses like sulfation or internal shorts before they fail completely. This guide empowers intermediate DIYers to perform professional-level diagnostics at home.

You'll learn a safe, step-by-step process: visual inspection, voltage checks, load application, and result interpretation. No special skills beyond basic auto maintenance are needed. Expect 15-20 minutes per test, with clear pass/fail criteria.

By the end, you'll know if your battery is healthy (replace if under 9.6V loaded), weak, or dead—preventing surprise failures and extending life.

▸What You'll Need

• •12V battery load tester (100-200 amp rating recommended)
• •Safety goggles and insulated gloves (required)
• •Digital multimeter (optional for pre-test voltage)
• •Battery terminal cleaning brush or wire brush
• •Baking soda and water solution for acid spills
• •Clean rags or paper towels
• •Wrenches or socket set for terminal access (if needed)

Estimated Time: 15-20 minutes Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Gather Safety Gear and Prepare Workspace

Put on safety goggles and insulated gloves to protect against acid splashes and sparks. Work in a well-ventilated area away from flames or sparks—batteries can release explosive hydrogen gas.

Clear a flat, stable surface near the battery. Disconnect any chargers or jumpers first. This prevents shocks, fires, or false readings.

What success looks like: You're geared up, workspace is dry and ventilated—no tools cluttering the area.

💡 Tips:

• •Test during the day for better light.
• •Park on level ground if testing in-vehicle.

⚠️ Warnings:

• •Never smoke or use open flames nearby.

Step 2: Visually Inspect the Battery

Check for cracks, bulges, leaks, or corrosion on terminals (white/blue powdery buildup). Ensure labels are intact and hold-down clamps are secure.

Why it matters: Physical damage means replacement—don't proceed to load test. Clean terminals lightly with a brush if corroded, but avoid if leaking.

What success looks like: Battery exterior is intact, no leaks; terminals wiped clean.

💡 Tips:

• •Use a flashlight for hidden cracks.

⚠️ Warnings:

• •Skip testing if case is cracked—dispose safely.

Step 3: Measure Resting Voltage (Optional Multimeter Check)

Set multimeter to DC volts (20V scale). Touch red probe to positive (+) terminal, black to negative (-). Reading should be 12.4-12.7V for a healthy battery.

This baseline confirms charge level before load. Below 12.0V? Charge fully first.

What success looks like: Voltage ≥12.4V; note the exact reading.

💡 Tips:

• •Charge battery overnight if low for accurate test.

Step 4: Connect the Load Tester

Turn off load tester dials/knobs. Clamp red jaw to positive terminal, black to negative—ensure firm connection over cleaned surfaces.

Heavy-duty jaws prevent arcing. Tester's voltmeter should now mirror multimeter (if used).

What success looks like: Secure clamps, voltmeter shows stable voltage matching step 3.

💡 Tips:

• •Rock clamps side-to-side for best contact.

⚠️ Warnings:

• •Reverse polarity damages tester—double-check + and -.

Step 5: Perform the Load Test

Dial load to half the battery's CCA (cold cranking amps, on label—e.g., 100 amps for 200 CCA battery). Hold for 15 seconds while watching voltmeter.

This simulates starter draw, stressing internal plates. Needle/ digital drops then stabilizes.

What success looks like: Voltage holds ≥9.6V after 15 seconds.

💡 Tips:

• •Time precisely with phone timer.

⚠️ Warnings:

• •Don't exceed 15 seconds—overheats battery.

Step 6: Interpret Results and Retest if Needed

Pass: ≥9.6V loaded = good. Replace: <9.6V = weak/dead. 9.6-10V marginal; retest after charge.

Cool battery 15 mins if hot, retest. Log results for trends.

What success looks like: Clear decision: pass, recharge, or replace.

💡 Tips:

• •Test at 70°F+ for accuracy—cold lowers voltage.

Step 7: Disconnect and Clean Up Safely

Turn off load tester fully. Remove black clamp first, then red. Wipe terminals, neutralize spills with baking soda mix.

Store tester dry. Reconnect vehicle cables if testing in situ.

What success looks like: Everything disconnected, no residue left.

⚠️ Warnings:

• •Remove negative clamp first to avoid sparks.

▸Pro Tips

• •Test batteries every 3-6 months or before winter.
• •Fully charge before testing for true health read.
• •Compare to CCA rating—match load precisely.
• •Digital testers auto-calculate—easier for beginners.
• •Log voltages over time to predict failure.
• •Test in vehicle for parasitic drain context.
• •Use LED tester lights for quick pre-check.

▸Common Mistakes to Avoid

• •Testing without full charge: Falsely shows weak battery—always charge first.
• •Poor clamp contact: Inaccurate drops—clean and rock jaws.
• •Overloading beyond CCA/2: Overheats, damages internals.
• •Ignoring temperature: Cold tests fail good batteries—warm to 70°F.
• •Reverse clamps: Blows fuses in tester—check polarity.

▸Troubleshooting

Problem: Tester shows erratic voltage

Solution: Clean terminals/clamps; tighten connections. Test multimeter on known good source.

Problem: Voltage drops below 9V instantly

Solution: Battery likely bad—confirm with charge cycle. Check cables for resistance.

Problem: Battery gets very hot

Solution: Stop immediately, cool down. Short or sulfated—replace.

Problem: No reading on tester

Solution: Check battery charge >12V; test tester on known good battery. Seek pro if persists.

Schumacher BT-100 Battery Load Tester

Reliable analog voltmeter and 100A load for accurate CCA tests on car/marine batteries.

Best for: Ideal for garage DIY on standard automotive 12V batteries.

Price Range: $39.99

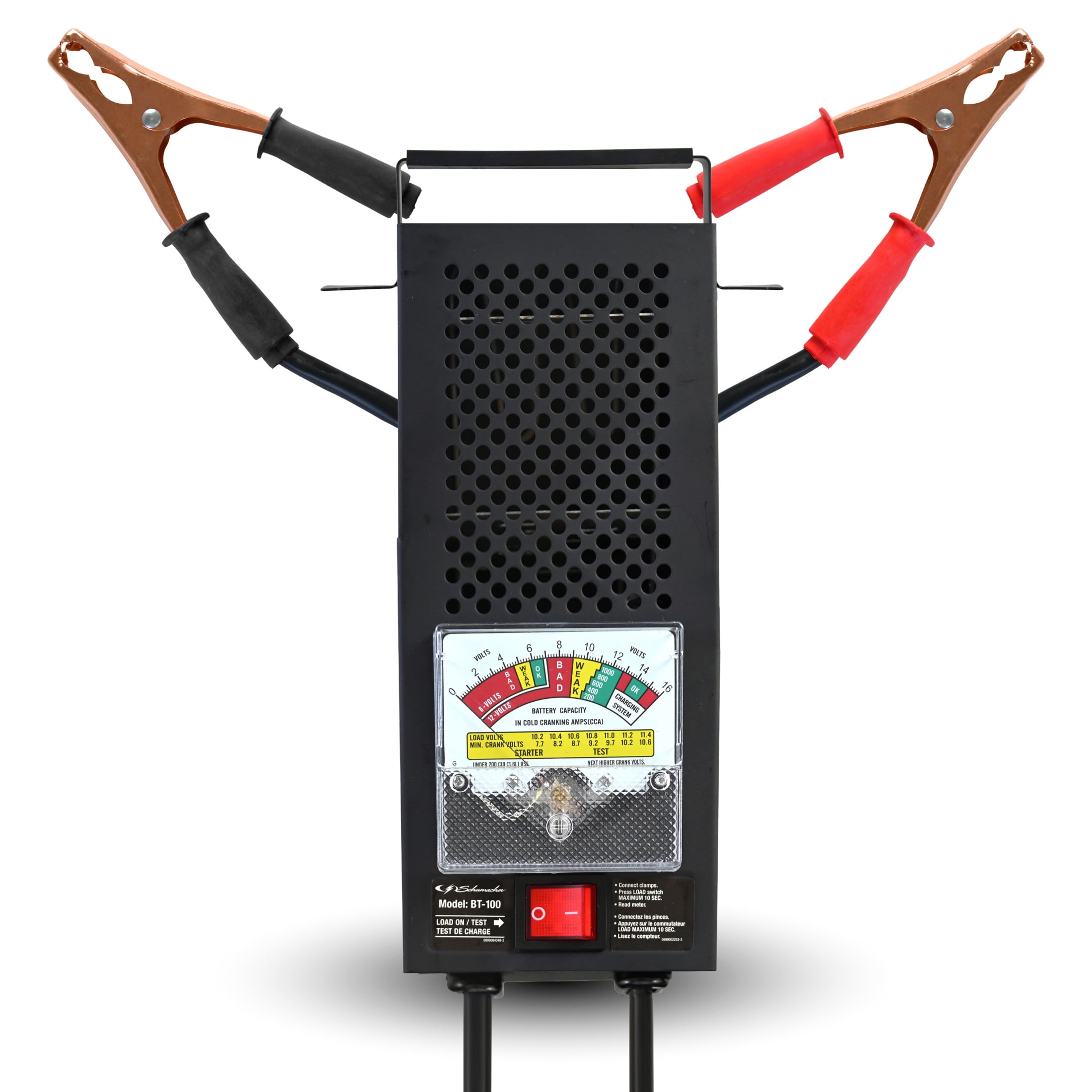

SUNER POWER STK12V100 12V 100A Battery Load Tester

Affordable, heavy-duty clamps with clear voltmeter—great for frequent use.

Best for: Budget option for testing car, ATV, or boat batteries at home.

Price Range: $29.99

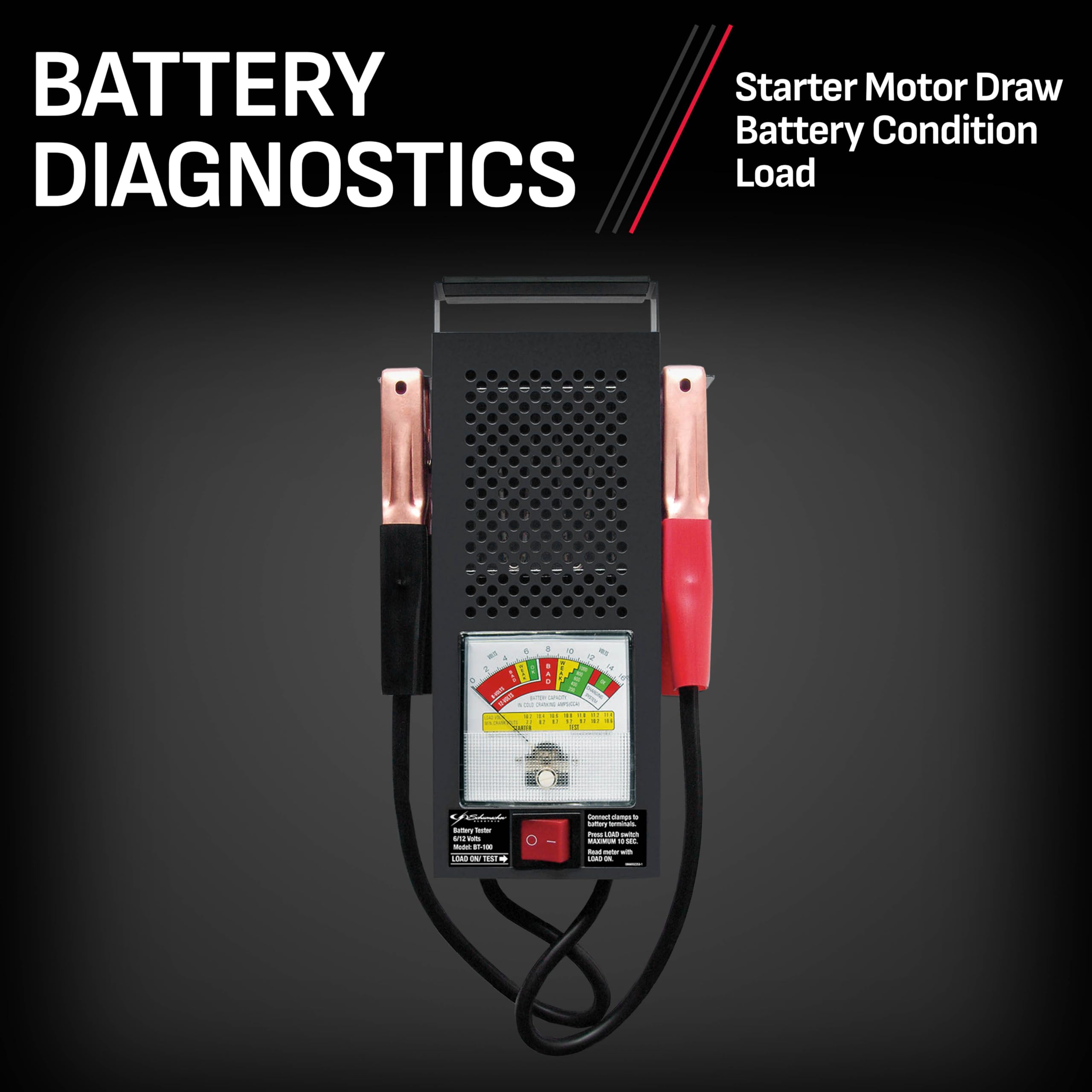

Schumacher BT-145 100A Battery Load Tester

Upgraded model with better build and precise needle gauge for pro results.

Best for: High-mileage vehicles or deeper diagnostics.

Price Range: $59.99

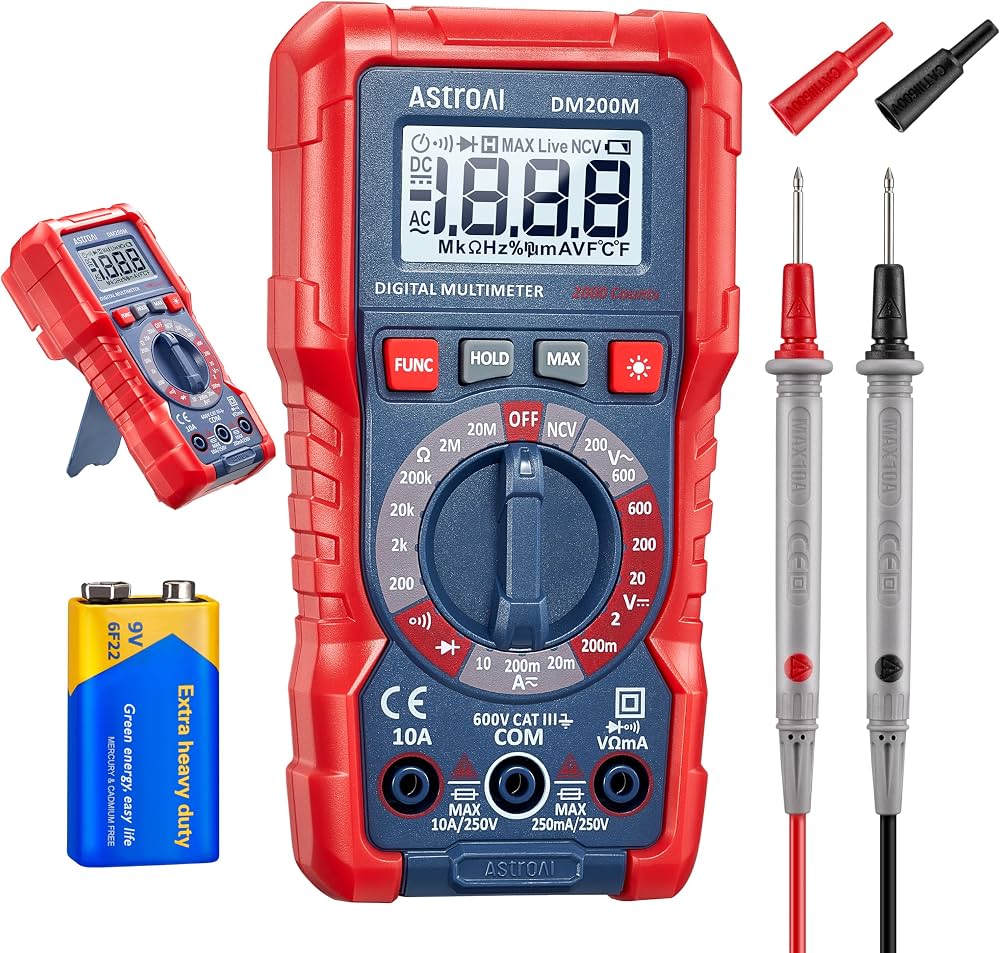

AstroAI Digital Multimeter

Essential companion for pre-load voltage checks with auto-ranging.

Best for: Baseline readings before/after load test.

Price Range: $12.99

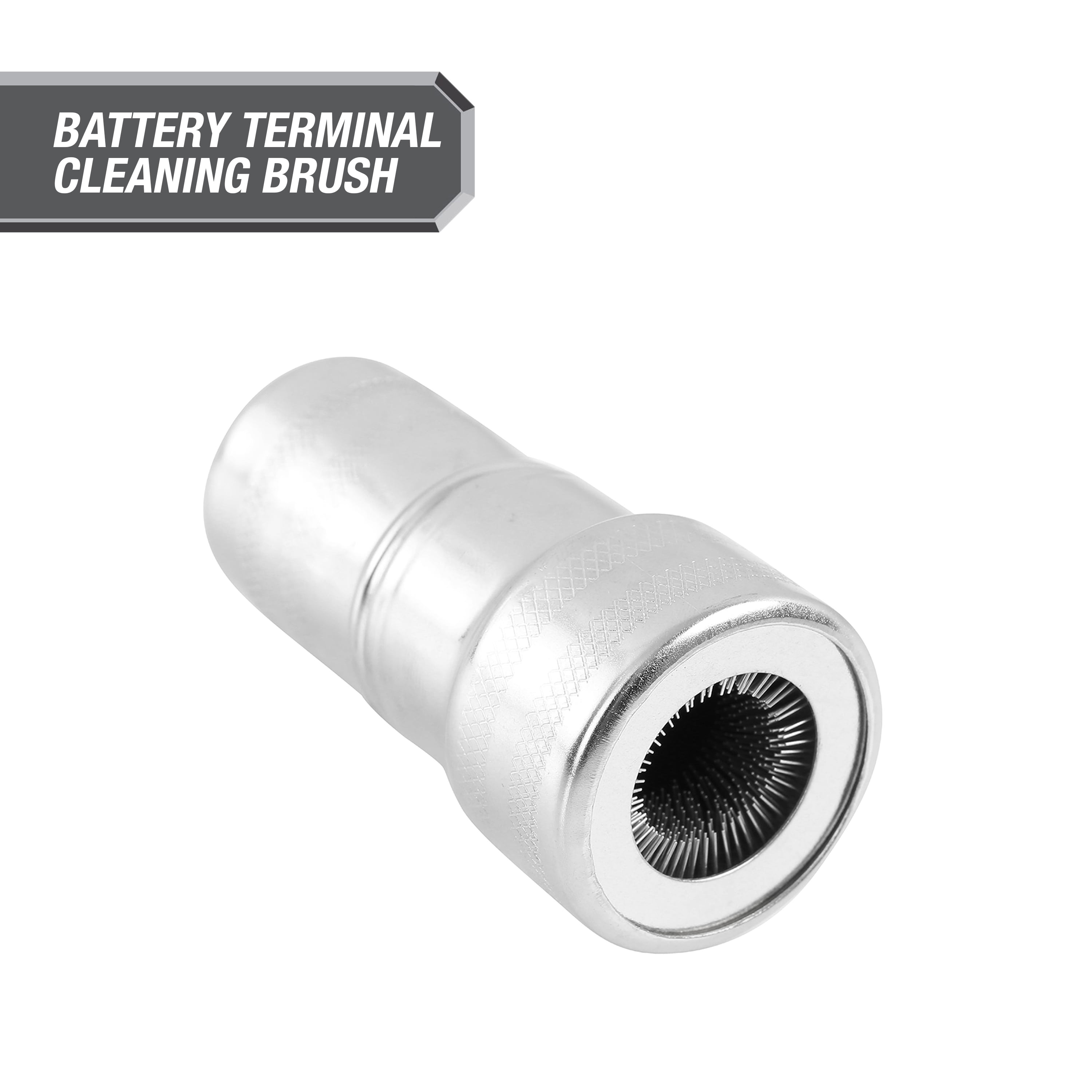

OEMTOOLS 24813 Battery Terminal Cleaner Brush
