How to Select AC Adapters for LED Strips

Picking the wrong AC adapter for your LED strips can lead to dim lights, flickering, overheating, or even fried strips—common frustrations for DIY enthusiasts. Whether you're lighting up a room, under-cabinet kitchen lights, or a custom project, the right adapter makes all the difference for reliability and safety.

In this beginner-friendly guide, you'll learn the key specs to match: voltage, amperage, wattage, connectors, and more. Follow our step-by-step process to confidently select an adapter that powers your setup perfectly.

Expect to spend 10-15 minutes reviewing specs and shopping—no tools required beyond a calculator and your LED strip details. Perfect for newcomers to LED projects.

▸What You'll Need

• •LED strip specifications (voltage, wattage per meter from label or datasheet)
• •Tape measure (to measure strip length)
• •Calculator or phone app for wattage/amperage math
• •Optional: Multimeter for verifying strip draw

Estimated Time: 10-15 minutes Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Identify Your LED Strip's Voltage

Start by checking the voltage rating on your LED strip's label, packaging, or datasheet. Common voltages are 12V DC or 24V DC—most strips are labeled clearly like '12V LED Strip.'

This is crucial because mismatched voltage can burn out LEDs instantly (too high) or make them barely light up (too low). Expect to see 'DC 12V' or similar.

Success looks like: Confirming exact voltage, e.g., 12V.

💡 Tips:

• •Download the manufacturer's datasheet from their website if the label is faded.

⚠️ Warnings:

• •Never assume voltage—always verify to prevent damage.

Step 2: Measure Your LED Strip Length

Use a tape measure to find the total length of the LED strip you'll power. Note if you're using the full reel (e.g., 5 meters) or cutting a section.

Power draw increases with length, so accurate measurement ensures you don't overload the adapter. Most strips list watts per meter (W/m), like 14.4W/m for a standard 5050 RGB strip.

Success looks like: A precise length, e.g., '3.5 meters.'

💡 Tips:

• •Account for any extensions or controllers adding length.

Step 3: Calculate Total Wattage Needed

Multiply watts per meter (from specs) by your strip length. Example: 14.4W/m × 5m = 72W total.

Add 20% buffer for safety and controllers (e.g., 72W × 1.2 = 86.4W). This prevents overheating.

Success looks like: A total wattage figure with buffer, like '86W minimum.'

💡 Tips:

• •Use an online LED power calculator for quick math.

⚠️ Warnings:

• •Undersizing causes flickering; oversizing is safer but wasteful.

Step 4: Determine Required Amperage

Divide total wattage by voltage: Amps (A) = Watts / Volts. Example: 86W / 12V = 7.17A.

Round up to the next whole number for the adapter rating.

Success looks like: Amperage like '8A minimum.'

💡 Tips:

• •Apps like 'LED Power Supply Calculator' simplify this.

Step 5: Match Voltage and Exceed Amps/Watts

Search for adapters with exact voltage match (e.g., 12V) and at least your calculated amps/watts (e.g., 12V 10A for 120W max).

Higher rating is fine; it won't harm LEDs.

Success looks like: Shortlist of adapters like '12V 5A' where 5A > your need.

⚠️ Warnings:

• •Exact voltage only—5V or 24V won't work on 12V strips.

Step 6: Check Connector Type and Polarity

Ensure the adapter has a barrel plug matching your strip/controller (e.g., 5.5mm x 2.1mm). Verify polarity: usually positive tip (⊕ inside circle).

Mismatched connectors mean no power.

Success looks like: Plug fits perfectly.

💡 Tips:

• •Adapters often include DC jacks; get pigtails if needed.

Step 7: Select for Quality and Certifications

Choose UL-listed or CE-certified adapters from reputable brands. Avoid no-name cheapies that overheat.

Look for short-circuit protection.

Success looks like: Adapter with 'UL Listed' sticker.

Step 8: Consider Environment and Extras

For outdoors/moisture: IP65+ waterproof. Check wire gauge (18AWG+ for long runs) and input voltage (100-240V AC universal).

Buy and test.

Success looks like: Adapter suited to your setup, powering strips brightly without heat.

▸Pro Tips

• •Always add 20-30% extra capacity for longevity.
• •Test with a multimeter before full install.
• •Buy switchable adapters (12V/24V) for flexibility.
• •Group strips on multiple adapters for long runs to reduce voltage drop.
• •Use dimmable adapters only if your strips support it.
• •Opt for magnetic disconnect plugs for easy swaps.
• •Store specs in a phone note for future buys.

▸Common Mistakes to Avoid

• •Ignoring voltage match—leads to instant burnout.
• •Undersizing amperage—causes flickering and fire risk.
• •Overlooking polarity—prevents power entirely.
• •Buying unbranded adapters—poor quality fails quickly.
• •Forgetting length/power calc—dim or inconsistent lights.

▸Troubleshooting

Problem: LEDs flicker or dim

Solution: Upgrade to higher amperage adapter; check connections for voltage drop.

Problem: Adapter gets very hot

Solution: Reduce load or replace with quality unit; ensure ventilation.

Problem: No lights at all

Solution: Verify polarity, voltage match, and secure connections.

Problem: Burnt smell or LEDs out

Solution: Wrong voltage—replace strip and get correct adapter; seek pro if wiring issue.

HitLights 12V 5A Power Supply (UL Listed)

Reliable for most 12V strips up to 60W; UL safety certified with short-circuit protection.

Best for: Indoor kitchen/cabinet lighting under 5m.

Price Range: $14.99

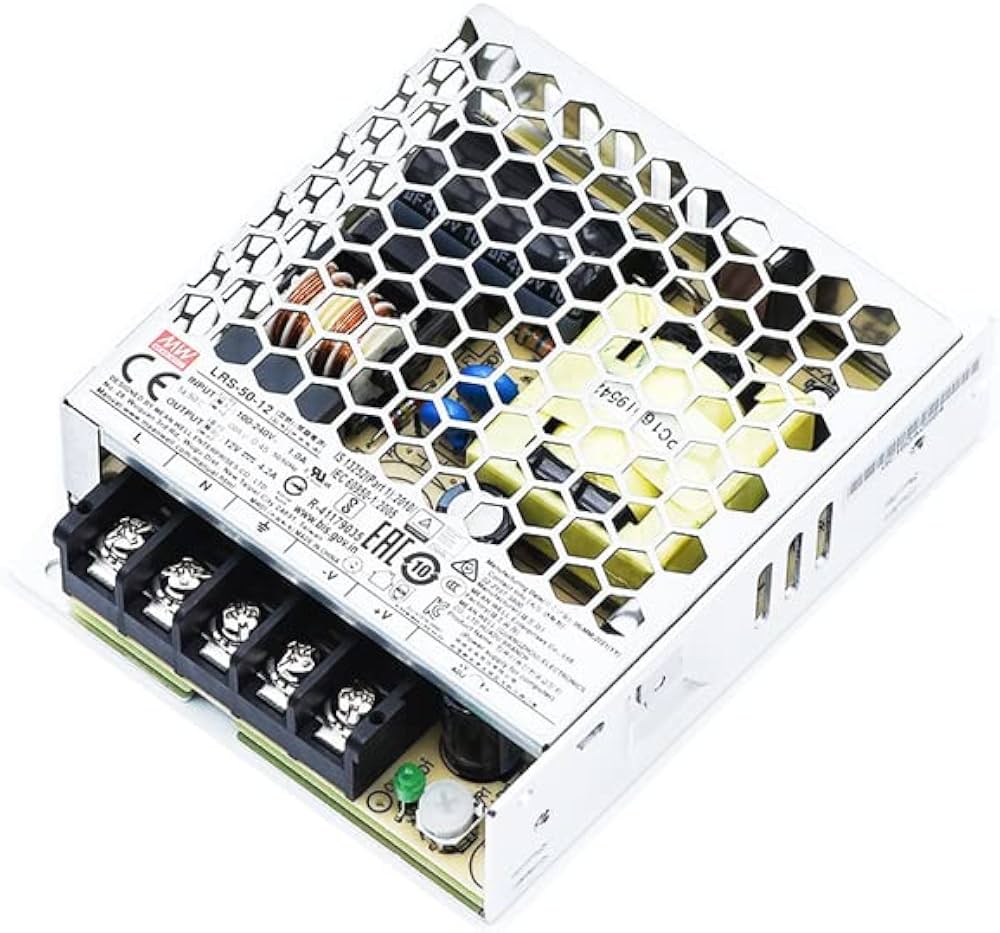

MEAN WELL LRS-50-12 12V 4.2A

Industrial-grade durability; excellent efficiency and heat dissipation for heavy use.

Best for: Longer strips or multiple setups needing pro reliability.

Price Range: $19.99-$25

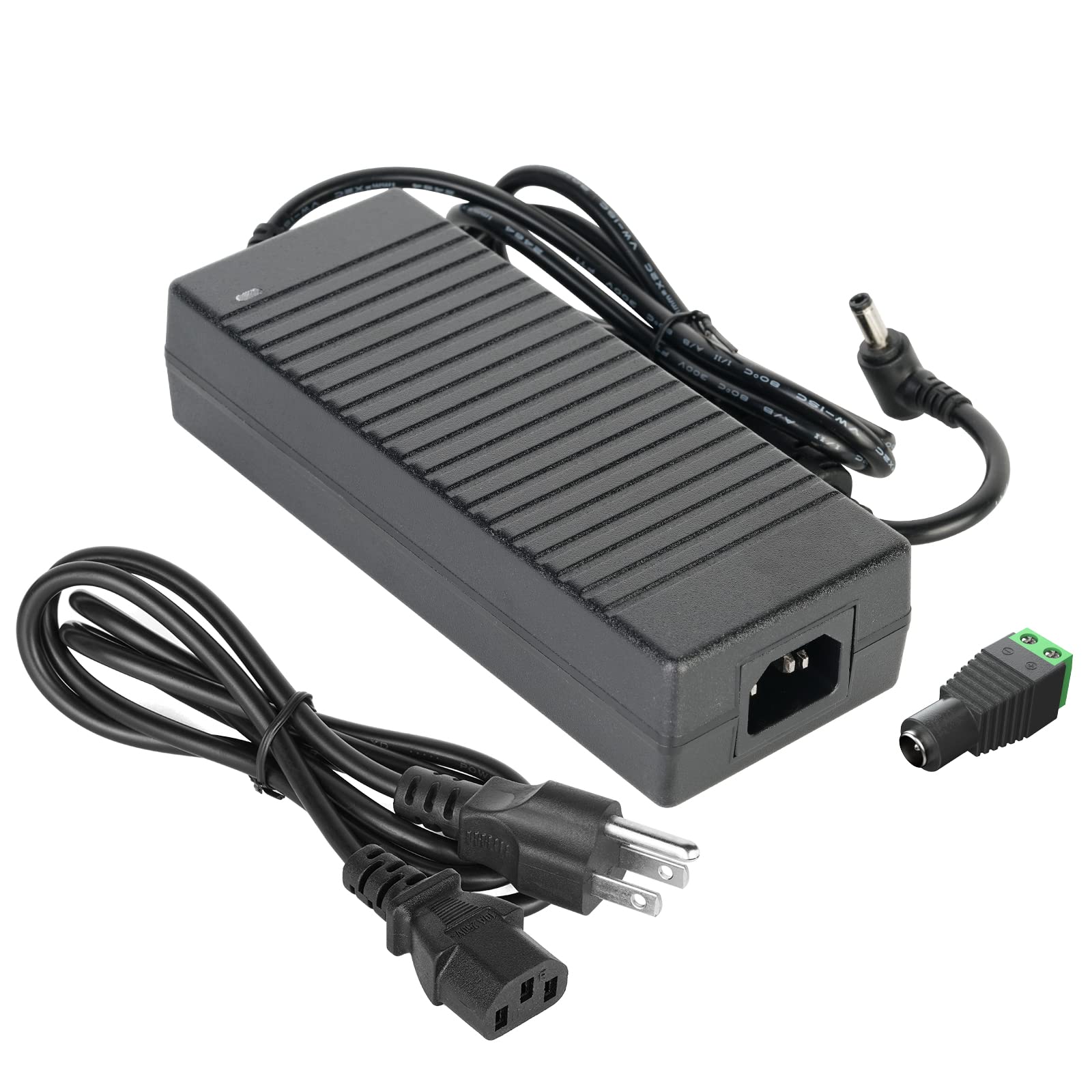

BTF-Lighting 12V 10A Waterproof Power Supply

IP67 waterproof for outdoor use; high capacity covers up to 120W.

Best for: Patio, garage, or wet locations.

Price Range: $22.99

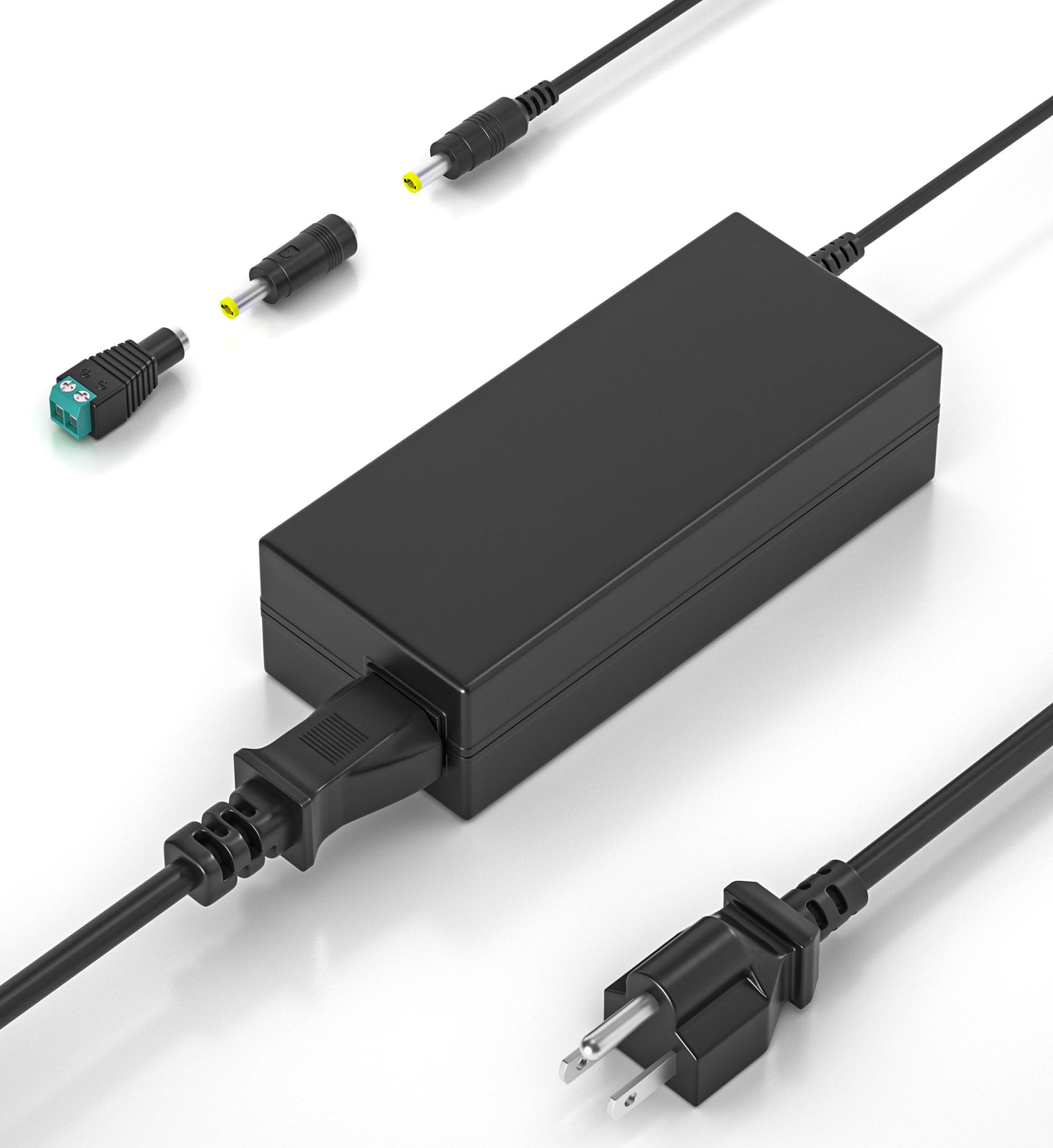

SOLOX 24V 5A Switching Power Supply

Perfect for 24V high-density strips; universal input and overload protection.

Best for: Bright accent lighting needing higher voltage.

Price Range: $18.99
