How to Secure Jeep Off-Road Lights?

Off-road enthusiasts know that poor lighting can turn a thrilling Jeep adventure into a nightmare—especially at night on rugged trails. Loose or improperly secured accent lights (like rock lights) and off-road lights (pods or bars) vibrate off during rough rides, leading to costly replacements and safety risks. This guide fixes that by teaching you how to mount them rock-solid.

You'll learn a step-by-step process to select locations, mount securely, wire safely, and test everything on your Jeep Wrangler (JK, JL, or TJ models). Expect vibration-proof installs using brackets, adhesives, and ties that withstand mud, water, and jumps. Perfect for intermediate DIYers with basic wrenching skills.

Total time: 1-2 hours per light setup. Difficulty: Intermediate—no welding required, but involves drilling and wiring.

▸What You'll Need

• •Mounting brackets or clamps (e.g., A-pillar or roof rack specific for Jeep model)
• •LED accent/off-road lights (pods, bars, or rock lights)
• •Wiring harness kit with relay and switch
• •Zip ties, anti-vibration mounts, and dielectric grease
• •Tools: Drill with metal bits, socket set (10mm-13mm), wire strippers, crimpers, multimeter
• •Optional: Silicone sealant, heat gun for shrink tubing

Estimated Time: 1-2 hours Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Plan Your Mounting Locations

Assess your Jeep's model (JK, JL, TJ) and choose spots like A-pillars for spotlights, bumpers for flood bars, fenders for accent rock lights, or roof racks for overhead bars. Consider visibility, airflow, and vibration sources—avoid hoods or doors that flex.

Sketch a diagram marking wire routes away from heat/exhaust. Check local laws for light height/color. Success: A clear plan prevents rework.

Image: Jeep Wrangler with marked A-pillar, bumper, and rock light positions.

💡 Tips:

• •Prioritize OEM bolt holes to avoid drilling.
• •Test-fit lights dry before drilling.

⚠️ Warnings:

• •Don't block airbags or wipers.

Step 2: Gather and Prep Materials

Lay out all tools and lights. Clean mounting surfaces with isopropyl alcohol to remove dirt/oil for strong adhesion. Dry-fit brackets—ensure they align perfectly without gaps.

Apply thread locker to bolts if provided. Success: Everything organized, surfaces spotless, no missing parts.

Image: Toolbox spread with brackets, lights, wires on workbench.

💡 Tips:

• •Label wires early for easy ID.

⚠️ Warnings:

• •Inspect lights for defects before install.

Step 3: Install Mounting Brackets

Bolt brackets to Jeep frame using OEM holes or drill pilot holes (1/8" bit). Torque to 10-15 ft-lbs—use blue Loctite. For adhesives on rock lights, roughen surface and apply 3M VHB tape per instructions; cure 24 hours.

Why: Brackets distribute vibration load. Expect slight play before tightening. Success: Brackets immovable by hand.

Image: Close-up of A-pillar bracket bolted on.

💡 Tips:

• •Use anti-seize on stainless bolts to prevent galling.

⚠️ Warnings:

• •Over-torquing strips threads—use torque wrench.

Step 4: Attach Lights to Brackets

Secure lights with included hardware or U-bolts. Angle for optimal beam (e.g., 15° down for bumper lights). Tighten progressively in a star pattern.

Why: Proper angling prevents glare/blind spots. Success: Lights firm, no wobble when shaken.

Image: LED pod light clamped to bracket on fender.

💡 Tips:

• •Add rubber isolators between light and bracket for vibration dampening.

Step 5: Route and Connect Wiring

Run wires along frame rails, using factory grommets. Connect to harness: positive/negative to light, relay to battery (+), ground to chassis. Crimp connectors, seal with heat shrink/dielectric grease.

Why: Secure routing avoids chafing/shorts. Success: Wires slack-free but not taut.

Image: Wires zip-tied along Jeep frame to battery.

💡 Tips:

• •Fuse all positives at battery.

Step 6: Secure All Wires and Components

Zip-tie wires every 12" to existing harnesses, add P-clips for extras. Use anti-vibe mounts on high-flex areas. Weatherproof entries with silicone.

Why: Prevents rattles/shorts in off-road abuse. Success: Tug-test—no movement.

Image: Zip ties and clips securing red/black wires.

⚠️ Warnings:

• •Avoid sharp edges—sleeve wires.

Step 7: Test and Final Adjustments

Start Jeep, flip switch—check all beams, no flickering. Rev engine/test bounce for loose parts. Adjust angles, retighten.

Drive test: 10-min bumpy road. Success: Lights stay secure, bright, flicker-free.

Image: Jeep at night with glowing off-road lights.

💡 Tips:

• •Multimeter voltage drop <0.5V.

▸Pro Tips

• •Use LED-specific wiring—handles heat better.
• •Mount relays near battery to shorten high-current runs.
• •Add inline fuses sized to light amps (e.g., 15A for 50W).
• •For rock lights, daisy-chain to reduce wiring clutter.
• •Periodic checks: Retighten quarterly on heavy trail use.
• •Paint bolts black for stealth look.
• •Combine with ditch lights for full surround illumination.

▸Common Mistakes to Avoid

• •Skipping surface prep—leads to vibration failure in weeks.
• •Loose wire routing—chafes on rocks, causes shorts.
• •Overlooking relay—blows Jeep fuses on startup.
• •Wrong beam angle—blinds oncoming traffic.
• •Ignoring waterproofing—rain infiltrates connectors.

▸Troubleshooting

Problem: Lights flicker or dim

Solution: Check ground connections; clean corrosion. Verify relay clicks on key turn.

Problem: Lights loose after trails

Solution: Retorque bolts; add locknuts or Nord-Lock washers.

Problem: No power to lights

Solution: Test fuse/relay swap; multimeter battery voltage.

Problem: Wires shorting

Solution: Inspect chafe points; reroute and insulate.

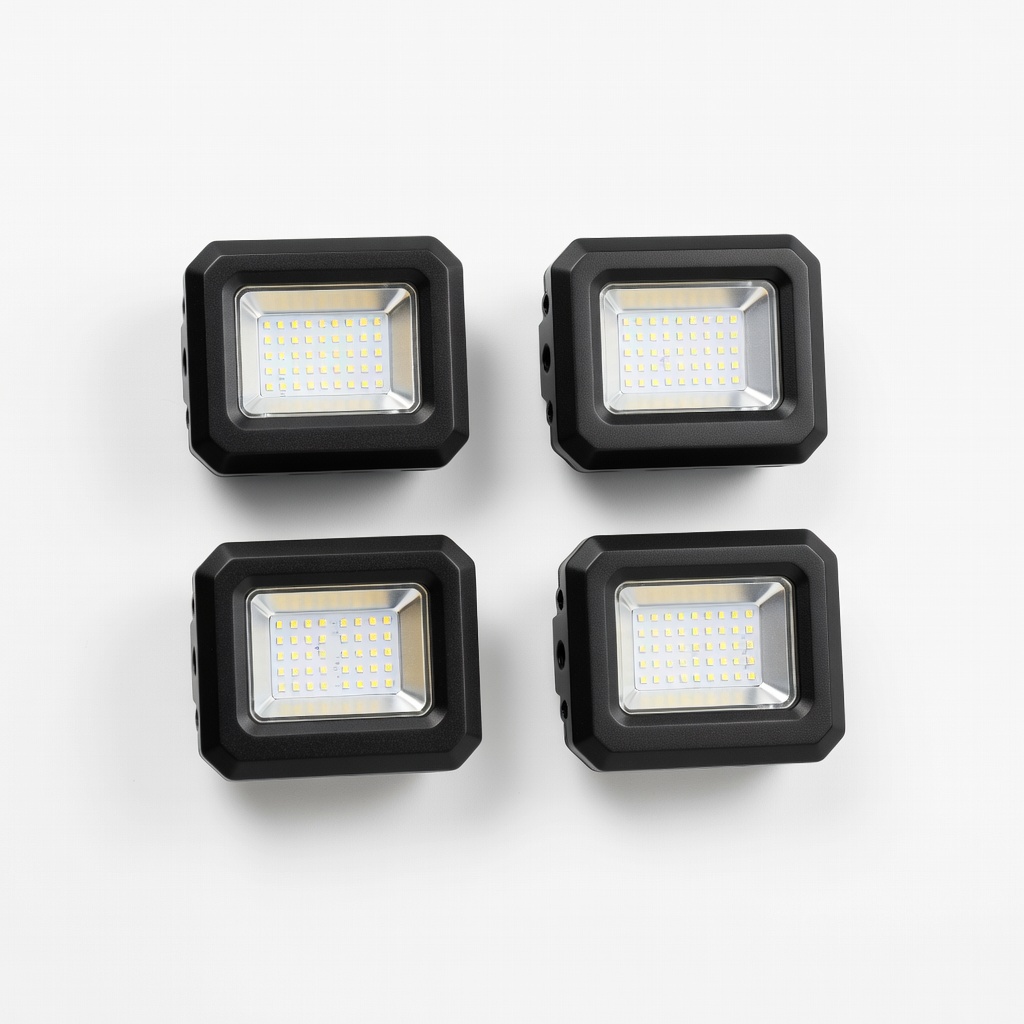

Nilight 4PCS LED Pods Lights

Durable IP67 waterproof pods with adjustable brackets—perfect for A-pillar or bumper mounts on Jeeps.

Best for: Spot/flood combo for trails; easy bolt-on.

Price Range: $39.99

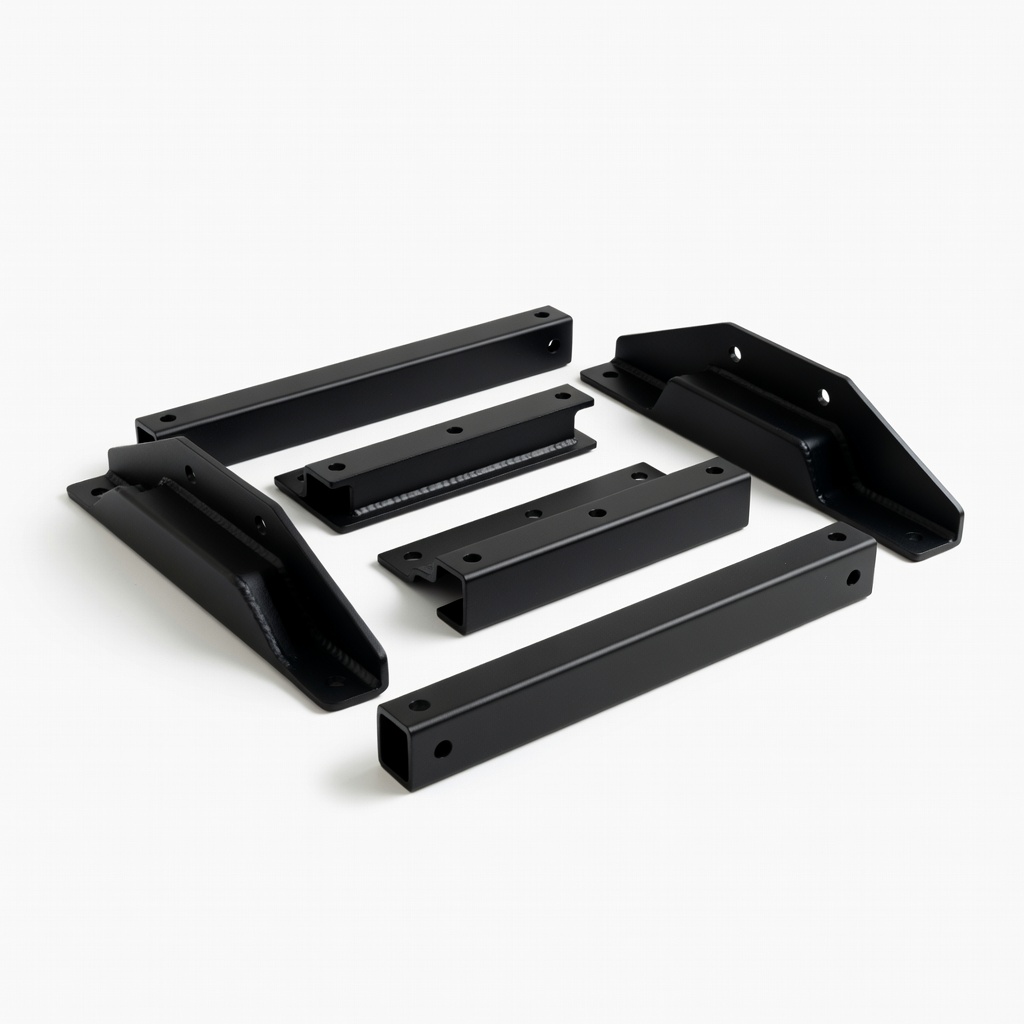

Rough Country Roof Mount Brackets

Model-specific for JL/JK, vibration-resistant aluminum—secures light bars overhead securely.

Best for: Roof rack light bars without drilling.

Price Range: $59.95

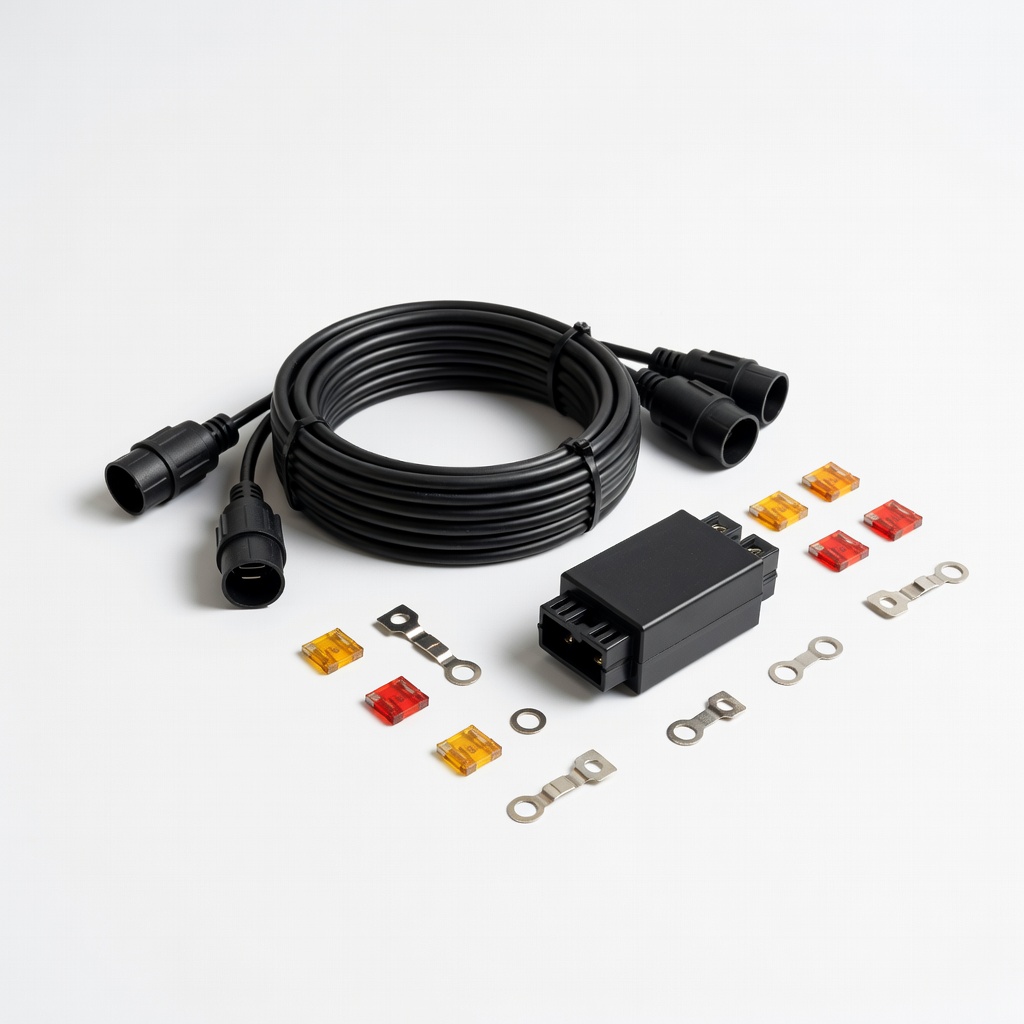

Nilight Wiring Harness Kit

Plug-and-play with relay, switch, and fuses—handles up to 360W, prevents electrical issues.

Best for: All Jeep light installs; battery direct.

Price Range: $19.99

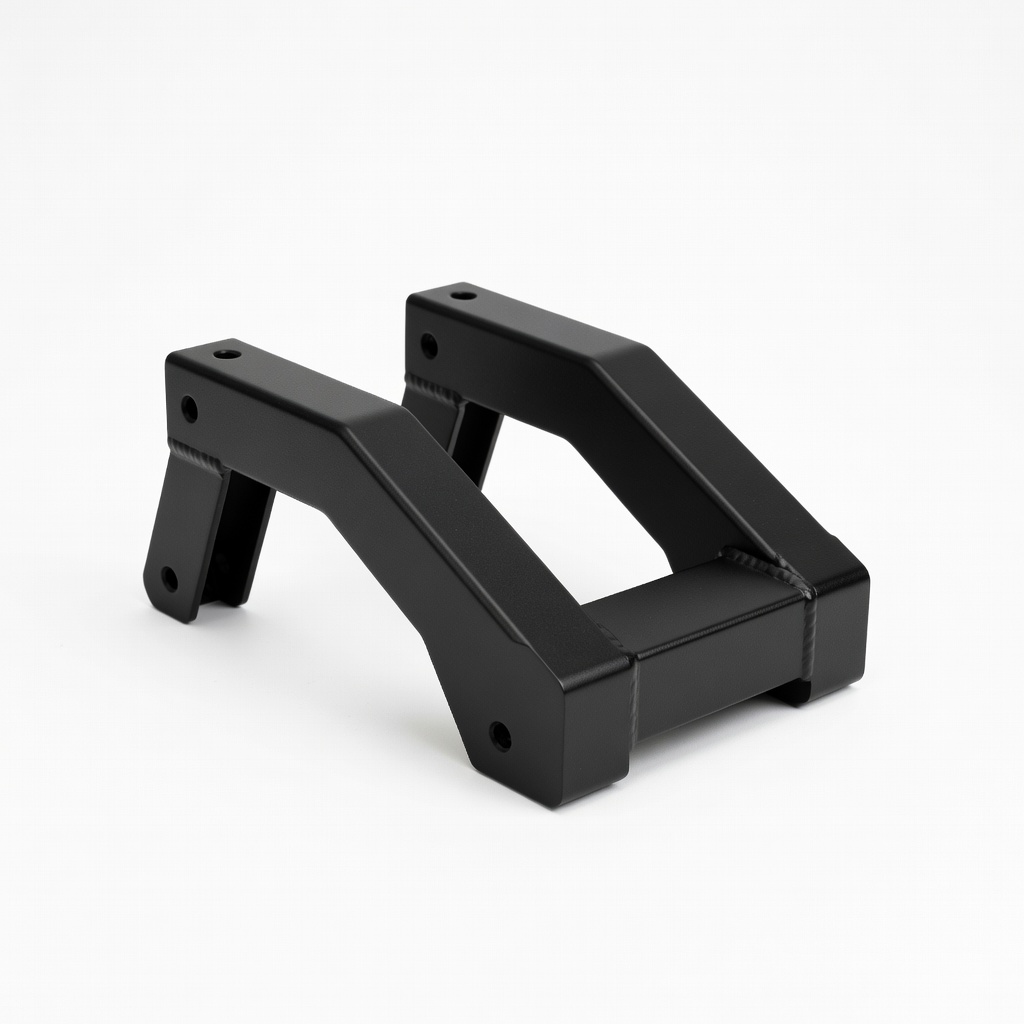

ZROADZ A-Pillar Light Brackets

Heavy-duty steel for ditch lights—powder-coated, no-drill on most Wranglers.

Best for: Accent lighting on pillars.

Price Range: $89.99

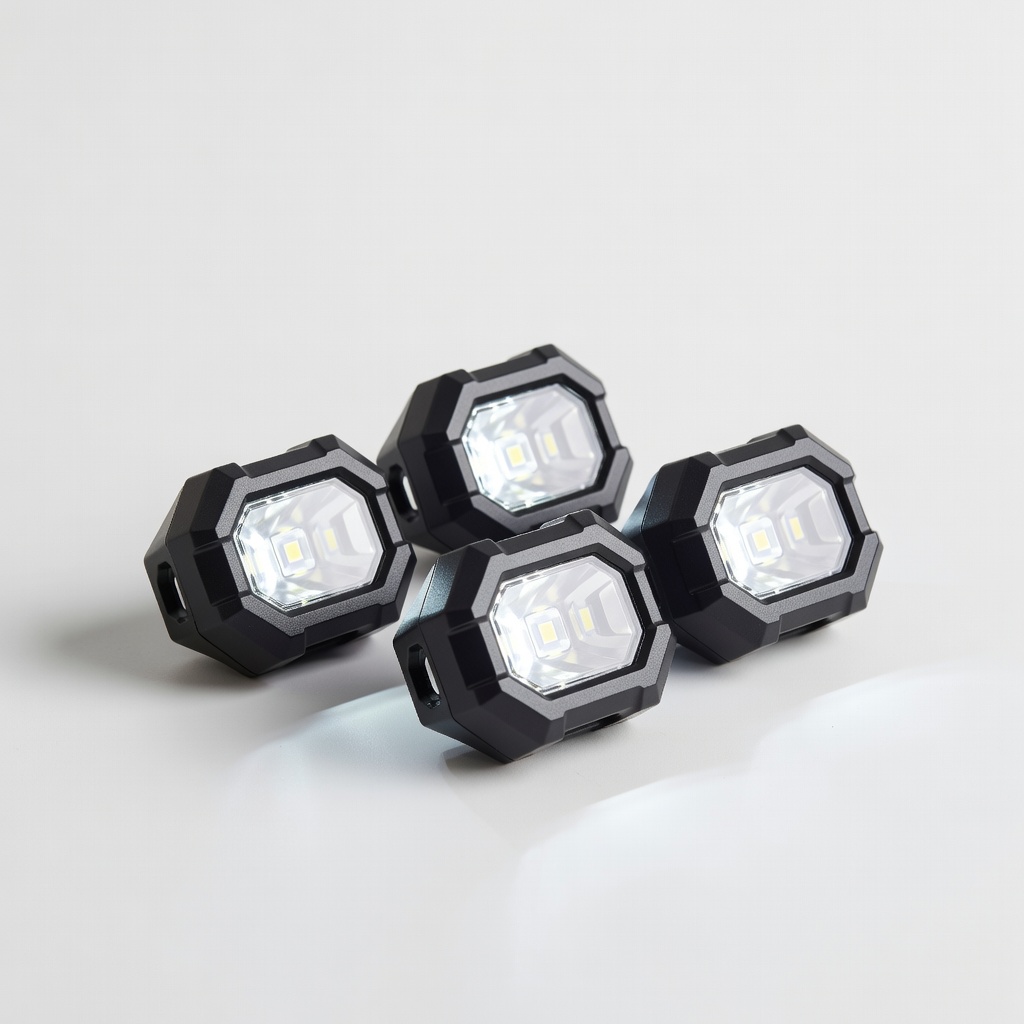

AlphaRex Rock Lights

RGB app-controlled underbody accents—magnetic mounts with strong adhesives.

Best for: Wheel well/rock crawling visibility.

Price Range: $129.99
