How to Safely Use Abrasive Wheels on Bench Grinders?

Bench grinders with abrasive wheels are powerful tools for sharpening blades, chisels, and other metalwork, but improper use leads to thousands of injuries yearly from wheel explosions or flying debris. Whether you're a DIYer or hobbyist, knowing how to handle them correctly prevents accidents and extends tool life.

In this guide, you'll learn step-by-step how to select, install, test, and use abrasive wheels safely on your bench grinder. We'll cover essential safety checks, proper techniques, and maintenance. Expect 30-45 minutes for initial setup and familiarization—perfect for intermediate users with basic tool experience.

By the end, you'll confidently grind with precision, achieving clean edges and sparks without hazards.

▸What You'll Need

• •Bench grinder (e.g., 8-inch slow-speed model)
• •Compatible abrasive wheel (right grit and arbor size)
• •Wheel flanges and nut (usually included with grinder)
• •Spindle wrench or hex key
• •Diamond or star dresser for wheel truing
• •Safety glasses (ANSI Z87.1 rated)
• •Hearing protection
• •Leather gloves or cut-resistant work gloves
• •Dust mask or respirator
• •Optional: Wheel balancer kit

Estimated Time: 30-45 minutes for setup and first use; 5-10 minutes per grinding session Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Inspect Your Bench Grinder and Gather Gear

Before anything, unplug the grinder and visually check for damage: cracks in the housing, loose guards, or worn tool rests. Ensure spark deflectors are within 1/8 inch of the wheel.

Why it matters: Faulty equipment causes 70% of grinder accidents. Put on safety glasses, gloves, hearing protection, and a dust mask.

Success looks like: Clean workspace, all PPE worn, grinder unplugged and inspected.

💡 Tips:

• •Keep a checklist laminated nearby for quick reference.

⚠️ Warnings:

• •Never use a damaged grinder—replace parts immediately.

Step 2: Select the Right Abrasive Wheel

Choose a wheel matching your grinder's spindle size (e.g., 5/8-inch arbor for most 8-inch grinders) and task: 36-60 grit for heavy grinding, 80-120 for sharpening. Verify RPM rating exceeds grinder speed (typically 3,450 RPM).

Check the wheel's expiration date (usually 3-5 years from manufacture) and blotter label intact.

Success: Wheel specs match grinder manual.

💡 Tips:

• •Aluminum oxide for steel; silicon carbide for carbide tools.

⚠️ Warnings:

• •Avoid organic-bond wheels on high-speed grinders—they disintegrate.

Step 3: Perform the Ring Test on the New Wheel

Hold the wheel loosely by the inner hole (never outer edge) and tap it lightly with a non-metallic tool at quadrants and center. It should ring clear like a bell—if dull thud, it's cracked.

Why: Detects hidden flaws before mounting.

Success: Consistent clear ring tone.

💡 Tips:

• •Flick gently; practice on a known good wheel.

⚠️ Warnings:

• •Discard any wheel that doesn't ring properly—do not install.

Step 4: Install the Abrasive Wheel Correctly

Remove old wheel if present using spindle wrench. Clean spindle. Place undamaged paper blotters on both sides of wheel, then flange (convex side toward wheel). Tighten nut finger-tight, then 1/4 to 1/2 turn with wrench—never overtighten.

Ensure wheel is centered and guards cover 75%+.

Success: Wheel spins freely by hand without wobble.

💡 Tips:

• •Use torque specs from manual if provided (usually 15-20 ft-lbs).

⚠️ Warnings:

• •Blotters must be intact; flanges flat and clean.

Step 5: True and Dress the Wheel

Plug in and run at no-load for 1 minute. Use a diamond dresser: lightly touch rotating wheel at 90 degrees, moving side-to-side to expose fresh grains and remove glaze.

Why: Prevents uneven grinding and vibration.

Success: Flat, spark-free face with even grit exposure.

💡 Tips:

• •Dress every 10-20 hours of use.

⚠️ Warnings:

• •Stand aside during first run—watch for defects.

Step 6: Adjust Tool Rests and Spark Deflectors

Set tool rest 1/16-inch from wheel (use a feeler gauge). Spark deflector 1/8-inch away. Lock securely.

Success: Gap measurable and consistent.

💡 Tips:

• •Check after every 5 uses.

⚠️ Warnings:

• •Too wide = pinch hazard; too close = damage.

Step 7: Test Run and Balance Check

Run unloaded for 3 minutes. If vibration, stop and balance using adjustable weights on flanges or a balancer kit.

Success: Smooth, quiet operation.

💡 Tips:

• •Slow-speed grinders (1,800 RPM) vibrate less.

⚠️ Warnings:

• •Excess vibration = explosion risk.

Step 8: Grind Safely and Maintain

Use light pressure, 10-20 seconds per spot, dip in water for cooling. Alternate sides to avoid overheating.

After use: Dress lightly, store dry.

Success: Clean bevels without blue temper line.

💡 Tips:

• •Grind away from wheel center.

⚠️ Warnings:

• •No gloves near spinning wheel.

▸Pro Tips

• •Always unplug before adjustments—habit saves lives.
• •Use a slow-speed grinder (under 2,000 RPM) for safer home use.
• •Mark wheel rotation direction with arrow for quick checks.
• •Cool tools in water bucket to prevent warping.
• •Log usage hours for timely dressing/replacement.
• •Invest in a magnetic wheel balancer for pro results.
• •Practice on scrap metal first.

▸Common Mistakes to Avoid

• •Skipping ring test: Leads to wheel burst—always test new wheels.
• •Overtightening nut: Cracks wheel—use wrench sparingly.
• •Ignoring gaps on rests/deflectors: Causes burns or ejections—measure every session.
• •Grinding too long in one spot: Overheats and warps tools—limit to 10 seconds.
• •Using wrong grit/speed: Glazes wheel or burns work—match specs.

▸Troubleshooting

Problem: Excessive vibration

Solution: Dress wheel, check balance, ensure flanges clean. Replace if persistent.

Problem: Wheel glazing (no sparks)

Solution: Dress to expose grains; use coarser grit.

Problem: Overheating tool

Solution: Light pressure, frequent quenching. Use finer grit.

Problem: Sparks flying toward user

Solution: Readjust spark deflector; stand to side.

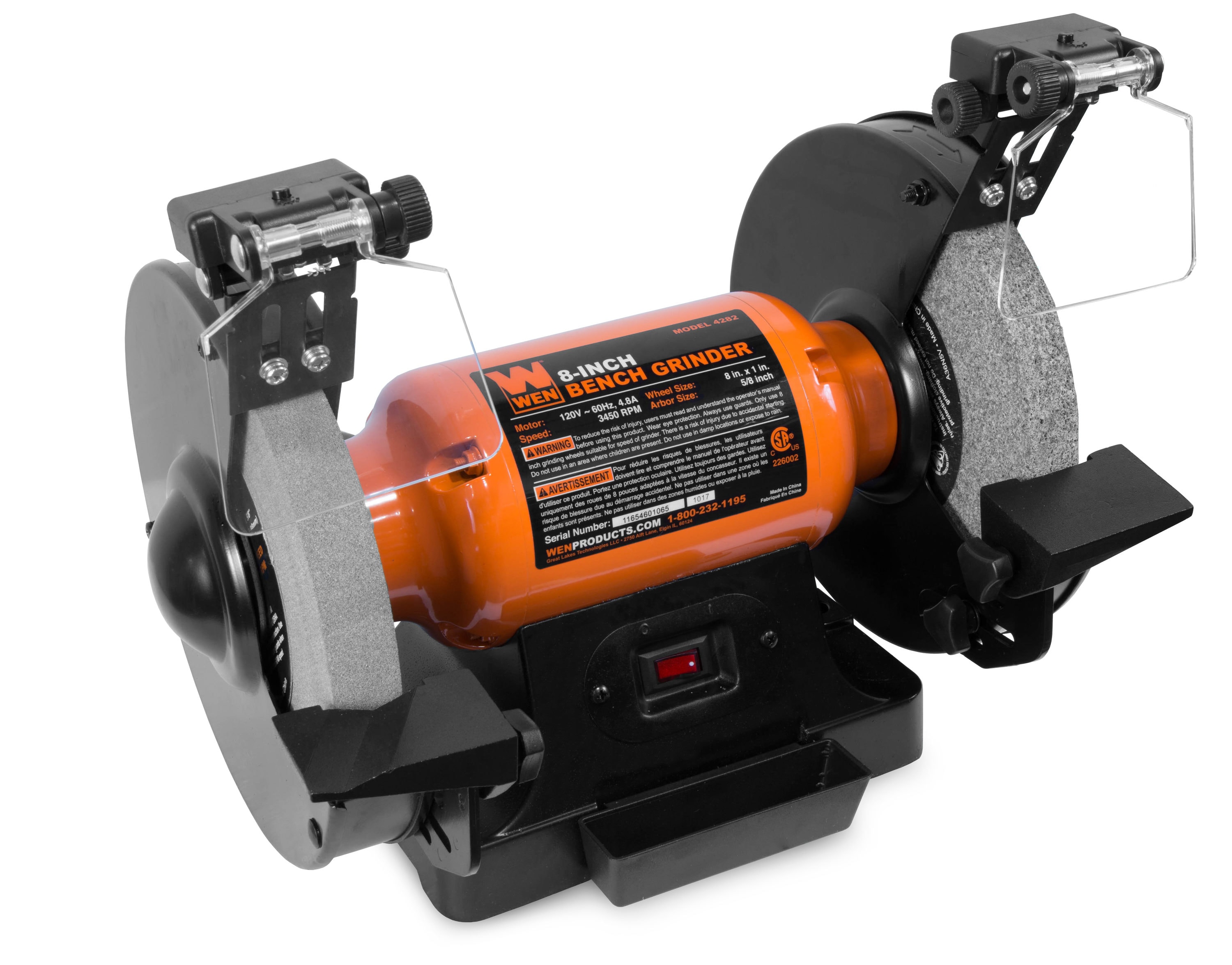

WEN 4288 8-Inch Slow Speed Bench Grinder

Slow 1,800 RPM speed reduces heat and risk for safer grinding.

Best for: Primary grinder for home workshops sharpening tools.

Price Range: $69.99

Forney 52905 8-Inch 36 Grit Aluminum Oxide Bench Grinding Wheel

Durable, high-quality wheel with proper RPM rating and blotter.

Best for: Heavy stock removal on steel tools.

Price Range: $14.99

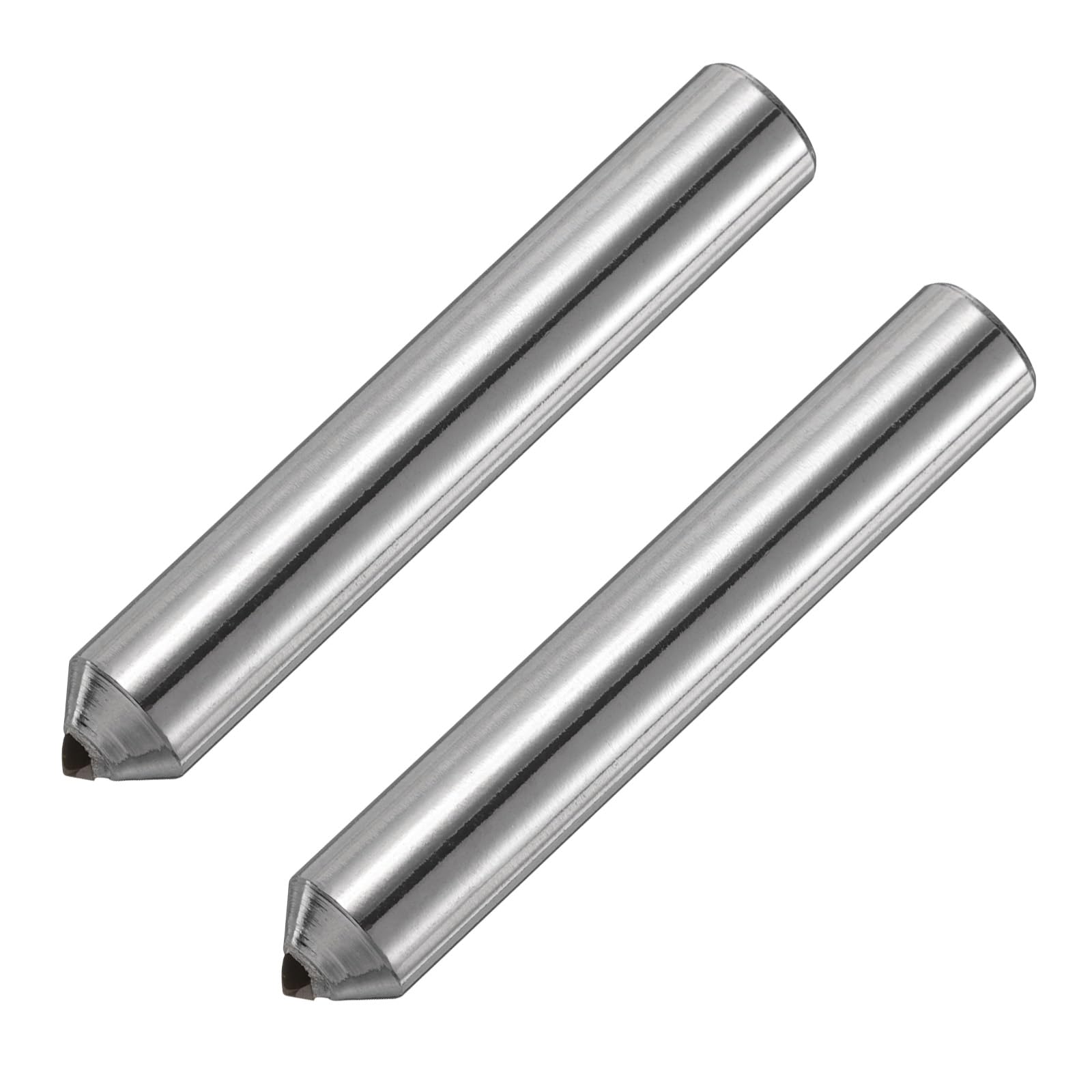

AUTOTOOLHOME Diamond Wheel Dresser

Essential for truing and exposing fresh abrasives quickly.

Best for: Routine maintenance to keep wheels flat and effective.

Price Range: $9.99

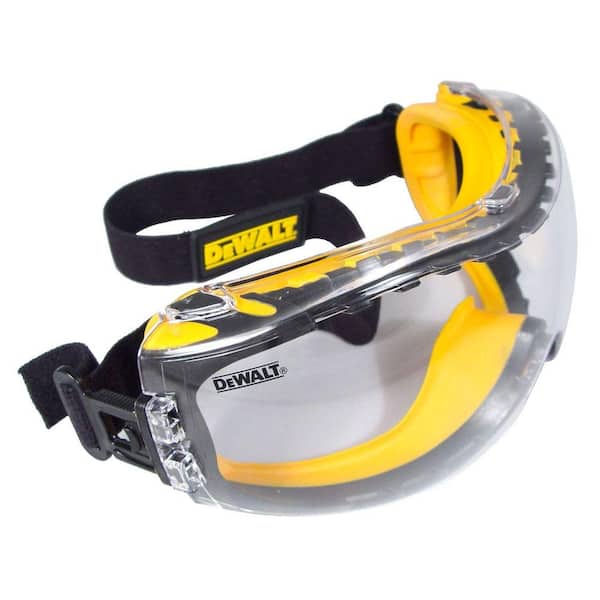

DEWALT DPG82-11 Concealer Safety Glasses

Anti-fog, ANSI-rated protection from debris and sparks.

Best for: Mandatory eye safety during all operations.

Price Range: $12.99

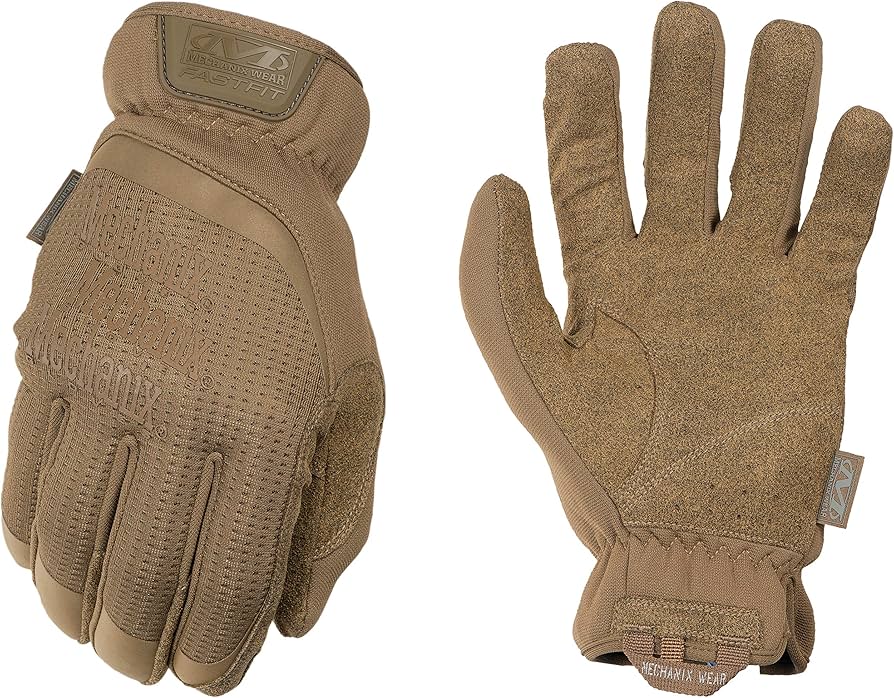

Mechanix Wear FastFit Work Gloves (Large)
