How to Pair AC Adapters with LED Strips?

Ever bought LED strips only to find they flicker, dim quickly, or burn out because the wrong power adapter was used? This is a common frustration for DIY enthusiasts lighting up rooms, cabinets, or cars. Mismatched voltage or insufficient amperage can ruin your setup and pose safety risks like overheating.

In this beginner-friendly guide, you'll learn how to read specs, calculate power needs, select the right AC adapter, and connect everything safely. By the end, your LEDs will shine brightly and reliably.

The process takes just 10-20 minutes with basic tools—no soldering required if using plug-and-play options. Perfect for home decor projects!

▸What You'll Need

• •LED strip (with specs label: voltage, wattage per meter, total length)
• •Compatible AC adapter (12V or 24V DC, matching amps)
• •Wire strippers or scissors (for bare wire connections)
• •Electrical tape or connectors (optional for secure joins)
• •Multimeter (optional, for verifying voltage)

Estimated Time: 10-20 minutes Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Check Your LED Strip Specifications

Locate the label or packaging on your LED strip. Note the voltage (usually 12V or 24V DC) and power rating (watts per meter, e.g., 5W/m) and total length (e.g., 5 meters).

Why it matters: LEDs are picky—wrong voltage fries them instantly. Success looks like: specs written down, e.g., '12V, 14.4W/m, 5m total.'

Calculate total wattage: length × W/m (e.g., 5m × 14.4W/m = 72W).

💡 Tips:

• •Take a photo of the label for reference.
• •Common voltages: 12V for short runs, 24V for longer to reduce voltage drop.

⚠️ Warnings:

• •Never guess specs—always verify to avoid damage.

Step 2: Calculate Required Amperage

Divide total wattage by voltage: Amps = Watts / Volts (e.g., 72W / 12V = 6A). Add 20% buffer for safety (e.g., 7.2A → choose 8A adapter).

Why: Underpowered adapters cause dimming or flickering; overpowered is safe if voltage matches.

Success: A number like 'Need at least 8A at 12V.' Use an online LED power calculator if math isn't your thing.

💡 Tips:

• •Pro tip: For multiple strips, sum all wattages.

⚠️ Warnings:

• •Don't exceed adapter's max amps or it overheats.

Step 3: Select a Matching AC Adapter

Choose a DC adapter with exact voltage match (e.g., 12VDC output), higher or equal amps, and UL-listed for safety. Look for barrel plug (5.5mm x 2.1mm common).

Check polarity: Usually positive tip (+ center). Success: Adapter specs match your calc, e.g., '12V 10A.'

If no plug, you'll strip wires later.

💡 Tips:

• •Switching power supplies (like Mean Well) are reliable for longer use.

⚠️ Warnings:

• •AC adapters won't work—must be DC output.

Step 4: Verify Polarity and Connector Compatibility

Inspect LED strip input: Red wire/black wire or marked +/- on DC jack. Adapter should match (+ tip, - sleeve).

Use multimeter on DC setting: Probe adapter output (expect steady voltage).

Success: Polarity confirmed, connector fits snugly.

💡 Tips:

• •Most LEDs have arrow or + mark on controller/strip.

⚠️ Warnings:

• •Reversed polarity can damage LEDs instantly—double-check!

Step 5: Make the Connection

If plug matches: Insert firmly. For bare wires: Strip 1/4 inch insulation, twist red-to-red (+), black-to-black (-), secure with connector or tape.

Why secure: Loose connections cause intermittent lights.

Success: Wires snug, no exposed copper.

💡 Tips:

• •Use Wago lever connectors for tool-free joins.

⚠️ Warnings:

• •Power off during connection to avoid shorts.

Step 6: Test the Setup

Plug into wall outlet. LEDs should light fully bright, no flicker.

Observe 1-2 minutes for heat (slight adapter warmth OK, hot = issue).

Success: Steady, even glow across strip.

💡 Tips:

• •Test in short segments first if long strip.

⚠️ Warnings:

• •Unplug immediately if smoking or very hot.

Step 7: Secure and Mount

Use zip ties or clips to tidy wires. Mount strip per project (adhesive backing usually).

Success: Neat, permanent install ready for use.

💡 Tips:

• •Leave slack in wires for heat dissipation.

▸Pro Tips

• •Buy adapters with adjustable voltage if experimenting.
• •For runs over 5m, use 24V to minimize voltage drop.
• •Label adapters with LED specs for future use.
• •Invest in a power supply with short-circuit protection.
• •Dimmer compatibility: Ensure adapter handles dimmer load.
• •Cool environment extends adapter life—avoid enclosed spaces.
• •Bulk buy matching sets for multi-room projects.

▸Common Mistakes to Avoid

• •Mismatching voltage: Causes instant burnout—always verify first.
• •Underestimating amps: Leads to dim/flickering lights—add 20% buffer.
• •Ignoring polarity: Reverses and damages LEDs—check symbols.
• •Poor wire connections: Causes shorts—use proper insulation.
• •Overloading extension cords: Use direct wall outlet.

▸Troubleshooting

Problem: LEDs don't light or flicker

Solution: Check voltage match, connections, and amps. Test adapter alone with multimeter.

Problem: One end dimmer than other

Solution: Voltage drop—use thicker wire, 24V, or inject power midway.

Problem: Adapter gets very hot

Solution: Overloaded—upgrade amps or reduce strip length. Ensure ventilation.

Problem: Humming noise

Solution: Cheap adapter—replace with quality switching supply.

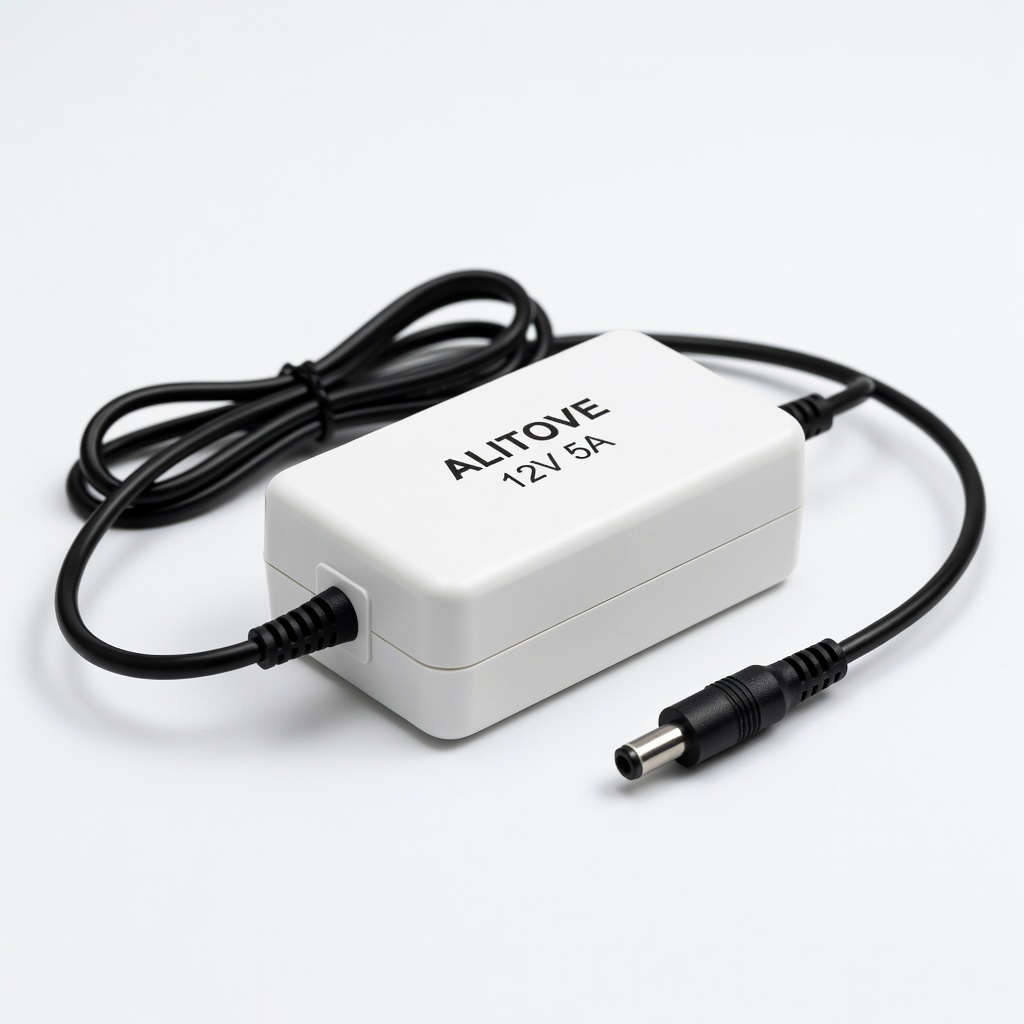

ALITOVE 12V 5A Power Supply Adapter

Reliable UL-certified with exact LED matching, overload protection, and common 5.5x2.1mm plug.

Best for: Short to medium 12V strips up to 5m (60W total).

Price Range: $15.99

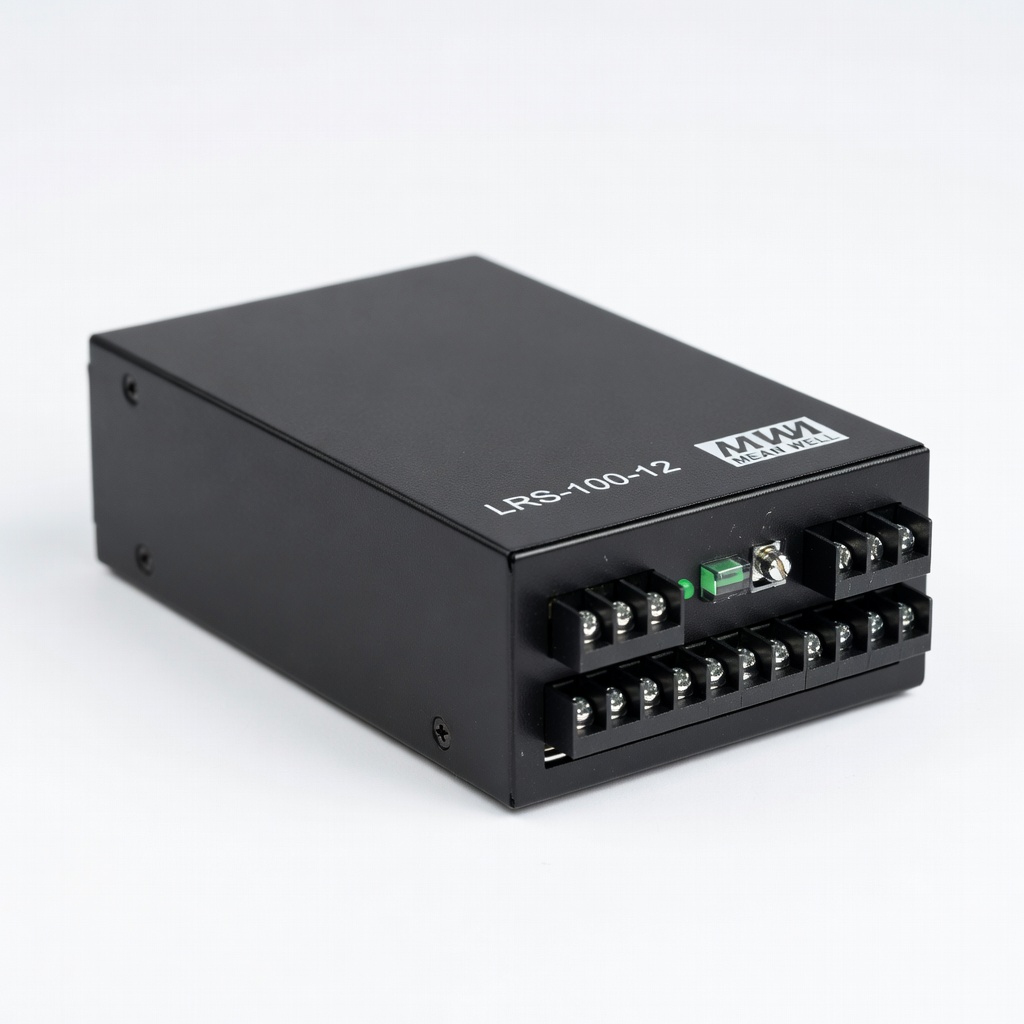

MEAN WELL LRS-100-12 Switching Power Supply

Industrial-grade, stable output for heavy use, fanless, and high efficiency.

Best for: Longer or multiple 12V strips needing 8A+ (100W).

Price Range: $25-$30

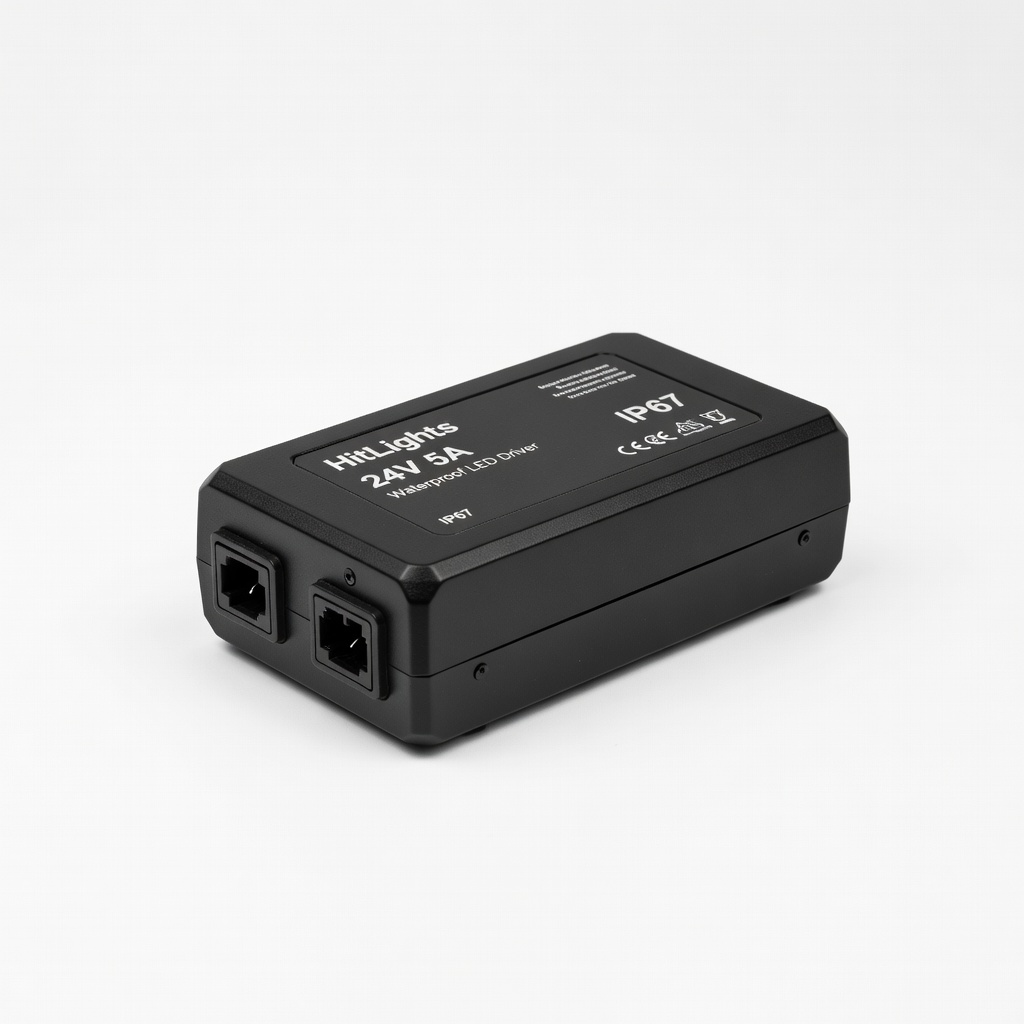

HitLights 24V 5A Waterproof LED Driver

IP67 waterproof for outdoor/humid areas, dimmer compatible.

Best for: 24V strips in kitchens, bathrooms, or outdoors.

Price Range: $19.99

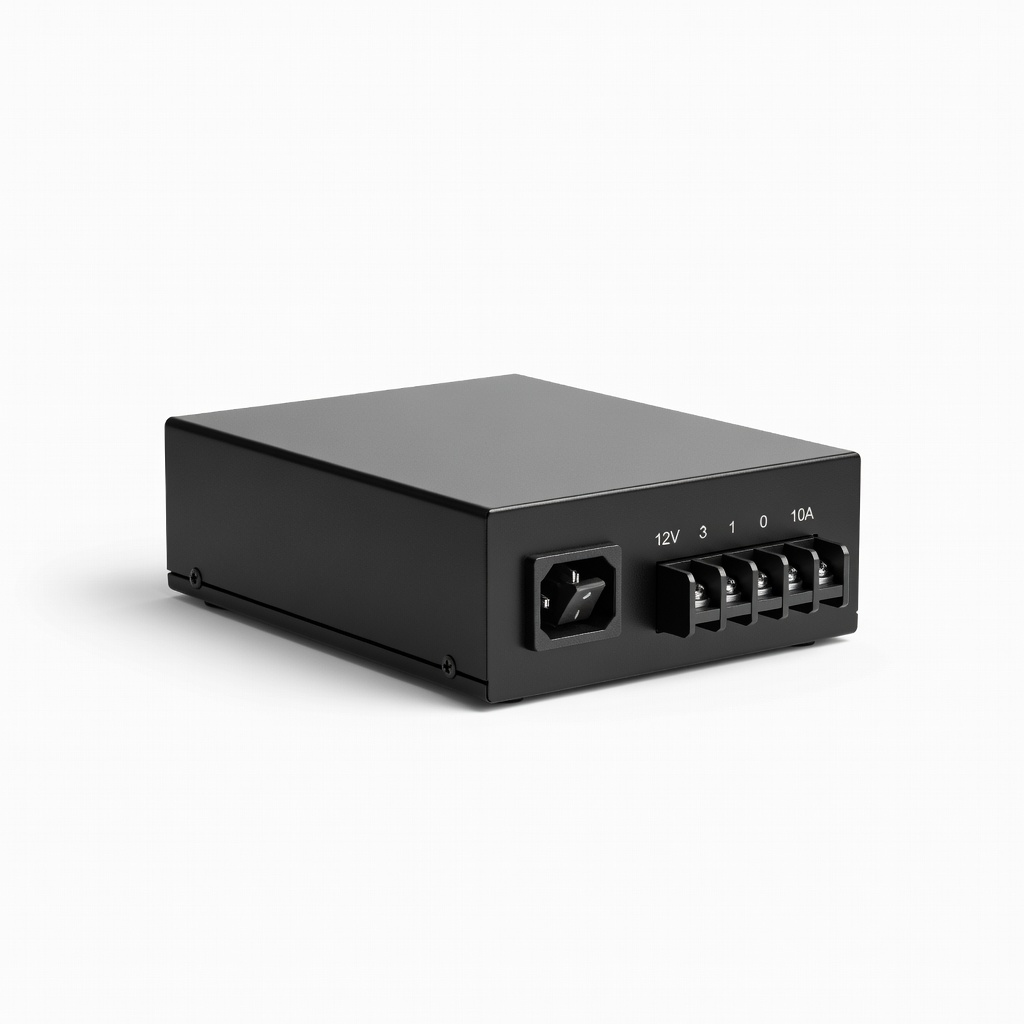

Wathai 12V 10A Power Supply

Budget-friendly with screw terminals for easy custom wiring.

Best for: DIY projects with bare wires or high-power needs.

Price Range: $22.99
