How to Jumpstart a 48V Scooter Battery?

Nothing strands you faster than a dead 48V scooter battery, especially mid-commute or adventure. Whether it's deeply discharged due to over-discharge, cold weather, or BMS lockout, jumpstarting can wake it up quickly without a full charge cycle. This guide teaches you how to do it safely at home.

You'll learn essential safety checks, precise connections using a donor battery, and post-jump charging to prevent future issues. The process takes just 20-30 minutes and requires basic tools—perfect for beginners with no prior electrical experience. Warning: This is for lithium-ion or lead-acid 48V batteries; always prioritize safety to avoid shocks, fires, or damage.

Expect success if the battery isn't completely failed: voltage rises, scooter powers on. If not, it may need replacement.

▸What You'll Need

• •Safety glasses (required)
• •Insulated gloves (required)
• •Digital multimeter (required)
• •Fully charged donor 48V battery or 48-60V power source (required)
• •Heavy-duty jumper cables (10 AWG or thicker, required)
• •Wrenches or screwdriver to access terminals (required)
• •48V charger for post-jump (optional but recommended)

Estimated Time: 20-30 minutes Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Gather Tools and Gear Up for Safety

Start in a well-ventilated, flat area away from flammables. Put on safety glasses and insulated gloves—electricity at 48V can shock or arc.

Lay out all tools: multimeter, donor battery (fully charged 48V scooter battery), thick jumper cables, and wrenches. Inspect cables for frays. Why? Proper prep prevents 90% of accidents.

Success looks like: Everything organized, you're gloved and spectacled, ready to proceed safely.

💡 Tips:

• •Work with a buddy for emergencies.
• •Disable any BMS bypass if your scooter has one.

⚠️ Warnings:

• •Never jumpstart near water or in rain.
• •Lithium batteries can catch fire if mishandled—have a fire extinguisher nearby.

Step 2: Park and Power Down the Scooter

Park on a stable surface, engage brakes, and turn off the scooter completely. Remove the key if applicable.

Locate the battery compartment (usually under the deck or seat). Open it carefully—consult your manual for access points.

Why it matters: Ensures no accidental activation during work. Expect: Scooter fully off, no lights or fans running.

💡 Tips:

• •Prop the scooter with stands for stability.

Step 3: Test the Dead Battery Voltage

Set multimeter to DC volts (50V+ range). Touch red probe to positive (+) terminal, black to negative (-).

Note the reading—under 40V means deeply discharged; 0V may be dead.

Success: Voltage displayed (e.g., 42V). If no reading, battery may be faulty—stop and replace.

⚠️ Warnings:

• •Touch terminals firmly but gently—no sparks.

Step 4: Prepare the Donor Battery

Ensure donor is a fully charged 48V battery (or 54.6V charger set to low amp). Test its voltage (>48V).

Position it close to the dead battery, positive terminals facing each other.

Why: Provides safe voltage boost without over-volting the BMS.

💡 Tips:

• •Use same chemistry (lithium to lithium) for compatibility.

Step 5: Connect Positive Cables First

Clamp red jumper cable to dead battery's + terminal, then to donor's + terminal. Ensure tight connections—no loose clamps.

Why first: Positive connection is safer; minimizes spark risk on negative.

Expect: No sparks if done right; secure clamps.

⚠️ Warnings:

• •Double-check polarity—red to red only!

Step 6: Connect Negative Last and Monitor

Attach black cable to donor's - terminal first, then dead battery's - (or chassis ground away from battery).

Wait 2-5 minutes; retest dead battery voltage—it should rise to 45V+.

Turn on scooter briefly. If it powers up, success! Leave connected 10 mins more.

Success: Lights/dashboard on, voltage rising.

💡 Tips:

• •Monitor for heat—disconnect if cables warm.

Step 7: Disconnect Safely and Charge

Power off scooter. Remove black negative clamps first (donor then dead), then red positives.

Immediately connect a 48V charger for full recharge (4-8 hours).

Why reverse order: Prevents arcs. Final success: Scooter runs normally post-charge.

⚠️ Warnings:

• •Don't ride until fully charged—BMS may cut power.

▸Pro Tips

• •Use Anderson or XT60 connectors if available—instant and secure.
• •For cold batteries, warm them indoors first for better acceptance.
• •Label cables red/black for future ease.
• •Test ride short distance post-jump to confirm stability.
• •Store batteries at 50-60% charge to prevent deep discharge.
• •Invest in a BMS tester for ongoing health checks.
• •Parallel multiple donors for faster wake-up (same voltage only).

▸Common Mistakes to Avoid

• •Connecting polarity wrong—causes instant damage or fire; always red to red.
• •Using thin cables (<10 AWG)—overheats and fails; leads to poor connection.
• •Skipping voltage test—risks over-volting and BMS failure.
• •Riding without full charge—strands you again mid-ride.
• •Ignoring sparks or heat—sign of short; disconnect immediately.

▸Troubleshooting

Problem: Voltage doesn't rise after 5 minutes

Solution: Battery may be sulfated or dead—replace it. Try longer connect (10 min) or higher amp donor.

Problem: Sparks or smoke during connection

Solution: Disconnect immediately, check polarity/tools. Clean terminals and retry.

Problem: Scooter powers on but cuts off quickly

Solution: BMS protection triggered—full charge overnight, or check for loose wires.

Problem: No power even after jump

Solution: Test controller/fuse; seek pro mechanic if battery voltage stays <40V.

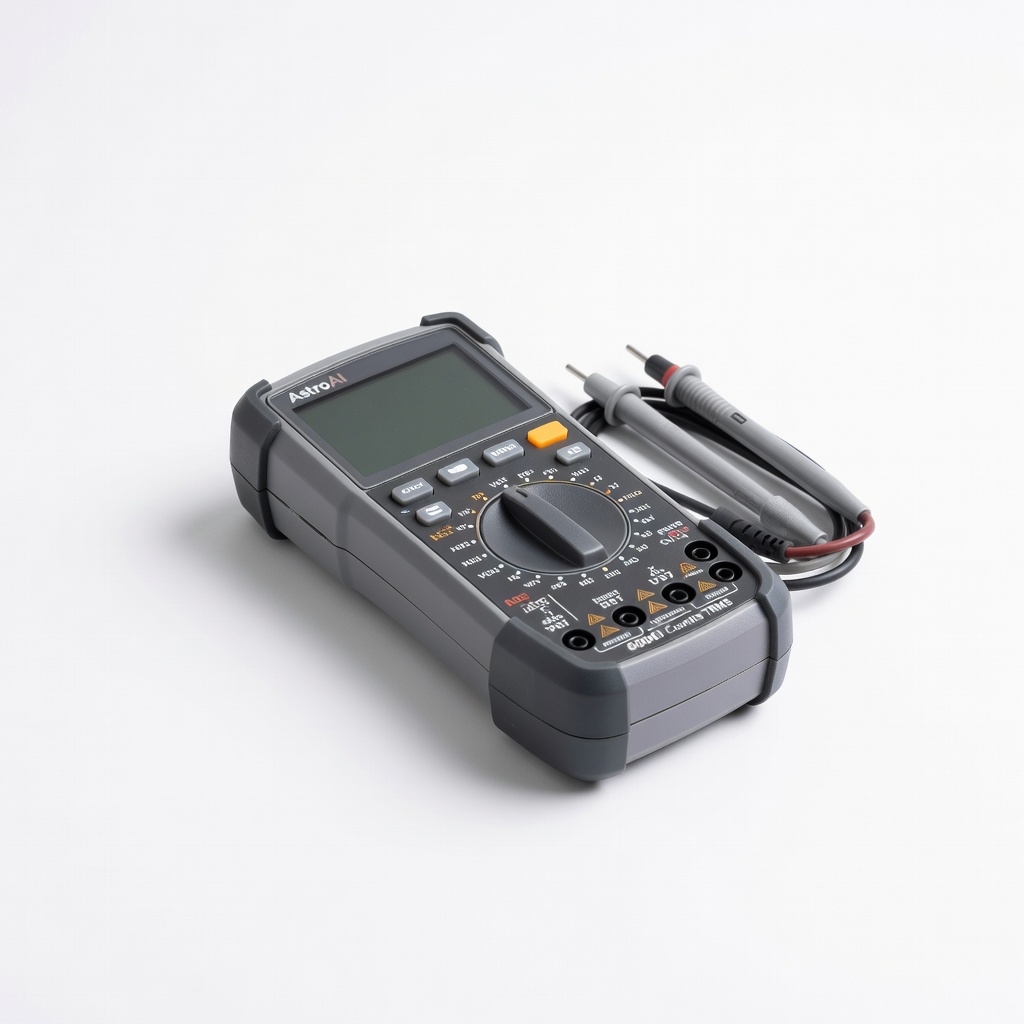

AstroAI Digital Multimeter 6000 Counts TRMS

Accurate DC voltage testing up to 60V essential for safe checks.

Best for: Measure battery before/after jump to confirm voltage rise.

Price Range: $25-$30

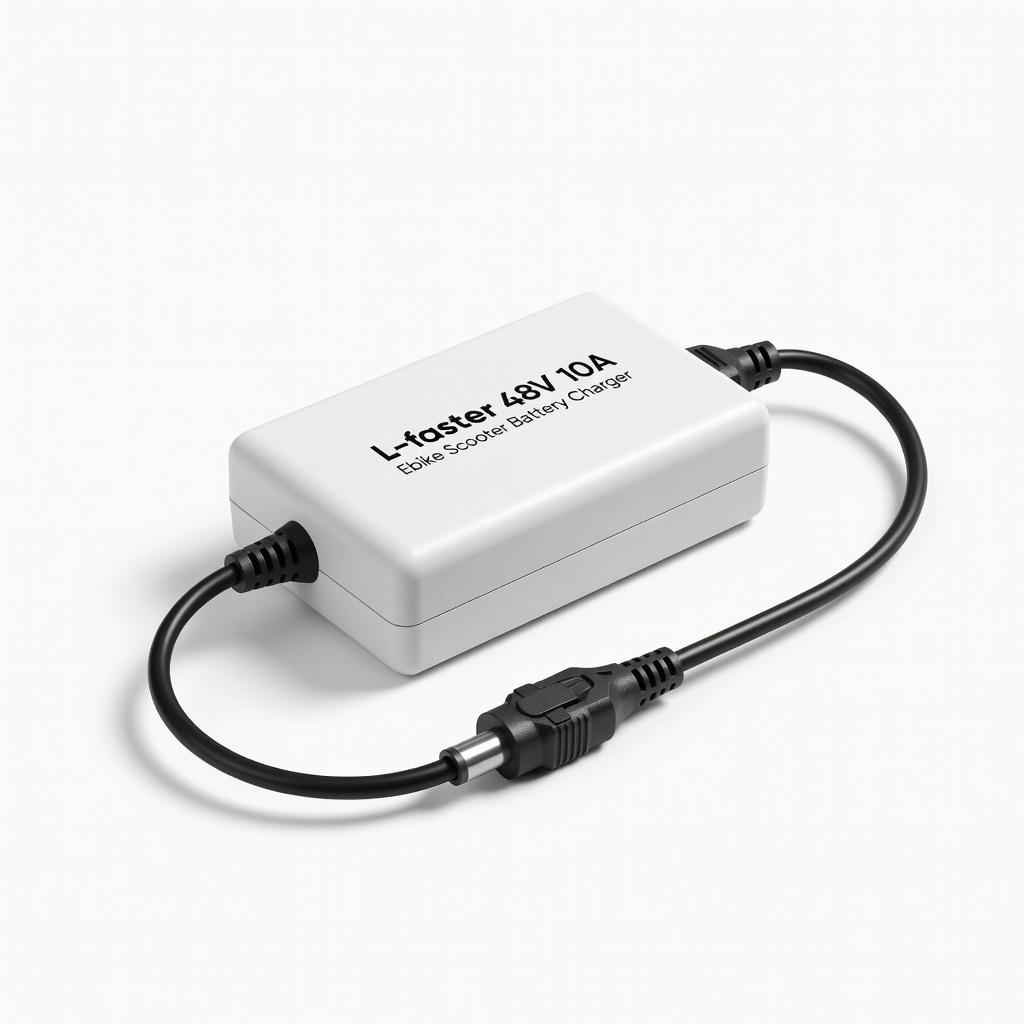

L-faster 48V 10A Ebike Scooter Battery Charger

Fast, reliable post-jump charging with overcharge protection.

Best for: Full recharge after jumpstart to reset BMS.

Price Range: $35-$45

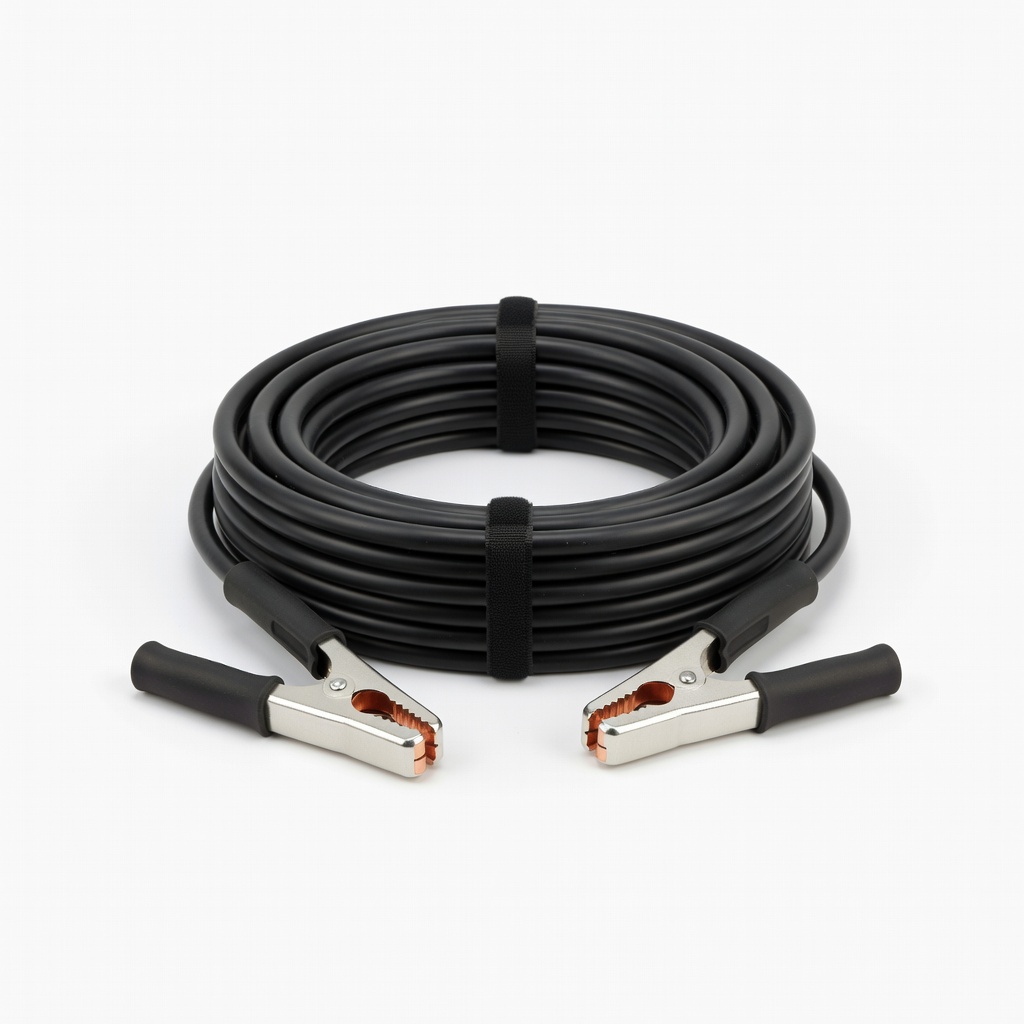

EverStart Maxx 0 Gauge Jumper Cables 20 Ft

Heavy-duty for high current draw without melting.

Best for: Connecting 48V batteries safely.

Price Range: $40-$50

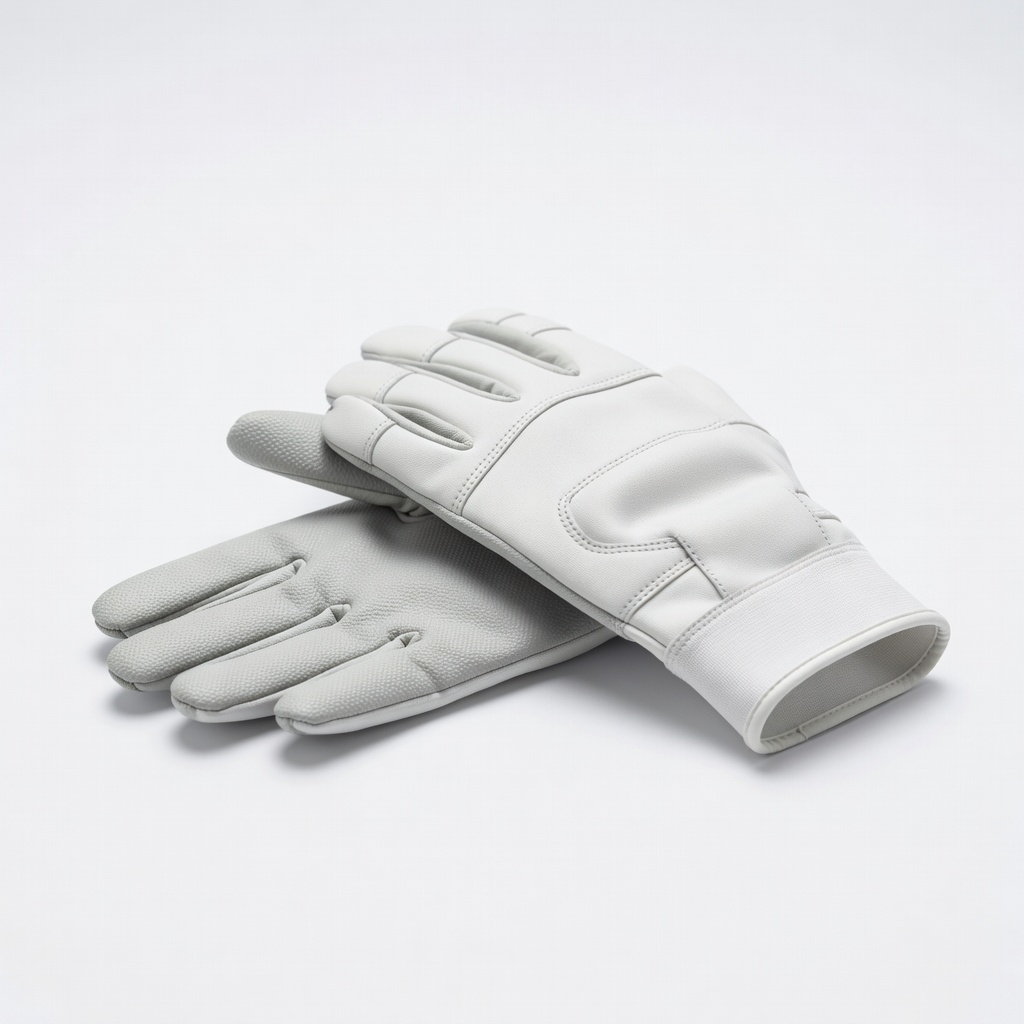

Mechanix Wear Insulated Anti-Static Gloves

Protects hands from shocks up to 50V.

Best for: Handling live terminals during connection.

Price Range: $20-$25

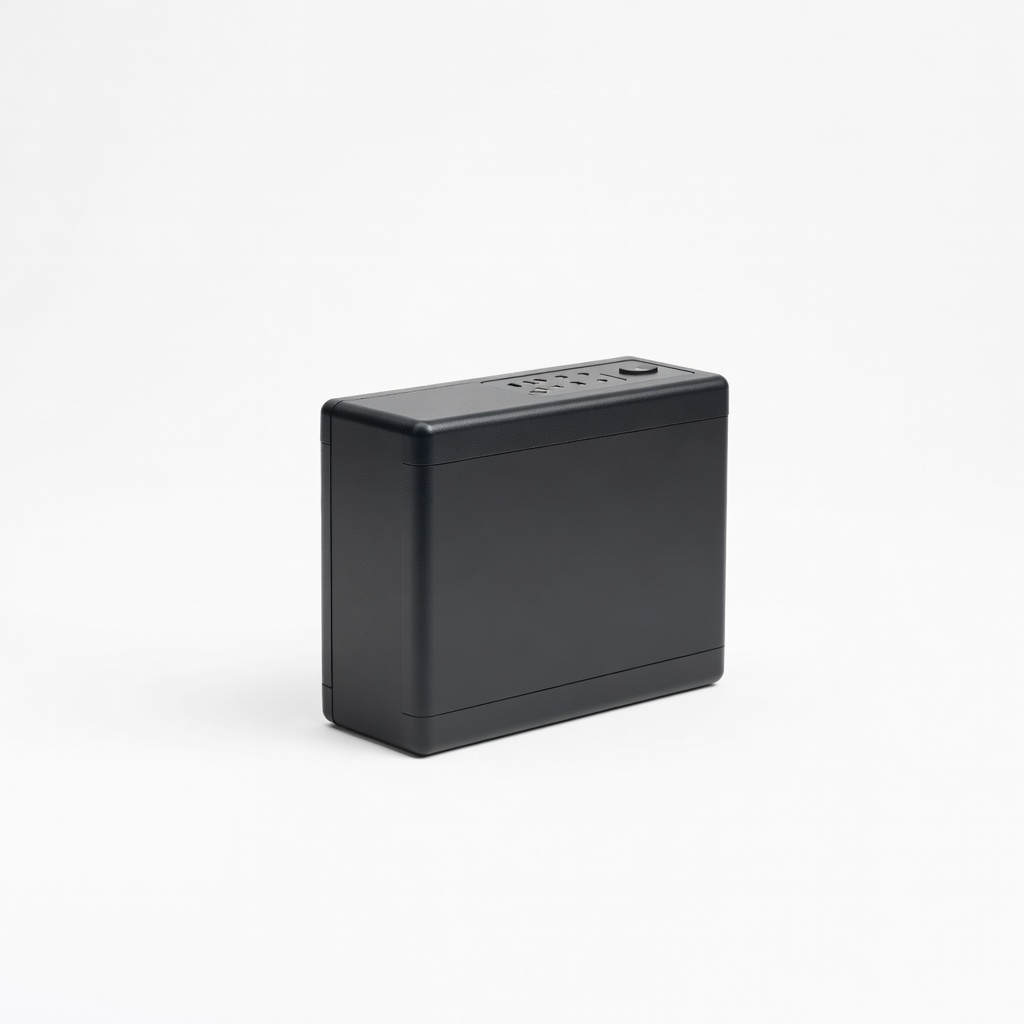

TalentCell 48V Rechargeable Lithium Battery Pack

Portable donor source for on-the-go jumps.

Best for: Backup power when no spare battery available.

Price Range: $80-$100
