Manual bed leveling is one of the most tedious and error-prone parts of 3D printing. An auto bed leveling sensor (ABL) takes the guesswork out by probing the bed at multiple points and automatically compensating for any unevenness. Whether you're upgrading a budget printer or refining a high-end machine, installing and tuning an ABL sensor can dramatically improve print quality and reliability.

In this guide, you'll learn how to choose the right sensor for your printer, mount it securely, wire it correctly, configure your firmware, and dial in the perfect Z-offset. We'll cover both Marlin and Klipper firmware, with a focus on practical steps that work across popular sensors like the BLTouch, CR-Touch, and inductive probes.

This is an advanced project that involves hardware modification, firmware editing, and careful calibration. Expect to spend 2–4 hours from start to finish, depending on your printer and experience level. By the end, you'll have a fully functional auto bed leveling system that consistently produces flawless first layers.

▸What You'll Need

• •Auto bed leveling sensor (e.g., BLTouch, CR-Touch, or inductive probe) – required
• •Mounting bracket compatible with your printer's hotend – required
• •Wiring harness with DuPont or JST connectors – required (often included with sensor)
• •Mainboard with a free servo/pin and probe input – required
• •Firmware editing software (VS Code with PlatformIO for Marlin, or Klipper config) – required
• •Hex key set and screwdrivers – required
• •Zip ties and cable sleeves – recommended
• •Multimeter – recommended for verifying wiring
• •Feeler gauge or paper for Z-offset – required
• •Computer with USB connection to printer – required
• •Optional: Extension cable if sensor cable is too short
• •Optional: Digital caliper for precise measurements

Estimated Time: 2-4 hours Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Choose the Right Auto Bed Leveling Sensor

The first step is selecting a sensor that matches your printer's capabilities and your budget. The most common options are the BLTouch (servo-driven pin), CR-Touch (similar but OEM for Creality), and inductive/capacitive probes (non-contact). The BLTouch is highly versatile and works with most printers, while inductive probes are simpler but require a metal bed surface. Consider your bed material: glass beds need a touch-based sensor, while PEI or metal beds can use inductive probes.

Check your mainboard for available pins. Most sensors require a dedicated probe input and a servo pin (for BLTouch-style). If your board lacks free pins, you may need a pin expansion board or a different sensor. Also verify community support for your specific printer model—many popular printers have drop-in kits with custom brackets and wiring.

💡 Tips:

• •Research your printer's community forums for recommended sensors and brackets.
• •If you have a glass bed, avoid inductive sensors; they won't detect it reliably.
• •Consider a kit that includes the sensor, bracket, and extended cable for a seamless install.

⚠️ Warnings:

• •Do not buy a sensor without confirming it's compatible with your mainboard's voltage and pin layout.

Step 2: Gather Tools and Prepare Your Printer

Before disassembling anything, gather all necessary tools and clear a workspace. Power off your printer and unplug it from the wall. Remove any filament and allow the hotend to cool completely. It's also a good idea to back up your current firmware configuration—if something goes wrong, you can revert to a known working state.

Print or acquire the mounting bracket for your sensor. Many printers have community-designed brackets on Thingiverse or Printables. If you're using a BLTouch, ensure the bracket positions the probe so it can reach the bed without hitting the print head or other components. Test-fit the sensor in the bracket before mounting it to the printer.

💡 Tips:

• •Use a magnetic parts tray to keep screws organized.
• •Take photos of the wiring before disconnecting anything.
• •If you're using a printed bracket, use PETG or ABS for heat resistance.

⚠️ Warnings:

• •Never work on a printer that is still powered on or hot—risk of electric shock or burns.

Step 3: Mount the Sensor Securely

Attach the sensor to the print head using the mounting bracket. The probe tip should be positioned so that it can extend below the nozzle when deployed (for BLTouch) or sit slightly above the nozzle (for inductive). Ensure the sensor is rigid and does not wobble—any flex will cause inaccurate probing. Tighten all screws firmly but avoid overtightening, which can crack plastic brackets.

For BLTouch, the probe should be able to fully retract and deploy without obstruction. Adjust the bracket's height so that when the probe is deployed, it touches the bed before the nozzle. Typically, the probe tip should be 2–5 mm below the nozzle. For inductive sensors, maintain a gap of 1–2 mm between the sensor face and the bed when the nozzle is at Z=0.

💡 Tips:

• •Use a small bubble level to ensure the sensor is perpendicular to the bed.
• •Add a drop of threadlocker (blue) to screws that might vibrate loose.
• •Route the sensor cable away from moving parts and hot components.

⚠️ Warnings:

• •Do not let the sensor hang too low—it could crash into the bed during printing.

Step 4: Wire the Sensor to Your Mainboard

Wiring is the most critical step—incorrect connections can damage the sensor or mainboard. Refer to your sensor's pinout diagram and your mainboard's manual. For BLTouch, you'll typically connect three wires to the servo pin (5V, GND, signal) and two wires to the probe pin (GND, signal). Inductive sensors usually have three wires: brown (5V/12V), blue (GND), and black (signal).

Use ferrule crimps or solder connections for secure joints, and cover exposed wires with heat shrink. Route the cable through the printer's existing cable chains or add a sleeve to prevent snagging. Double-check polarity with a multimeter before plugging into the mainboard. If your sensor cable is too short, use an extension cable with matching connectors.

💡 Tips:

• •Label wires with tape to avoid confusion.
• •Use a multimeter to confirm continuity and correct voltage (5V or 12V as required).
• •Zip tie the cable to the hotend assembly to provide strain relief.

⚠️ Warnings:

• •Never connect a 5V sensor to a 12V/24V supply—it will destroy the sensor.
• •Disconnect power before making any wiring changes.

Step 5: Configure Firmware for Auto Bed Leveling

Now it's time to edit your firmware. For Marlin, open Configuration.h and Configuration_adv.h in VS Code with PlatformIO. Enable AUTO_BED_LEVELING_BILINEAR or UNIFIED_BED_LEVELING, set the probe offset (NOZZLE_TO_PROBE_OFFSET), and define the servo pin and probe pin. For Klipper, edit printer.cfg to add a [bltouch] section and enable [bed_mesh]. Specify the probe's X/Y offset from the nozzle—this is crucial for accurate mesh generation.

Compile and upload the firmware (Marlin) or restart Klipper. If you're unsure about specific settings, consult the extensive documentation for Marlin or Klipper. Many printer communities provide pre-configured firmware files for popular models, which can save time.

💡 Tips:

• •Use the M851 command to set probe offset via G-code if you prefer not to recompile.
• •For Klipper, run PROBE_ACCURACY after configuration to check repeatability.
• •Keep a copy of your original firmware to revert if needed.

⚠️ Warnings:

• •Incorrect probe offset can cause the nozzle to crash into the bed—start with a conservative Z-offset.

Step 6: Set the Initial Z-Offset

Z-offset is the distance between the nozzle and the bed when the probe triggers. It's the most critical setting for a perfect first layer. Home the printer (G28), then use the control panel or G-code to move the nozzle to the center of the bed. Deploy the probe and slowly lower Z until the probe triggers. Note the Z value—this is your probe trigger height. Now, set the nozzle to Z=0 and adjust the Z-offset until a piece of paper drags slightly between the nozzle and bed.

In Marlin, use M851 Z-1.23 to set the offset, then M500 to save. In Klipper, adjust z_offset in the [bltouch] section. Repeat the paper test at multiple points to ensure consistency. The goal is a first layer that is squished just enough to adhere but not so much that it causes ridges.

💡 Tips:

• •Use a feeler gauge (0.1 mm) for more precision than paper.
• •Perform the paper test with the bed heated to your typical printing temperature.
• •If the first layer is too thin, increase Z-offset (less negative); if too thick, decrease (more negative).

⚠️ Warnings:

• •Never adjust Z-offset while the printer is printing—it can cause a crash.

Step 7: Run Bed Mesh Leveling

With Z-offset set, run a full bed mesh leveling cycle. This process probes a grid of points across the bed (e.g., 3x3, 5x5) and stores the height data. In Marlin, use G29 to run mesh leveling; in Klipper, use BED_MESH_CALIBRATE. The printer will move the probe to each point and record the Z height. Watch for any anomalies—if the probe fails to trigger or triggers too early, stop and troubleshoot.

After the mesh is complete, save it to EEPROM (M500 in Marlin) or Klipper will automatically save it. Visualize the mesh if possible (Marlin's M420 V or Klipper's BED_MESH_OUTPUT) to see the bed's topography. A good mesh should show gradual variations, not sharp spikes.

💡 Tips:

• •Heat the bed to printing temperature before mesh leveling to account for thermal expansion.
• •Use a 5x5 or 7x7 grid for larger beds to capture more detail.
• •Clean the bed surface before probing—debris can cause false readings.

⚠️ Warnings:

• •Do not run mesh leveling on a bed with clips or obstructions that could hit the probe.

Step 8: Fine-Tune Z-Offset and Mesh

After the initial mesh, print a single-layer test patch (e.g., a 50x50 mm square). While printing, adjust the Z-offset in small increments (0.01 mm) until the lines are smooth and fused together without gaps or ridges. If you see gaps between lines, lower the nozzle (more negative Z-offset). If the nozzle plows through the filament, raise it (less negative).

In Marlin, you can use Babystepping via the LCD or M290 G-code. In Klipper, use the SET_GCODE_OFFSET Z_ADJUST=±0.01 command. Once dialed in, save the new Z-offset. Re-run the bed mesh if you made significant adjustments to Z-offset, as the mesh is relative to the probe trigger height.

💡 Tips:

• •Print the test patch on a clean bed with a known good filament.
• •Use a magnifying glass or macro lens to inspect the first layer closely.
• •Keep a log of your Z-offset for different filaments, as some may require slight tweaks.

⚠️ Warnings:

• •Avoid making large Z-offset changes in one go—small increments prevent crashes.

Step 9: Test with a First Layer Print

Now print a real model with a large first layer, such as a calibration cube or a bed leveling test pattern. Observe the first layer as it prints. It should be uniform, with no gaps, ripples, or rough patches. If you notice areas that are too high or too low, the bed mesh may need adjustment or the bed itself might be warped beyond compensation.

If the first layer is perfect, let the print continue to ensure subsequent layers adhere well. This is also a good time to check for any interference from the sensor cable or bracket during printing.

💡 Tips:

• •Use a bed leveling test STL that covers the entire bed surface.
• •Record a video of the first layer to review later if issues arise.
• •If the print adheres too much, use a release agent or increase Z-offset slightly.

⚠️ Warnings:

• •Never leave a print unattended during the first layer—catch issues early.

Step 10: Verify Probe Accuracy and Repeatability

To ensure long-term reliability, test the probe's repeatability. In Marlin, use M48 to run a probe accuracy test. It will probe the same point multiple times and report the standard deviation. A standard deviation below 0.005 mm is excellent; up to 0.02 mm is acceptable. In Klipper, use PROBE_ACCURACY for similar results.

If the deviation is high, check for loose mounting, wiring interference, or a dirty probe tip. For BLTouch, ensure the pin moves freely and is not bent. For inductive sensors, check for nearby metal objects that could affect readings. Address any issues and re-test until you achieve reliable repeatability.

💡 Tips:

• •Run the test at both room temperature and printing temperature.
• •Repeat the test after any hardware changes.
• •If using a BLTouch, lubricate the pin with a dry lubricant if it sticks.

⚠️ Warnings:

• •Do not ignore high deviation—it will lead to inconsistent first layers.

Step 11: Maintain and Troubleshoot

Once installed and tuned, your auto bed leveling sensor requires minimal maintenance. Periodically clean the probe tip with isopropyl alcohol, check wiring connections, and re-run bed mesh leveling if you move the printer or change the bed surface. Keep firmware updated, but always read release notes for changes affecting ABL.

If you encounter issues like the probe not triggering, false triggers, or inconsistent meshes, refer to the troubleshooting section below. Most problems can be resolved by checking wiring, adjusting probe position, or re-tuning Z-offset. With proper care, your ABL sensor will provide reliable service for thousands of prints.

💡 Tips:

• •Create a maintenance reminder every 50–100 printing hours.
• •Keep spare probe pins (for BLTouch) on hand.
• •Join community forums for your specific sensor for ongoing support.

⚠️ Warnings:

• •Do not use solvents on the probe tip—they may damage plastic components.

▸Pro Tips

• •Always heat the bed to printing temperature before running a bed mesh—thermal expansion can change the bed's shape.
• •Use a feeler gauge instead of paper for more consistent Z-offset; a 0.1 mm gauge is a good starting point.
• •Store your bed mesh in EEPROM after tuning to avoid re-probing every print (unless your firmware requires it).
• •For BLTouch, set the BLTOUCH_DELAY to 500 ms if you experience false triggers due to electrical noise.
• •In Klipper, use BED_MESH_PROFILE SAVE=default to save your mesh and BED_MESH_PROFILE LOAD=default to load it automatically.
• •If your printer has a warped bed, consider a glass bed or a bed mesh with a higher probe count (7x7) to compensate.
• •Route the sensor cable away from stepper motor cables to minimize electromagnetic interference.
• •Keep a log of your Z-offset for different filaments and bed surfaces—it can vary slightly.

▸Common Mistakes to Avoid

• •Mounting the sensor too high or too low, causing the probe to trigger after the nozzle crashes or not at all. Ensure the probe tip extends below the nozzle by 2–5 mm when deployed.
• •Incorrect wiring polarity, which can destroy the sensor or mainboard. Always triple-check your sensor's pinout and use a multimeter to verify.
• •Skipping the paper test and relying solely on the probe trigger height. The probe only measures the bed, not the nozzle-to-bed gap—Z-offset is still required.
• •Running bed mesh leveling on a dirty or obstructed bed. Debris or clips can cause false readings and a skewed mesh.
• •Forgetting to save settings after tuning. Use M500 in Marlin or SAVE_CONFIG in Klipper to persist changes across reboots.

▸Troubleshooting

Problem: Probe fails to deploy or retract (BLTouch).

Solution: Check the servo wiring and ensure the 5V supply is stable. Listen for a clicking sound when deploying. If the pin is stuck, gently pull it out and clean with isopropyl alcohol. If the magnet is weak, replace the probe pin.

Problem: Probe triggers inconsistently or gives false readings.

Solution: Verify that the probe tip is clean and free of filament strings. Check for electrical interference by routing cables away from steppers. Increase the BLTOUCH_DELAY or enable PROBING_NOISE_SUPPRESSION in firmware. For inductive sensors, ensure no metal objects are near the probe.

Problem: First layer is uneven despite bed mesh.

Solution: Re-run bed mesh with the bed heated to printing temperature. Ensure the mesh is actually being used (e.g., M420 S1 in Marlin or BED_MESH_PROFILE LOAD in Klipper). If the bed is badly warped, consider a glass bed or manual shimming.

Problem: Nozzle crashes into bed during probing.

Solution: Immediately power off the printer. Your Z-offset is too low or the probe is not triggering. Check the probe wiring and test with M119 (Marlin) to verify endstop status. Increase Z-offset and re-test carefully.

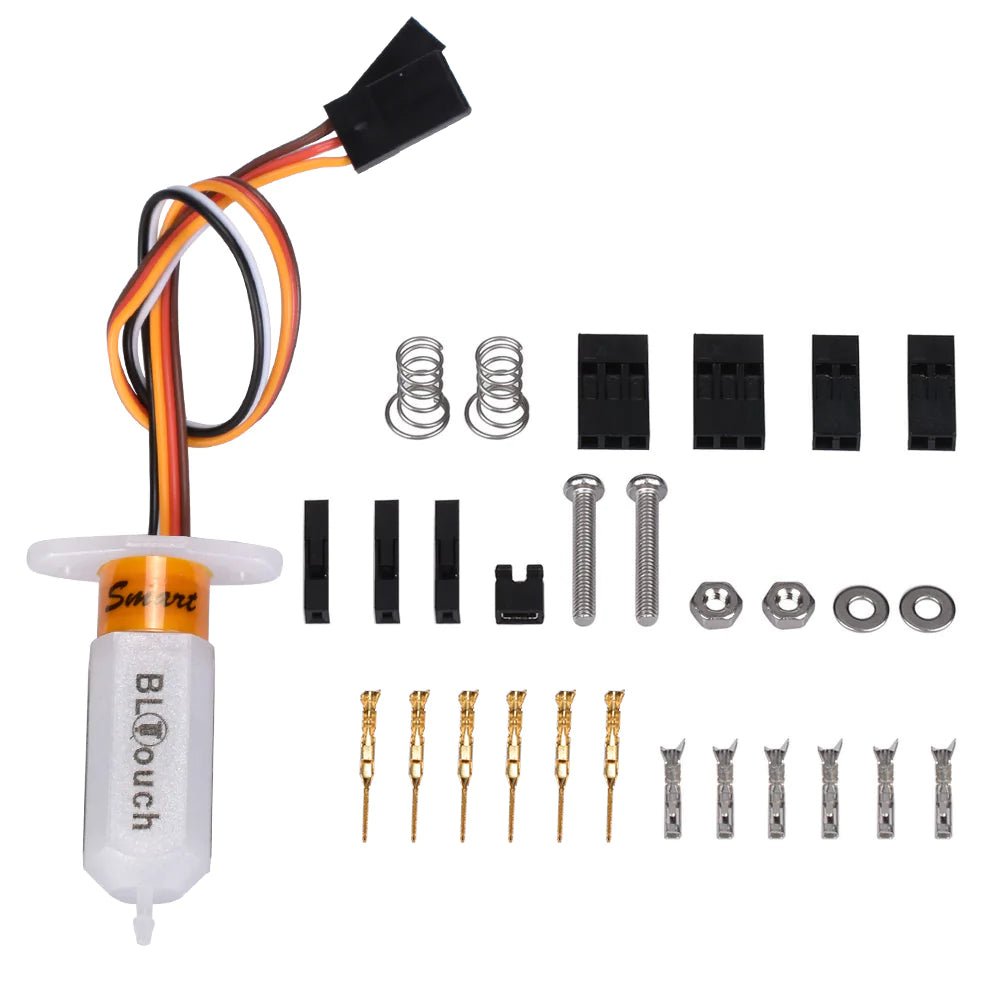

ANTCLABS BLTouch V3.1

The industry standard for auto bed leveling, known for its accuracy and reliability. Works with most printers and firmware.

Best for: Ideal for any printer with a glass or textured bed. The servo-driven pin provides consistent probing.

Price Range: $40-$50

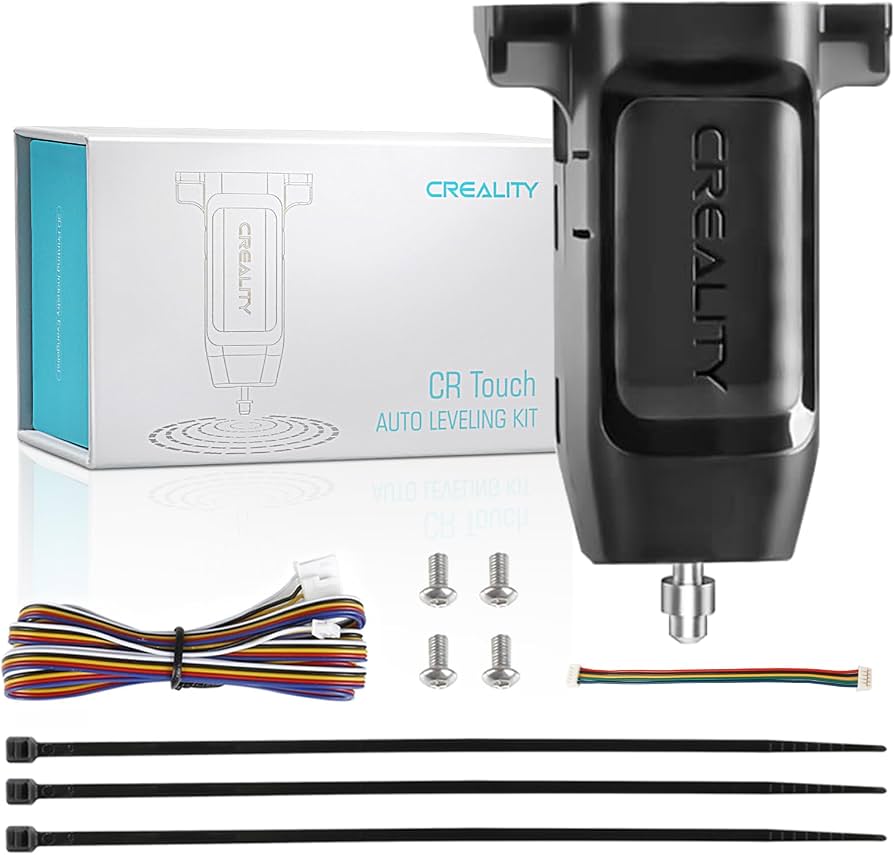

Creality CR-Touch

A robust alternative to BLTouch, specifically designed for Creality printers but compatible with others. Features a metal pin for durability.

Best for: Great drop-in upgrade for Ender 3, CR-10, and other Creality machines with minimal wiring changes.

Price Range: $35-$45

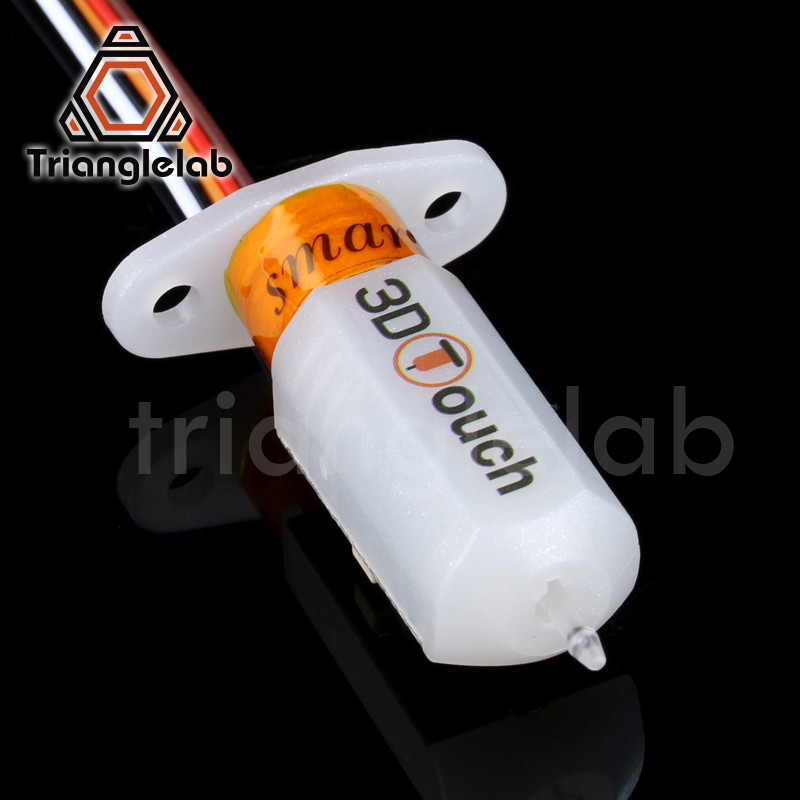

Trianglelab 3D Touch

A budget-friendly BLTouch clone that performs well after proper tuning. Popular in the community for its low cost.

Best for: Best for hobbyists who want to try ABL without a large investment, but are willing to troubleshoot.

Price Range: $15-$25

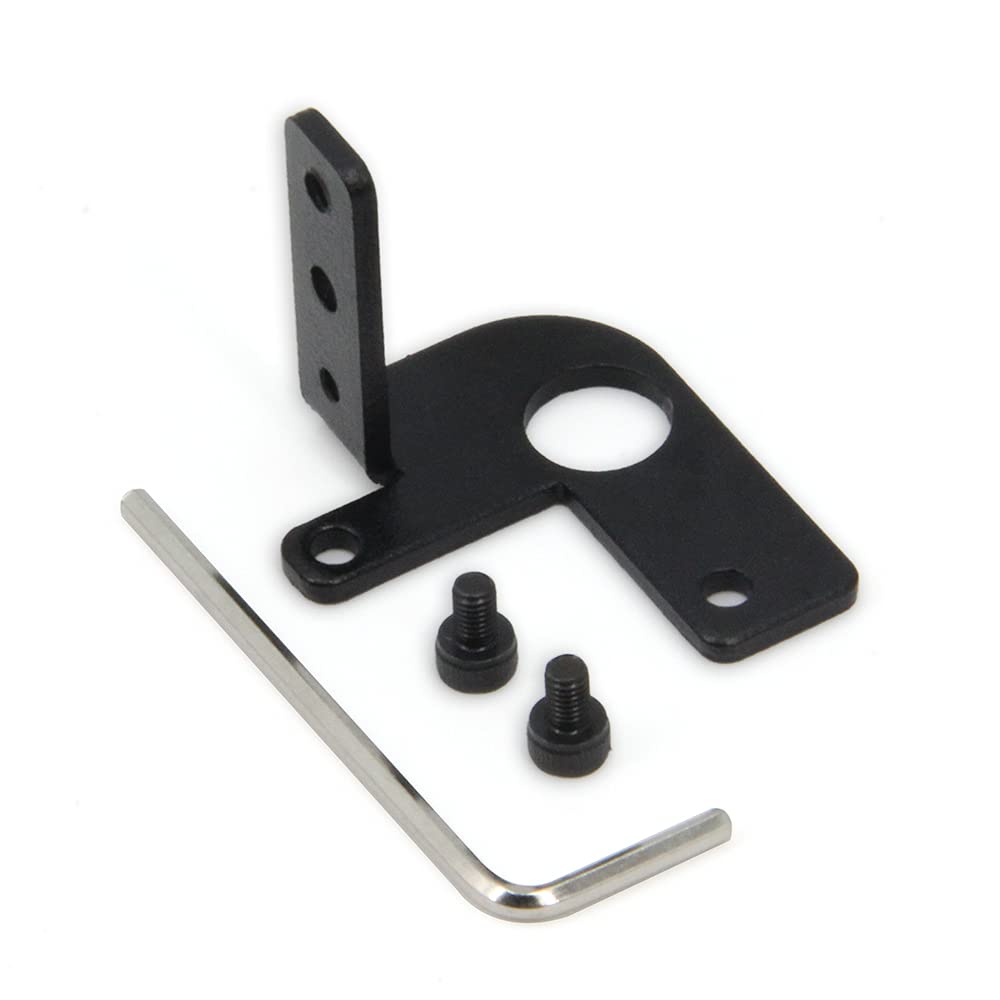

BLTouch Mounting Bracket for Ender 3

A precise, easy-to-install bracket that positions the BLTouch correctly on the hotend. Saves time versus designing your own.

Best for: Essential for a clean installation on Creality Ender 3 series printers. Made from aluminum or PETG.

Price Range: $10-$20

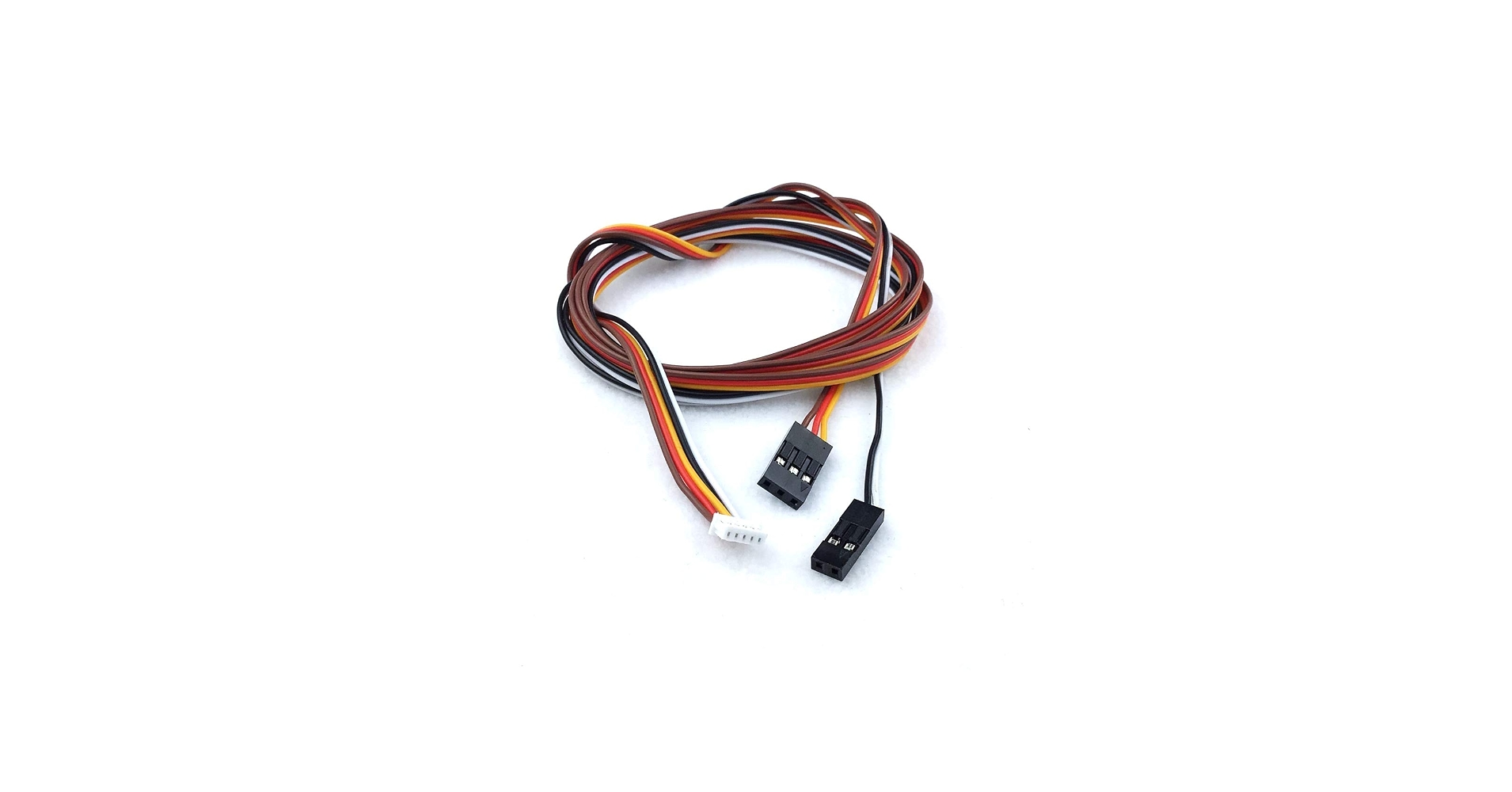

BLTouch Extension Cable 2m

Provides extra length to route the sensor cable neatly through cable chains. Often necessary for larger printers.

Best for: Use when the stock cable is too short or when you want a cleaner cable management setup.

Price Range: $5-$10
