How to Install Off-Road Lights on Your Jeep?

Off-roading at night without proper lighting turns adventures into hazards—poor visibility leads to rocks, ruts, and close calls. Jeep owners love customizing their rigs with accent lights for style and powerful off-road beams for safety. This guide shows you how to install both, transforming your Wrangler JK or JL into a trail beast.

You'll learn to mount LED bars, pods, and accent strips safely, wire them professionally, and test everything. Perfect for intermediate DIYers comfortable with basic electrical work. Expect 2-4 hours total, depending on your Jeep model and light complexity—no prior lighting experience needed, but wrenching basics help.

We'll cover bumper mounts, roof racks, wheel wells for accents, and bulletproof wiring to handle mud, water, and vibes.

▸What You'll Need

• •LED off-road light bar or pods (e.g., 30-50 inch curved bar)
• •Accent LED strips or halo rings
• •Wiring harness kit with relay and fuse
• •Rocker switch panel
• •Zip ties, heat shrink tubing, electrical tape
• •Mounting brackets (Jeep-specific for JL/JK)
• •Tools: Socket set (10-13mm), wire strippers/crimpers, drill with bits, multimeter, dielectric grease
• •Optional: Heat gun, LED controller for accents

Estimated Time: 2-4 hours Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace and Disconnect Battery

Park your Jeep on level ground in a well-lit area. Turn off the engine and disconnect the negative battery terminal using a 10mm wrench to prevent shorts.

Why it matters: Safety first—working live wires risks shocks or fires. Expect a quiet workspace; label wires if needed.

Wipe down mounting areas (bumper, roof, fenders) with isopropyl alcohol for clean adhesion.

💡 Tips:

• •Work with a buddy for roof mounts.
• •Take photos of stock wiring for reference.

⚠️ Warnings:

• •Never skip battery disconnect—arcs can fry electronics.

Step 2: Select and Test Your Lights

Unbox lights and test on a 12V battery or power supply before mounting. Power on to check brightness, patterns (for accents), and no flickering.

This ensures defective units are caught early. Off-road bars should flood/spot combo; accents should RGB if smart.

Attach temporary wires if needed.

💡 Tips:

• •Use a car battery charger for bench testing.

⚠️ Warnings:

• •Dim or flickering lights mean bad diodes—return now.

Step 3: Mount Off-Road Lights (Bumper or Roof)

For bumper: Align brackets to frame holes, torque bolts to 15-20 ft-lbs. Roof: Secure to rack with U-bolts.

Slide light into brackets, tighten set screws. Adjust angle downward 10-15° for trail focus.

Success: Lights stable, no wobble when shaken.

💡 Tips:

• •Pre-drill if no holes; use self-tappers sparingly.

⚠️ Warnings:

• •Oversight torque strips threads—use lock washers.

Step 4: Install Accent Lights (Wheel Wells/Grille)

Clean surfaces, apply 3M adhesive promoter, stick strips securely. For halos: Pop headlights, route wires behind.

Secure with clips/zip ties. Why: Accents add flair without permanent mods.

Expect glow test later.

💡 Tips:

• •Route wires through factory grommets for clean look.

⚠️ Warnings:

• •Avoid pinching wires in doors/fenders—chafing kills LEDs.

Step 5: Run and Solder Wiring Harness

Route power wire from battery along frame (firewall grommet), ground to chassis. Connect relay: battery to 30 pin, light to 87, trigger from switch.

Crimp/solder connections, seal with heat shrink and grease.

Why relay: Handles high amps without melting dash.

💡 Tips:

• •Use loom tubing for protection.
• •Measure twice—extra wire ziptie neatly.

⚠️ Warnings:

• •Fuse all positives—10-30A per light.

Step 6: Mount Switch and Connect

Drill dash hole for rocker switch (use template). Wire switch to relay trigger and ground.

Reconnect battery, test circuits with multimeter (12V+).

Success: Switch toggles without sparks.

💡 Tips:

• •Blue Sea Systems switches are waterproof.

⚠️ Warnings:

• •Dash holes: Use step bit to avoid cracks.

Step 7: Test and Aim Lights

Night test: Check beams overlap 50ft ahead, no glare in mirrors. Adjust pods for width.

Accents: Cycle colors if app-controlled.

Final: Secure all loose wires.

💡 Tips:

• •Walk test at 20mph sim speed.

⚠️ Warnings:

• •Misaim blinds oncoming—DOT compliant angles.

▸Pro Tips

• •Pre-plan wire routes with string mockup to avoid rework.
• •Dielectric grease EVERY connection fights corrosion.
• •LED controllers add app control for accents—fun upgrade.
• •Mount high for flood, low for spot penetration.
• •Zip tie every 12 inches; strain relief at bends.
• •Test waterproofing: Hose down after install.
• •Sync accents to music with RGB amps for shows.

▸Common Mistakes to Avoid

• •Skipping relay: Melts wiring on high-draw LEDs.
• •Poor grounds: Flickering or no power—clean metal surfaces.
• •Over-tightening mounts: Cracks housings or brackets.
• •Ignoring vibes: No locknuts = lights shift off-road.
• •Wrong fuse size: Fire risk—match light specs.

▸Troubleshooting

Problem: Lights flicker or dim

Solution: Check ground connection; clean/tighten. Verify battery voltage >12V.

Problem: No power at all

Solution: Test fuse/relay continuity. Swap relay if clicking absent.

Problem: Water ingress after rain

Solution: Re-seal with silicone; ensure drains clear. Dry/test.

Problem: Overheating wires

Solution: Upgrade gauge (12AWG+); add fan if bar enclosed. Seek pro if persists.

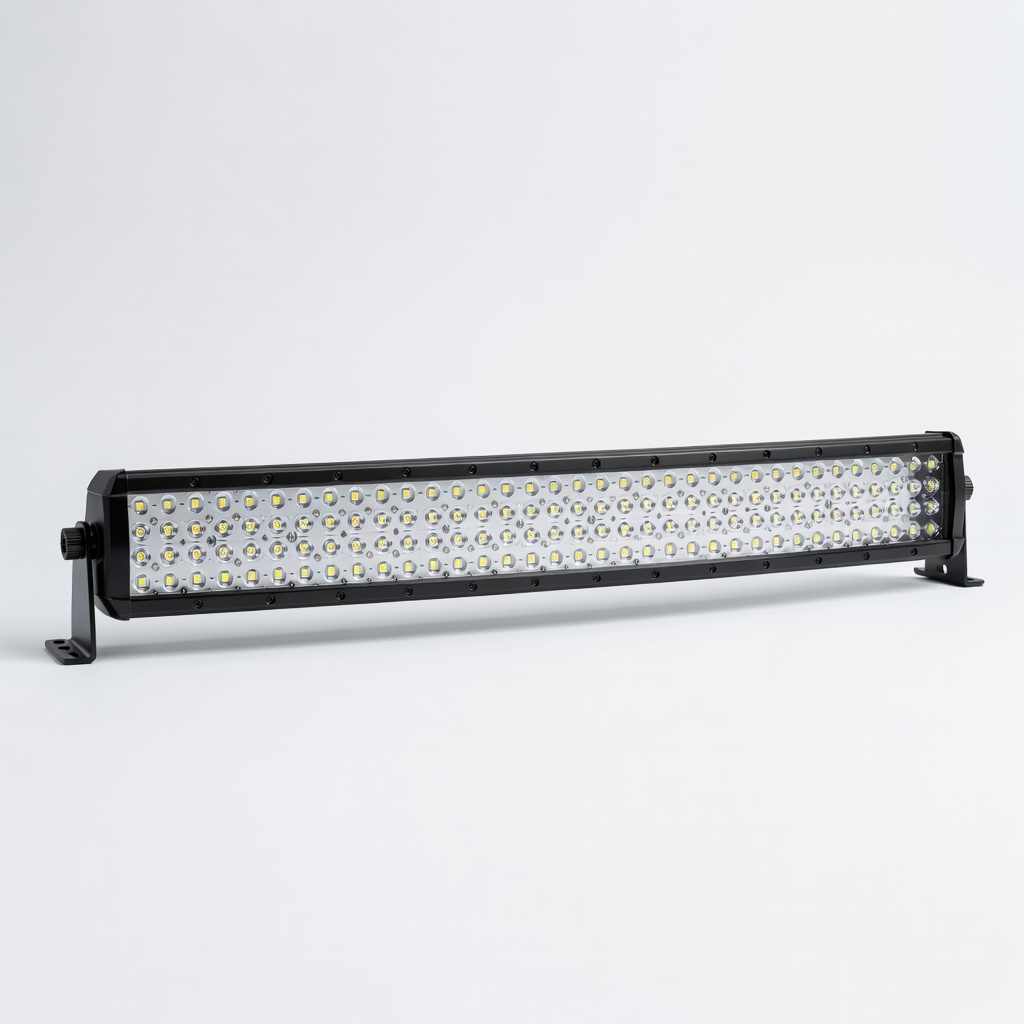

Nilight 42Inch 240W Curved LED Light Bar

Bright 24,000LM output with combo beam ideal for Jeep trails; IP67 waterproof.

Best for: Primary off-road bumper mount for night visibility.

Price Range: $89.99

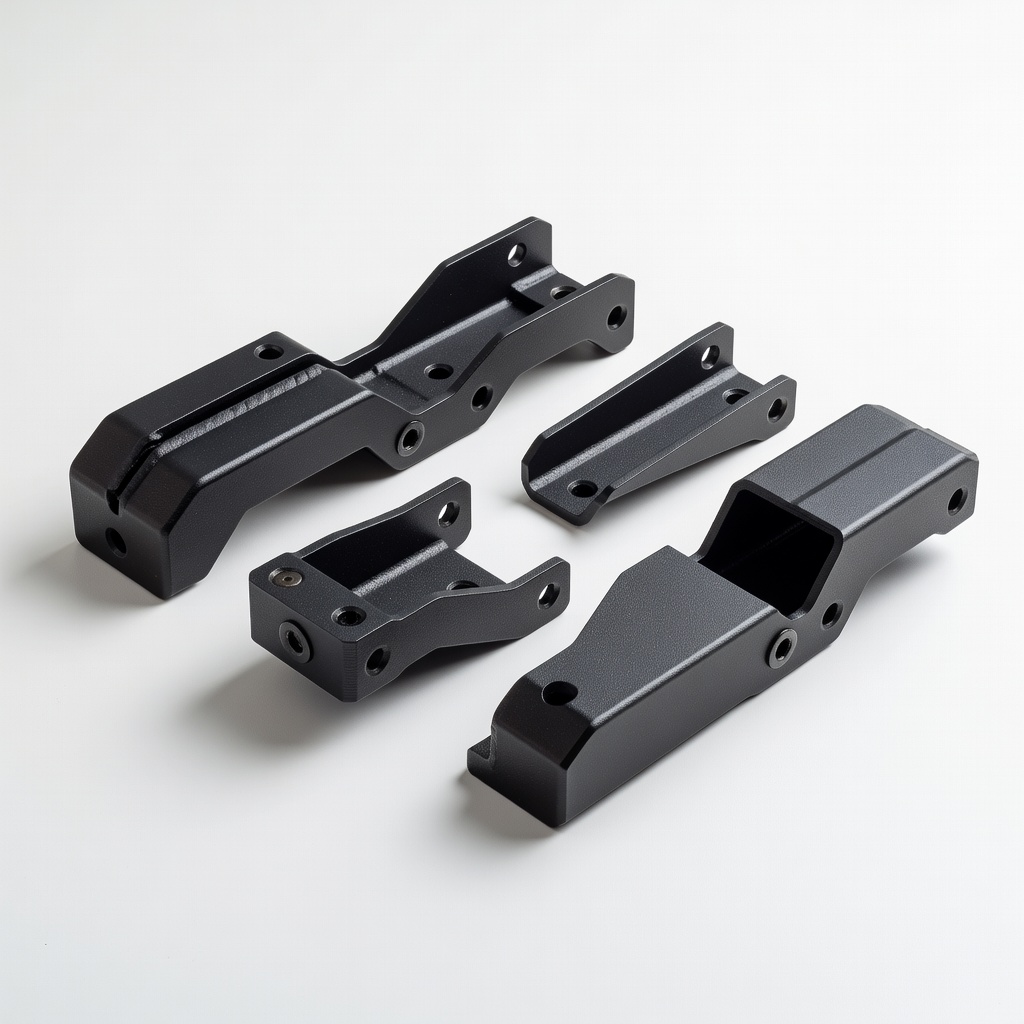

Rough Country Jeep JL/JK Roof Mount Brackets

Bolt-on fit for Wranglers, vibration-proof aluminum.

Best for: Secure light bar on A-pillar or roof rack.

Price Range: $49.95

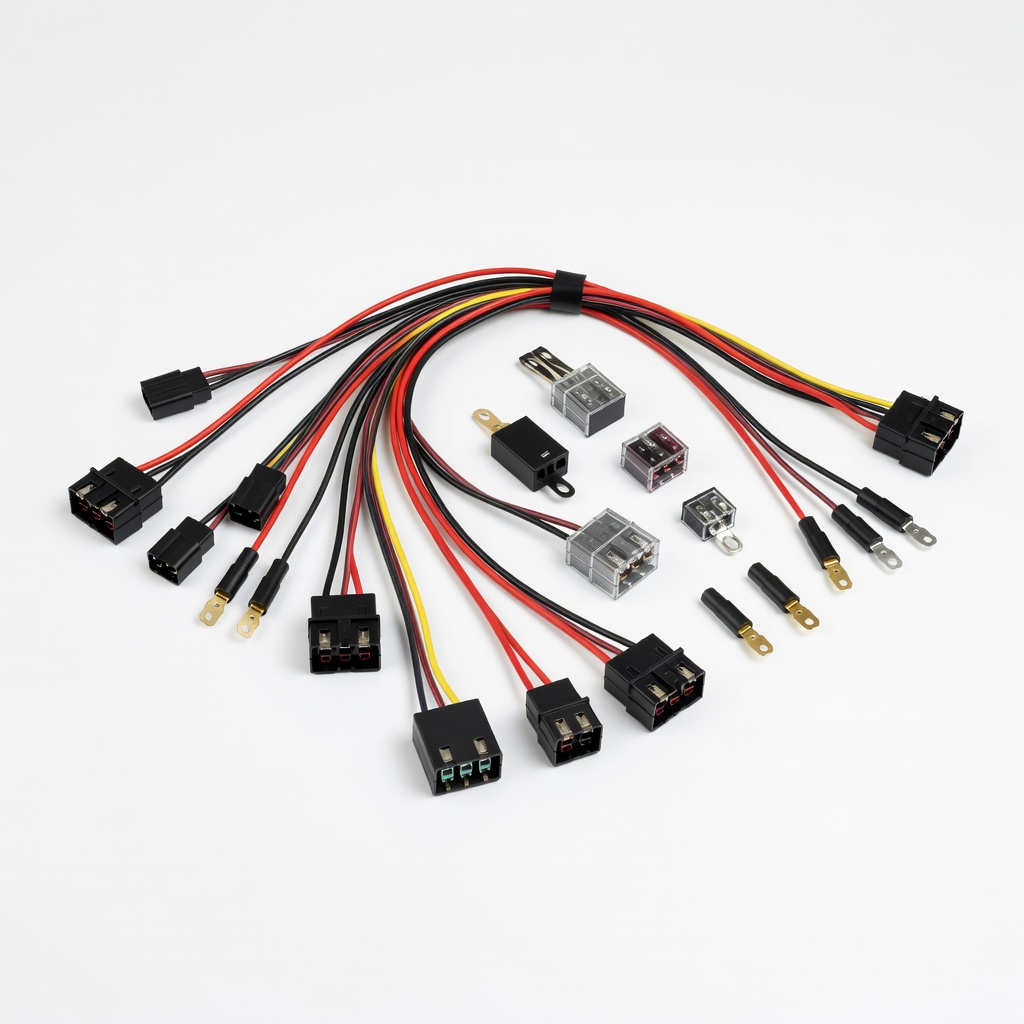

Nilight Universal Wiring Harness Kit

Pre-wired relay/fuse/switch simplifies install; 12AWG wires handle 300W+.

Best for: All Jeep lighting wiring to avoid DIY errors.

Price Range: $19.99

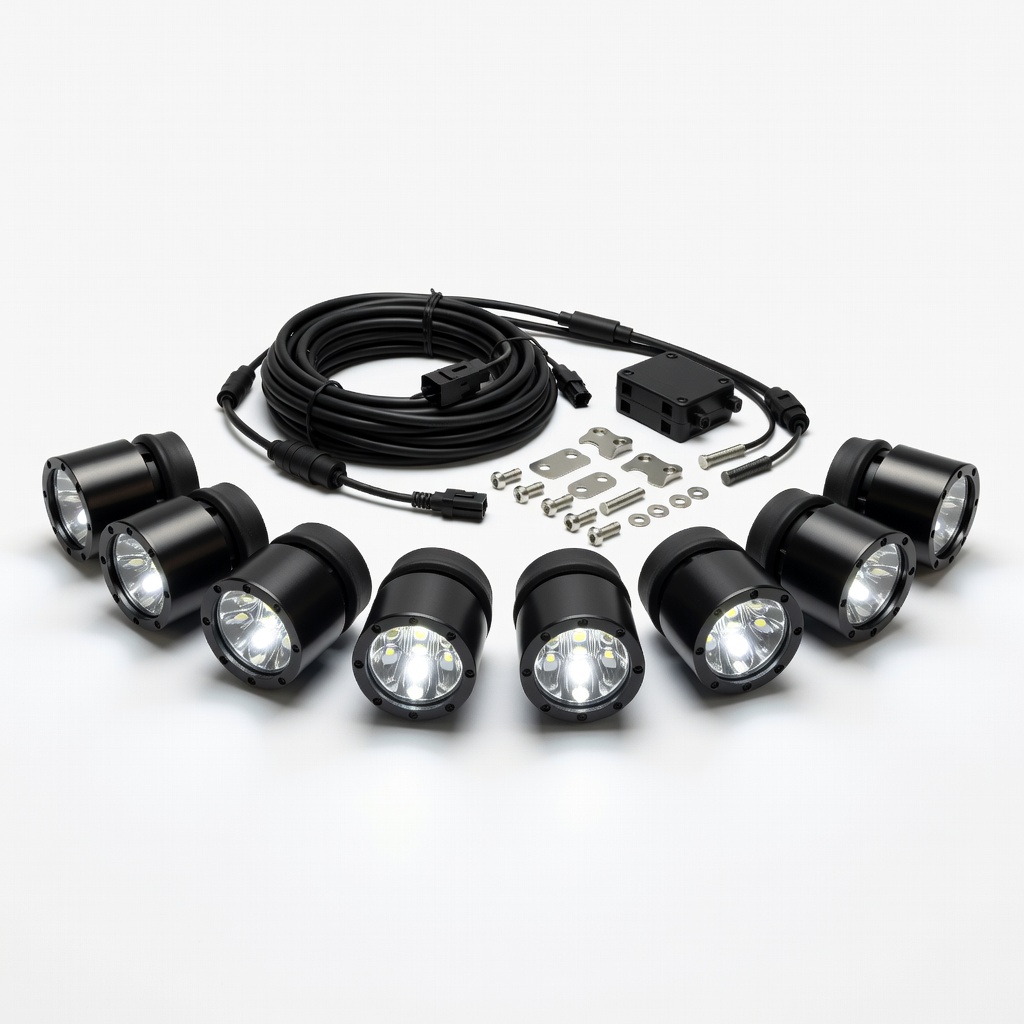

AUTO-VOX LED Rock Lights Kit (8 Pods)

RGB accent pods with app control; magnetic mount easy for wheel wells.

Best for: Underbody/rock accents for style and side lighting.

Price Range: $59.99

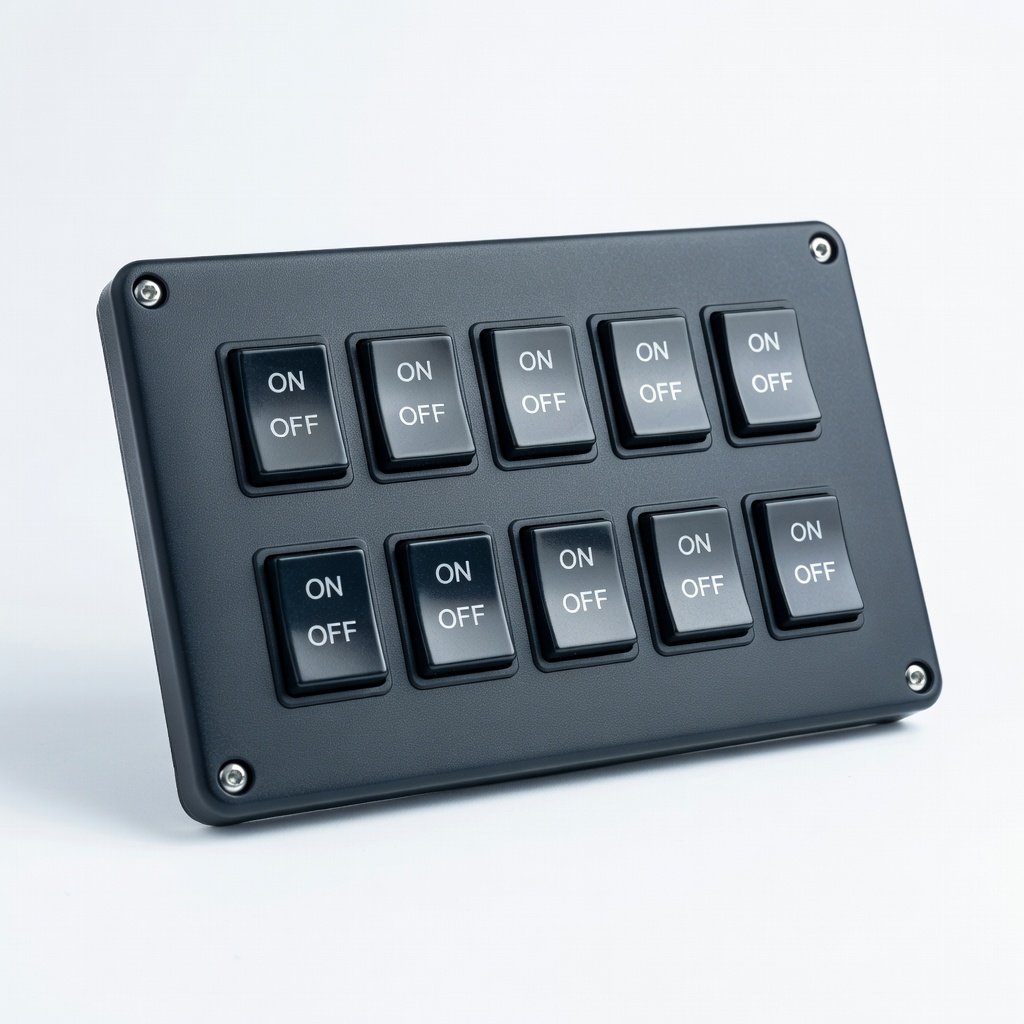

Blue Sea Systems Rocker Switch Panel
