How to Install Abrasive Discs on Angle Grinders?

Angle grinders are powerful tools for cutting, grinding, and polishing, but a loose or improperly installed abrasive disc can lead to dangerous accidents like disc shatter or kickback. Many beginners struggle with this simple task, resulting in wobbling discs or stripped threads. This guide fixes that.

You'll learn a foolproof, step-by-step process to install abrasive discs securely, ensuring safety and efficiency. Whether you're swapping discs for metalwork or DIY projects, this method works for most 4.5-inch grinders.

Expect 5-10 minutes per installation. It's beginner-friendly with no special skills needed—just follow safety rules. By the end, your grinder will spin smoothly with a new disc ready for action.

▸What You'll Need

• •Angle grinder (corded or cordless, 4.5-inch standard)
• •New abrasive disc (matching size, e.g., 4.5-inch Type 27 or Type 29 with 7/8-inch arbor)
• •Spanner wrench (usually included with grinder)
• •Safety gloves (cut-resistant)
• •Safety glasses or goggles
• •Dust mask (optional but recommended)
• •Clean rag for spindle
• •Spindle lock button (built into grinder)

Estimated Time: 5-10 minutes Difficulty: beginner

▸Step-by-Step Instructions

Step 1: Prepare Your Workspace and Gear Up

Start by unplugging the angle grinder if corded, or removing the battery if cordless. This prevents accidental starts. Choose a stable, well-lit workbench away from flammables.

Put on safety gloves, glasses, and a dust mask. PPE protects against flying debris and sparks during install and use.

Success looks like: Grinder powered off, you're fully protected, workspace clear.

💡 Tips:

• •Lay tools on a non-slip mat to avoid drops.

⚠️ Warnings:

• •Never skip PPE—disc fragments can cause serious injury.

Step 2: Select the Right Abrasive Disc

Check your grinder's manual for disc size (usually 4-1/2 inch) and type (Type 27 flat or Type 29 depressed center). Ensure the disc's arbor hole matches the spindle (typically 7/8 inch or 5/8-11 thread).

Inspect the new disc for cracks or damage. Match grit to task: coarse (24-40 grit) for heavy grinding, finer (60+) for finishing.

Success looks like: Disc specs match grinder; no visible defects.

💡 Tips:

• •Buy discs rated for your RPM—most grinders are 10,000+ RPM.

⚠️ Warnings:

• •Wrong size disc won't fit or will wobble dangerously.

Step 3: Lock the Spindle and Remove Old Disc

Press and hold the spindle lock button on the grinder head (opposite the guard). Insert the spanner wrench into the nut slots.

Turn the nut counterclockwise (lefty loosey) to loosen. Remove the outer flange (nut), old disc, and inner flange. Set aside safely.

Success looks like: All parts removed; spindle spins freely when unlocked.

💡 Tips:

• •If stuck, tap wrench lightly with a mallet—don't force.

⚠️ Warnings:

• •Spindle lock only works when grinder is off.

Step 4: Clean the Spindle and Flanges

Wipe the spindle, inner flange, and outer flange with a clean rag to remove dust, metal shavings, or residue. Debris causes poor seating and vibration.

Inspect for damage like bent flanges or stripped threads. Replace if needed.

Success looks like: Shiny, clean metal surfaces ready for reassembly.

💡 Tips:

• •Use isopropyl alcohol for stubborn grime.

Step 5: Install the Inner Flange

Slide the larger inner flange (backing plate) onto the spindle first, flat side against the grinder gear case.

Ensure it's fully seated and rotates freely.

Success looks like: Flange snug against the grinder body.

⚠️ Warnings:

• •Misaligned flange leads to uneven disc wear.

Step 6: Mount the Abrasive Disc

Center the new disc's arbor hole over the spindle. Press it flat against the inner flange—do not force.

The disc label faces away from the grinder for most types.

Success looks like: Disc sits flat, no gaps or wobble.

💡 Tips:

• •Hold disc by edges only to avoid contaminating abrasive.

⚠️ Warnings:

• •Cracked discs must be discarded immediately.

Step 7: Secure with Outer Flange and Tighten

Place the smaller outer flange (nut) over the spindle. Engage spindle lock and tighten clockwise with wrench (righty tighty)—most are left-hand thread, so confirm direction in manual.

Tighten firmly but not excessively (hand-tight plus 1/4 turn).

Success looks like: Nut secure; disc doesn't spin when tugged.

💡 Tips:

• •Mark flanges with tape for proper orientation.

⚠️ Warnings:

• •Overtightening strips threads; undertightening causes spin-off.

Step 8: Test Installation Before Use

Reconnect power/battery. Run grinder at low speed (if variable) for 30 seconds without touching surfaces. Check for vibration or noise.

Stop, tug disc to confirm tightness.

Success looks like: Smooth, quiet spin; disc secure.

💡 Tips:

• •Dress the disc by lightly grinding scrap metal first.

⚠️ Warnings:

• •Abnormal vibration? Disassemble and recheck.

▸Pro Tips

• •Always store discs flat to prevent warping.
• •Label discs by grit/date for quick swaps.
• •Use anti-vibration gloves for comfort during extended use.
• •Keep a spare wrench taped to your grinder.
• •Match disc RPM rating to grinder specs (e.g., 13,000 RPM max).
• •Install in batches for multiple projects to save time.
• •Clean flanges after every 5-10 changes.

▸Common Mistakes to Avoid

• •Ignoring PPE, leading to injuries from debris.
• •Using wrong disc size/type, causing imbalance or failure.
• •Not cleaning spindle, resulting in wobble and premature wear.
• •Incorrect tightening direction, stripping threads.
• •Skipping test run, risking disc detachment during work.

▸Troubleshooting

Problem: Disc wobbles or vibrates

Solution: Check alignment, clean surfaces, ensure flanges are correct. Replace bent disc.

Problem: Nut won't loosen/tighten

Solution: Confirm thread direction (often left-hand). Use penetrating oil if seized; replace if stripped.

Problem: Spindle lock not engaging

Solution: Ensure grinder is off. If faulty, service grinder professionally.

Problem: Disc doesn't fit

Solution: Verify arbor size (7/8" common). Use reducers if compatible.

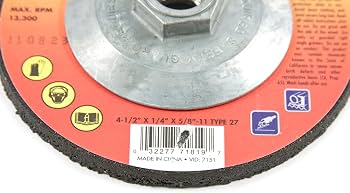

Forney 71857 4.5-Inch Type 27 Grinding Wheel (24 Pack)

Affordable, high-quality aluminum oxide wheels perfect for beginners; durable for metal grinding.

Best for: Heavy stock removal on steel; multi-pack for frequent changes.

Price Range: $25-$30

DEWALT 4-1/2-Inch 40-Grit Flap Disc (DWAFV834G)

Versatile ceramic flap disc with long life and cool cutting; reduces heat buildup.

Best for: Grinding welds or rust on metal; flap design for finishing.

Price Range: $8-$12

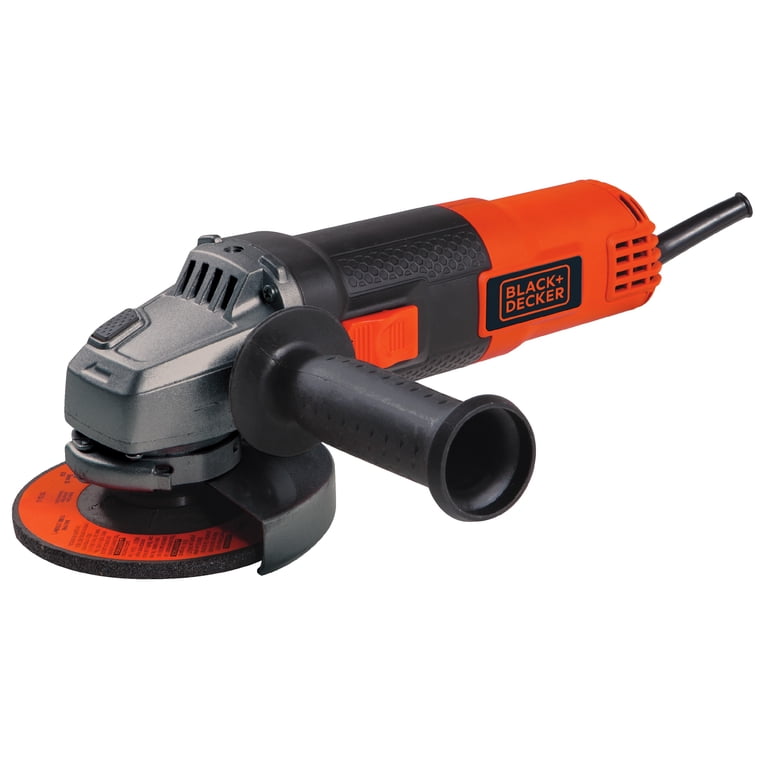

BLACK+DECKER BDEG400 4-1/2” Angle Grinder

Beginner-friendly with included wrench and easy spindle lock; lightweight for control.

Best for: DIY home projects; starter tool if you don't own one.

Price Range: $35-$45

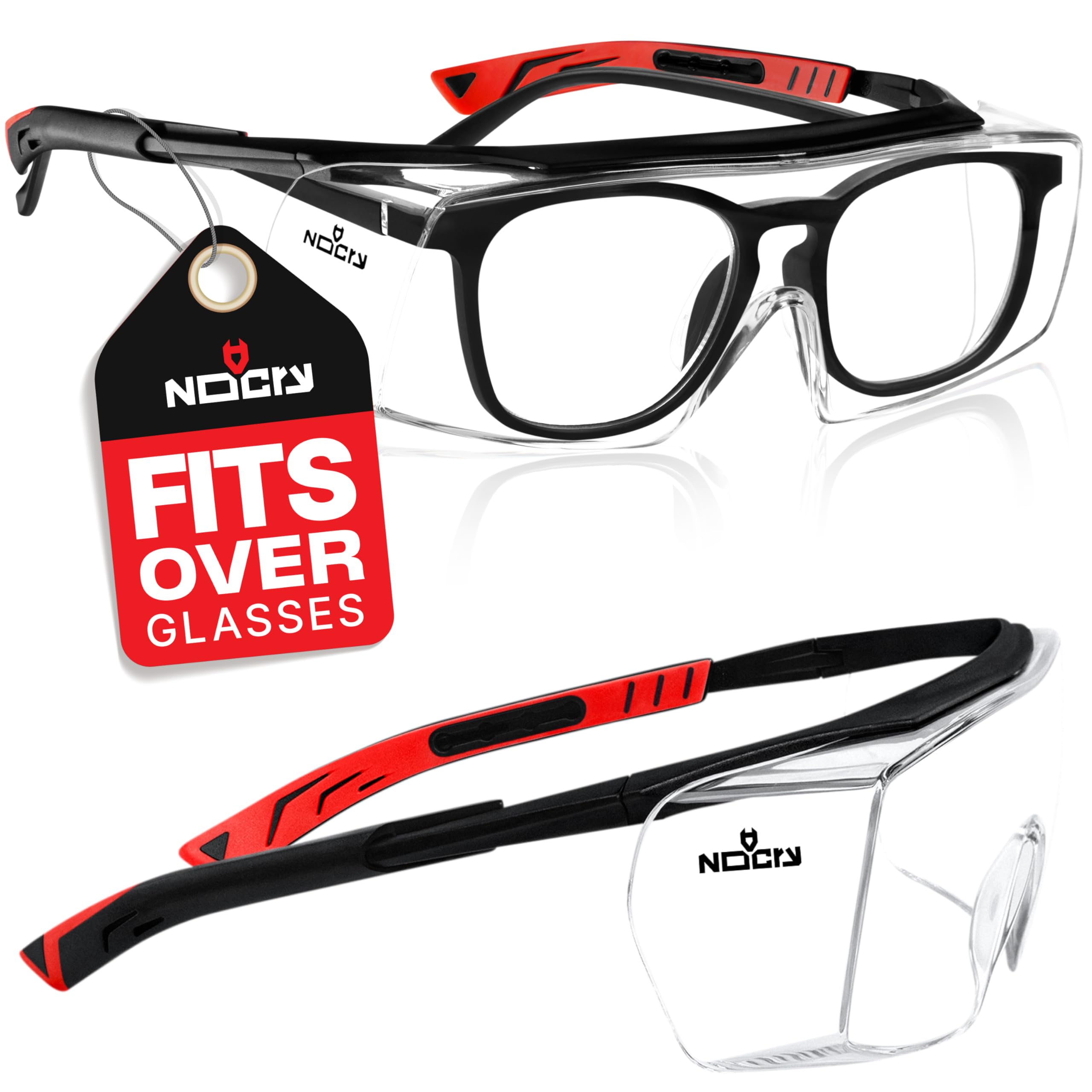

NoCry Safety Glasses

Clear, anti-fog lenses with side shields; comfortable for long sessions.

Best for: Essential eye protection during install and grinding.

Price Range: $12-$18

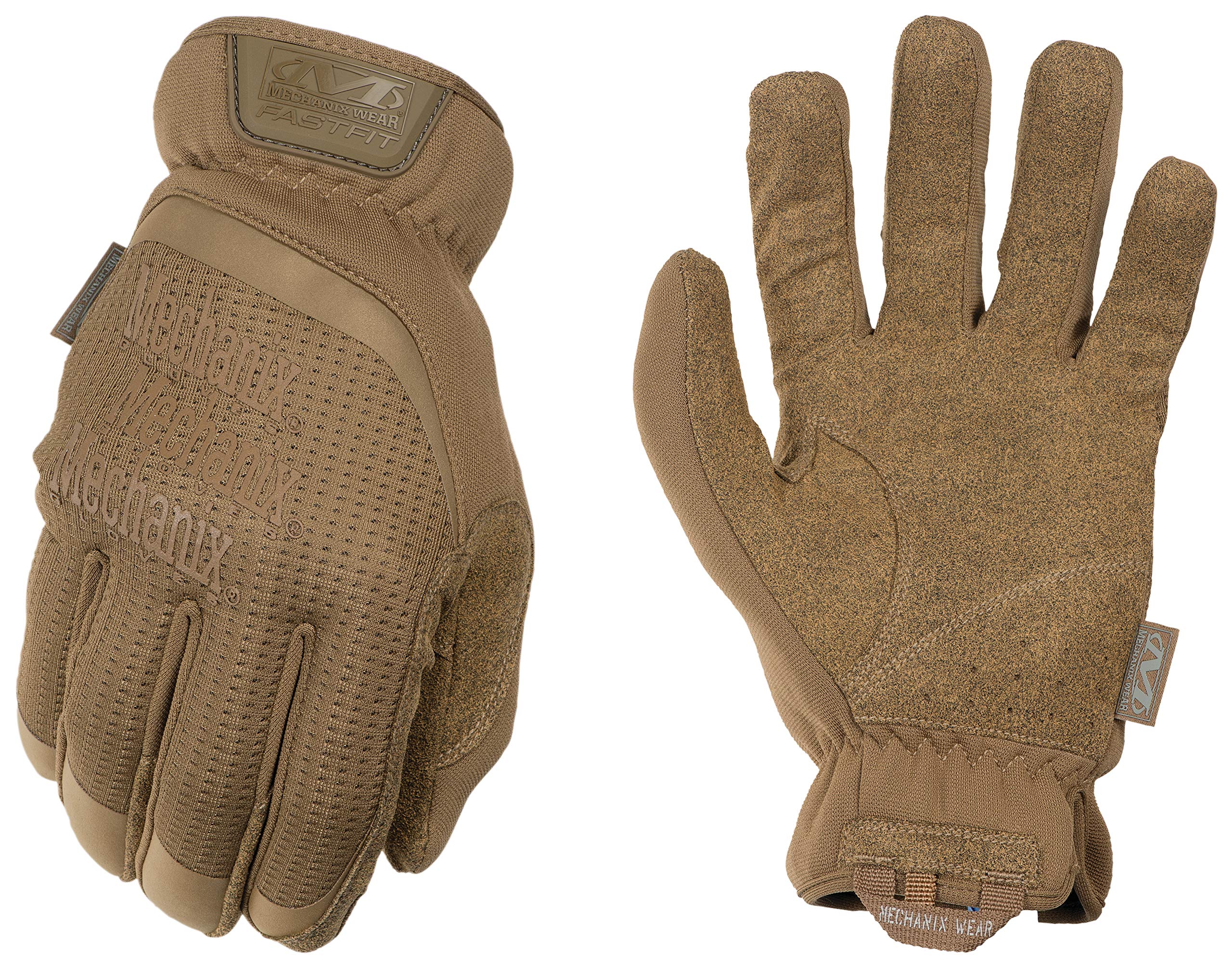

Mechanix Wear FastFit Gloves
