How to Safely Daisy-Chain Adapters for Events?

Events like weddings, trade shows, or parties often face limited outlets but high power demands for lights, speakers, and projectors. Daisy-chaining adapters—plugging one power strip into another—seems convenient but risks tripped breakers, overheating, or fires if done wrong. This guide shows you how to do it safely.

You'll learn to calculate loads, select rated gear, connect properly, and monitor setups. Expect a reliable power chain that handles 1500-3000W safely. Perfect for intermediate users familiar with basic electrics.

The process takes 15-30 minutes upfront, with ongoing monitoring. It's intermediate difficulty, assuming you know outlet types and basic math.

▸What You'll Need

• •Heavy-duty power strips or surge protectors (15A/1800W minimum, UL-listed)
• •Extension cords (12-14 gauge, outdoor-rated if needed)
• •Digital multimeter for voltage/load testing (required)
• •GFCI adapter or outlet tester (required for safety)
• •Tape measure and zip ties for cable management (optional)
• •Event power calculator app or spreadsheet (optional)

Estimated Time: 15-30 minutes setup + 5 minutes testing Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Calculate Your Total Power Needs

List all devices (e.g., 4x 100W lights = 400W, 2x 300W amps = 600W). Add 20% buffer for surges. Total under 80% of circuit rating (e.g., 12A max on 15A circuit).

Why? Prevents overloads. Success: Written load sheet under circuit limit.

Use an app like 'Kill A Watt' or formula: Watts = Volts x Amps (120V standard).

💡 Tips:

• •Prioritize high-draw items like amps first.

⚠️ Warnings:

• •Never exceed 1440W on standard 15A/120V circuits.

Step 2: Select Rated Power Strips and Cords

Choose UL-listed strips rated 15A+ with surge protection. Avoid cheap $5 adapters. Use 12-gauge cords for runs over 25ft.

Why? Thin wires overheat. Success: All gear matches or exceeds your calculated load.

Check labels for joule rating (>1000) and circuit breaker.

💡 Tips:

• •Opt for metal-housed strips for events.

Step 3: Inspect Wall Outlet and Add GFCI

Plug a GFCI adapter into the wall first. Test with outlet tester: Green for good ground/hot/neutral.

Why? Events near water (bars, outdoors) need GFCI. Success: Tester lights confirm safe outlet.

Reset GFCI if tripped.

⚠️ Warnings:

• •Skip if outlet lacks ground—stop and call electrician.

Step 4: Connect First-Tier Power Strip

Plug heaviest strip directly into GFCI. Distribute high-draw devices here (e.g., amps).

Why? Minimizes chain length. Success: Strip powers on without breaker trip.

Keep under 50% load on this tier.

Step 5: Daisy-Chain Secondary Strips Sparingly

Plug one secondary strip into first (max 1 level deep). Low-draw only (lights, chargers).

Why? Each chain adds resistance/heat. Success: All powers up, no warmth.

Never triple-chain.

⚠️ Warnings:

• •No daisy-chaining surge protectors into each other—use extension cords if needed.

Step 6: Test Loads with Multimeter

Measure voltage at each strip (>110V). Plug/test draw with 'Kill A Watt' or multimeter amp clamp.

Why? Confirms no drops. Success: Loads match calcs, voltage stable.

Ramp up gradually.

💡 Tips:

• •Test empty first, then load 50%, full.

Step 7: Secure and Ventilate Setup

Zip-tie cords off floor, away from traffic. Ensure 6in air gap around strips.

Why? Trips cause pulls/disconnects. Success: Neat, cool-running chain.

Use cable covers for events.

Step 8: Monitor During Event

Check heat every 30min. Have fire extinguisher nearby.

Why? Early overload detection. Success: Event runs smooth, no trips.

⚠️ Warnings:

• •Shut down if strip >140F or smells.

▸Pro Tips

• •Use a dedicated 20A circuit if available—doubles safe load.
• •Label strips with max loads for team use.
• •Invest in remote power switches for easy on/off.
• •For outdoors, all gear IP44+ rated.
• •Battery backups for critical lights/speakers.
• •Split loads across multiple walls if possible.
• •Log setup photo for teardown reference.

▸Common Mistakes to Avoid

• •Overloading: Ignoring watts leads to fires—always calculate.
• •Cheap gear: Flimsy strips melt—buy UL 15A+ only.
• •Long thin cords: Voltage drop causes failures—use 12ga.
• •No testing: Hidden ground faults trip mid-event—test first.
• •Triple-chaining: Amplifies risks—max 1 level.

▸Troubleshooting

Problem: Breaker trips immediately

Solution: Reduce load 20%, check for shorts. Redistribute devices.

Problem: Strips get hot

Solution: Unplug, let cool, shorten chain or upgrade gauge.

Problem: Voltage drops below 110V

Solution: Shorten cords or use thicker gauge. Split loads.

Problem: GFCI trips randomly

Solution: Test for ground faults with tester. Dry all plugs.

Problem: No power mid-event

Solution: Check connections sequentially. Have spare strip ready.

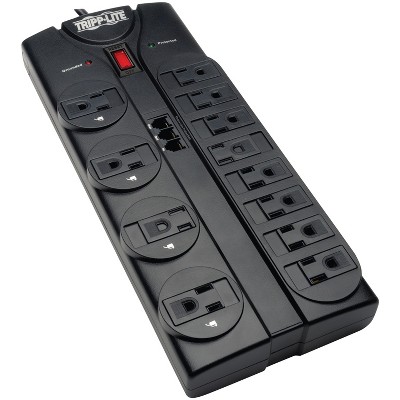

Tripp Lite Protect It 12-Outlet Surge Protector

Heavy-duty 1800W/15A with premium surge suppression, ideal for primary event strip.

Best for: Main chain hub for amps/lights at indoor events.

Price Range: $45-$55

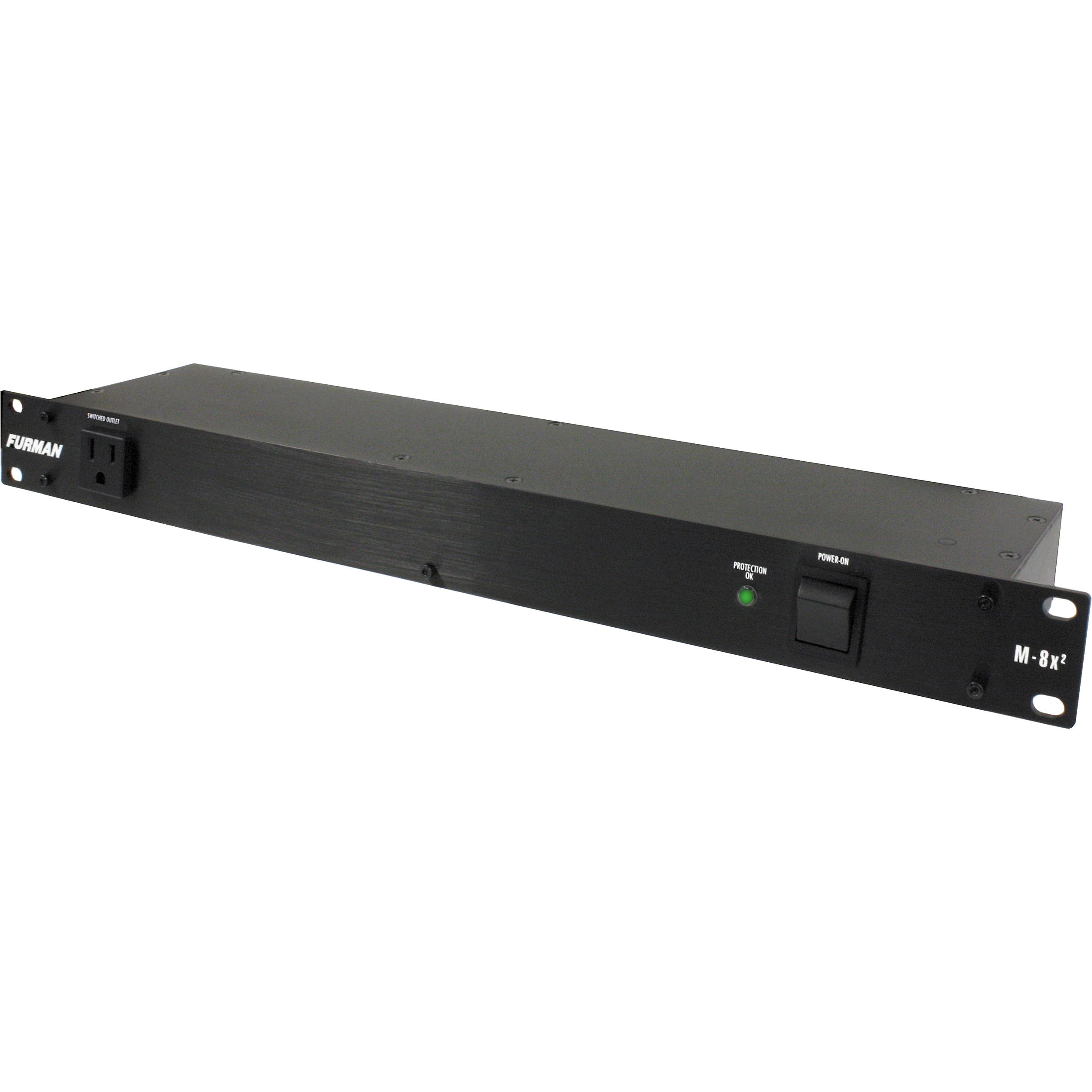

Furman M-8X2 8-Outlet Power Conditioner

Rugged metal case, EMI filtering for clean power in pro events.

Best for: Audio-heavy setups to reduce noise/hums.

Price Range: $70-$90

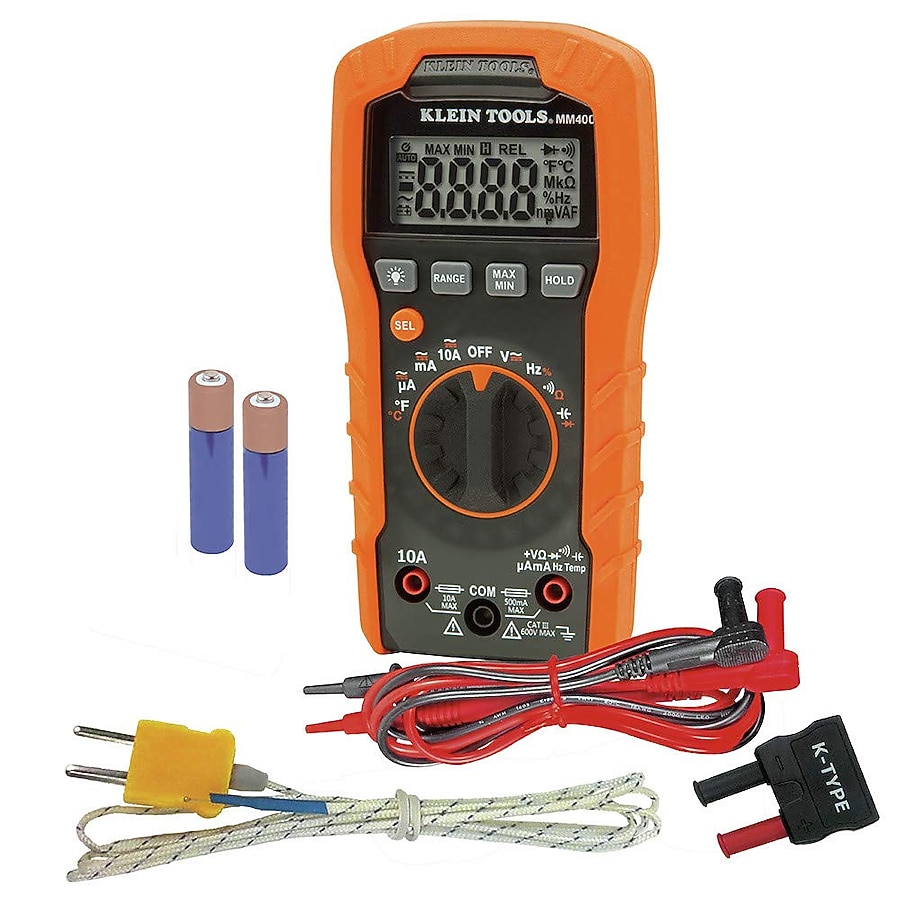

Klein Tools MM400 Digital Multimeter

Accurate voltage/amp testing essential for safe verification.

Best for: Pre/post-setup load checks.

Price Range: $25-$35

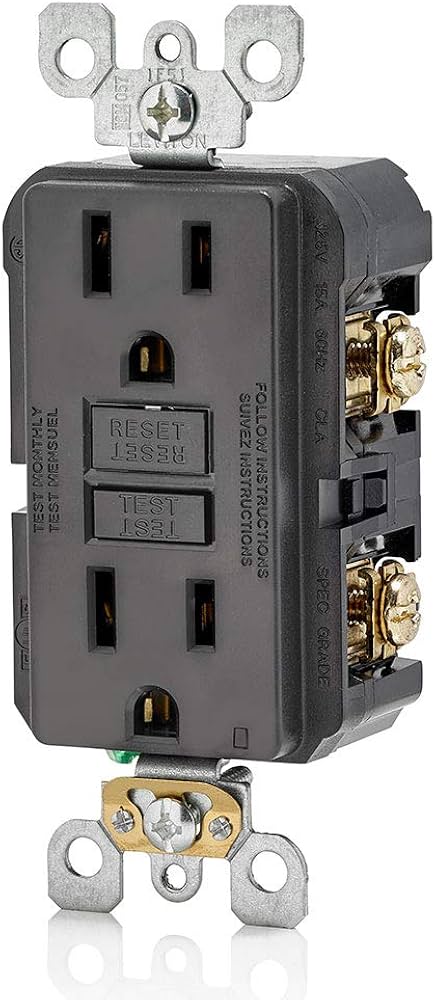

Leviton GFNT1-W Self-Test GFCI Outlet Adapter

Auto-testing GFCI adds wall safety layer.

Best for: Any damp event location.

Price Range: $12-$18

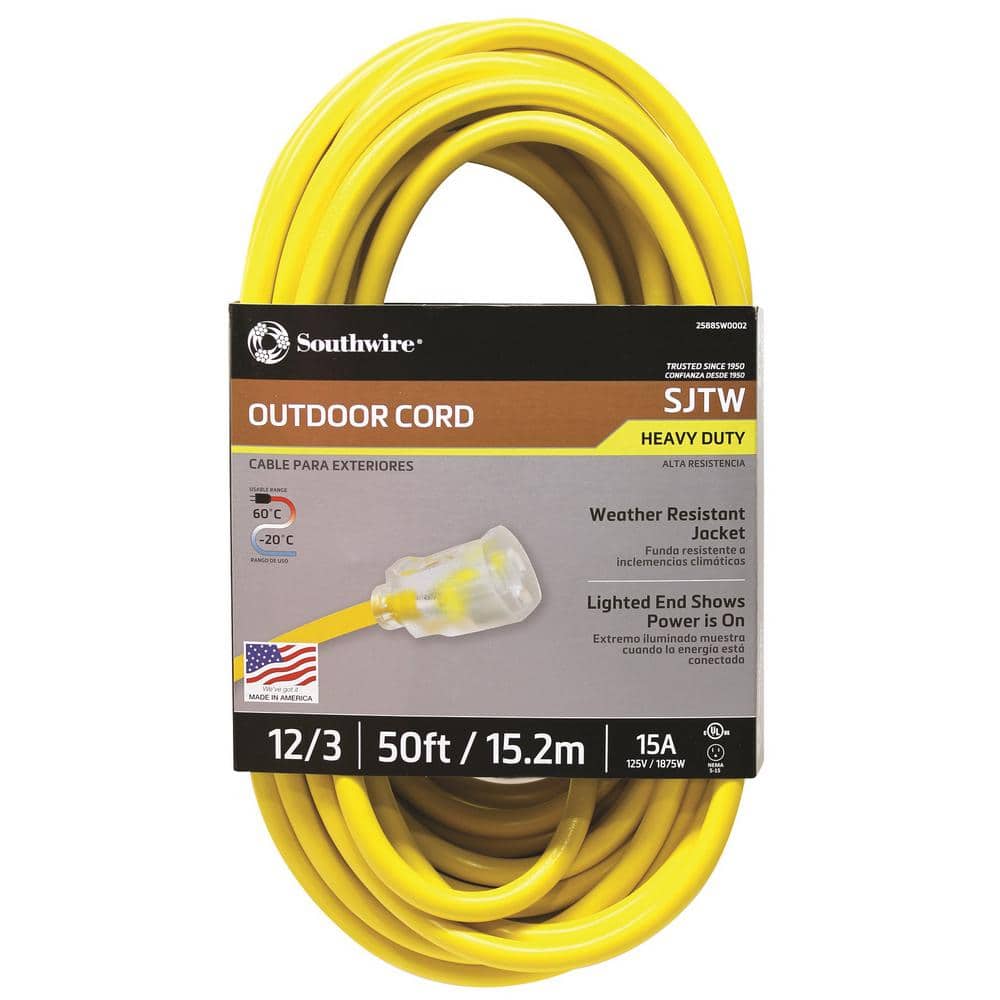

Southwire 50ft 12/3 SJTW Extension Cord

Heavy 12-gauge minimizes voltage drop in long runs.

Best for: Outdoor/large venue chaining.

Price Range: $45-$60
