How to Build Abrasive Finishing Stations for Metalwork?

In metalwork, achieving a mirror-like finish requires more than handheld tools—dedicated abrasive finishing stations streamline the process from rough grinding to polishing, saving time and reducing fatigue. Poorly set up stations lead to uneven surfaces, dust hazards, and safety risks, costing pros hours of rework. This guide empowers advanced metalworkers to build professional-grade stations tailored to their needs.

You'll learn to construct a modular station integrating belt grinders, disc sanders, polishers, and dust extraction for flawless results on steel, aluminum, and alloys. Expect a robust setup handling heavy-duty tasks with variable speeds and ergonomic design.

This advanced project takes 6-10 hours over 1-2 days, assuming welding and fabrication skills. No prior station-building experience needed, but proficiency in metal fab is essential.

▸What You'll Need

• •Heavy-duty steel workbench or frame materials (1/4" steel tubing, 3/16" plate)
• •Belt grinder (e.g., 2x72" or 1x42" model)
• •Disc sander (6-8" variable speed)
• •Polishing arbor/motor (1/2 HP variable speed)
• •Dust collector (1-2 HP with cyclone separator)
• •Angle grinder, welder (MIG/TIG), drill press, clamps
• •Safety gear: respirator, gloves, face shield, ear protection
• •Electrical: 220V wiring kit, variable speed controllers
• •Abrasives: belts (36-400 grit), discs, polishing wheels
• •Optional: LED work lights, armrests, coolant system

Estimated Time: 6-10 hours over 1-2 days Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Plan Your Station Layout

Sketch a layout optimizing workflow: belt grinder for stock removal, disc for shaping, polisher for finishing. Position tools 24-36" apart for arm reach without strain. Factor in 4-6' width for dual-sided access and dust port alignment.

Why it matters: Efficient layout prevents cross-contamination of abrasives and reduces operator fatigue. Use CAD software or graph paper; aim for 36" working height.

Success: A blueprint with dimensions, power needs (220V/20A), and dust routing.

💡 Tips:

• •Measure your space first—leave 2' clearance around for safety.
• •Include modular mounts for tool swaps.

⚠️ Warnings:

• •Avoid cramped designs; poor ergonomics cause RSI.

Step 3: Mount the Belt Grinder

Secure a 2x72" belt grinder to the frame using 1/2" bolts through slotted holes for tilt/platen angle adjustment (0-90°). Align tracking rollers and tensioner for flat grinding.

Belt grinders excel at rapid stock removal on blades/parts. Variable speed (1000-5000 SFPM) prevents burn.

Success: Belt tracks smoothly without wandering.

💡 Tips:

• •Add idler roller for contact wheel use.
• •Calibrate platen flatness with straightedge.

⚠️ Warnings:

• •Loose mounts cause belt slap—torque to 50 ft-lbs.

Step 4: Install Disc Sander and Polisher

Bolt 8" disc sander opposite the belt, adding fence and miter gauge. Mount 1/2 HP polisher arbor nearby with shaft guards.

This combo handles convex/concave contours. Use PSA discs for quick changes.

Success: Tools aligned parallel, no interference.

💡 Tips:

• •Lubricate bearings before install.
• •Add speed controller for polisher (1725-3450 RPM).

⚠️ Warnings:

• •Exposed discs snag sleeves—install guards.

Step 5: Integrate Dust Collection System

Plumb 4" ducts from each tool to a 2HP cyclone collector mounted below bench. Use blast gates for isolation.

Dust control is critical for health and visibility in metalwork.

Success: 99% capture rate, clear air.

💡 Tips:

• •Short, straight runs minimize suction loss.
• •HEPA filter for fine aluminum dust.

⚠️ Warnings:

• •Static buildup sparks—ground all metal.

Step 6: Wire Electrical and Controls

Install NEMA 6-20R outlets, VFDs for speed control, and E-stop. Use conduit for safety.

Modular power prevents overloads.

Success: All tools run independently, quick shutoff.

💡 Tips:

• •Label breakers.
• •Add voltmeter.

⚠️ Warnings:

• •220V mismatch trips—verify phases.

Step 7: Add Safety and Ergonomics

Install armrests, LED floodlights, coolant tray. Add spark arrestor and fire extinguisher mount.

Enhances precision and safety.

Success: Comfortable, illuminated workspace.

💡 Tips:

• •Motion-sensor lights save energy.

⚠️ Warnings:

• •No shortcuts on guards—OSHA compliance.

Step 8: Test, Calibrate, and Tune

Power up, check alignments, run test grinds on scrap. Adjust trims for vibration-free operation.

Final polish verifies finish quality.

Success: Flawless 400-grit surface in minutes.

💡 Tips:

• •Log settings for repeatability.

⚠️ Warnings:

• •Overheat test—monitor temps.

▸Pro Tips

• •Use quick-change arbors to swap grits in seconds.
• •Invest in ceramic belts for cooler, faster metal removal.
• •Angle platen 1° for hollow grinds on knives.
• •Vibrate frame with test weights to check rigidity.
• •Custom coolant nozzles prevent clogging.
• •Modular design allows future upgrades.
• •Grind downhill for better chip evacuation.

▸Common Mistakes to Avoid

• •Insufficient dust collection leading to silicosis risk—always prioritize HEPA.
• •Poor alignment causing belt wander and uneven finishes—use levels at every mount.
• •Overlooking vibration isolation, resulting in fatigue cracks—add rubber pads.
• •Inadequate power supply tripping breakers—calculate total amps upfront.
• •Skipping guards, inviting lacerations—weld shields on all spin tools.

▸Troubleshooting

Problem: Belt slips or derails

Solution: Check tension (thumb deflection 1/2"), clean trackers, replace worn belt.

Problem: Excessive vibration

Solution: Tighten all bolts, balance armatures, add damping pads.

Problem: Dust buildup despite collector

Solution: Inspect seals/gaskets, increase CFM, clean filters weekly.

Problem: Overheating during polish

Solution: Apply compound sparingly, use lower RPM, add coolant mist.

Problem: Uneven finishes

Solution: Progressive grits only, light pressure, consistent speed.

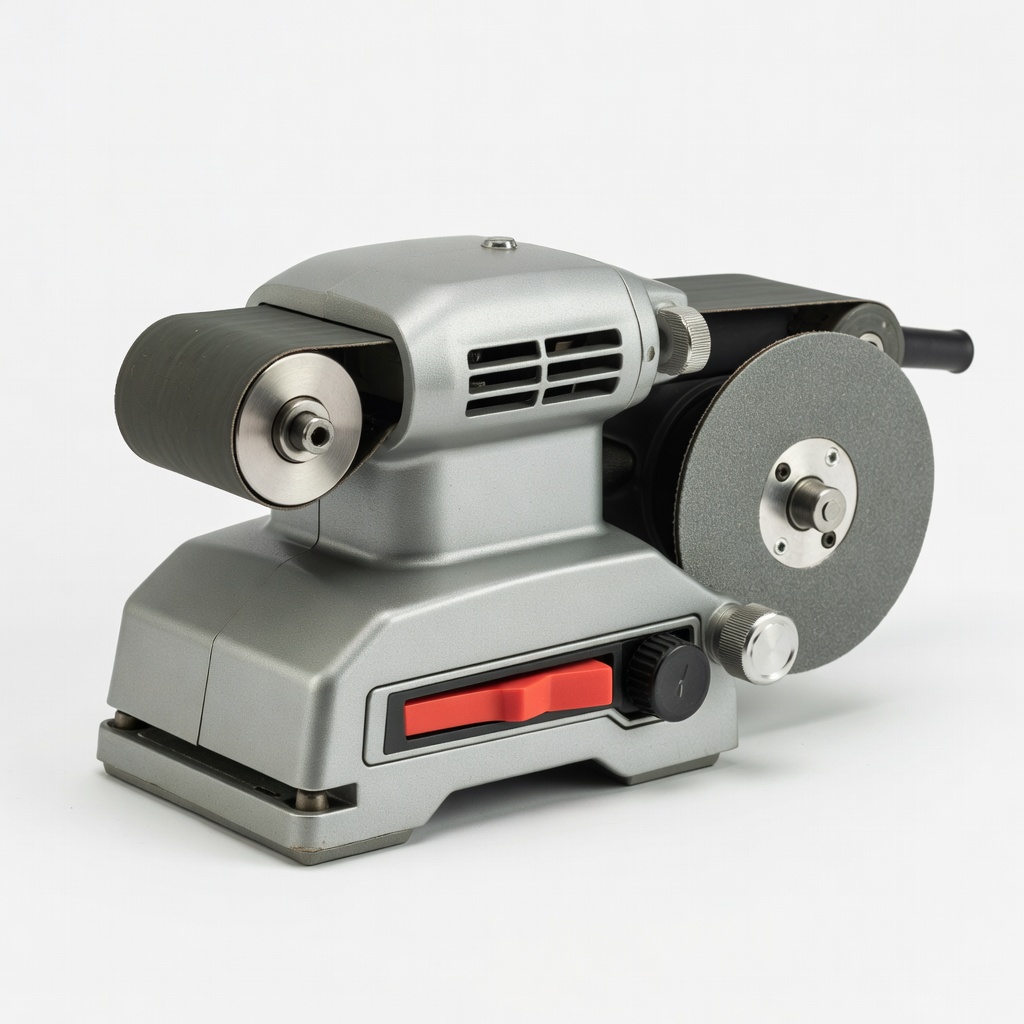

Rikon 10-325 1 x 42 Belt Sander with 5-Inch Disc

Compact, powerful for initial stock removal; variable tracking for precise metalwork.

Best for: Mount as primary belt grinder for blades/parts up to 1/4" thick.

Price Range: $250-$300

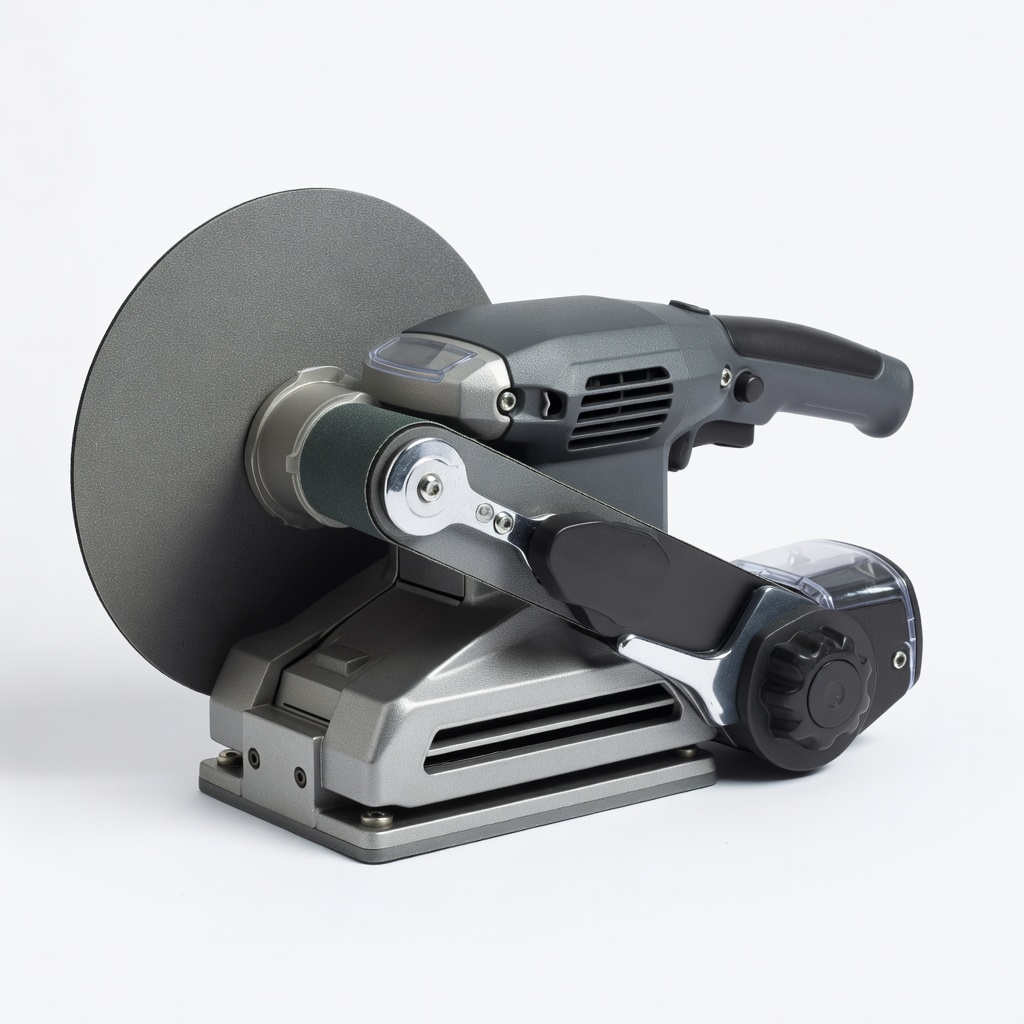

WEN 6502T 4 x 36 Inch Belt and 6 x 48 Inch Disc Sander

Versatile combo with tilt table; ideal for contoured metal surfaces.

Best for: Shaping and deburring after rough grinding.

Price Range: $200-$250

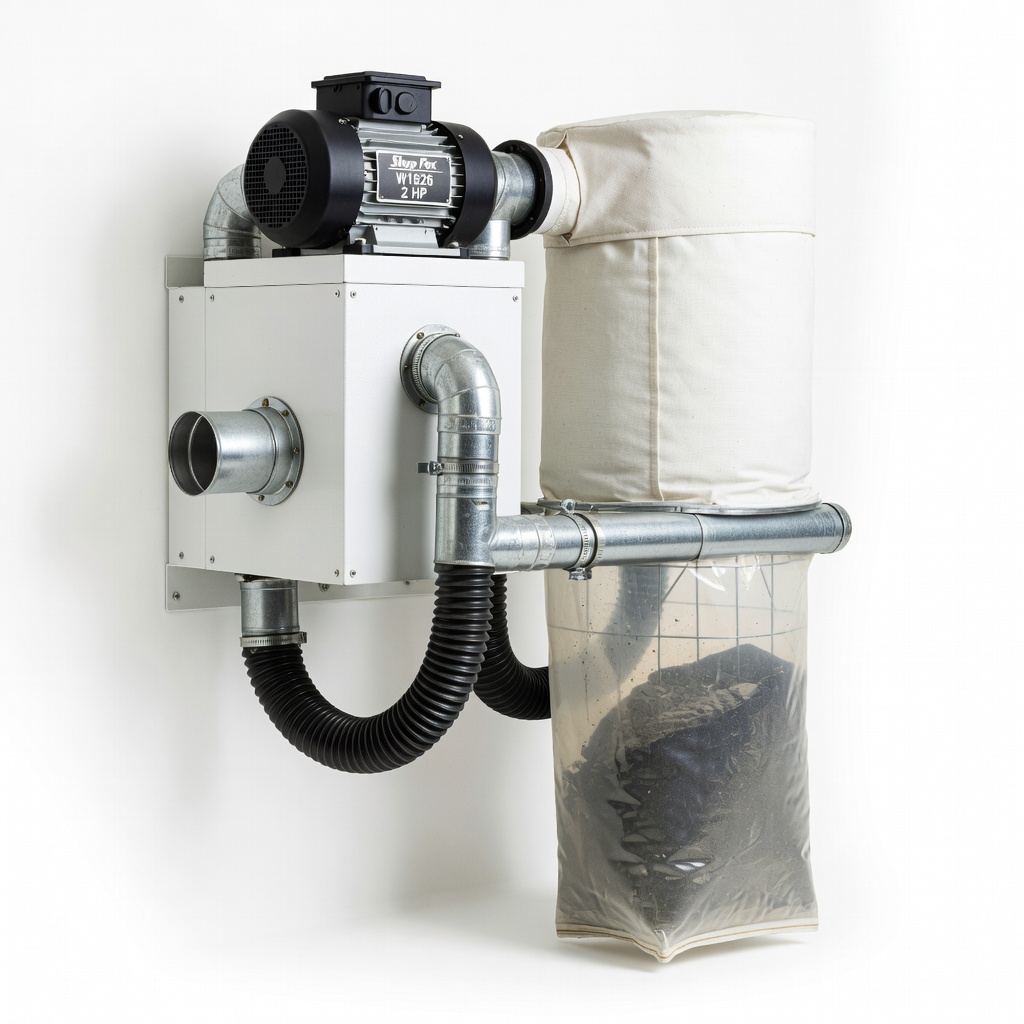

Shop Fox W1826 2 HP Wall-Mount Dust Collector

High CFM cyclone design captures 99% fine metal dust efficiently.

Best for: Central extraction for entire station.

Price Range: $400-$500

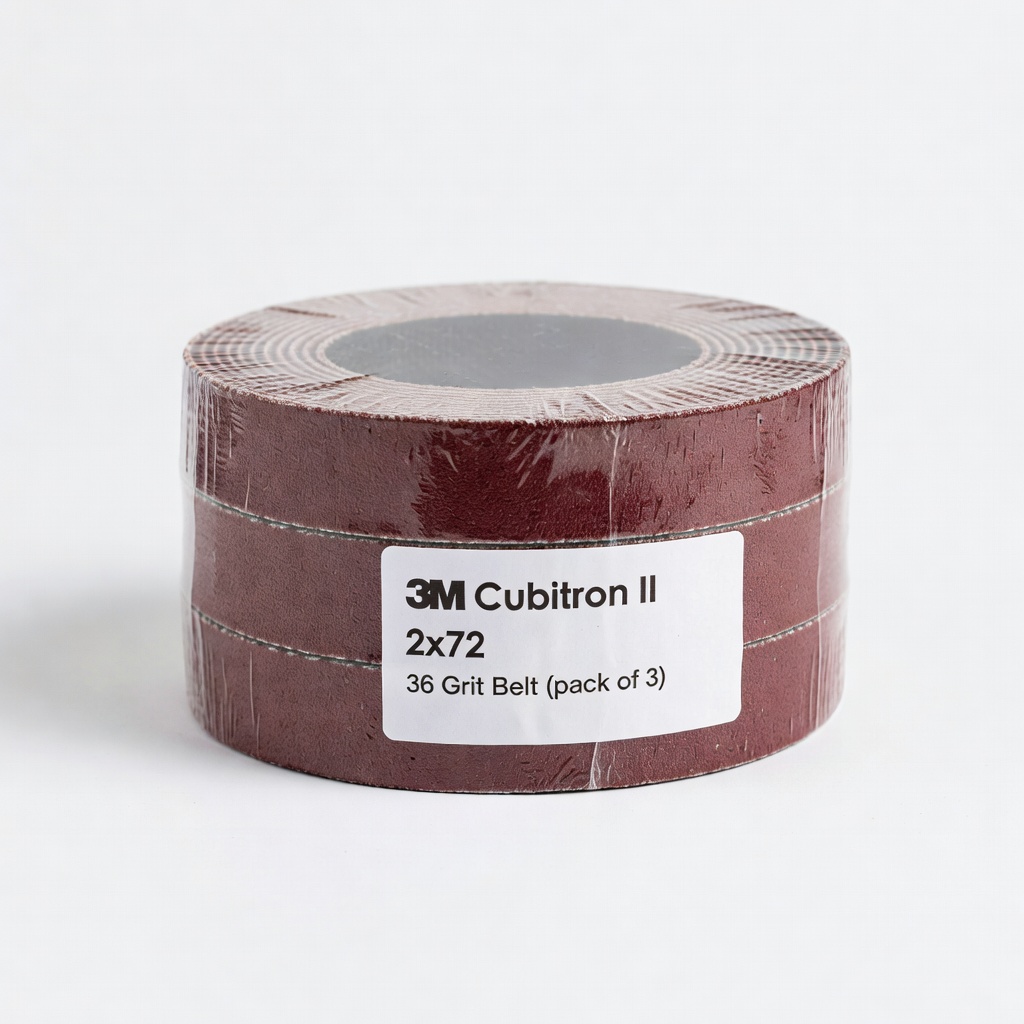

3M Cubitron II 2x72 36 Grit Belt (pack of 3)

Self-sharpening ceramic for cool, fast cutting on stainless/steel.

Best for: Aggressive stock removal without burning.

Price Range: $50-$70

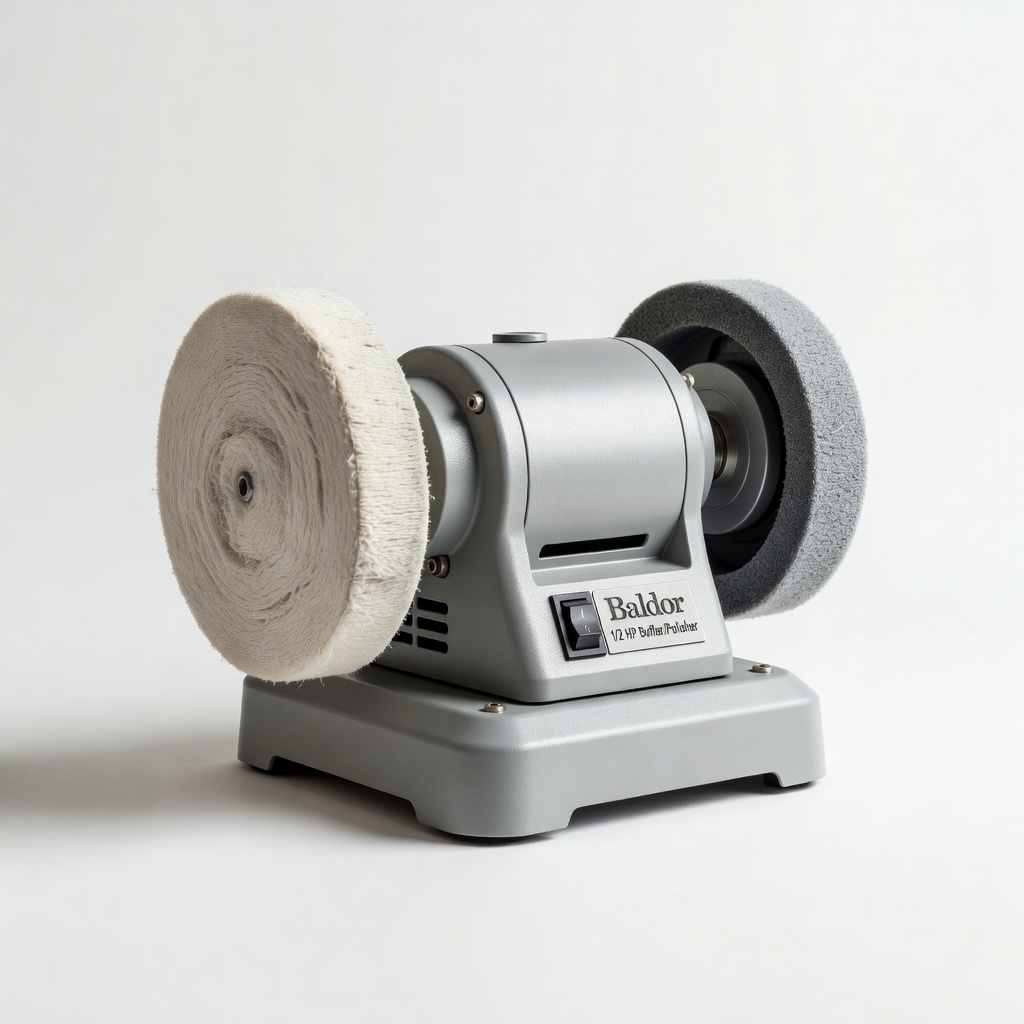

Baldor 1/2 HP Buffer/Polisher
