How to Build a PVC Greenhouse Frame

Want to grow fresh veggies through winter without breaking the bank? A simple PVC greenhouse frame lets you create a hoop-style structure that protects plants from frost, pests, and harsh weather. It's lightweight, affordable, and easy to disassemble—perfect for beginner gardeners ready to level up.

In this guide, you'll learn to build an 8x10 ft frame step-by-step using common PVC fittings. No welding or fancy tools needed. Expect a durable frame ready for plastic sheeting in 4-6 hours of work. This intermediate project assumes basic measuring and cutting skills.

By the end, you'll have a freestanding frame that supports 6-ft tall plants, with room to customize size or add doors.

▸What You'll Need

• •3/4-inch Schedule 40 PVC pipe (20 x 10-ft lengths for hoops and base)
• •1-inch Schedule 40 PVC pipe (4 x 10-ft lengths for cross braces)
• •PVC connectors: 24 x 90-degree elbows (3/4-inch), 8 x T-joints (3/4-inch), 4 x 4-way tees (3/4-inch)
• •PVC primer and cement (1 quart each)
• •PVC cutter or hacksaw
• •Measuring tape
• •Marker or pencil
• •#4 rebar (12 x 2-ft lengths for ground anchors)
• •Rubber mallet
• •Drill with 3/4-inch bit (optional for zip ties)
• •Optional: Zip ties or twine for extra securing

Estimated Time: 4-6 hours Difficulty: intermediate

▸Step-by-Step Instructions

Step 1: Plan Your Greenhouse Layout

Measure and mark your 8x10 ft site on level ground. Use stakes and string to outline the rectangle: 10 ft long sides, 8 ft wide ends. Clear debris and ensure it's flat to prevent frame wobble.

Why it matters: Accurate layout ensures even hoops and stability. Sketch a simple diagram: base frame, 5 hoops spaced 2 ft apart, peaking at 6 ft high.

Success: A perfectly squared 8x10 outline ready for assembly.

💡 Tips:

• •Choose a sunny south-facing spot for max light.
• •Add 1 ft extra space around for access paths.

⚠️ Warnings:

• •Avoid uneven ground—dig out high spots to save headaches later.

Step 2: Cut PVC Pipes for the Base Frame

Measure and cut 3/4-inch PVC: 2 x 10 ft (long sides), 2 x 8 ft (ends), plus 4 x 2 ft (corners). Use PVC cutter for clean, square cuts.

Dry-fit the base: Connect longs to shorts with elbows at corners. It should form a rigid 8x10 rectangle.

Success: Neatly cut pipes stacked, base frame dry-fitted flat on ground.

💡 Tips:

• •Cut slightly long and trim to fit for precision.
• •Label cuts with marker to avoid mix-ups.

Step 3: Assemble and Glue the Base Frame

Apply PVC primer to ends and fittings, wait 10 seconds, then cement. Quickly insert and twist pipes into elbows for long sides and ends.

Tap joints firmly with mallet. Prop corners with temporary stakes if needed.

Why: Cement creates airtight, strong bonds that withstand wind. Let cure 2 hours before next steps.

Success: Solid glued base frame, joints secure and square.

⚠️ Warnings:

• •Work fast—cement sets in 30 seconds. Have rags ready for drips.

Step 4: Prepare Hoop Arches

Cut 5 x 20-ft 3/4-inch PVC into 10-ft arches (bend naturally over knee). Each hoop needs two 10-ft pieces joined with 4-way tee in center.

Dry-fit hoops upright on base, spacing 2 ft apart, centered on long sides.

Success: 5 flexible arches ready, mimicking a Quonset hut shape.

💡 Tips:

• •Soften PVC in hot water for easier bending if stiff.

Step 5: Install Ground Anchors

Drive 2-ft rebar 18 inches into ground at each hoop base location (10 spots total, 2 ft apart along sides). Space evenly from base ends.

Hammer straight down for vertical anchors.

Why: Anchors prevent frame lift in wind—crucial for stability.

Success: Rebar stubs protruding 6 inches, aligned perfectly.

⚠️ Warnings:

• •Wear gloves—rebars are sharp. Call 811 if near utilities.

Step 6: Insert and Secure Hoops

Slide hoop ends over rebar anchors, then glue T-joints or elbows at base to connect to frame sides. Use zip ties for extra hold if needed.

Check peaks align at 6 ft height; adjust bends.

Success: Arched skeleton standing tall, wobble-free.

💡 Tips:

• •Team up for this—hoops are springy and hard solo.

Step 7: Add Cross Braces and End Walls

Cut 1-inch PVC for 2 x 8-ft ridge poles across top, glue to center tees. Add end frames: glue verticals and horizontals with elbows.

Secure doors or flaps later.

Success: Reinforced frame ready for covering.

Step 8: Final Inspection and Cure

Walk around, tug joints, square corners. Let all glue cure 24 hours.

Test stability by pushing sides.

Success: Rock-solid frame awaiting plastic sheeting.

💡 Tips:

• •Sprinkle water on joints to check for leaks in glue.

⚠️ Warnings:

• •Don't cover until fully cured—trapped moisture weakens bonds.

▸Pro Tips

• •Pre-cut all pipes on sawhorses for straight lines.
• •Use a level on base for perfect flatness.
• •Add diagonal braces with twine for wind-prone areas.
• •Scale up/down: Multiply materials by length ratio.
• •Paint frame white for heat reflection inside.
• •Store extra connectors for repairs.
• •Plant low-growers near ends for airflow.

▸Common Mistakes to Avoid

• •Uneven hoop spacing—causes sagging cover; measure twice.
• •Skipping primer—weak joints fail in wind; always prime.
• •Shallow rebar—frame tips over; drive deep.
• •Oversized PVC—too floppy; stick to 3/4-inch.
• •Rushing cure time—collapses under stress; wait 24 hours.

▸Troubleshooting

Problem: Frame wobbles side-to-side

Solution: Add guy wires or diagonal PVC braces from peaks to base corners.

Problem: Hoops won't bend evenly

Solution: Heat pipe in sun or hot water 5 mins, then bend slowly.

Problem: Glue joints leak air

Solution: Re-prime and re-glue; use purple primer for visibility.

Problem: Base not square

Solution: Measure diagonals (should be equal ~12.8 ft); adjust corners.

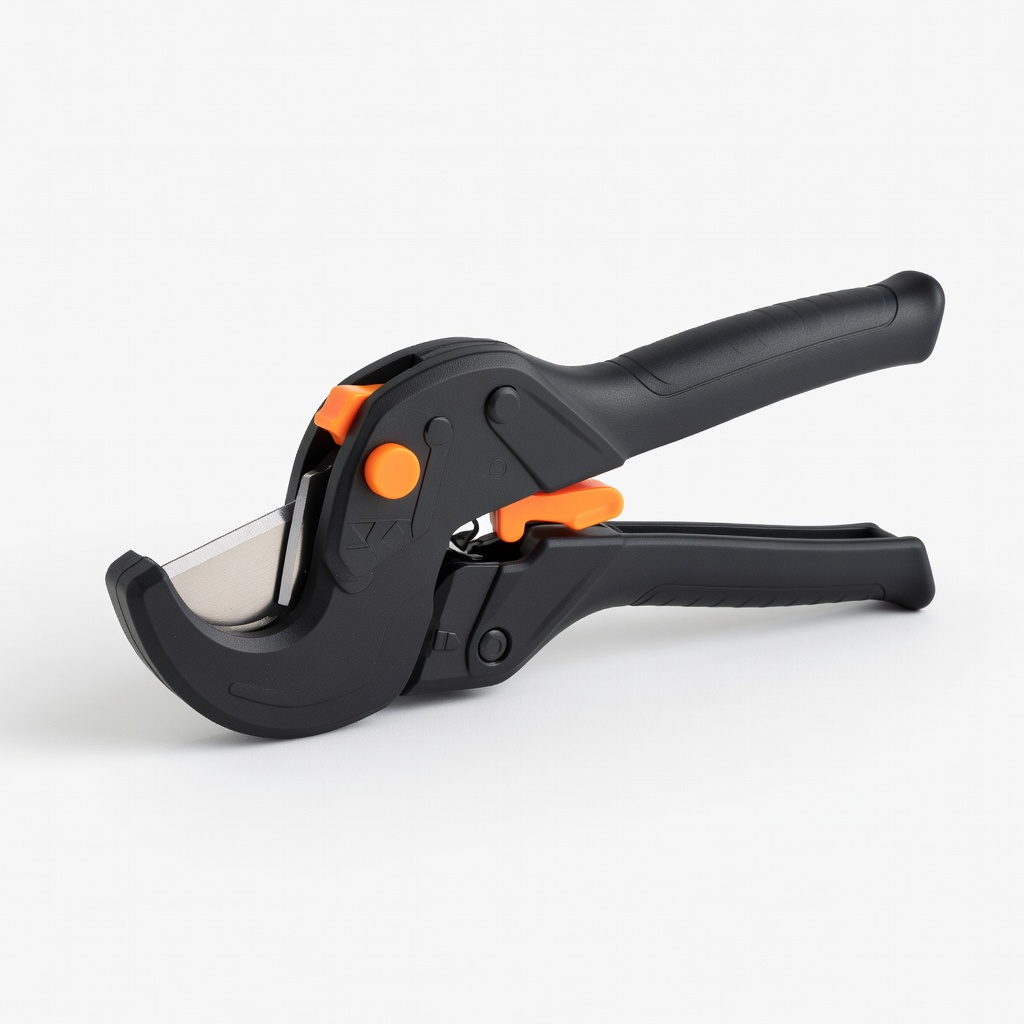

Sterwins PVC Pipe Cutter

Makes clean, burr-free cuts faster than hacksaw, essential for precise fitting.

Best for: Cutting all PVC lengths accurately during steps 2 and 4.

Price Range: $16.99

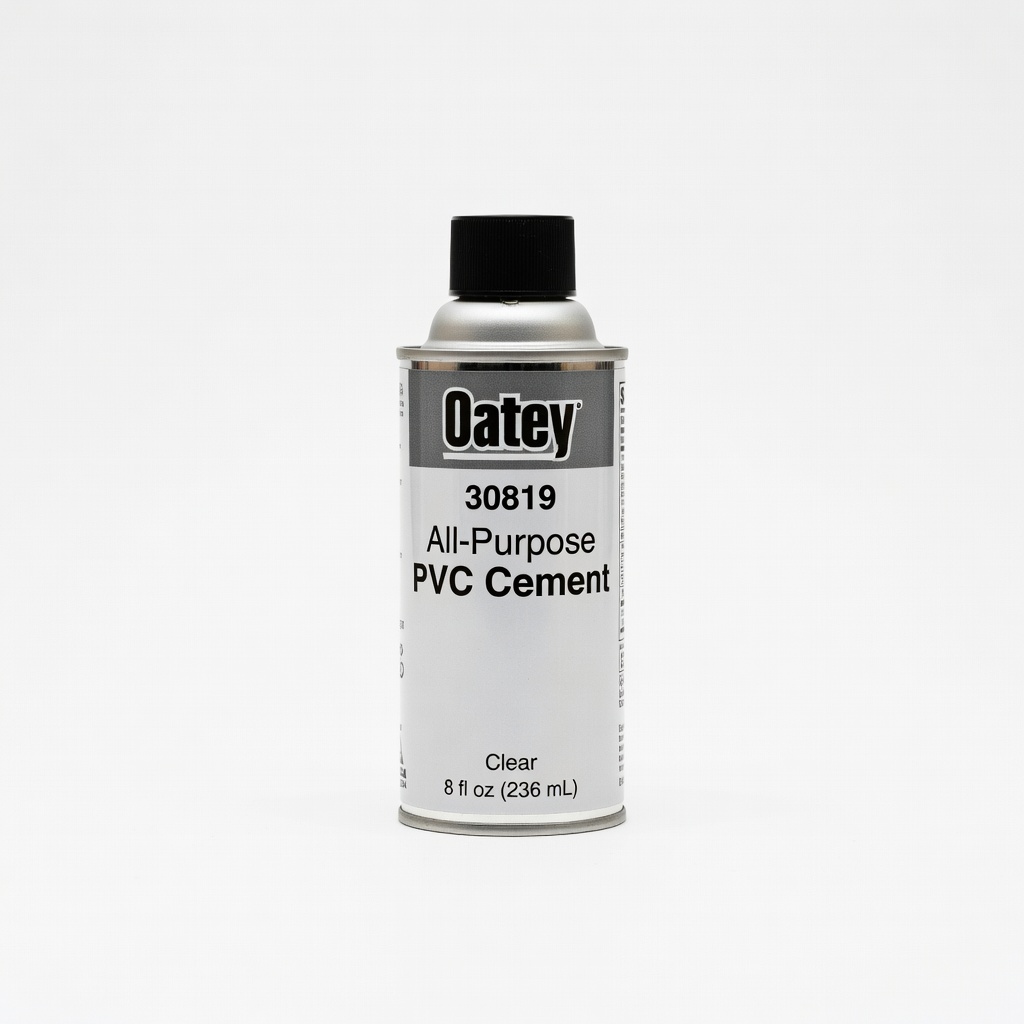

Oatey 30819 All-Purpose PVC Cement

Heavy-duty formula bonds Schedule 40 PVC reliably, even in damp conditions.

Best for: Gluing all joints in steps 3,6,7 for weatherproof strength.

Price Range: $7.47

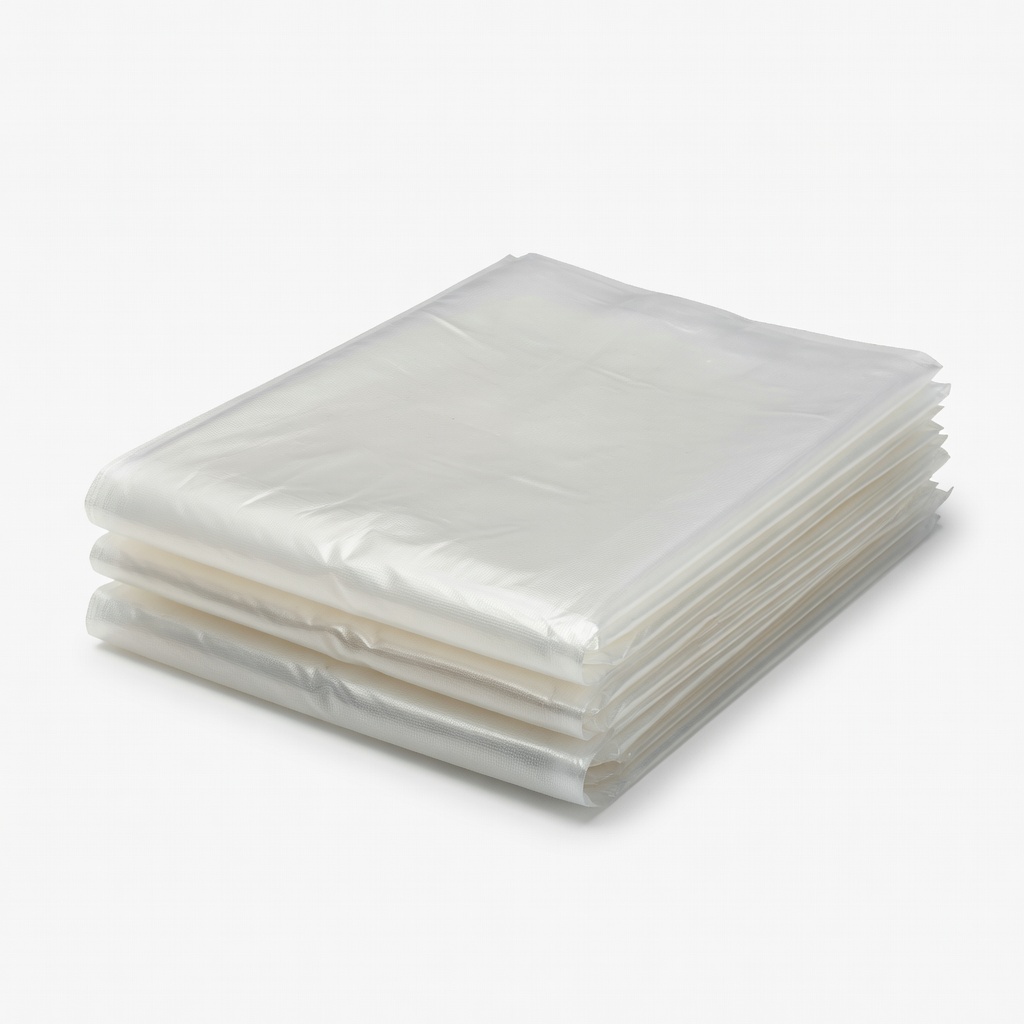

Agfabric 10x20 ft Greenhouse Plastic Sheeting

UV-protected 6 mil poly fits perfectly over frame, blocks 90% UV for plant health.

Best for: Covering the completed frame post-build.

Price Range: $29.99

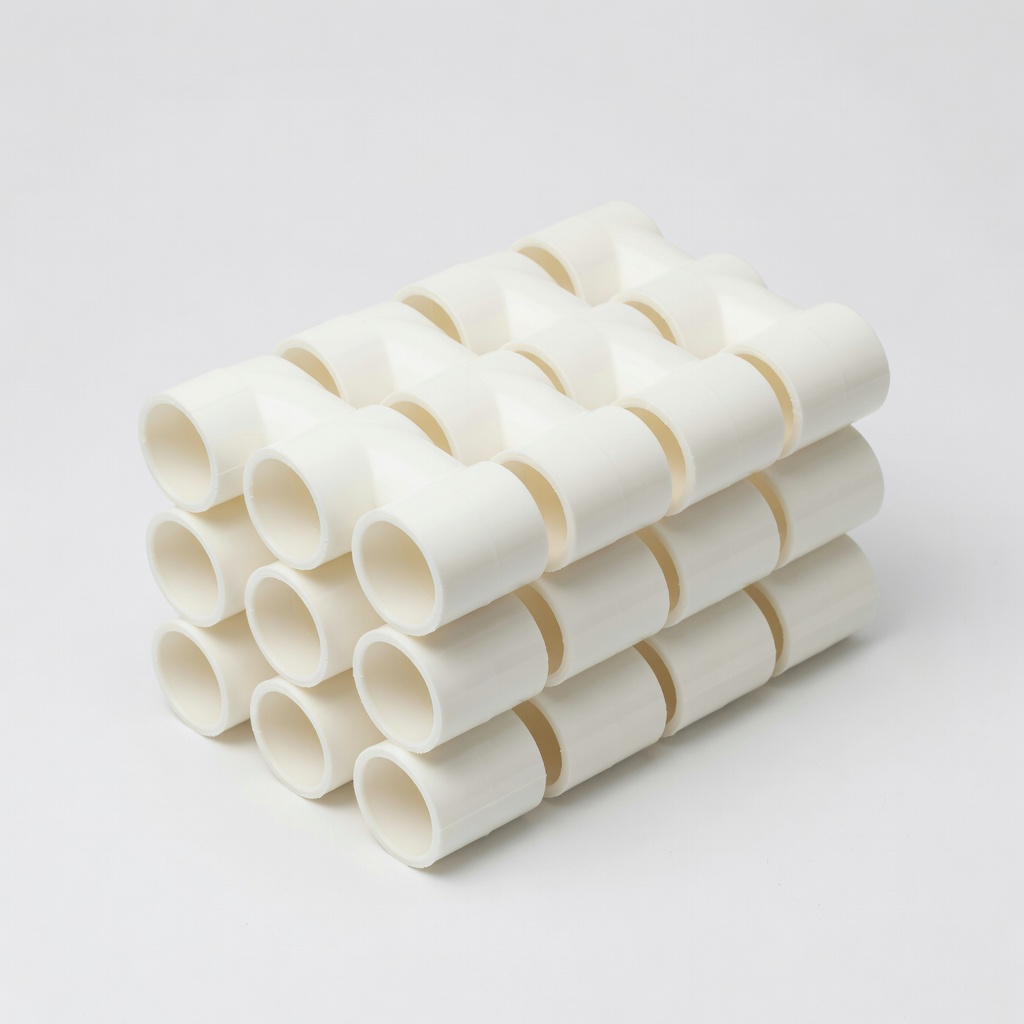

Charlotte Pipe 3/4-inch PVC Elbow Fittings (Pack of 25)

High-quality Schedule 40 fittings match pipe perfectly, no leaks.

Best for: Base frame and hoop connections; buy in bulk to save.

Price Range: $24.99

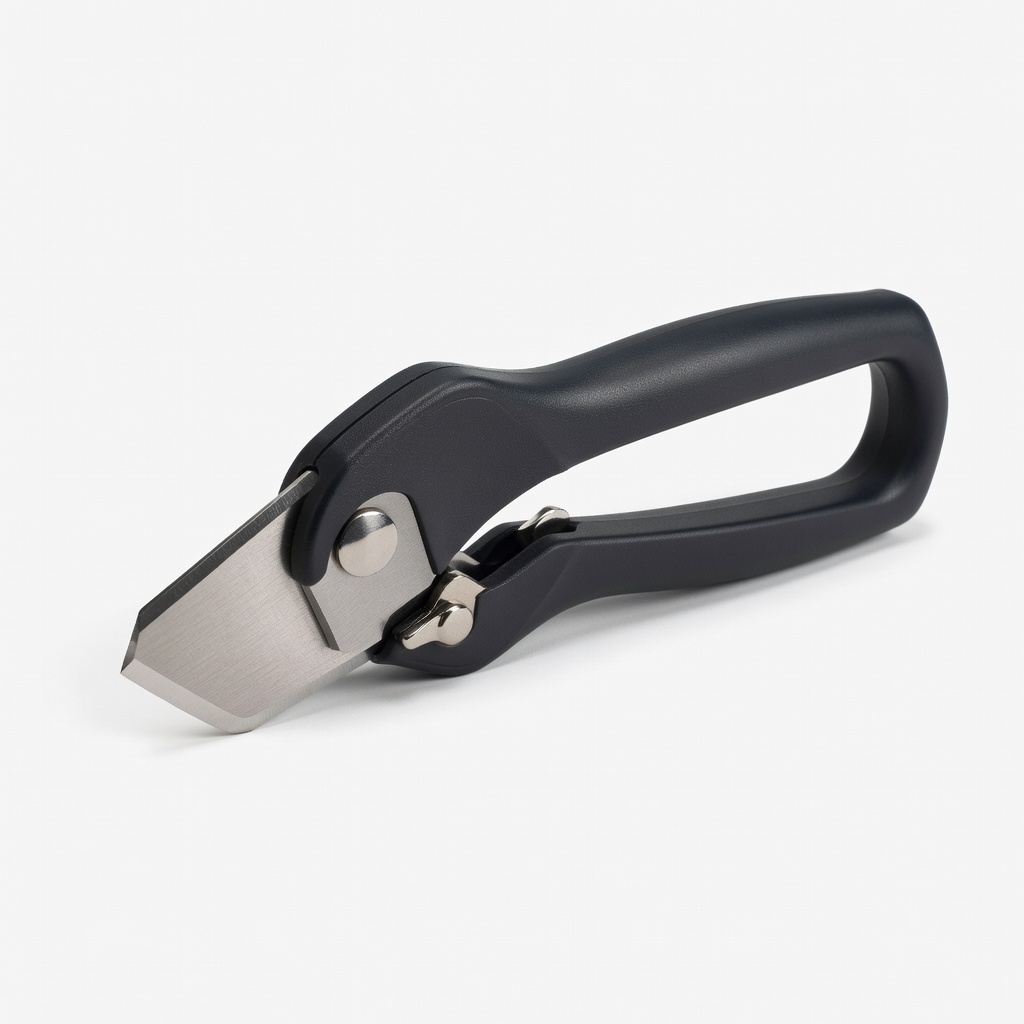

Bessey PV22.5 PVC Cutter
