How to Build a Custom AC Adapter Cable?

Finding the perfect AC adapter for vintage gear, custom projects, or discontinued devices can be a nightmare—stock options often mismatch polarity, voltage, or barrel size, leading to fried circuits or endless searching. Building your own custom cable solves this, giving you full control over specs and saving hundreds on replacements.

In this advanced guide, you'll learn to safely construct a custom AC adapter cable using a standard AC cord and DC pigtail. We'll cover spec matching, soldering, testing, and safety from start to finish. Expect 1-2 hours of hands-on work if you have electronics experience; no prior cable-building needed, but soldering proficiency is key.

By the end, you'll have a functional cable ready for your router, pedal, or prototype—tested for continuity, polarity, and load.

▸What You'll Need

• •IEC C13 power cord or figure-8 (donor AC cord, 18-20 AWG, 3-6 ft)
• •DC barrel pigtail connector (match your device's OD/ID size, e.g., 5.5x2.1mm, with correct polarity)
• •Stranded wire (22-24 AWG, red/black for +/– if extending)
• •Soldering iron (60-80W with fine tip) and 60/40 rosin-core solder
• •Wire strippers/cutters (precision VDE type)
• •Heat shrink tubing (assorted 1/16"-1/4" diameters)
• •Digital multimeter (for voltage, continuity, polarity checks)
• •Helping hands clamp, flux pen, desoldering wick (optional but recommended)
• •Electrical tape and zip ties for strain relief
• •Dummy load resistor (e.g., 10W 100Ω for testing)

Estimated Time: 1-2 hours Difficulty: advanced

▸Step-by-Step Instructions

Step 1: Determine Your Device's Power Specs

Start by identifying the exact voltage (e.g., 12V DC), current (amps), polarity (center positive/negative), and connector size (e.g., 5.5mm OD x 2.1mm ID). Check the device's label, manual, or use a multimeter on an existing adapter.

Why it matters: Mismatched specs can destroy your device or cause fires. Use online databases like Siltronix or measure with calipers. Note regulated vs. unregulated output if applicable.

Success: A spec sheet with V, A, polarity diagram, and connector pinout.

💡 Tips:

• •Cross-reference with device schematic if available.
• •Polarity is critical—most are center positive, but confirm.

⚠️ Warnings:

• •Never assume specs; always measure.

Step 2: Select and Prepare Donor AC Cord

Choose a 18-20 AWG IEC C13 or figure-8 cord rated for your current needs (e.g., 5A+). Cut to desired length (3-6 ft), leaving plug intact.

Strip 1/2" outer jacket, then 1/4" from brown/live and blue/neutral wires (ignore green ground for DC output). Twist strands.

Success: Cleanly stripped wires ready for soldering, no nicks.

💡 Tips:

• •Salvage from old PC power cords—they're free and high-quality.

⚠️ Warnings:

• •Work unplugged; AC side carries lethal voltage.

Step 3: Prepare DC Barrel Pigtail

Strip 1/4" insulation from the DC pigtail's red (+) and black (–) wires. If no pigtail, crimp or solder wires to a bare barrel jack.

Tin the tips: Heat soldering iron to 350°C, apply flux, tin wires lightly.

Success: Tinned wire ends shiny and straight.

💡 Tips:

• •Match wire gauge to pigtail (22 AWG typical).

⚠️ Warnings:

• •Observe polarity—red to center (usually positive).

Step 4: Solder AC Wires to DC Pigtail

Secure in helping hands. Solder brown (live) to red (+), blue (neutral) to black (–). Heat joint 3-5 sec, add solder until flows.

Why: Creates low-resistance DC output from AC rectified internally? No—standard cords are AC; for DC adapter, use pre-rectified wall wart or add bridge rectifier (advanced: see troubleshooting).

For true AC-DC: Source a switching supply cord. Success: Smooth, bubble-free joints.

💡 Tips:

• •Use flux for clean joints; avoid cold solder.
• •Test continuity immediately.

⚠️ Warnings:

• •Overheat shrinks insulation—work fast.

Step 5: Insulate Joints with Heat Shrink

Slide heat shrink over each joint pre-soldering, shrink with heat gun or lighter (low flame). Add larger tubing over both for strain relief.

Wrap in electrical tape if needed.

Success: Fully insulated, flexible cable with no exposed metal.

💡 Tips:

• •Double-shrink for high-vibration use.

⚠️ Warnings:

• •No bare wire—short risk.

Step 6: Test Continuity and Polarity

Set multimeter to continuity (beep mode). Check + to center pin, – to sleeve. Verify no shorts between +/– or to ground.

DC voltage test: Plug into known supply, measure output.

Success: Beeps on correct paths, 0Ω resistance, correct polarity.

💡 Tips:

• •Label +/– with tags.

⚠️ Warnings:

• •Test unpowered first.

Step 7: Load Test the Cable

Connect to device or dummy load (match amps). Monitor voltage drop (<5%), heat (<60°C).

Run 10-15 min.

Success: Stable output, cool to touch.

💡 Tips:

• •Use variac if available for slow ramp-up.

⚠️ Warnings:

• •Fire watch—smoke means failure.

Step 8: Final Assembly and Labeling

Strain relieve with zip ties. Add heat-shrink label with specs ("12V + center 2A").

Success: Professional-looking, durable cable ready for use.

💡 Tips:

• •Encapsulate in braided sleeve for premium feel.

⚠️ Warnings:

• •Don't use near water without IP-rated parts.

▸Pro Tips

• •Tin all wires first for faster soldering.
• •Use flux pen on tough joints—reduces oxidation.
• •Match wire gauge to max current (18AWG for 5A+).
• •Add inline fuse (3AG) for protection.
• •For extensions, use shielded wire to minimize noise.
• •Test with oscilloscope if high-frequency switching supply.
• •Batch-build multiples to save setup time.

▸Common Mistakes to Avoid

• •Ignoring polarity—flips damage devices; always verify with multimeter.
• •Undersized wire—overheats/melts; calculate AWG via ampacity charts.
• •Poor soldering (cold joints)—fails under load; reheat until shiny.
• •Skipping load test—cable works unloaded but drops voltage; always stress-test.
• •No strain relief—pulls apart at joints; use tubing/zip ties.

▸Troubleshooting

Problem: No output voltage

Solution: Check continuity/polarity; verify AC plug works. Resolder if cold joint.

Problem: Voltage drop under load

Solution: Upgrade to thicker wire; check connections for resistance.

Problem: Overheating

Solution: Verify current rating; add heatsink to rectifier if DIY PSU.

Problem: Short circuit

Solution: Inspect insulation; use multimeter diode mode on joints.

Problem: Wrong connector fit

Solution: Measure precisely; use adjustable crimp tool for custom jacks. Seek pro if unsure.

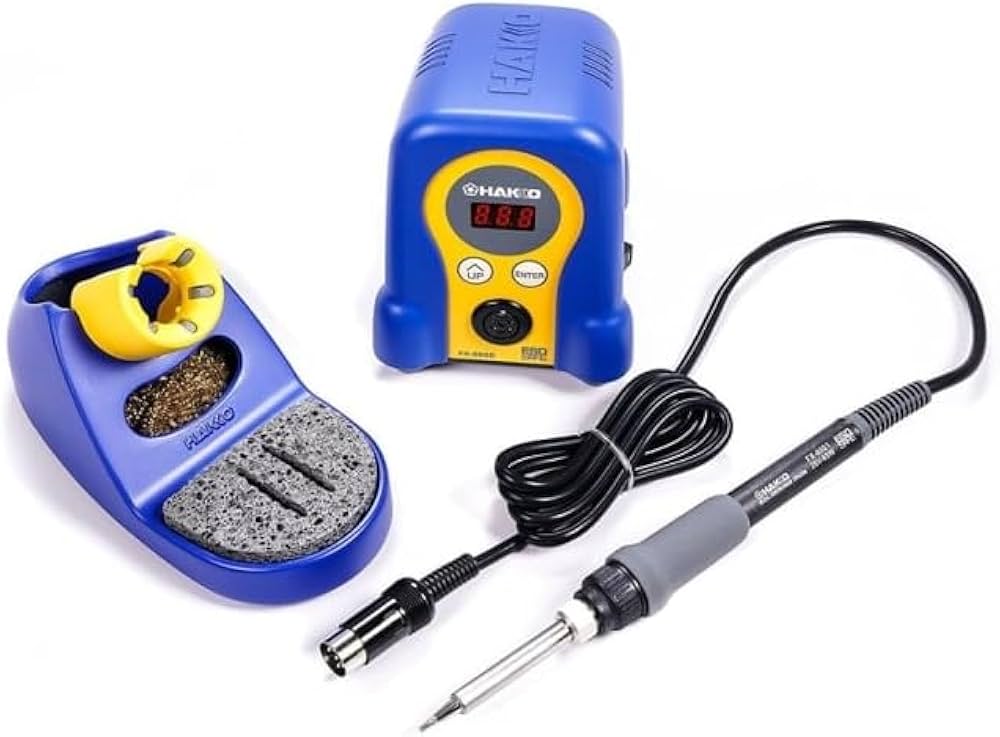

Hakko FX-888D Digital Soldering Station

Precise temp control (50-480°C) prevents cold joints on fine wires.

Best for: All soldering steps; essential for pro results.

Price Range: $99.99

Klein Tools MM400 Digital Multimeter

Accurate continuity, voltage, and auto-ranging for safe testing.

Best for: Polarity and load checks; rugged for bench use.

Price Range: $29.97

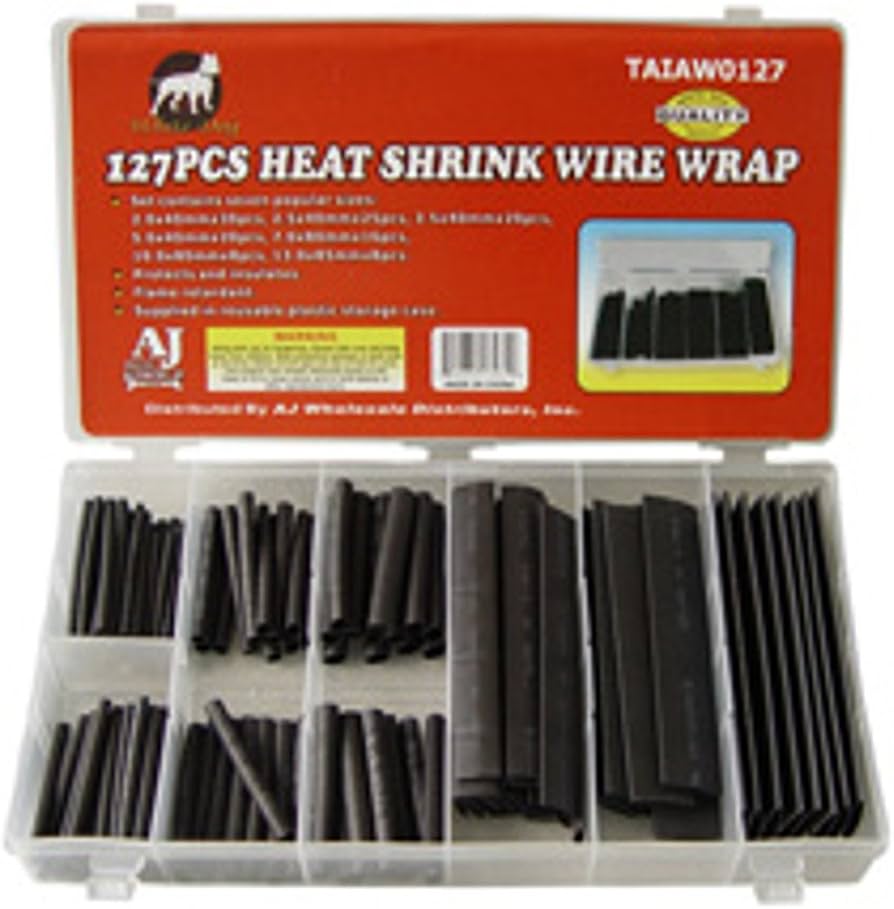

Eventronic Heat Shrink Tubing Kit (127pcs)

Assorted sizes/colors for perfect fit insulation.

Best for: Joint protection and strain relief.

Price Range: $12.99

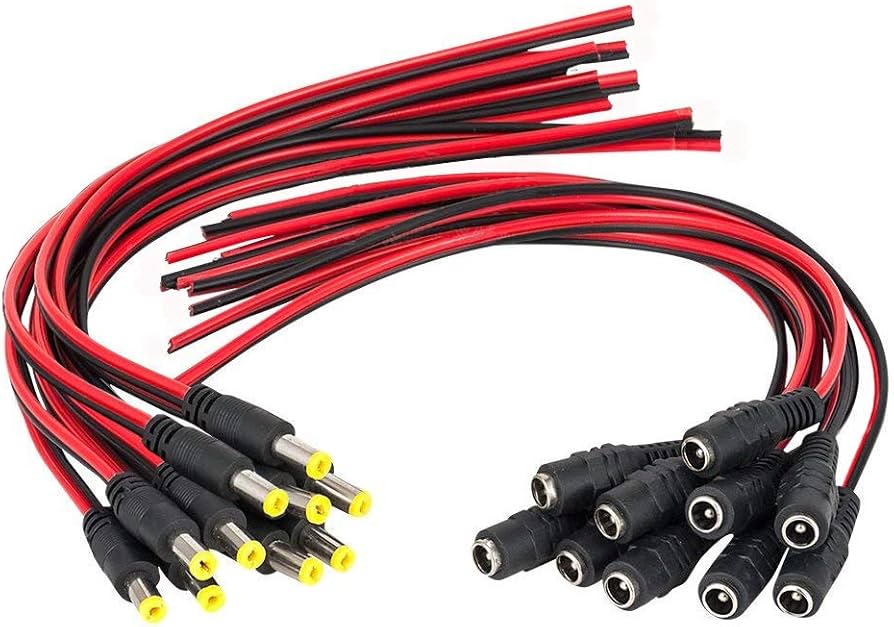

ALITOVE DC Power Pigtail Cables (5.5x2.1mm)

Pre-stripped, high-quality for common sizes; polarity marked.

Best for: Direct solder to AC cord for most devices.

Price Range: $9.99

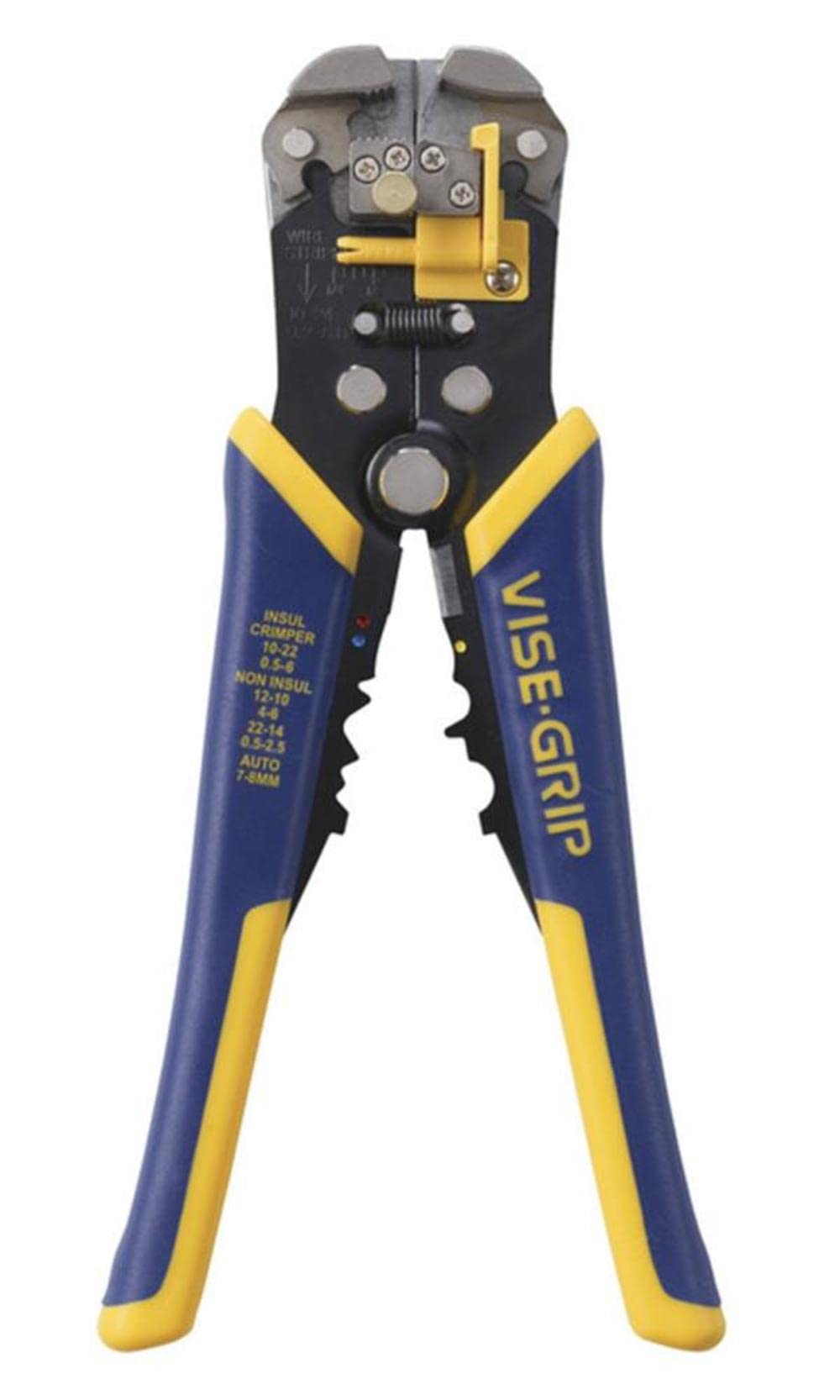

Irwin Vise-Grip 2078300 Wire Stripper
